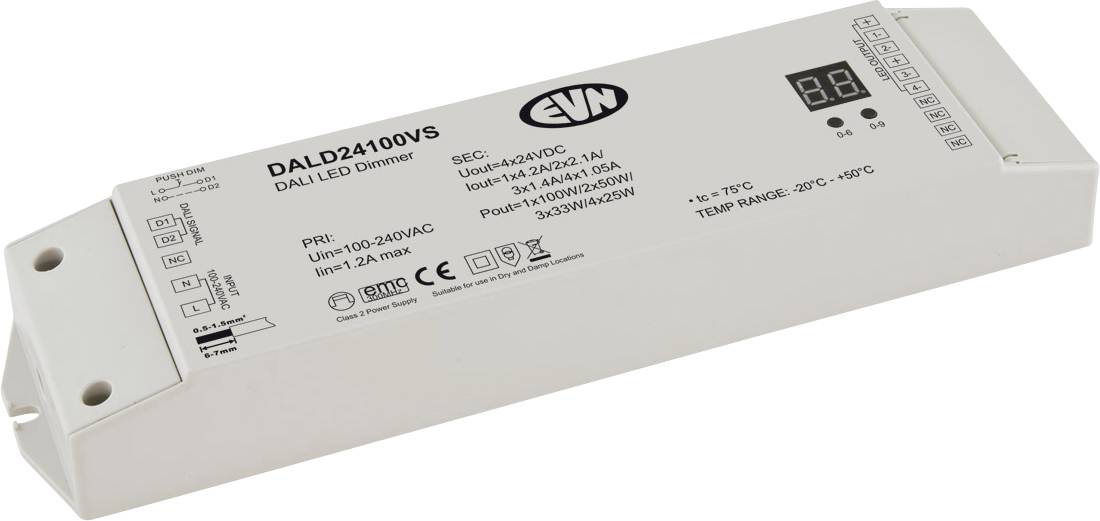

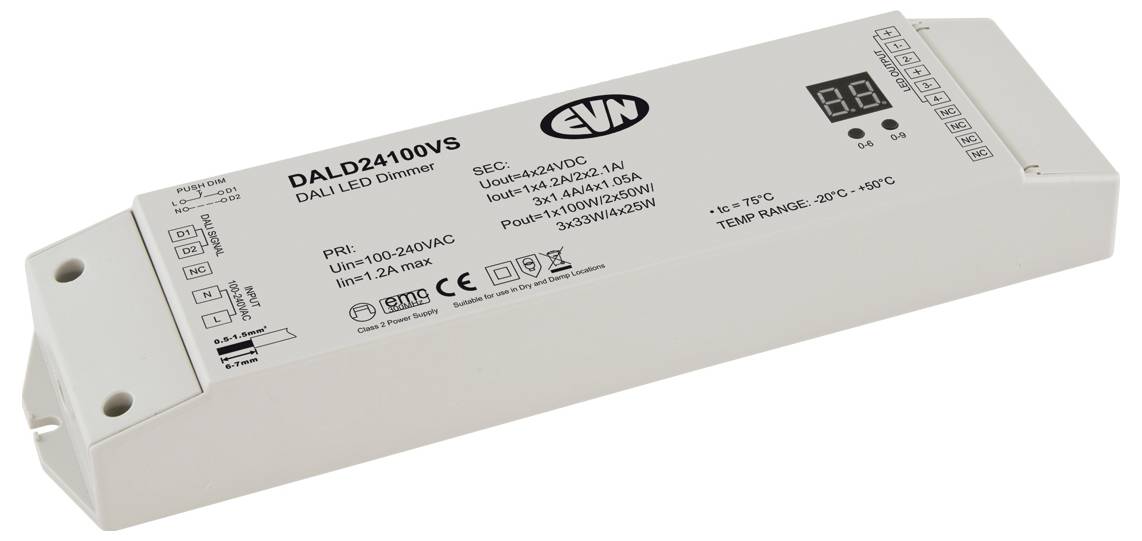

EVN DALD24100VS LED remote control 244 mm 64 mm
EAN:
Part number:
Item no:
Product type
LED remote control
Min. operating voltage
100 V
Max. operating voltage
240 V
Use
RGB
RGBW
Remote control
Type
DALD24100VS
Datasheet (PDF)
Technical specifications
- 1x input for DALI bus or push-L# 1x input for 100-240V/AC # 4x output for 24V/DC (power per output: 0.1-25W)#The screw terminals are suitable for cables from 0,5mm² - 1,5mm²# Technical data: ta: -20°C - 50°C, tc: 75°C#for unicolor applications up to 100W can be connected to a channel#Compliant Standard protocol 60929#Protocol IEC: DT6, DALI2.
- Type
DALD24100VS
- Product type
LED remote control
- Min. operating voltage
100 V
- Max. operating voltage
240 V
- Channels
4
- Output signal
Voltage
- Use
RGB
RGBW
Remote control
- Dim

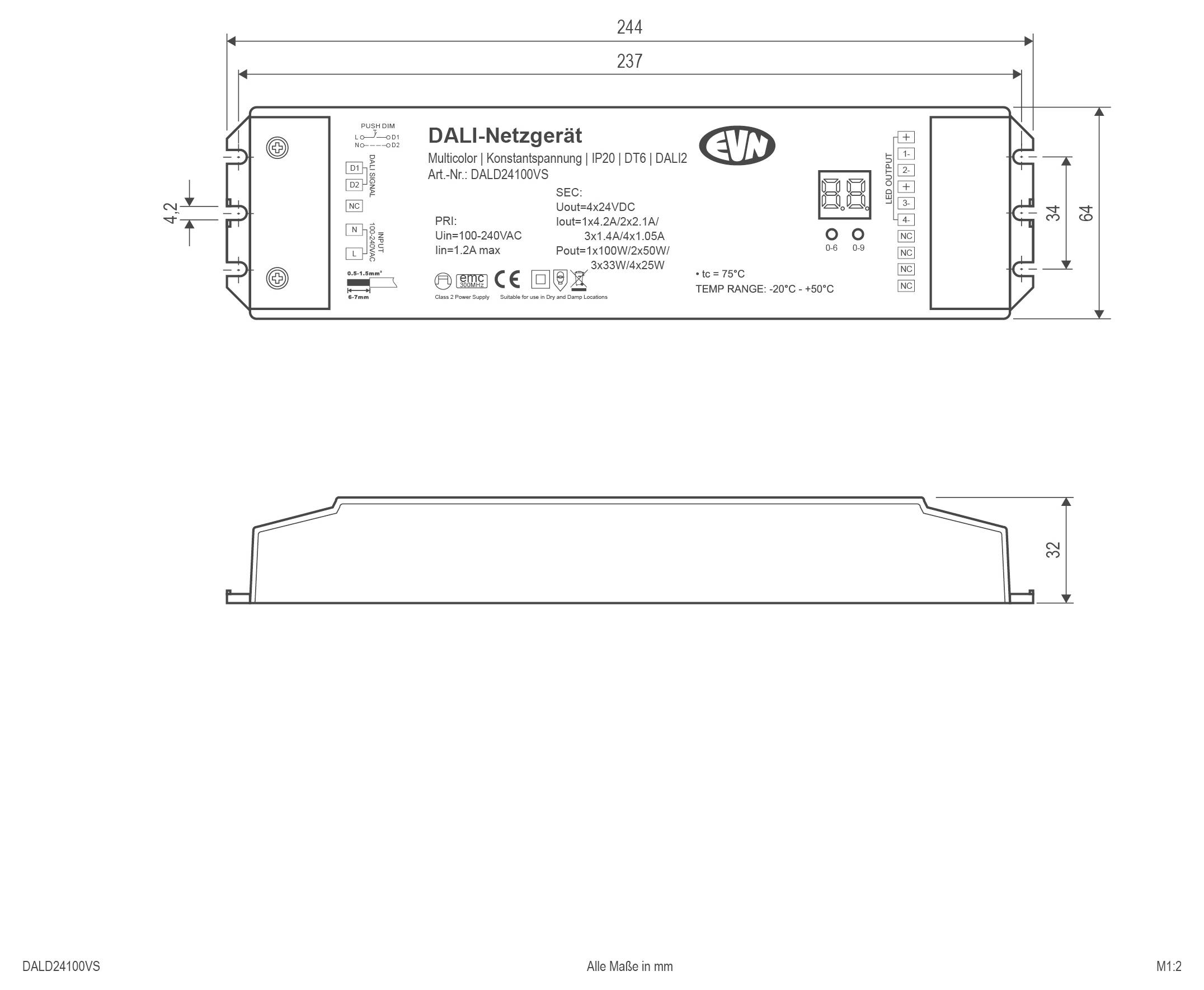

(L x W) 244 mm x 64 mm
- Width
64 mm
- Length
244 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483643 EVN DALD24100VS LED remote control 244 mm 64 mm
User & Safety Instructions
User & Safety Instructions 2483643 EVN DALD24100VS LED remote control 244 mm 64 mm
Description
DALI multi-color receiver with integrated power supply unit for unicolor, tunable white, RGB and RGBW lights with manual or automatic DALI address setting. An additional operating device is not required because the receiver functions as such at the same time. The output can be set as 1-4 channels. Optionally, the receiver can also be dimmed via Push-L (as 1-channel). Connections: 1x input for DALI bus or push-L, 1x input for 100-240V/AC and 4x output for 24V/DC (power per output: 0.1-25W). The screw terminals are suitable for cables from 0,5mm² - 1,5mm². Technical data: ta: -20°C - 50°C, tc: 75°C. In unicolor applications, up to 100W can be connected to one channel. Complies with standard protocol IEC 60929. Protocol: dt6, DALI2.
