EVN DALD35010VS LED dimmer 10 W 145 mm 47 mm 47 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Min. operating voltage
200 V
Max. operating voltage
240 V
Use
Dimmer
Type
DALD35010VS
Datasheet (PDF)
Technical specifications
- 1x input for DALI bus
- 1x input for 200-240V/AC
- 1x output for 350mA
- The screw terminals are suitable for cables from 0,5mm² - 1,5mm²
- Technical data: ta: -20°C - 50°C, tc: 75°C, Power: 2.1-10W
- Power factor 0.90
- Protocol: dt6, DALI2
- Type
DALD35010VS
- Product type
LED dimmer
- Power (max) P(TOT)
10 W
- Output current (typ.)
350 mA
- Min. operating voltage
200 V
- Max. operating voltage
240 V
- Use
Dimmer
- Dim

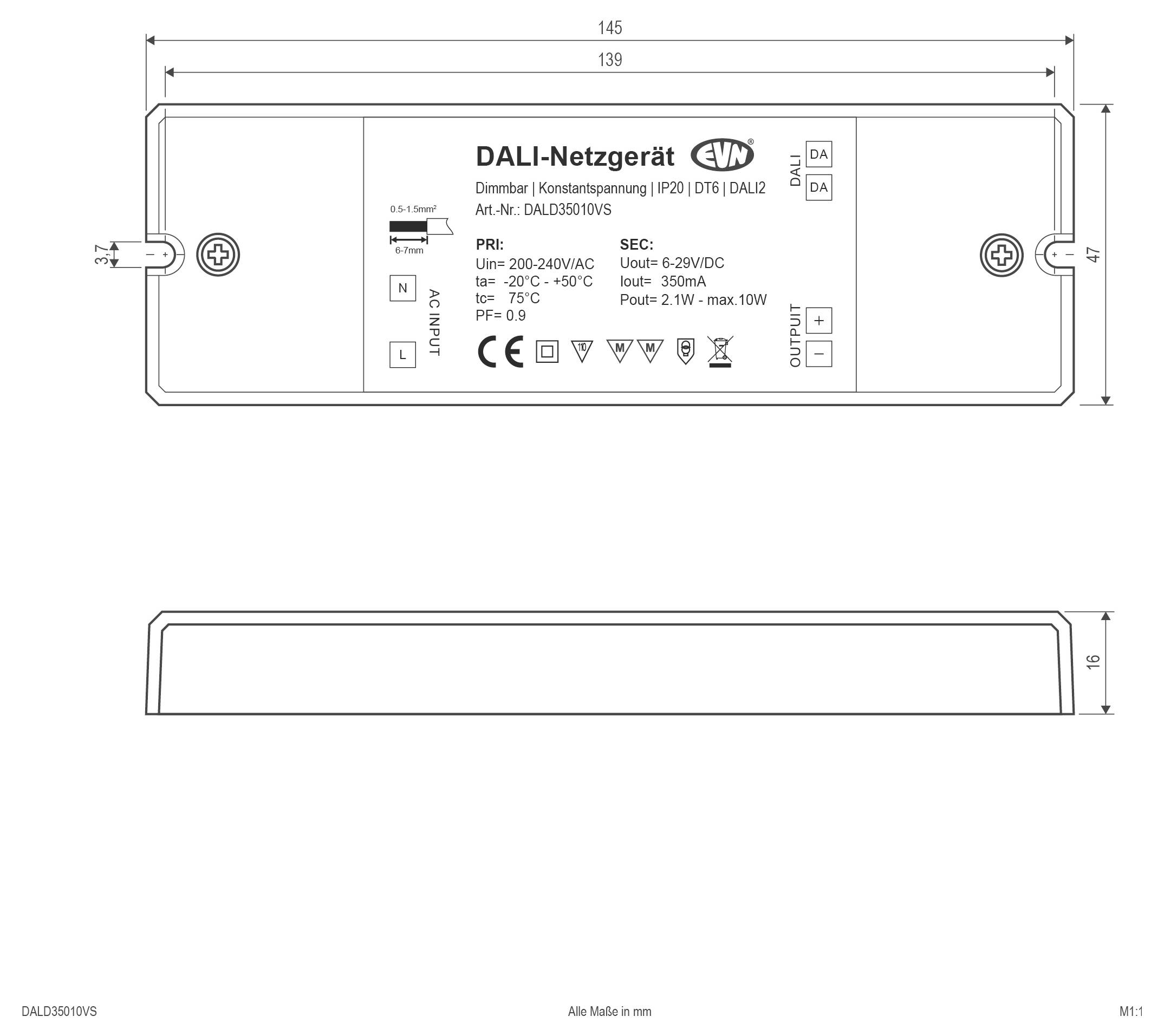

(L x W x H) 145 x 47 x 47 mm
- Width
47 mm
- Height
47 mm
- Length
145 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483646 EVN DALD35010VS LED dimmer 10 W 145 mm 47 mm 47 mm
User & Safety Instructions
User & Safety Instructions 2483646 EVN DALD35010VS LED dimmer 10 W 145 mm 47 mm 47 mm
Description

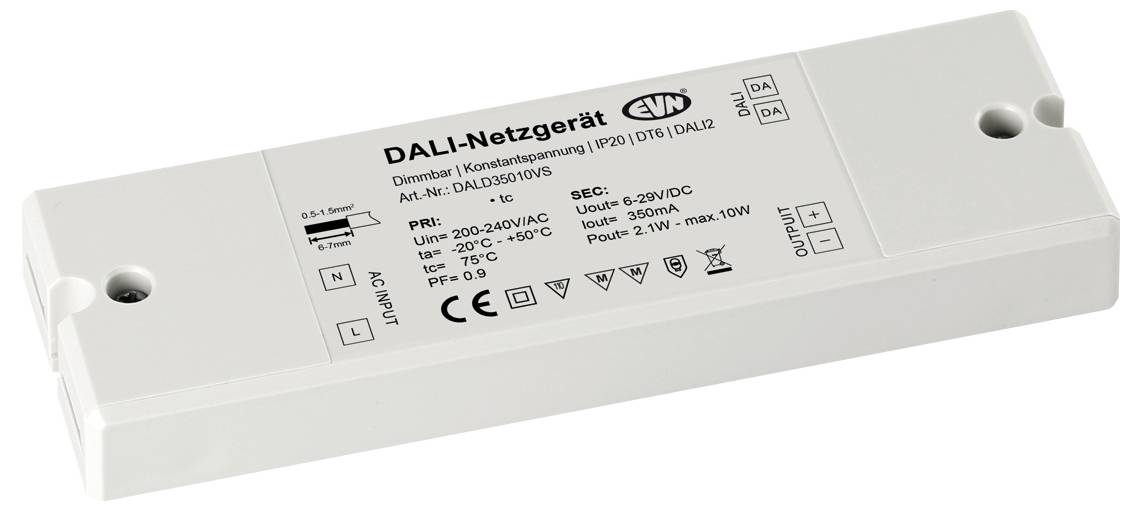

DALI dimmer receiver with integrated power supply unit for unicolor lights with automatic DALI address setting. An additional operating device is not required because the receiver functions as such at the same time. Connections: 1x input for DALI bus, 1x input for 200-240V/AC and 1x output for 350mA. The screw terminals are suitable for cables from 0,5mm² - 1,5mm². Technical data: ta: -20°C - 50°C, tc: 75°C, Power: 2.1-10W, Power factor: 0.90. Protocol: dt6, DALI2
