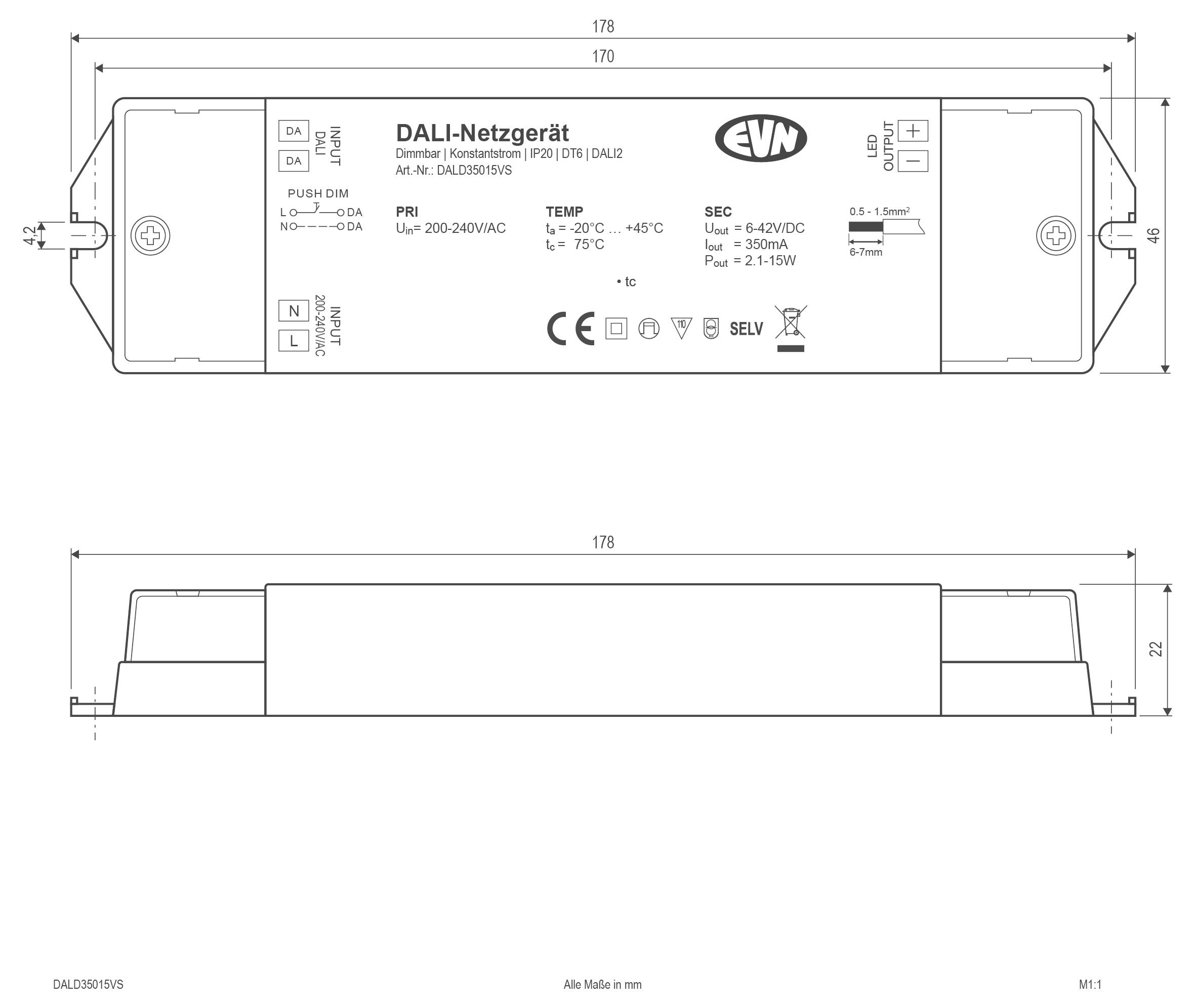

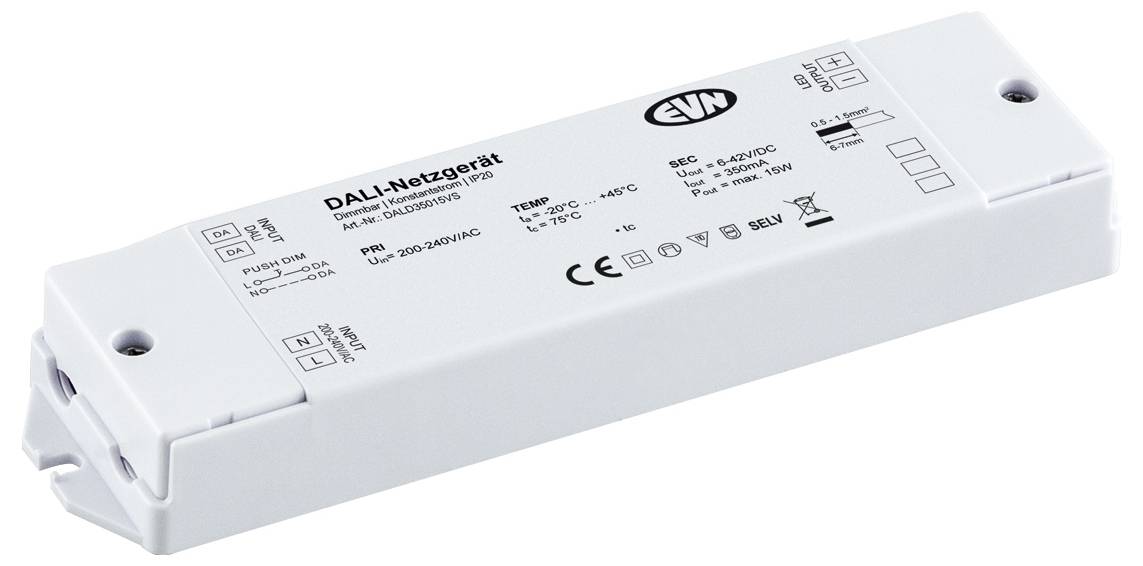

EVN DALD35015VS LED dimmer 15 W 178 mm 46 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Min. operating voltage
200 V
Max. operating voltage
240 V
Use
Dimmer
Type
DALD35015VS
Datasheet (PDF)
Technical specifications
- 1x input for DALI bus or Push-L.
- 1x input for 200-240V/AC
- 1x output for 350mA
- The screw terminals are suitable for cables from 0,5mm² - 1,5mm²
- Technical data: ta: -20°C - 45°C, tc: 75°C.
- Power 2.1-15W
- Power factor 0.95.
- Type
DALD35015VS
- Product type
LED dimmer
- Power (max) P(TOT)
15 W
- Output current (typ.)
350 mA
- Min. operating voltage
200 V
- Max. operating voltage
240 V
- Channels
1
- Use
Dimmer
- Dim
(L x W) 178 mm x 46 mm
- Width
46 mm
- Length
178 mm
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483647 EVN DALD35015VS LED dimmer 15 W 178 mm 46 mm
User & Safety Instructions
User & Safety Instructions 2483647 EVN DALD35015VS LED dimmer 15 W 178 mm 46 mm
Description
DALI dimmer receiver with integrated power supply unit for unicolor lights with automatic DALI address setting. An additional operating device is not required because the receiver functions as such at the same time. Optionally, the receiver can also be dimmed via Push-L (as 1-channel). Connections: 1x input for DALI bus or Push-L, 1x input for 200-240V/AC and 1x output for 350mA. The screw terminals are suitable for cables from 0,5mm² - 1,5mm². Technical data: ta: -20°C - 45°C, tc: 75°C, Power: 2.1-15W, Power factor: 0.95.
