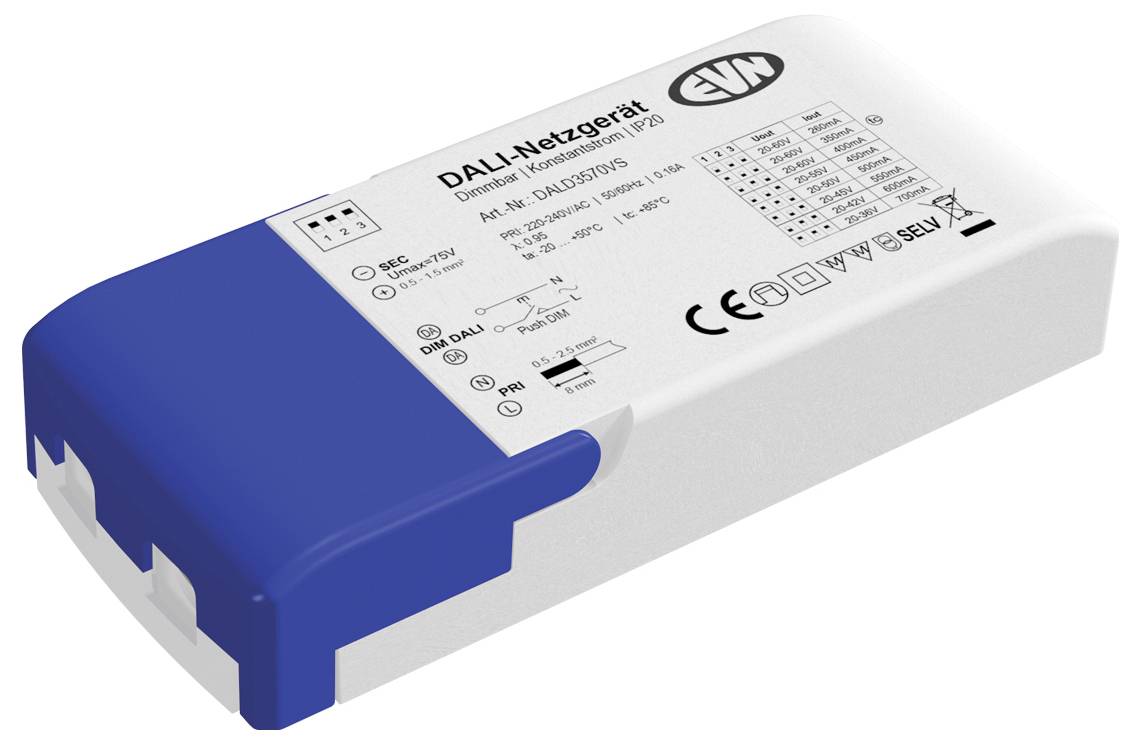

EVN DALD3570VS LED dimmer 25.2 W 119 mm 52 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Min. operating voltage
200 V
Max. operating voltage
240 V
Use
Dimmer
Type
DALD3570VS
Datasheet (PDF)
Technical specifications
- 1x input for DALI bus or Push-L.
- 1x input for 200-240V/AC
- 1x output for 260mA-700mA
- The screw terminals are suitable for cables from 0,5mm² - 2,5mm² primary and from 0,5mm² - 1,5mm² secondary
- Technical data: ta: -20°C - 50°C, tc: 85°C.
- Power factor 0.95
- The output current to be used can be set by means of dip switches, whereby the following settings are possible with respective power: 260mA (5.2-15.6W), 350mA (7-21W), 400mA (8-24W), 450mA (9-24.8W), 500mA (10-25W), 550mA (11-24.8W), 600mA (12-25.2W), 700mA (14-25.2W)
- Protocol: dt6, DALI2.
- Type
DALD3570VS
- Product type
LED dimmer
- Power (max) P(TOT)
25.2 W
- Min. operating voltage
200 V
- Max. operating voltage
240 V
- Channels
1
- Use
Dimmer
- Dim

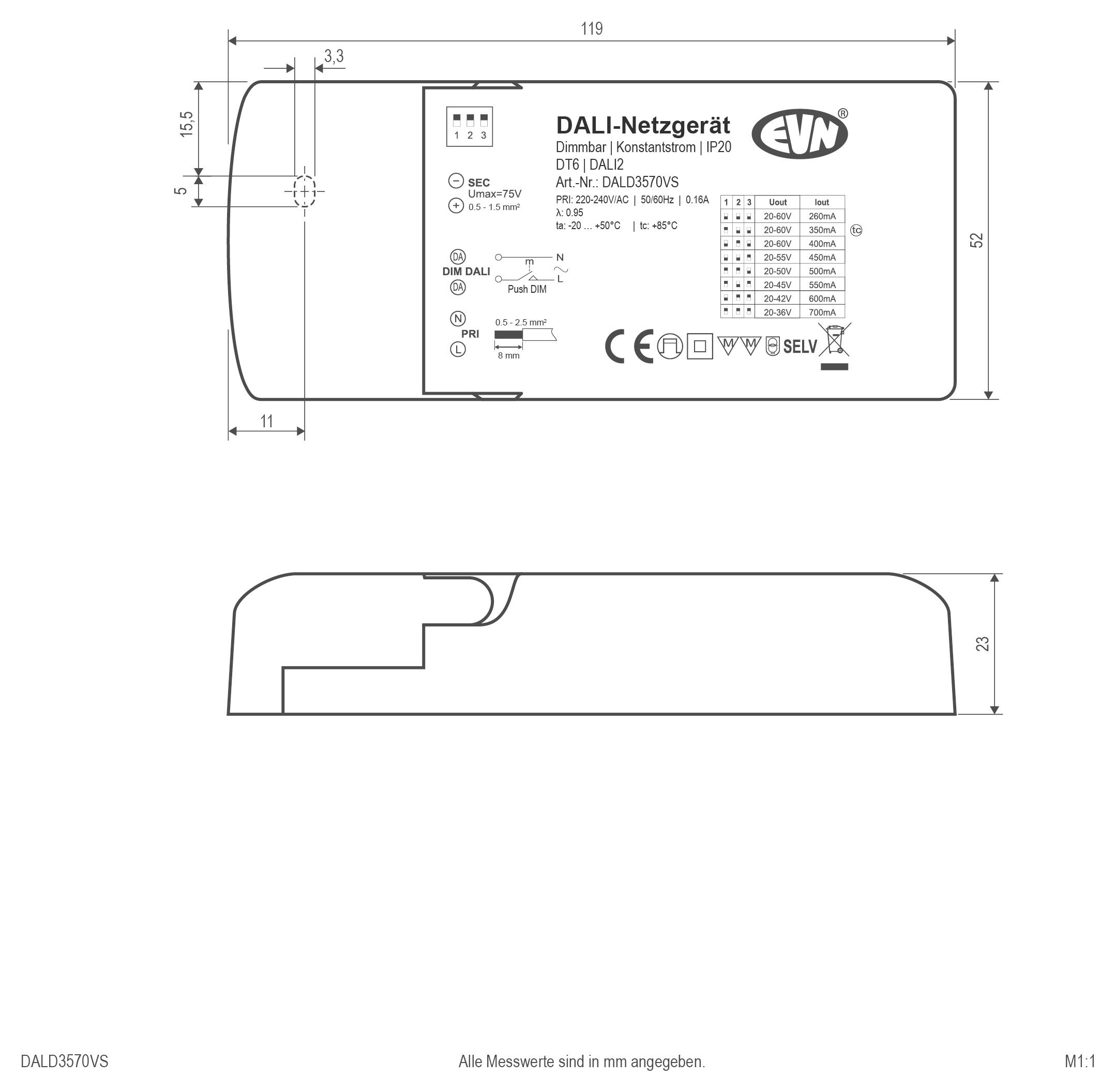

(L x W) 119 mm x 52 mm
- Width
52 mm
- Length
119 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483649 EVN DALD3570VS LED dimmer 25.2 W 119 mm 52 mm
User & Safety Instructions
User & Safety Instructions 2483649 EVN DALD3570VS LED dimmer 25.2 W 119 mm 52 mm
Description
DALI dimmer receiver with integrated power supply unit for unicolor lights with automatic DALI address setting. An additional operating device is not required because the receiver functions as such at the same time. Optionally, the receiver can also be dimmed via Push-L (as 1-channel). Connections: 1x input for DALI bus or Push-L, 1x input for 200-240V/AC and 1x output for 260mA-700mA. The screw terminals are suitable for cables from 0,5mm² - 2,5mm² primary and from 0,5mm² - 1,5mm² secondary. Technical data: ta: -20°C - 50°C, tc: 85°C, power factor: 0.95. The output current to be used can be set by means of dip switches, whereby the following settings are possible with respective power: 260mA (5.2-15.6W), 350mA (7-21W), 400mA (8-24W), 450mA (9-24.8W), 500mA (10-25W), 550mA (11-24.8W), 600mA (12-25.2W), 700mA (14-25.2W). Protocol: dt6, DALI2.
