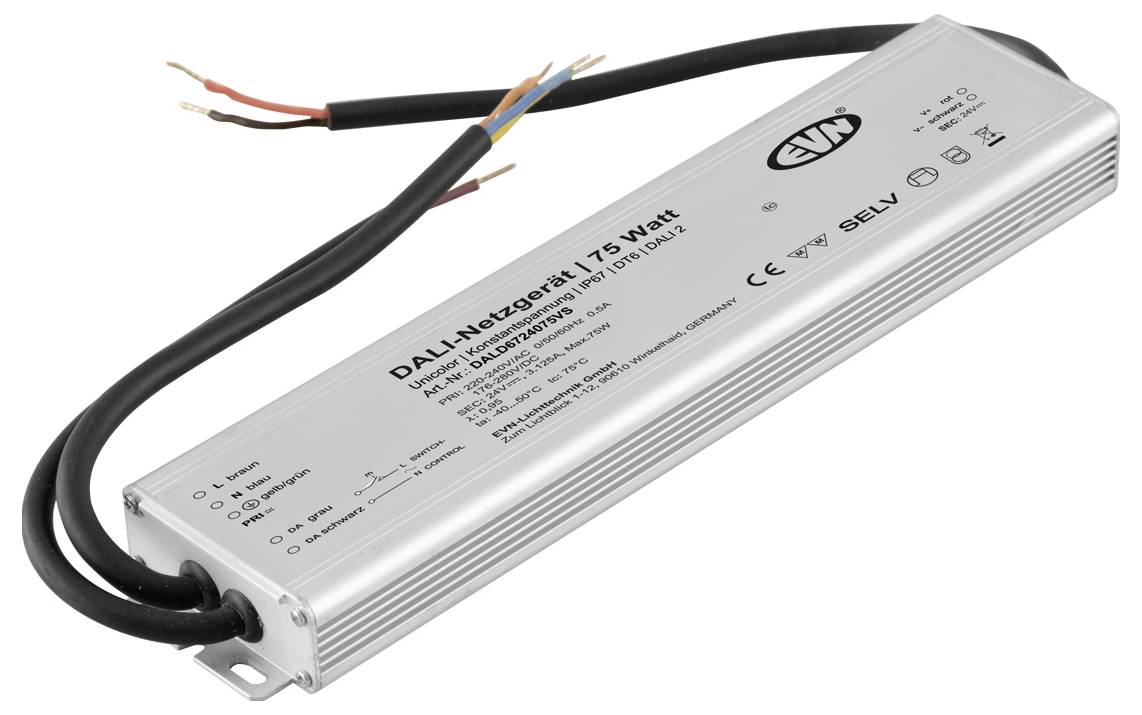

EVN DALD6724075VS LED dimmer 270 mm 61 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Min. operating voltage
100 V
Max. operating voltage
240 V
Use
Dimmer
Type
DALD6724075VS
Datasheet (PDF)
Technical specifications
- 1x input for DALI bus or Push-L.
- 1x input for 100-240V/AC and 1x output for 24V/DC
- The connecting cables each have a length of 24cm
- Technical data: ta: -25°C - 50°C, tc: 90°C.
- Power 0.1-75W
- Power factor 0.95
- Complies with standard protocol IEC 60929
- Protocol: dt6, DALI2.
- Type
DALD6724075VS
- Product type
LED dimmer
- Min. operating voltage
100 V
- Max. operating voltage
240 V
- Use
Dimmer
- Dim

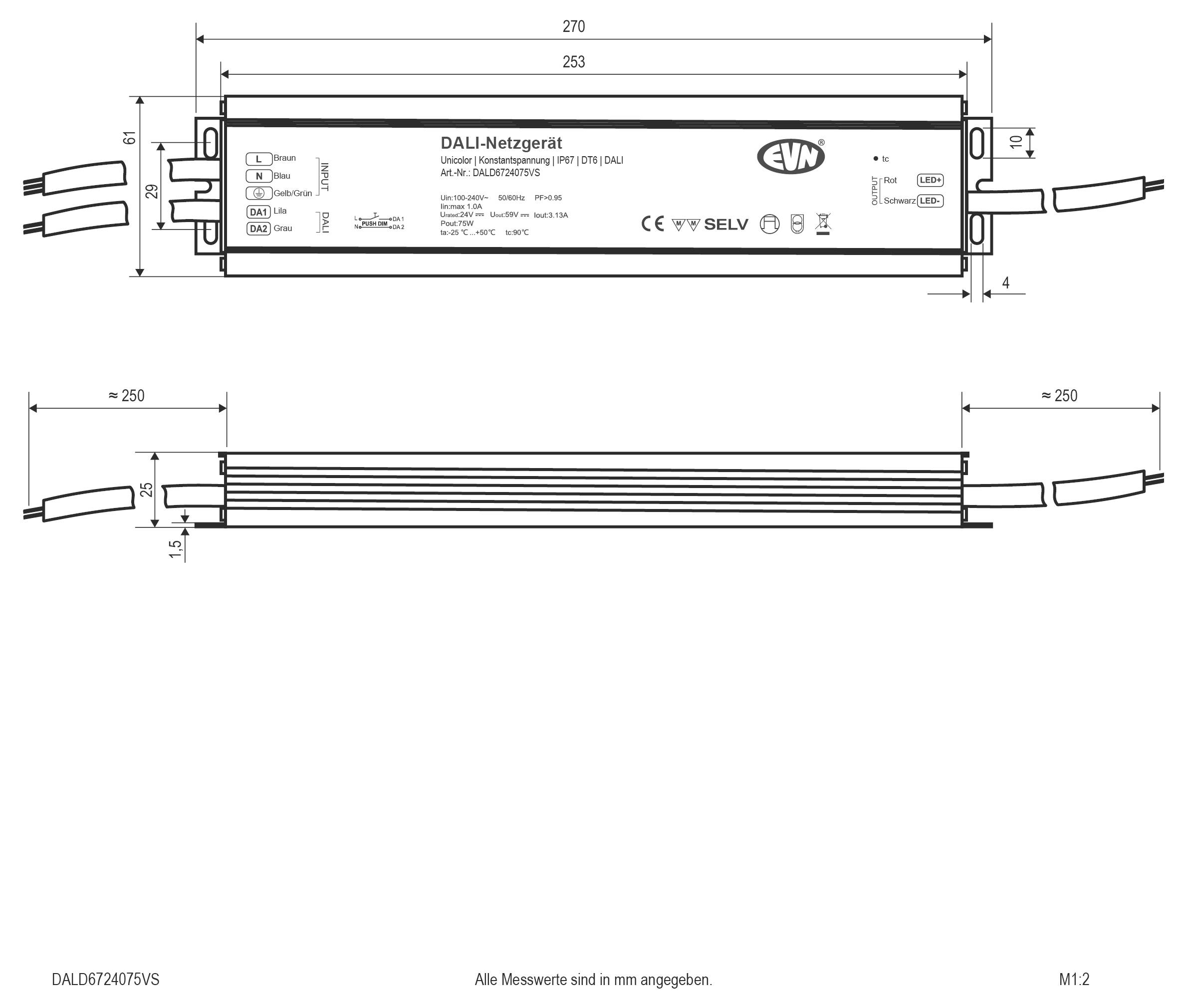

(L x W) 270 mm x 61 mm
- Width
61 mm
- Length
270 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483650 EVN DALD6724075VS LED dimmer 270 mm 61 mm
User & Safety Instructions
User & Safety Instructions 2483650 EVN DALD6724075VS LED dimmer 270 mm 61 mm
Description
DALI dimmer receiver with integrated power supply unit for unicolor lights with manual or automatic DALI address setting. An additional operating device is not required because the receiver functions as such at the same time. The receiver can also be dimmed via push-L. Connections: 1x input for DALI bus or Push-L, 1x input for 100-240V/AC and 1x output for 24V/DC. The connecting cables each have a length of 24cm. Technical data: ta: -25°C - 50°C, tc: 90°C, Power: 0.1-75W, Power factor: 0.95. Complies with standard protocol IEC 60929. Protocol: dt6, DALI2.
This text is machine translated.
This text is machine translated.
