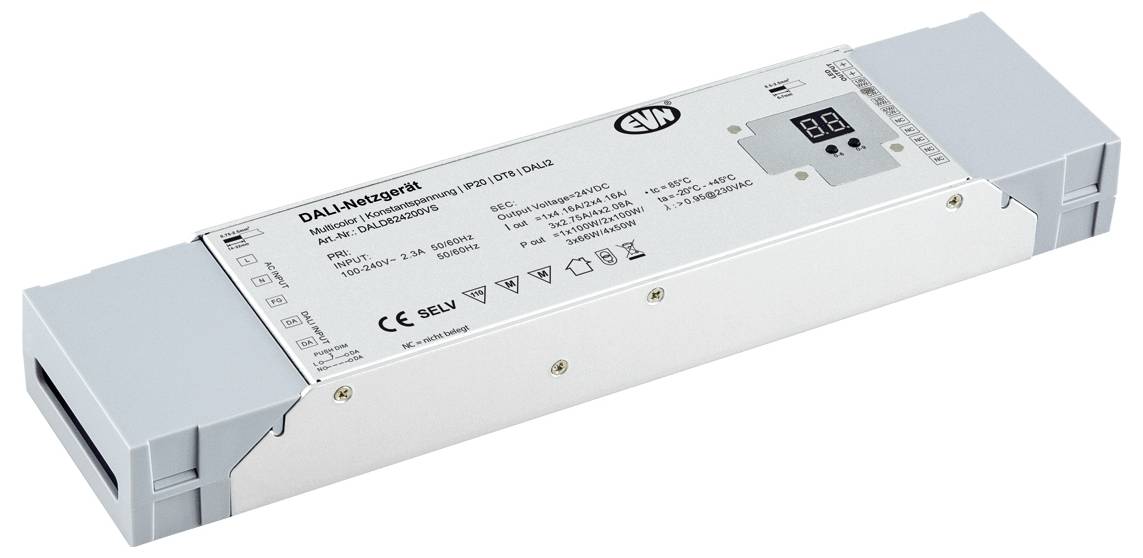

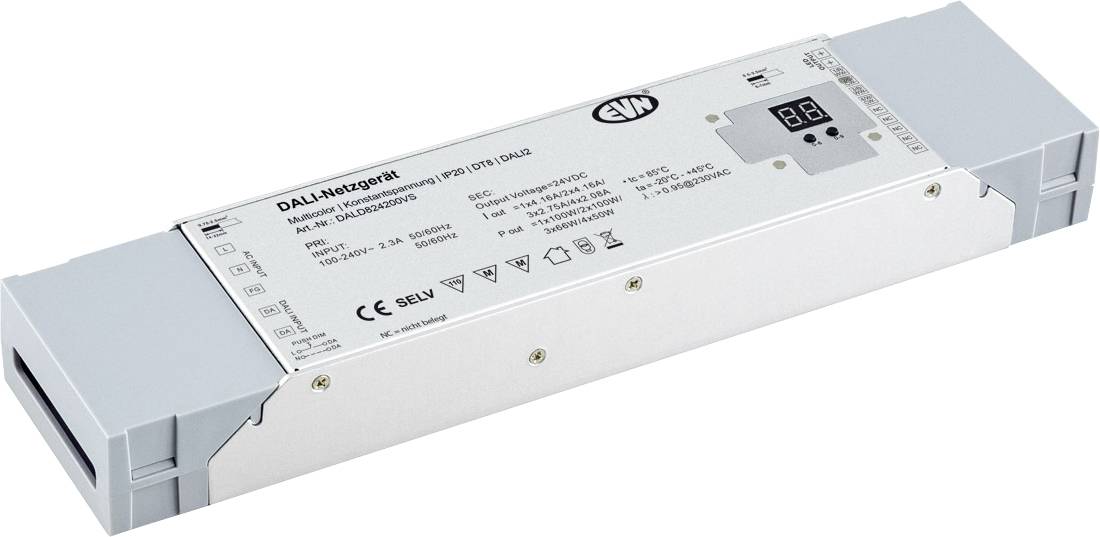

EVN DALD824200VS LED remote control 330 mm 79 mm
EAN:
Part number:
Item no:
Product type
LED remote control
Min. operating voltage
100 V
Max. operating voltage
240 V
Use
RGB
RGBW
Remote control
Type
DALD824200VS
Datasheet (PDF)
Technical specifications
- 1x input for DALI bus or push-L# 1x input for 100-240V/AC #4x output for 24V/DC (power per output: 0.1-50W)# The screw terminals are suitable for cables from 0,75mm² - 2,5mm² primary and from 0,5mm² - 2,5mm² secondary#Technical data: ta: -20°C - 45°C, tc: 85°C#protocol: DT8, DALI2.
- Type
DALD824200VS
- Product type
LED remote control
- Min. operating voltage
100 V
- Max. operating voltage
240 V
- Channels
4
- Output signal
Voltage
- Use
RGB
RGBW
Remote control

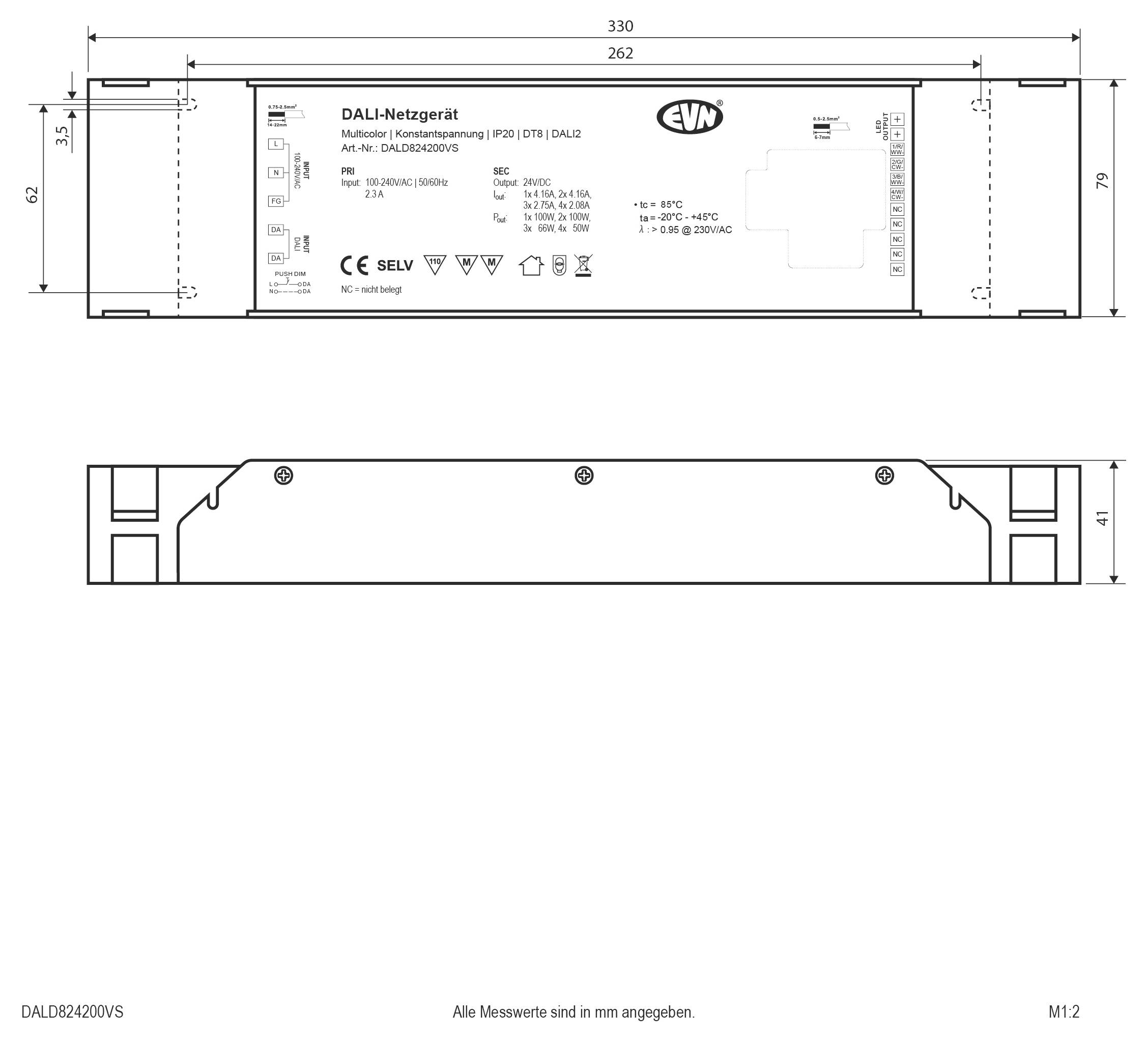

- Dim
(L x W) 330 mm x 79 mm
- Width
79 mm
- Length
330 mm
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483655 EVN DALD824200VS LED remote control 330 mm 79 mm
User & Safety Instructions
User & Safety Instructions 2483655 EVN DALD824200VS LED remote control 330 mm 79 mm
Description
DALI multi-color receiver with integrated power supply unit for tunable white, RGB and RGBW lights with manual or automatic DALI address setting. An additional operating device is not required because the receiver functions as such at the same time. Connections: 1x input for DALI bus or push-L, 1x input for 100-240V/AC and 4x output for 24V/DC (power per output: 0.1-50W). The screw terminals are suitable for cables from 0,75mm² - 2,5mm² primary and from 0,5mm² - 2,5mm² secondary. Technical data: ta: -20°C - 45°C, tc: 85°C. Protocol: DT8, DALI2.
