EVN DALPD12244X8A LED dimmer 170 mm 59 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Type
DALPD12244X8A

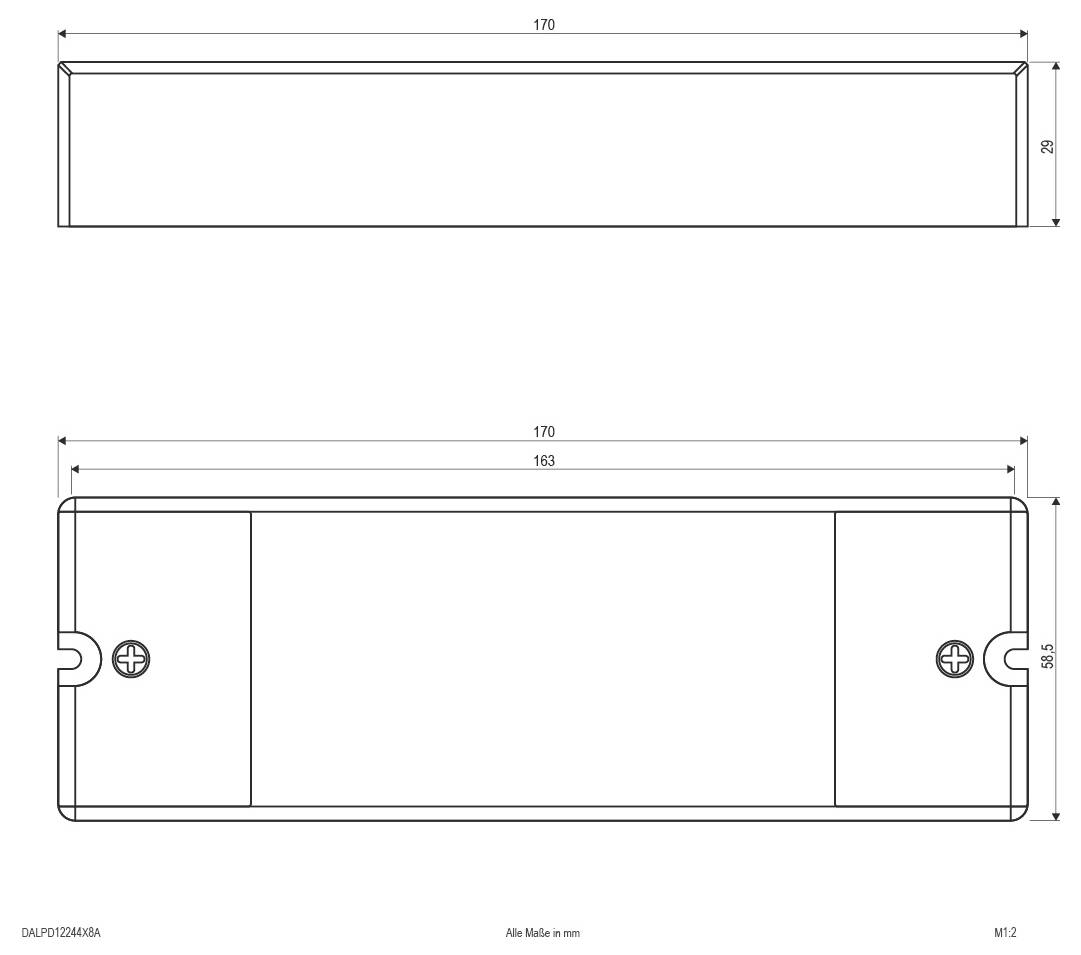

Dim
(L x W) 170 mm x 59 mm
Width
59 mm
Length
170 mm
Datasheet (PDF)
Technical specifications
- Type
DALPD12244X8A
- Product type
LED dimmer
- Dim
(L x W) 170 mm x 59 mm
- Width
59 mm
- Length
170 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483656 EVN DALPD12244X8A LED dimmer 170 mm 59 mm
User & Safety Instructions
User & Safety Instructions 2483656 EVN DALPD12244X8A LED dimmer 170 mm 59 mm
Description

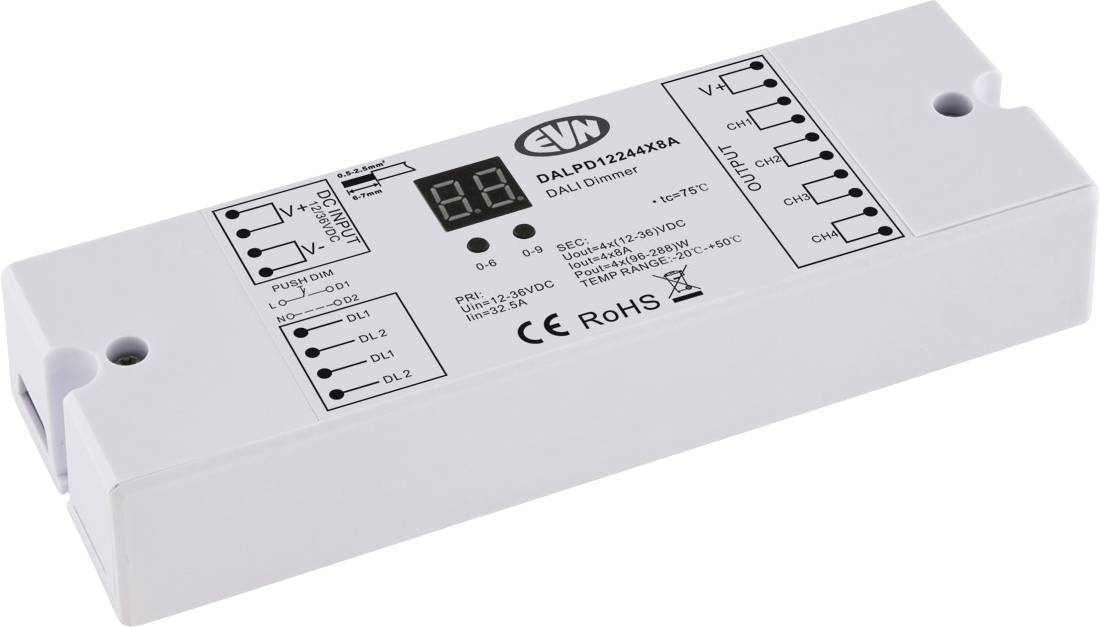

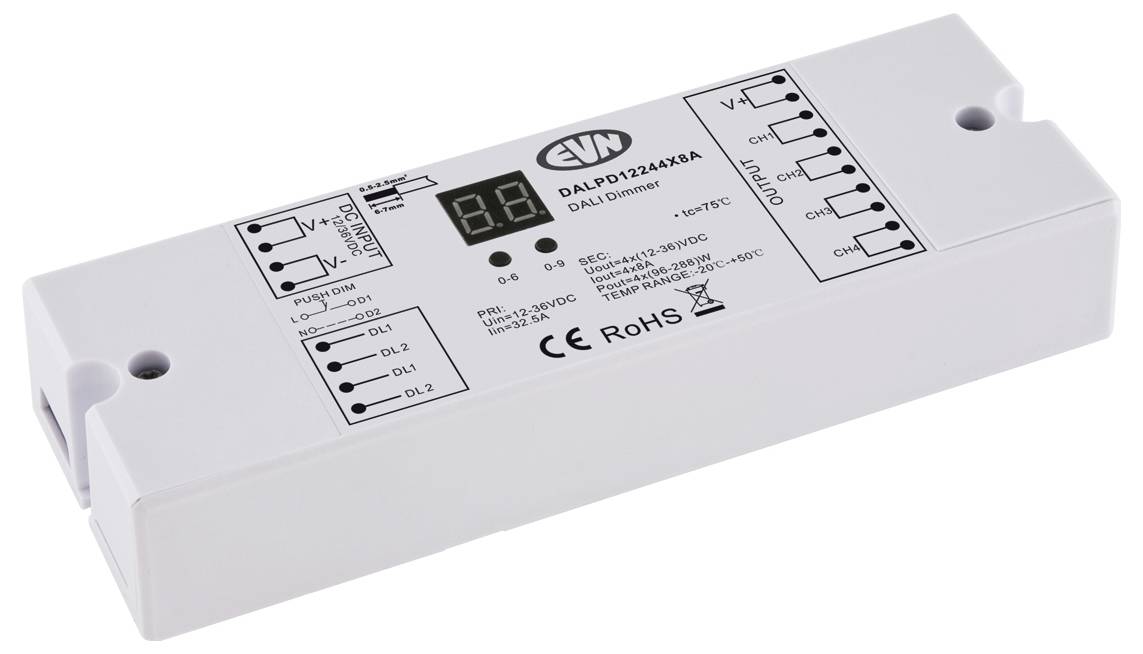

The DALI multicolor receiver can be used for unicolor, tunable white, RGB and RGBW lamps. Suitable for LED lights with 12, 24, 36 and 48V/DC operating voltage. The actual input voltage depends on the required voltage of the lamps to be supplied. Connections: 1x input for DALI bus or push-L, as well as 1x output for DALI bus for through-wiring, 1x input, as well as 1x output for 12-48V/DC for power supply for through-wiring and 4x output. In addition, the receiver can also be dimmed optionally via Push-L (as 1-channel). The screw terminals are suitable for cables from 0,5mm² - 2,5mm². Technical data: ta: -20°C - 50°C, tc: 75°C, max. output power per channel: 8a at 12-36V/DC, 2A at 48V/DC (96W at 12V/DC, 192W at 24V/DC, 288W at 36V/DC and 96W at 48V/DC). Complies with standard protocol IEC 60929. Protocol: dt6, DALI2.
