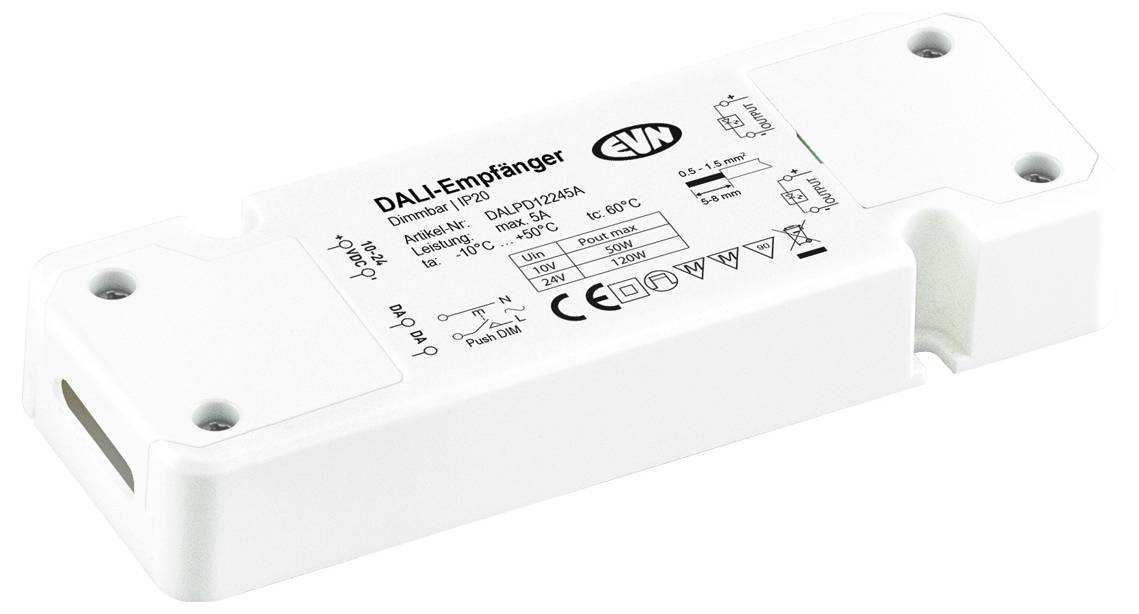

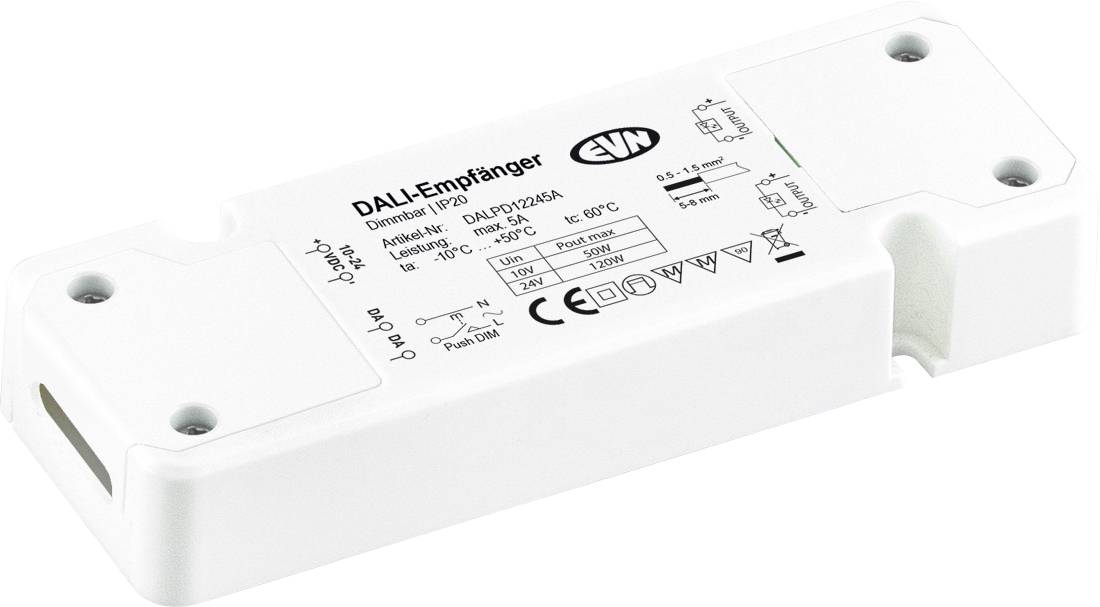

EVN DALPD12245A LED dimmer 116 mm 42 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Type
DALPD12245A
Output current (typ.)
5 A
Channels
2
Dim

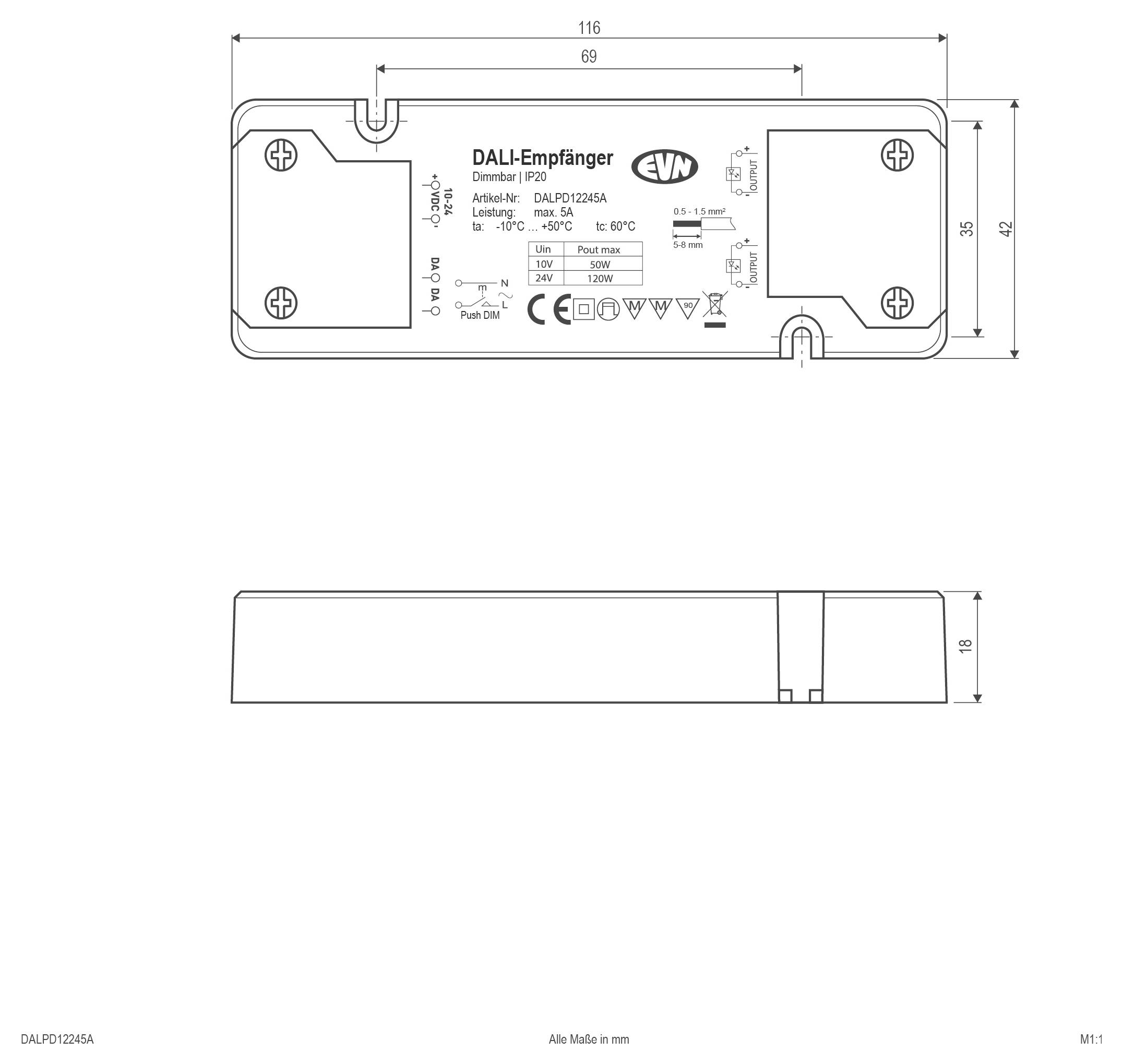

(L x W) 116 mm x 42 mm
Datasheet (PDF)
Technical specifications
- Type
DALPD12245A
- Product type
LED dimmer
- Output current (typ.)
5 A
- Channels
2
- Dim
(L x W) 116 mm x 42 mm
- Width
42 mm
- Length
116 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483657 EVN DALPD12245A LED dimmer 116 mm 42 mm
User & Safety Instructions
User & Safety Instructions 2483657 EVN DALPD12245A LED dimmer 116 mm 42 mm
Description
The DALI dimmer controller can be used for unicolor lights from 10-24V/DC and requires a DALI address (automatic address setting). The actual input voltage depends on the required voltage of the lamps to be supplied. The dimmer can be dimmed optionally via Push-L, however in this case no simultaneous control via DALI is possible. Connections: 1x input for 10-24V/DC, 1x input for DALI BUS (optional Push-L), 2x output for 10-24V/DC. When an output is used, it supplies the full 5A power, when both outputs are used, they each supply 2.5A. The screw terminals are suitable for cables from 0,5mm² - 1,5mm². Technical data: ta: -20°C - 50°C, tc: 60°C. Protocol: dt6, DALI1.
