EVN DALPD812244X5A LED dimmer 168 mm 54 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Type
DALPD812244X5A
Channels
4
Dim

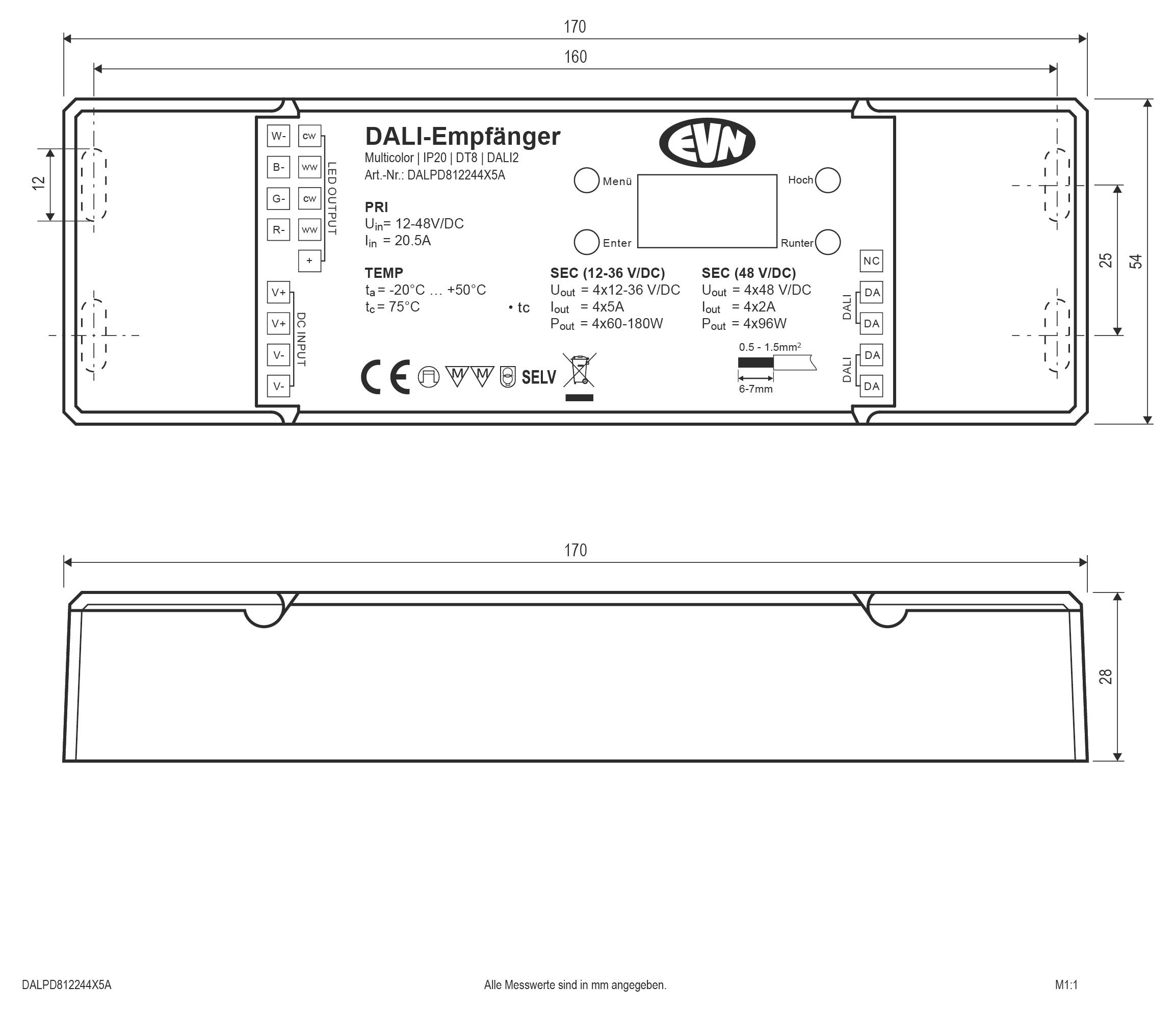

(L x W) 168 mm x 54 mm
Width
54 mm
Datasheet (PDF)
Technical specifications
- Type
DALPD812244X5A
- Product type
LED dimmer
- Channels
4
- Dim
(L x W) 168 mm x 54 mm
- Width
54 mm
- Length
168 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483660 EVN DALPD812244X5A LED dimmer 168 mm 54 mm
User & Safety Instructions
User & Safety Instructions 2483660 EVN DALPD812244X5A LED dimmer 168 mm 54 mm
Description

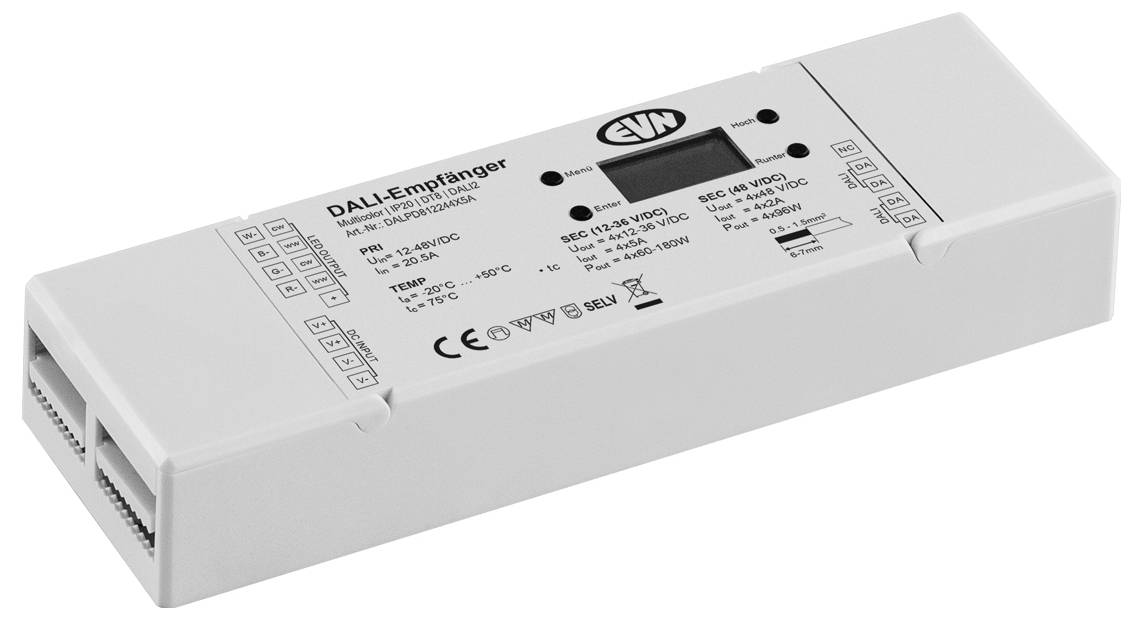

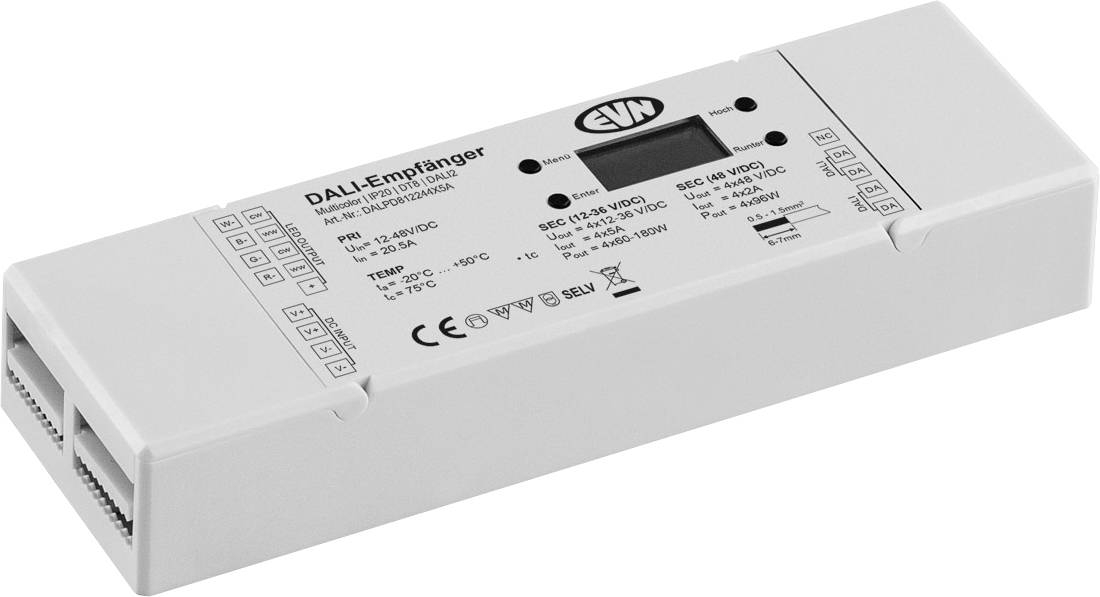

The DALI multicolor receiver can be used for unicolor, tunable white, RGB and RGBW lamps. Thanks to protocol DT8, only one DALI address is assigned for each of the above uses. Suitable for LED lights with 12, 24 and 36V/DC operating voltage. The actual input voltage depends on the required voltage of the lamps to be supplied. Connections: 1x input, as well as 1x output for DALI bus for through-wiring, 1x input, as well as 1x output for 12-36V/DC for power supply for through-wiring and 4x output. The screw terminals are suitable for cables from 0,5mm² - 1,5mm². Technical data: ta: -20°C - 50°C, tc: 75°C, max. output power per channel: 5A (60W at 12V/DC, 120W at 24V/DC and 180W at 36V/DC). Protocol: DT8, DALI2.
