Buy EVN DAQ54141502 DAQ54141502 LED ceiling light LED (monochrome) 14 W Anthracite

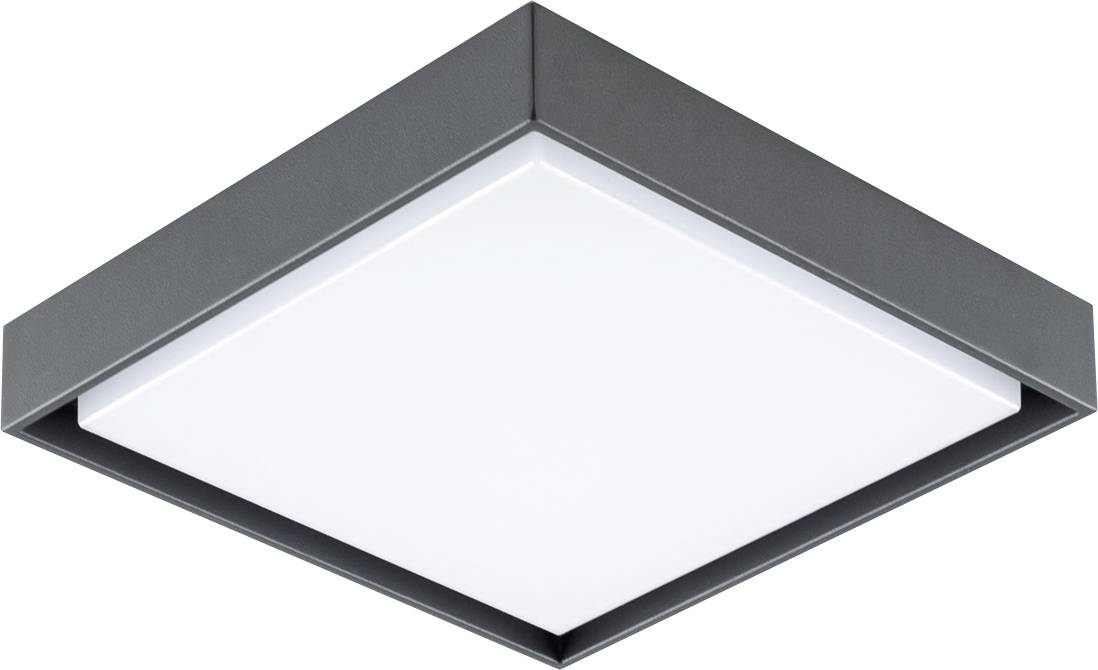

Modern square flush-mount ceiling light with dark gray frame and frosted white diffuser on a white background.

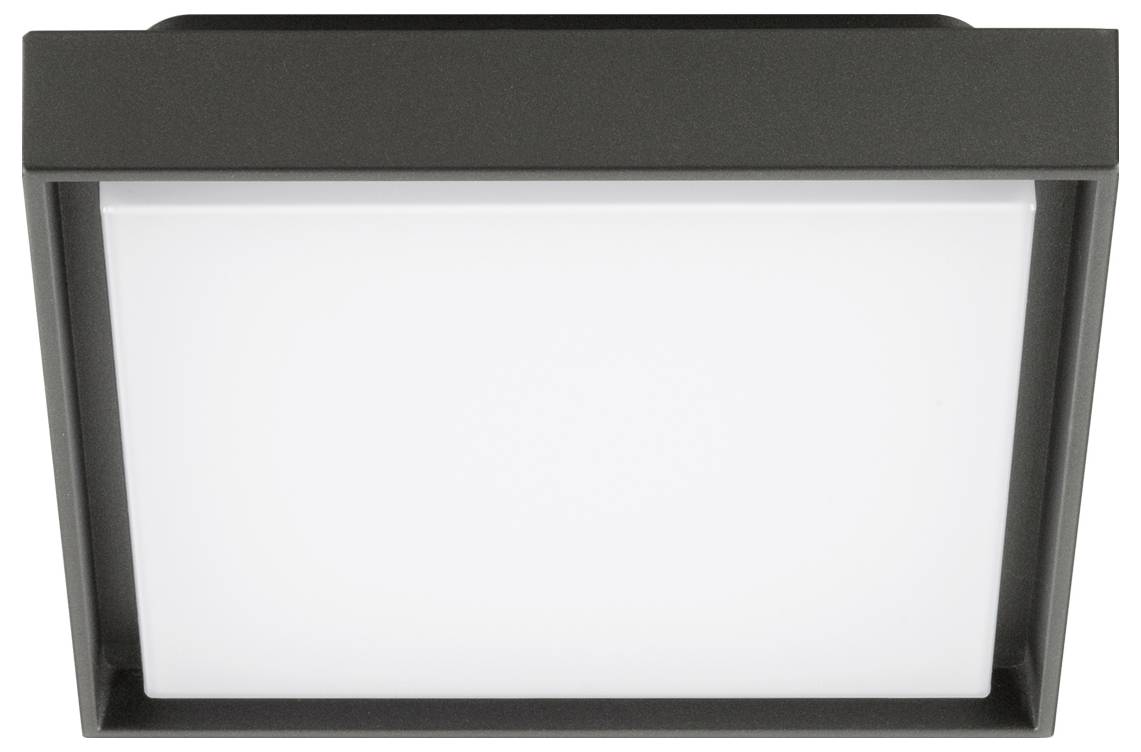

Black rectangular wall or ceiling light fixture with a frosted white diffuser panel<br>

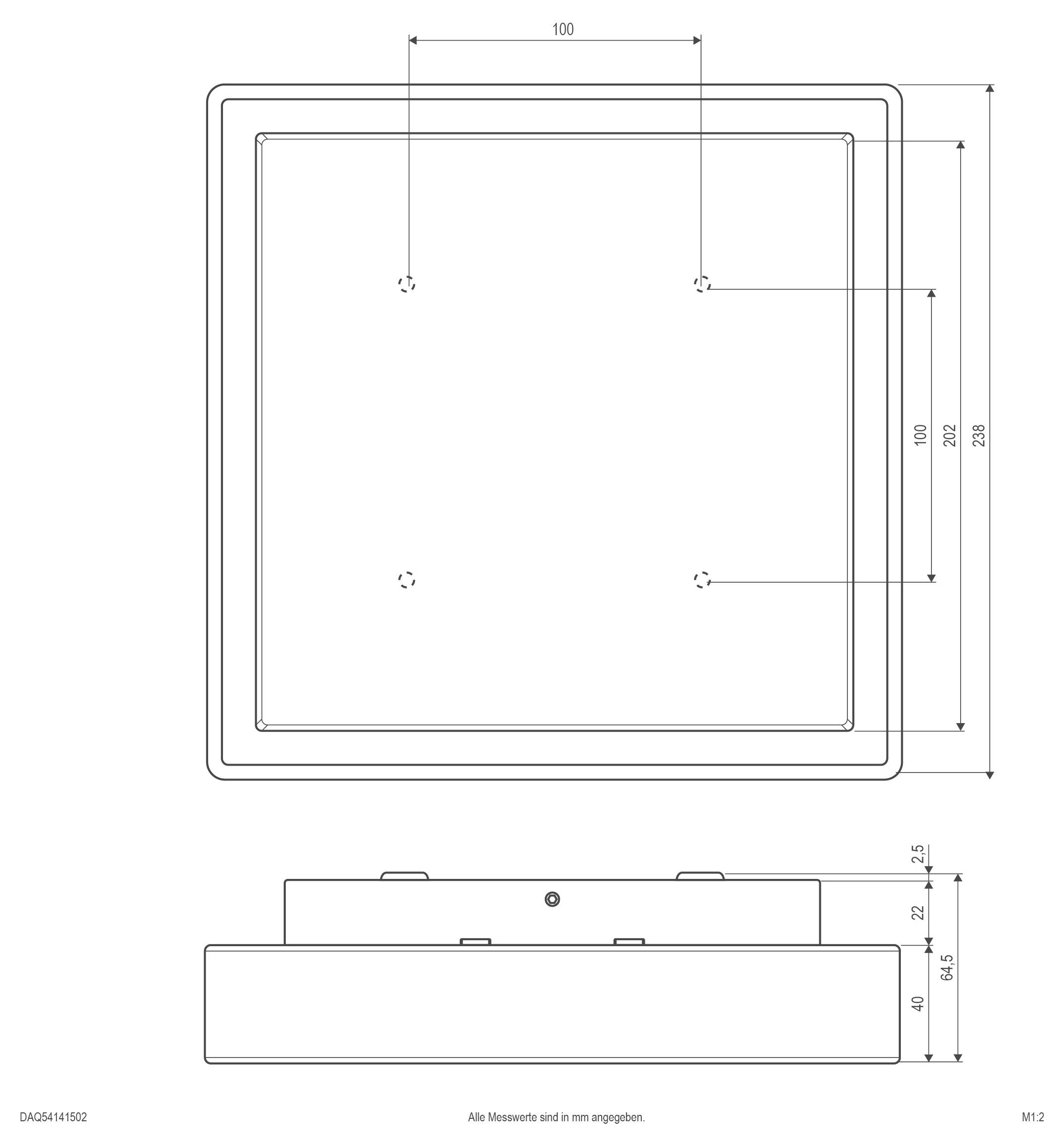

Technical drawing of a square panel with rounded corners, showing front and side views with mounting-hole positions and dimensions in millimeters.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

LED mounted light, IP54

Power= 14 W
Total luminous flux= 980 lm
Colour temperature= 3000 K
Warm white

Technical specifications

Dim: (L x W x H) 238 x 238 x 64 mm

Operating voltage: 100 V
240 V

Product type: LED ceiling light

Width: 238 mm

Bulb type: LED (monochrome)

Height: 64 mm

Length: 238 mm

Rating per bulb: 14 W

: 14 W

Light features: Suitable for wall mounting

Protection class: I

: IP54
IK08

Factory colour: Anthracite

Material: Aluminium

: n.rel.

Colour: Warm white

Light bulb included: Yes

: 3000 K

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Total luminous flux: 980 lm

: 1165 lm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2483661 EVN DAQ54141502 DAQ54141502 LED ceiling light LED (monochrome) 14 W Anthracite

User & Safety Instructions

User & Safety Instructions 2483661 EVN DAQ54141502 DAQ54141502 LED ceiling light LED (monochrome) 14 W Anthracite

Description

The LED mounted light can also be used outdoors due to the given protection class and the UV-resistant cover made of polycarbonate. Through the large area of light emission, a very homogeneous illumination of the room is achieved. Thanks to the opal cover, there is no blinding effect, so the lamp is also perfectly suitable for use as wall light. The power supply unit is discreetly housed in the base of the lamp.
