Buy EVN DE20080102 DE20080102 Ceiling light LED (monochrome) Built-in LED 8 W White

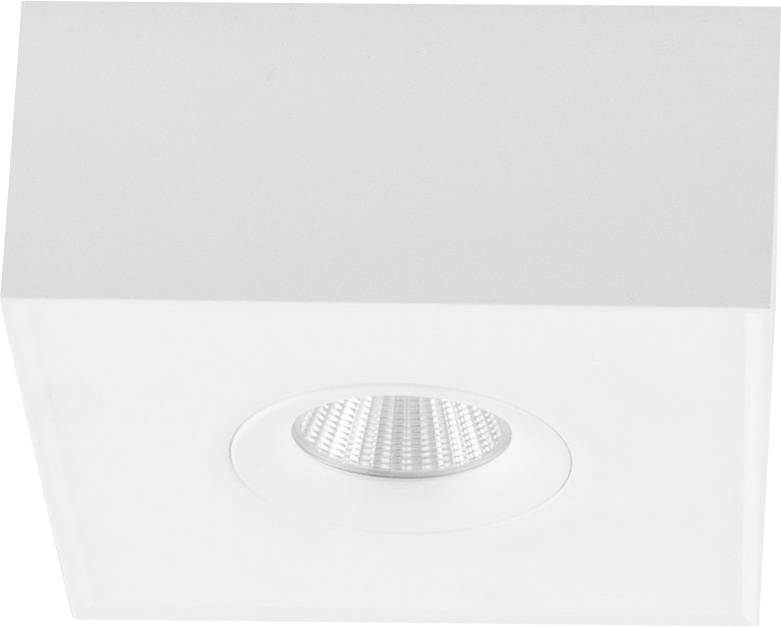

White square ceiling light fixture with a recessed circular LED panel in the center.

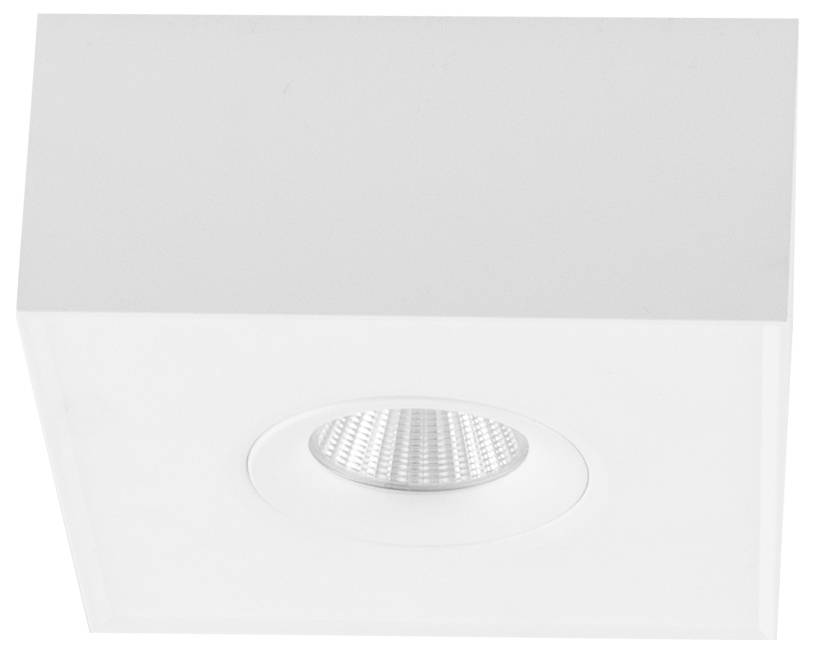

White square recessed ceiling light fixture with a circular textured lens in the center.

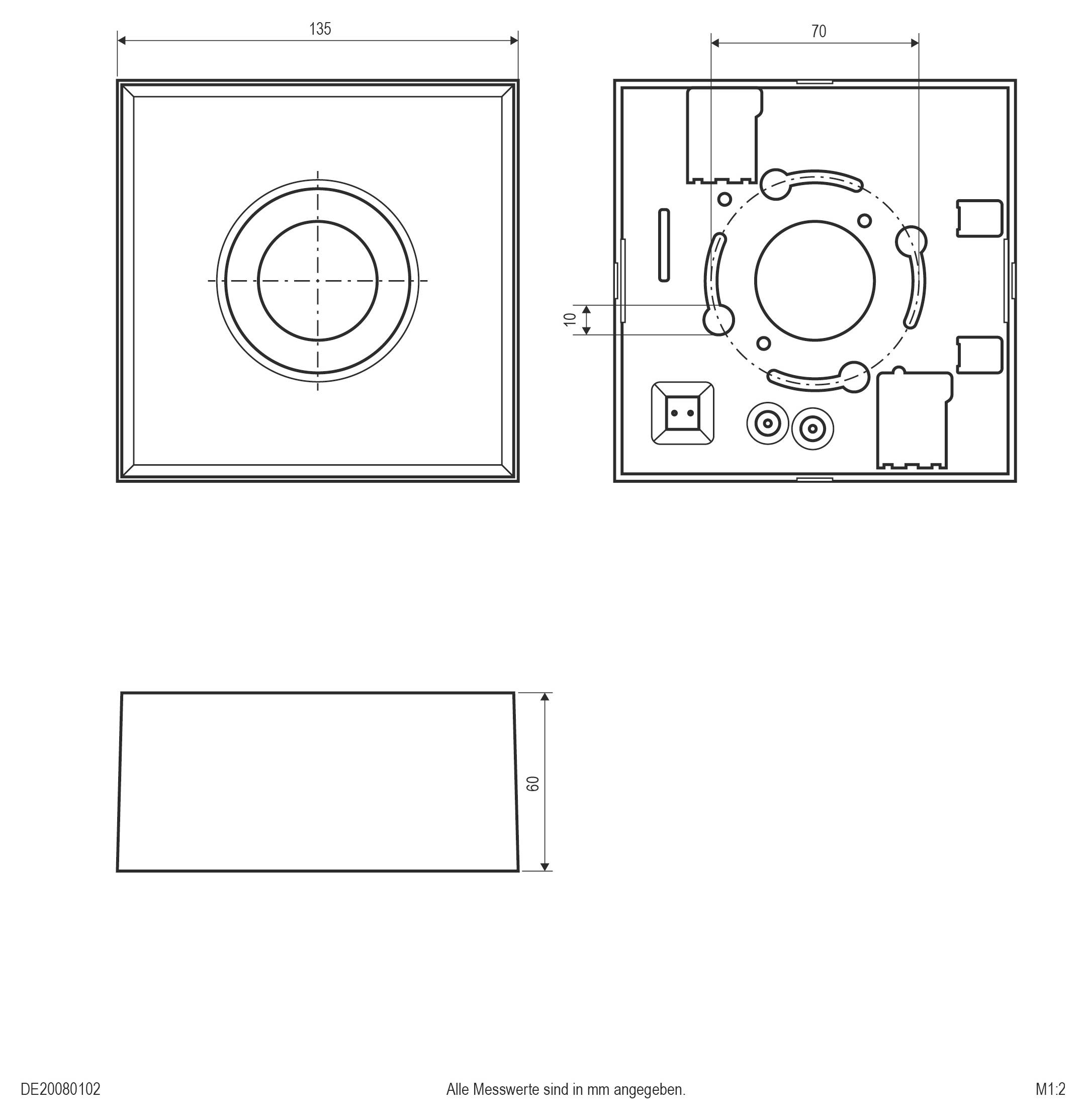

Technical drawing of a square electrical component, showing front, rear, and side views with dimensions 135 mm wide and 60 mm high, labeled M12.<br>

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mounting lamp cardanic swiveling, IP20

Power= 8 W
Total luminous flux= 680 lm
Colour temperature= 3000 K
Warm white

Technical specifications

Dim: (L x W x H) 135 x 135 x 60 mm

Operating voltage: 240 V

Product type: Ceiling light

Width: 135 mm

Bulb type: LED (monochrome)

Height: 60 mm

: Built-in LED

Length: 135 mm

Rating per bulb: 8 W

: 8 W

Light features: Ceiling mount option

Protection class: I

: IP20
IK06

Factory colour: White

Material: Aluminium

: n.rel.

Colour: Warm white

Light bulb included: Yes

: 3000 K

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Total luminous flux: 680 lm

: 680 lm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2483667 EVN DE20080102 DE20080102 Ceiling light LED (monochrome) Built-in LED 8 W White

User & Safety Instructions

User & Safety Instructions 2483667 EVN DE20080102 DE20080102 Ceiling light LED (monochrome) Built-in LED 8 W White

Description

Ceiling mounted light for various applications in indoor areas. Effect lighting, room lighting, accentuated lighting and much more can be converted with this lamp. Additional costs for bulbs are not required for this light, as the power is supplied by a permanently installed LED chip. Since the operating device is installed in the lamp, there are no additional costs for this either. The cardan-mounted lamp head can be swiveled in any direction.
