EVN EFDHS3 Wireless transmitter 3 V Max. range (open field) 40 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Wireless transmitter
- Transfer Standard (Smart Home)
FSK 868 MHz
n.rel.
- Data transfer (Smart Home)
Wireless
- Channels
3
40 m
- Operating voltage
3 V
- Width
50 cm
- Height
20 cm
- Length
160 cm
- Dim
(L x W x H) 160 x 50 x 20 cm
- Hub
Not required
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3035362 EVN EFDHS3 Wireless transmitter 3 V Max. range (open field) 40 m
User & Safety Instructions
User & Safety Instructions 3035362 EVN EFDHS3 Wireless transmitter 3 V Max. range (open field) 40 m

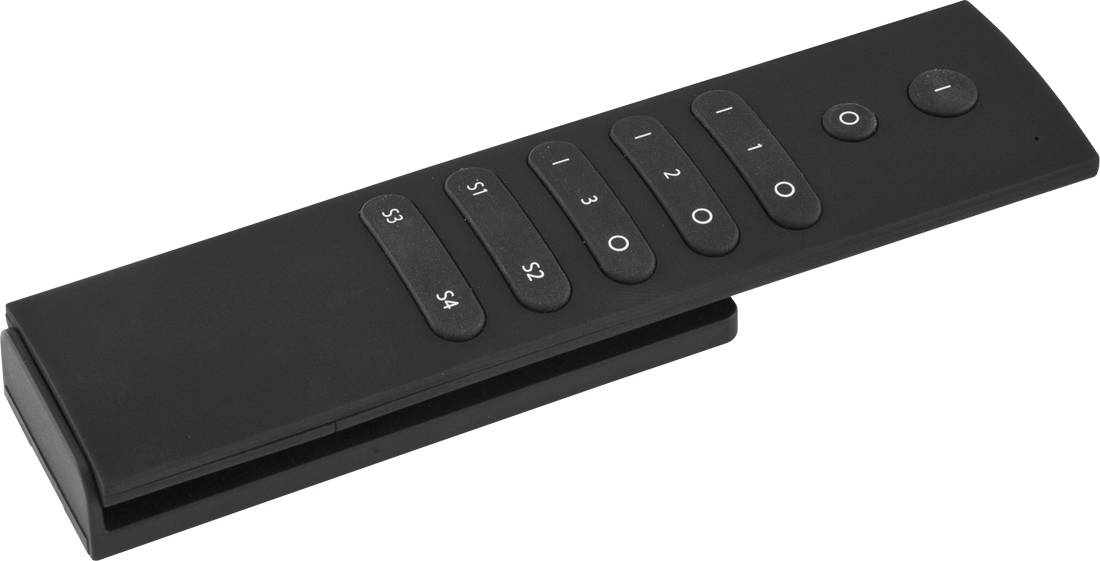

Description
The 3-channel remote control can control up to 3 wireless dimmer receivers separately. The following functions are possible: On, off, dim. Of course, several receivers can be taught in to one channel as well. A receiver can also be taught-in to multiple channels or handheld transmitters. Supplied with wall bracket. Suitable for the following wireless dimmer receivers: EFDP23400 and EFD12244X5A Runs on 1x CR2025 3V battery (not included).
