EVN EFDHS4RGBW Wireless transmitter 1.5 V Max. range (open field) 40 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Wireless transmitter
- Transfer Standard (Smart Home)
FSK 868 MHz
n.rel.
- Data transfer (Smart Home)
Wireless
- Channels
4
40 m
- Operating voltage
1.5 V
- Width
70 cm
- Height
30 cm
- Length
130 cm
- Dim
(L x W x H) 130 x 70 x 30 cm
- Hub
Not required
- Data exchange
Unidirectional (uni)
- Features
Dimmer function
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3035367 EVN EFDHS4RGBW Wireless transmitter 1.5 V Max. range (open field) 40 m
User & Safety Instructions
User & Safety Instructions 3035367 EVN EFDHS4RGBW Wireless transmitter 1.5 V Max. range (open field) 40 m
Description

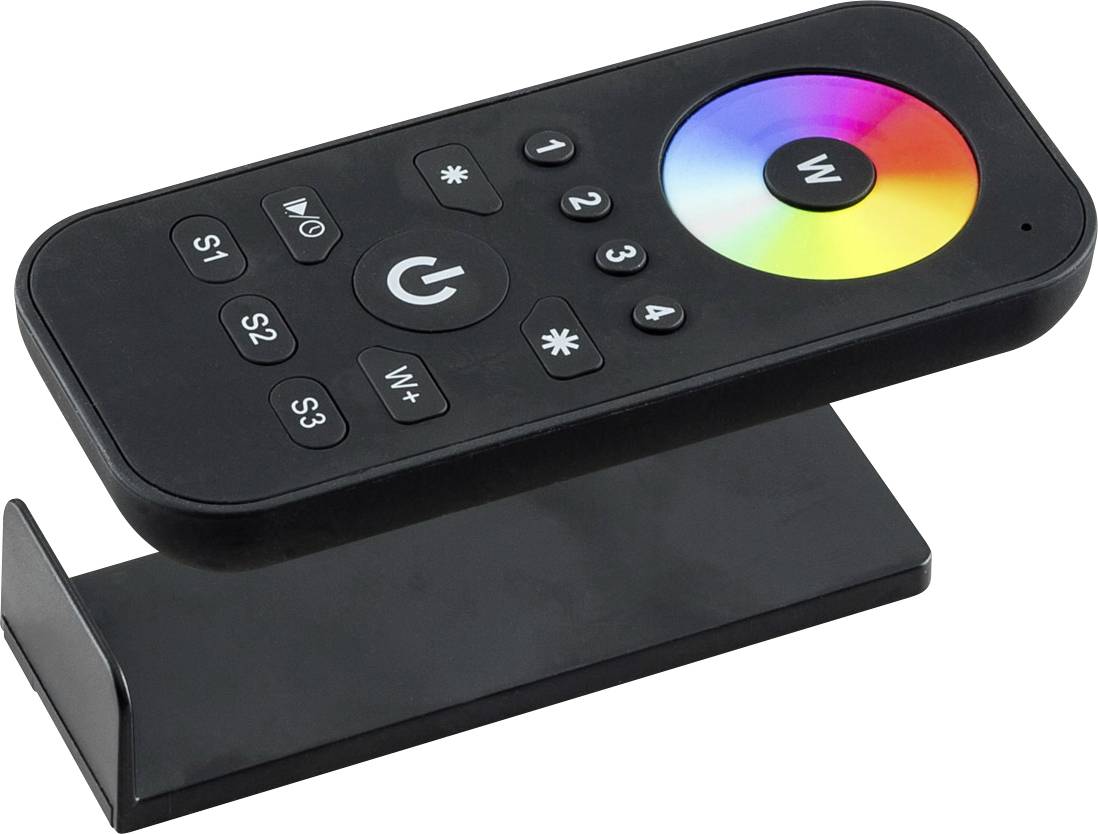

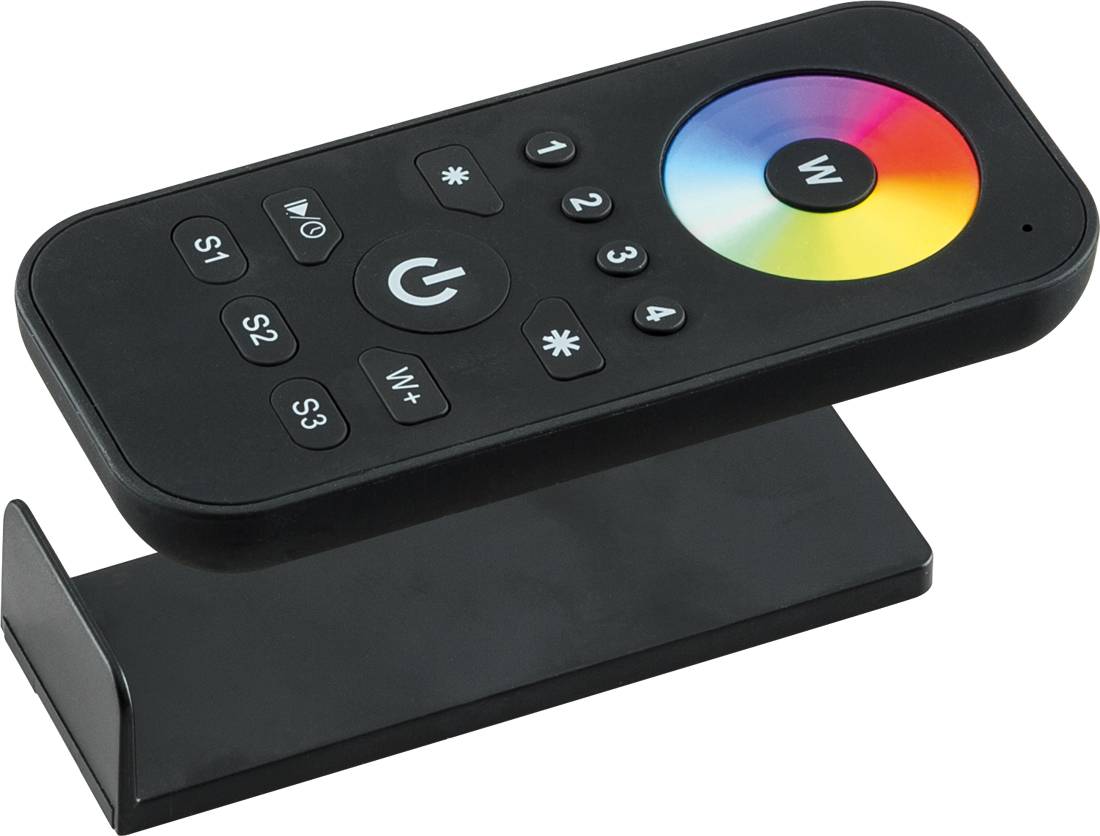

The 4-channel RGBW handheld transmitter can be used to control up to four receivers separately. You can use several receivers on one hand-held transmitter or In the same channel as several hand-held transmitters stored on one receiver. Supplied with wall bracket. Functions: Colour change via touch color wheel, white direct color selection, switch on and off, dim, just like program change. Runs on 3 x AAA (1.5V) batteries (not supplied). Suitable for the following receivers: EFD12244X5A, EFDP12244X5A, EFDP24050VS, EFDP24100VS, RGB+W-WIFI4x5A and RGBWIFI674X5A.
