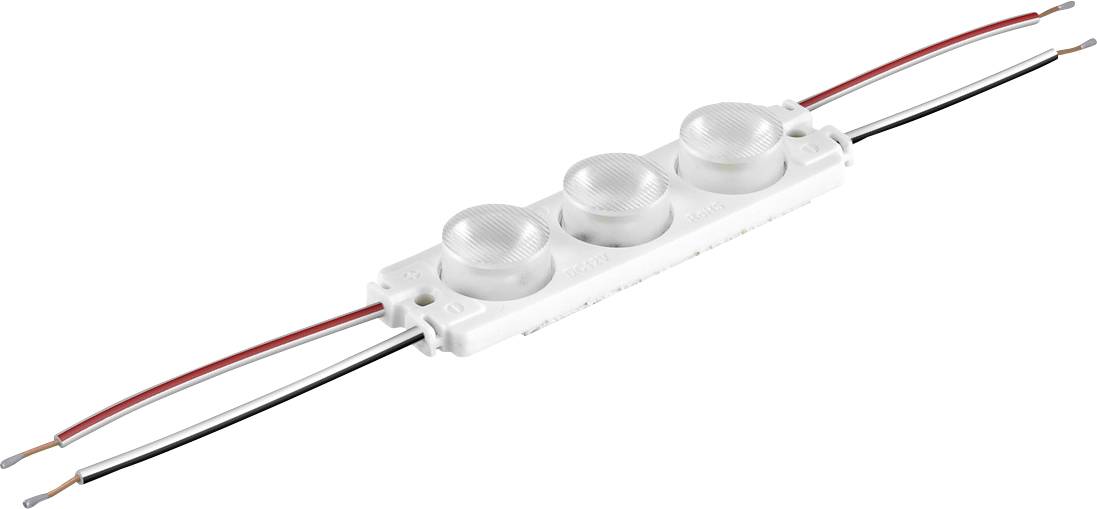

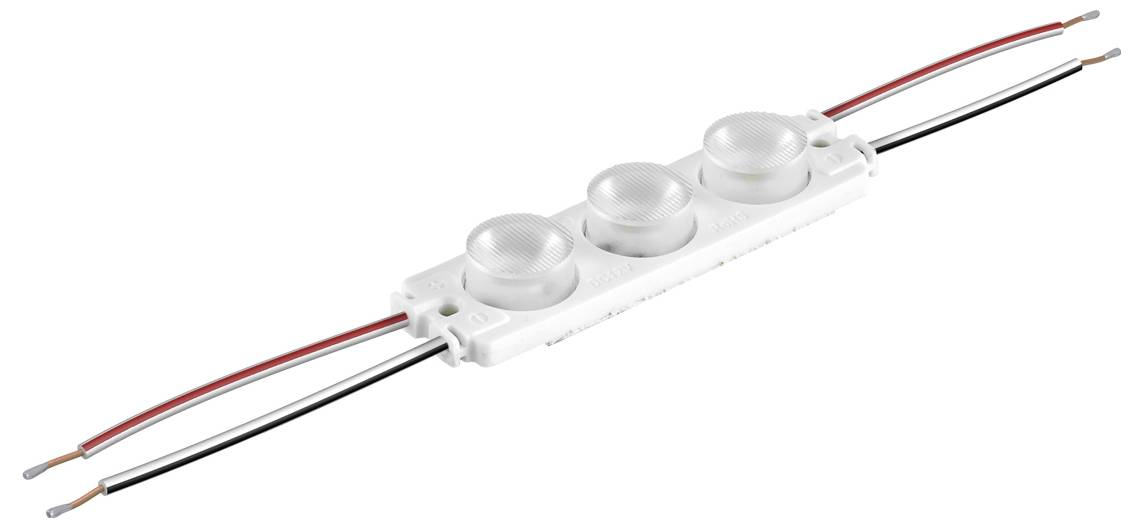

EVN EVN Lichttechnik LCS30110 LED strip set open cable ends 12 V 74 mm Daylight white 1 pc(s)

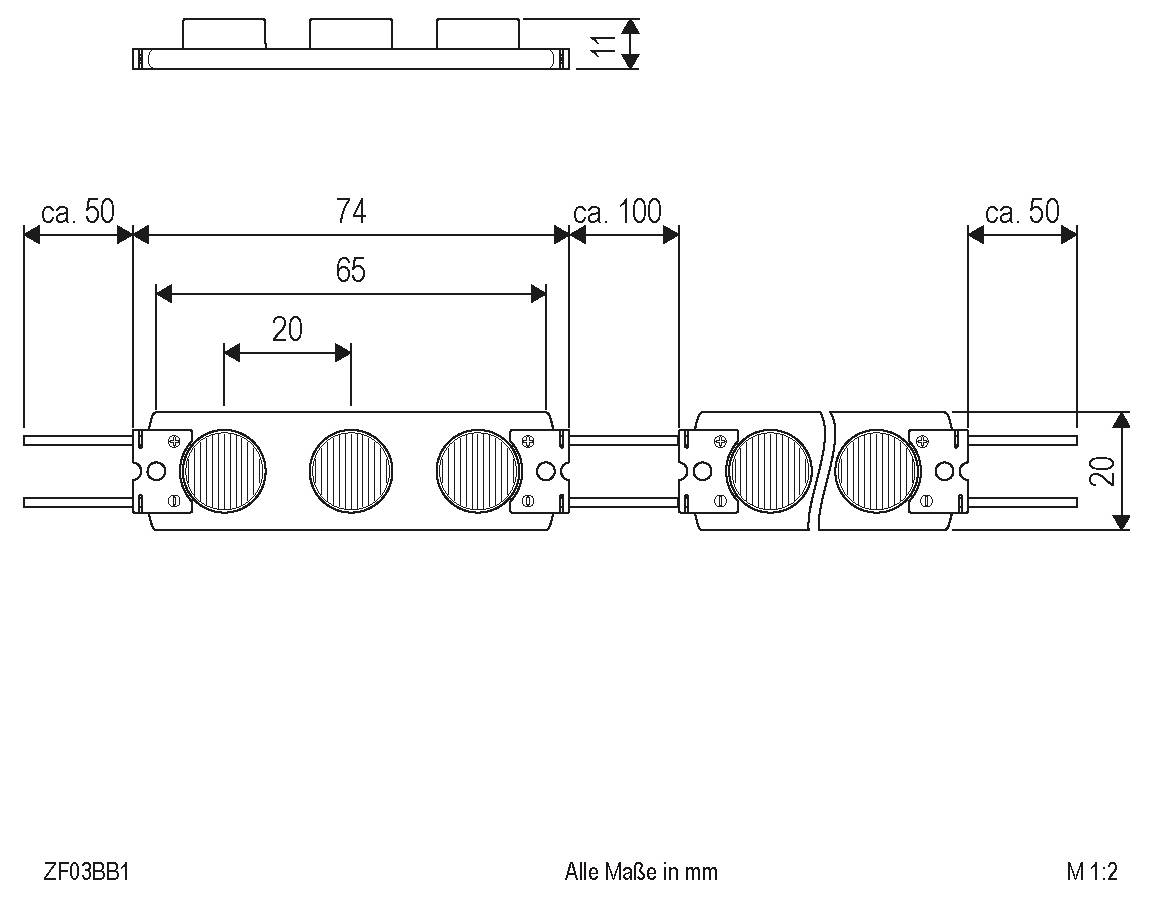

LED module in 10er set as a chain with a total length of 1.74m. The LED modules can be used as well as the LED strips, whereby the separation can take place after each module. Aluminum cooling surfaces are mounted on the back of each module, which means that the use of aluminum profiles is no longer absolutely necessary during assembly. In addition to mounting using 3M adhesive tape, the individual modules can also be screwed on. Due to the design, the modules are perfectly suitable as Sidel light illumination, e.g. for advertising signs. As the modules are UV and chlorine resistant, there are of course many other possible applications. The optical lens installed in these modules provides an elypical beam angle (10° x 65°). The cable length between 2 modules is 100mm and can be shortened to this length at any point. Technical data: TA: -25 to 60°C. The technical specifications refer to 1 module each. A maximum of 1.5 chains (15 modules) may be connected to each other.

This text is machine translated.
