EVN IC6523060284050M LED strip set EEC: G (A - G) + plug 230 V 50 m Neutral white 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip set
Connectors (LED strips)
+ plug
LED strip features
Can be shortened
Colour
Neutral white
Operating voltage
230 V
Datasheet (PDF)
Technical specifications
- Product type
LED strip set
- Connectors (LED strips)
+ plug
- LED strip features
Can be shortened
- Colour
Neutral white
- Colour rendering index
100 Ra
- Luminous flux (Φ) per unit
589 lm
- Operating voltage
230 V
- Dim

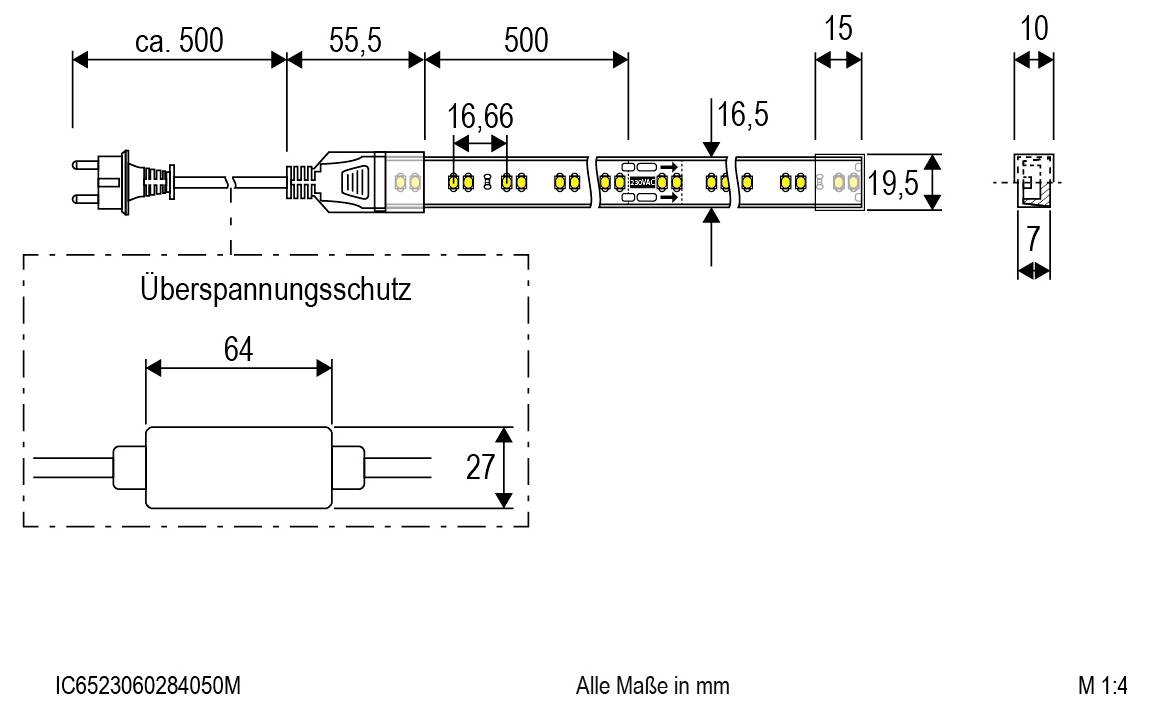

(L x W x H) 50 m x 19 mm x 10 mm
- Width
19 mm
- Height
10 mm
- Length
50 m
IP65
- Min. temperature
-20 °C
- Max. temperature
45 °C
G (A - G)
- Protection class
II
Documents & Downloads
Datasheet
Datasheet 2483718 EVN IC6523060284050M LED strip set EEC: G (A - G) + plug 230 V 50 m Neutral white 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483718 EVN IC6523060284050M LED strip set EEC: G (A - G) + plug 230 V 50 m Neutral white 1 pc(s)
Description

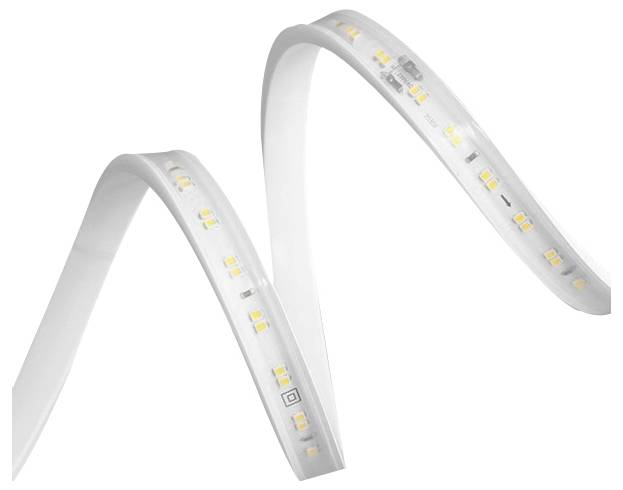

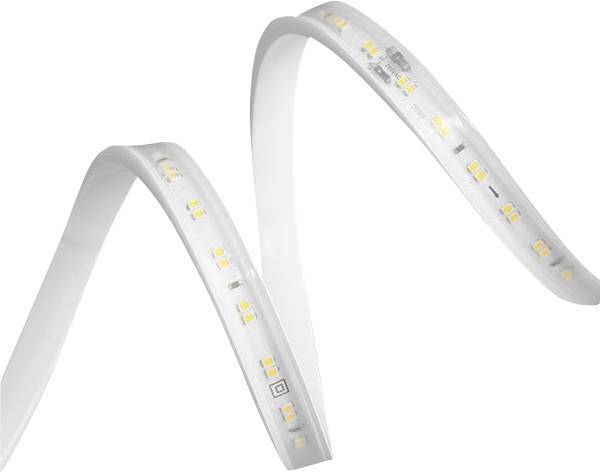

Short-cut and flexible 230V LED strip with IC current constant. The Strip is equipped with a 0.5m long connection cable with contour plug so that no power supplies are needed. Through the IC´s, a length of up to max. 50m can be operated at a time. Also, the use of heat-conducting substrates is not absolutely necessary. Thus, the Strip can be used for numerous lighting applications. If the strip is shortened, the sections can be easily provided with a plug again using the separately available connection cable (IC65230ASL). In addition, the strip is UV-resistant. Inrush current: 5.6A for less than 200 microseconds. ta: -20°C - 45°C.
