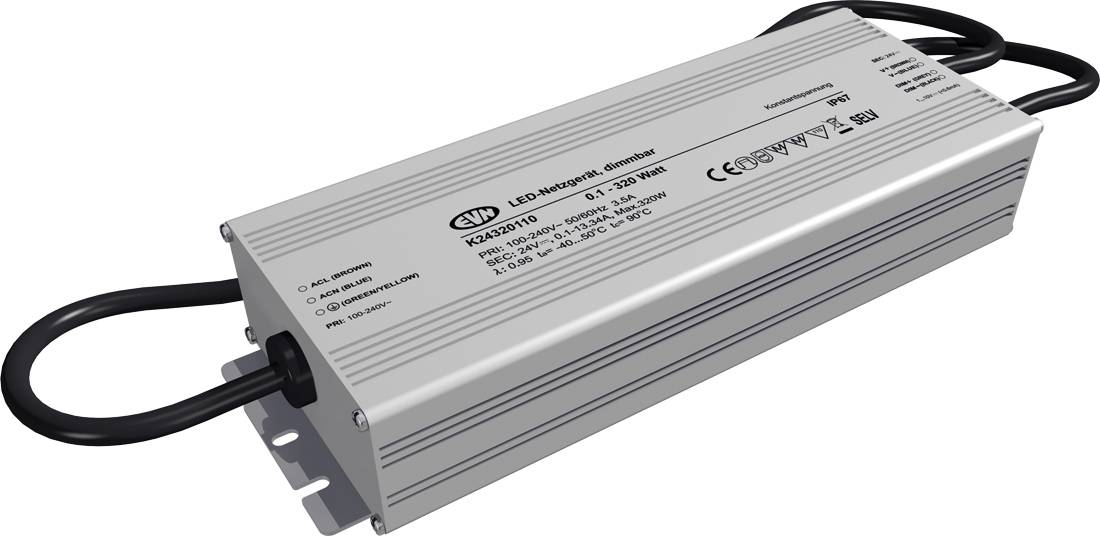

EVN K24320110 LED transformer Constant voltage 24 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
K24320110
- Constant voltage
- 24 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

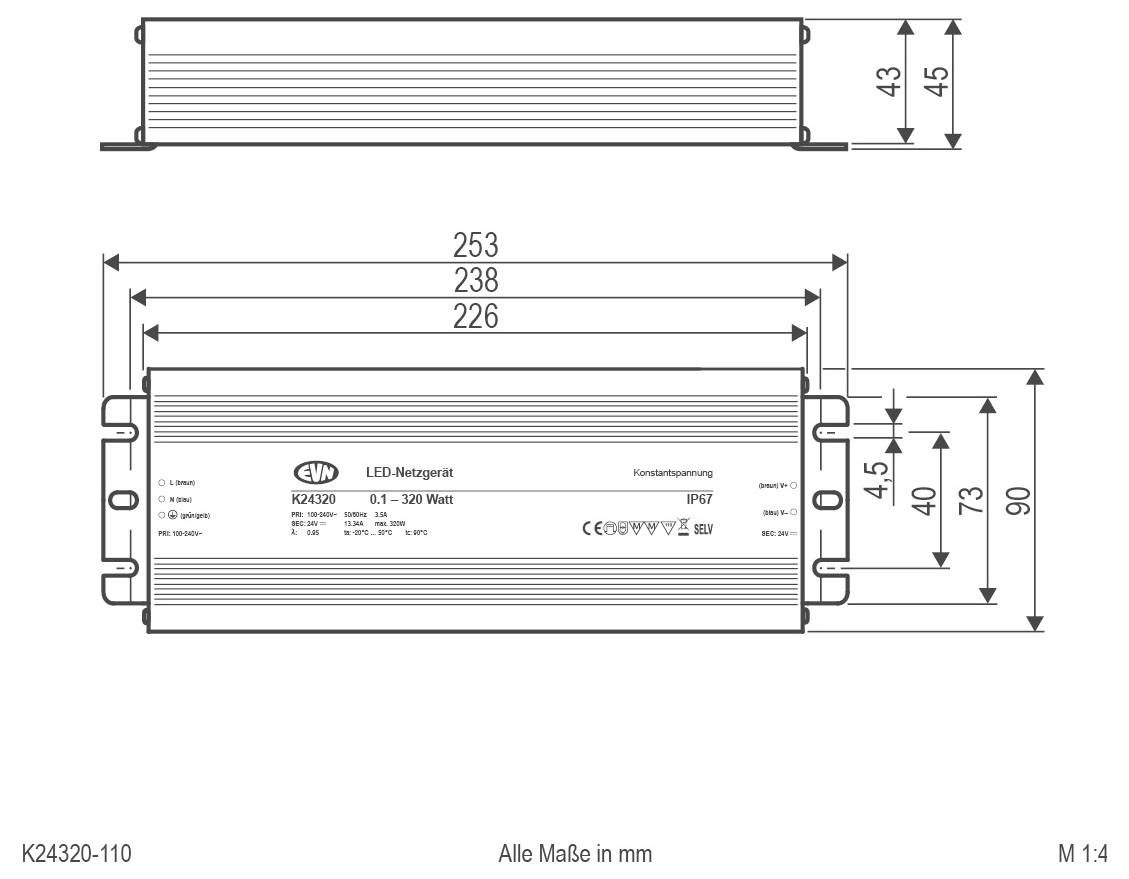

(L x W) 253 mm x 90 mm
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
MM-Kennzeichnung
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Open end cable
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Width
90 mm
- Length
253 mm
- Max. temperature
50 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483757 EVN K24320110 LED transformer Constant voltage 24 V DC dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483757 EVN K24320110 LED transformer Constant voltage 24 V DC dimmable 1 pc(s)
Description
The short-circuit proof safety transformer can be used outdoors due to its higher degree of protection, but can also be used in furniture construction, for example, as THE MM marking is given. In addition, the power supply unit can be dimmed via 1-10V. The connecting cables have a length of 29cm on the primary side and 29cm on the secondary side, and the connecting cable for the 1-10V interface also has a length of 29cm. Technical data: Supply voltage: 100-240V/AC, ta: -40°C - 50°C, tc: 90°C, power factor 0.95.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
