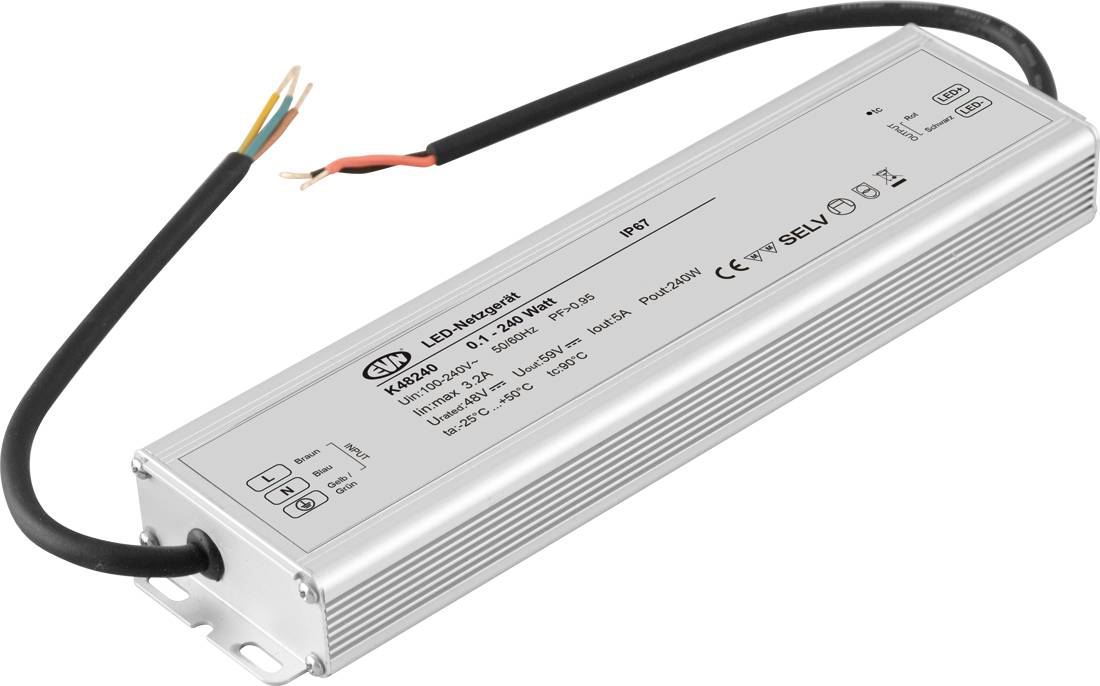

EVN K48240 LED transformer Constant voltage 48 V DC Outdoor 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
K48240
- Constant voltage
- 48 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

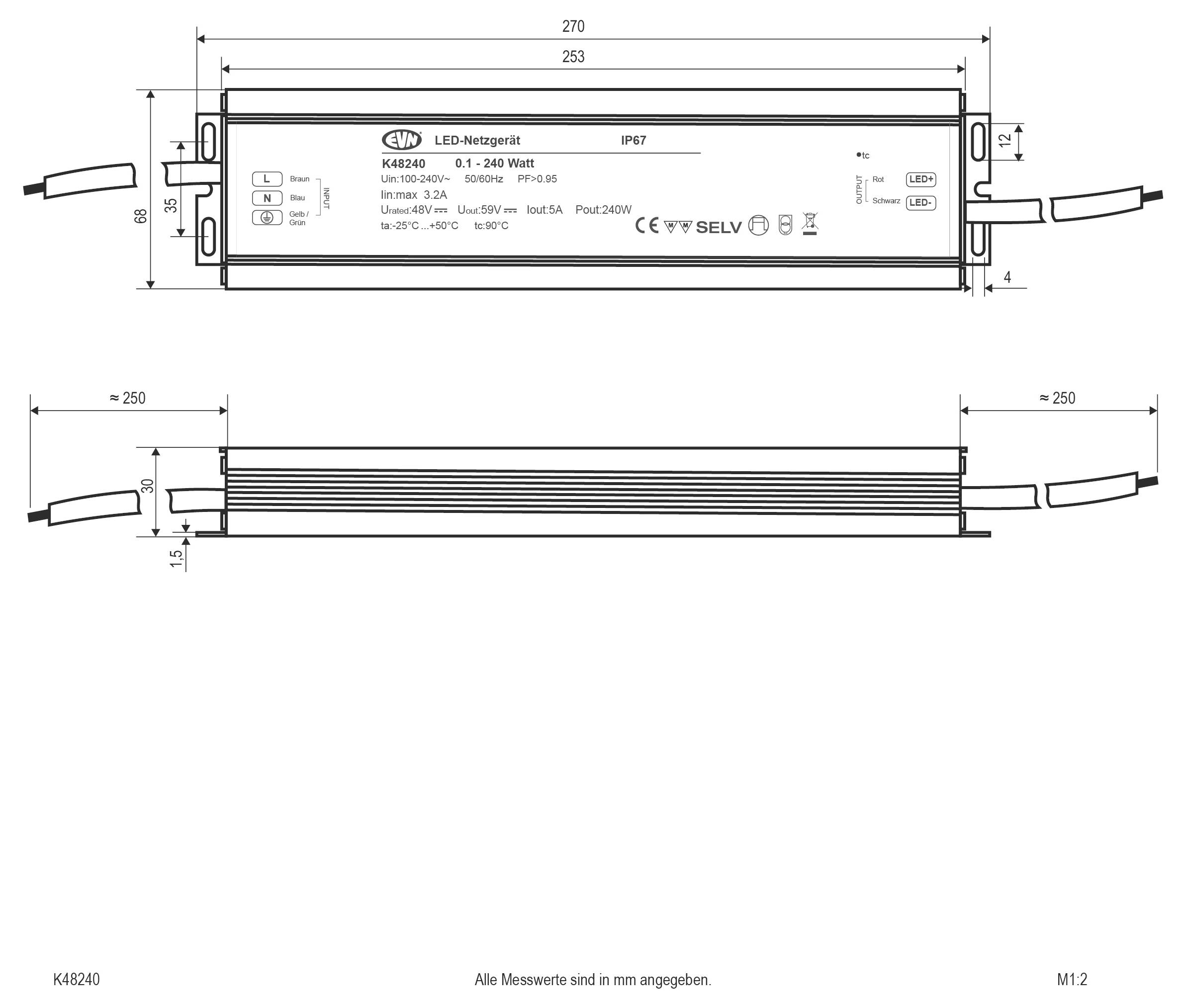

(L x W) 270 mm x 68 mm
- Output voltage (max.)
48 V DC
- Output voltage (min.)
48 V DC
- Test mark
MM-Kennzeichnung
- Protection class
I
- LED driver features
Outdoor
IP67
- Connection
Open end cable
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Width
68 mm
- Length
270 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483760 EVN K48240 LED transformer Constant voltage 48 V DC Outdoor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483760 EVN K48240 LED transformer Constant voltage 48 V DC Outdoor 1 pc(s)
Description
The short-circuit proof safety transformer can be used outdoors due to its higher degree of protection, but can also be used in furniture construction, for example, as THE MM marking is given. The connecting cables have a length of 24cm on the primary side and 24cm on the secondary side. Technical data: Supply voltage: 100-240V/AC, ta: -25°C - 50°C, tc: 90°C, power factor 0.95.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
