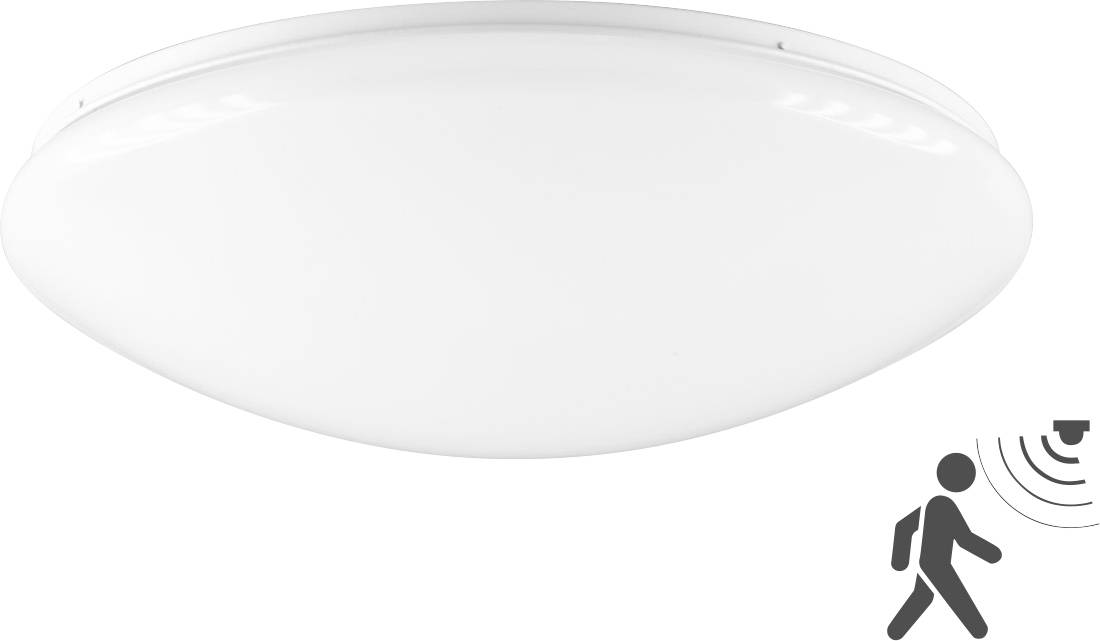

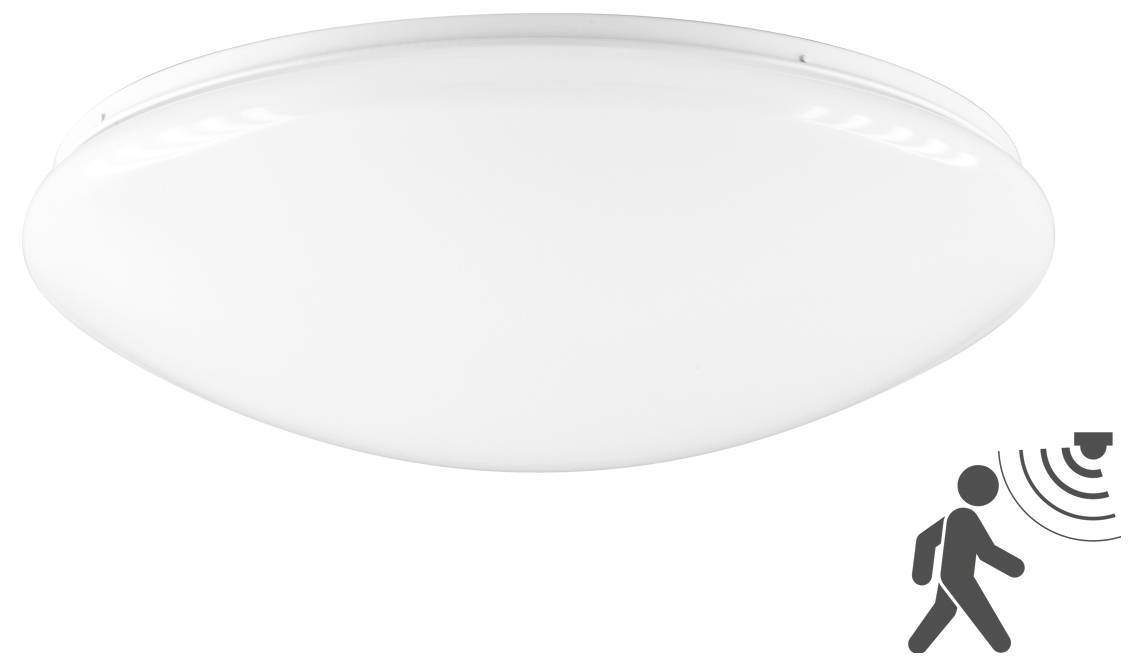

Buy EVN L410320125BM L410320125BM LED ceiling light (+ motion detector) LED (monochrome) Built-in LED 32 W White

White circular ceiling light fixture with a motion sensor icon indicating movement-activated lighting.

White ceiling-mounted motion sensor light with a walking person icon indicating automatic activation<br>

Technical drawing of a round ceiling fixture, showing side and top views with mounting holes and dimensions, including 410 mm diameter and 115 mm height.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

LED ceiling wall light, IP44 with motion detector

Power= 32 W
Total luminous flux= 3000 lm
Colour temperature= 6000 K
Warm white to daylight white

Technical specifications

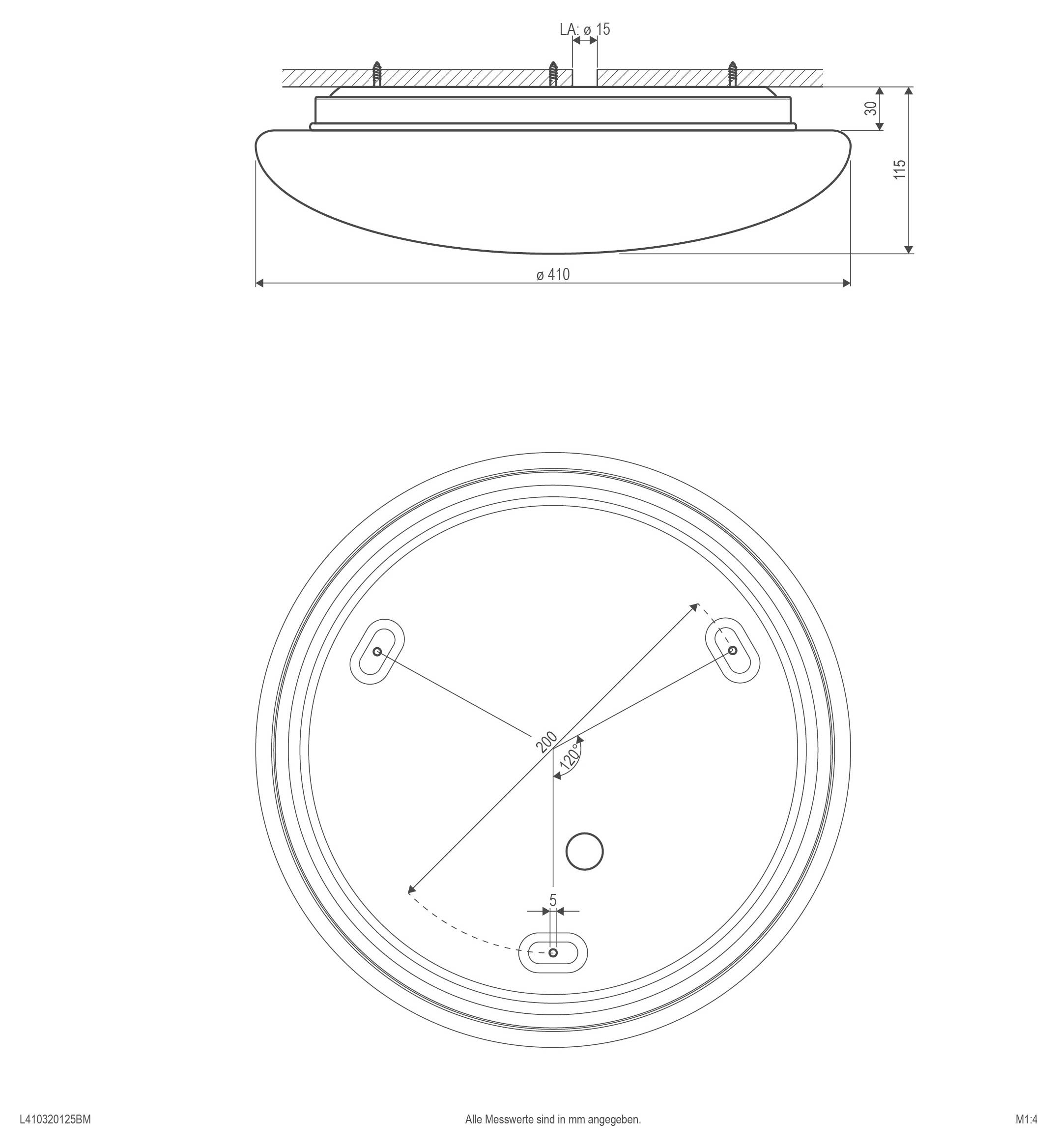

Dim: (Ø x H) 410 mm x 115 mm

Operating voltage: 220 V
240 V

Product type: LED ceiling light (+ motion detector)

Bulb type: LED (monochrome)

Height: 115 mm

: Built-in LED

Rating per bulb: 32 W

: 32 W

(Ø): 410 mm

Coverage max. (width): 5 m

Adjustable on-time (min.): 5 s

Adjustable on-time (max.): 10 min

Light features: Suitable for wall mounting
Incl. motion detector

Protection class: I

: IP44
IK03

Factory colour: White

Material: Steel

: n.rel.

Colour: Warm white to daylight white

Light bulb included: Yes

: 6000 K

Colour temperature (max.): 6000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 6000 K

Total luminous flux: 3000 lm

: 3000 lm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2483819 EVN L410320125BM L410320125BM LED ceiling light (+ motion detector) LED (monochrome) Built-in LED 32 W White

User & Safety Instructions

User & Safety Instructions 2483819 EVN L410320125BM L410320125BM LED ceiling light (+ motion detector) LED (monochrome) Built-in LED 32 W White

Description

LED mounted light for different application areas with motion detector. Due to the given degree of protection, the lamp can also be used in damp rooms as well as in protected outdoor areas. The lamp has a completely circumferential LED strip, whereby no blinding effect arises despite the high light yield. Moreover, the large area of light emission provides a very homogeneous illumination of the room. One of three possible color temperatures can be set with the help of a switch. The possible color temperatures and resulting lumen are: 3000K (2560lm), 4000K (3000lm) and 6000K (2880lm). The power supply unit is installed in the panel. The following settings can be made on the motion detector using a DIP switch: Detection radius: 100% or 50% (corresponds to a detection radius of 5m or 2.5m at an installation height of 3M), switching duration (lighting duration): 5 seconds, 1 minute, 3 minutes or 10 minutes. Function permanently or from 25 lux or less. In addition, it is possible to connect several lamps up to a maximum of 400W, whereby each lamp then serves as a switching point and all other connected lamps are switched on.

This text is machine translated.
