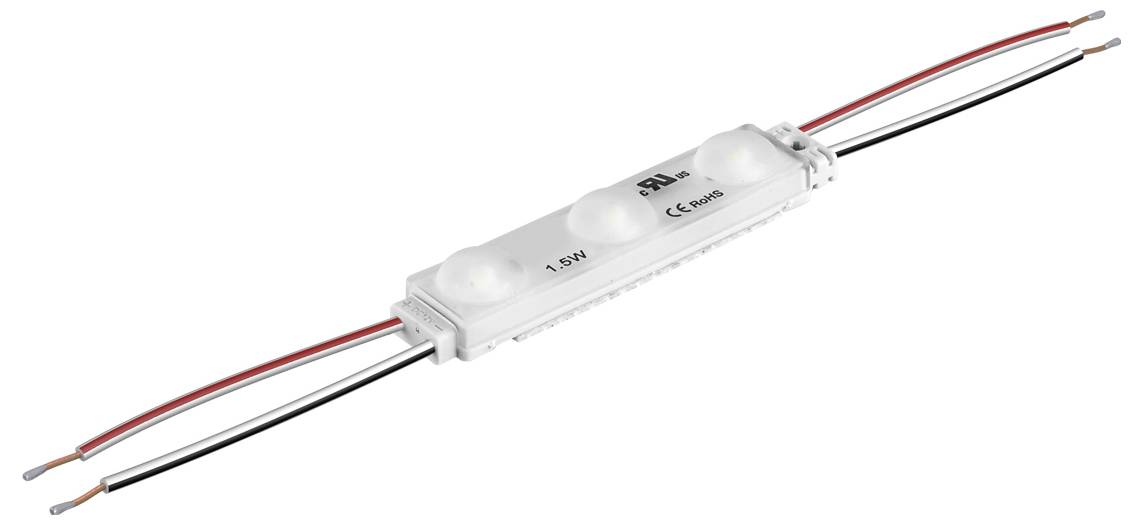

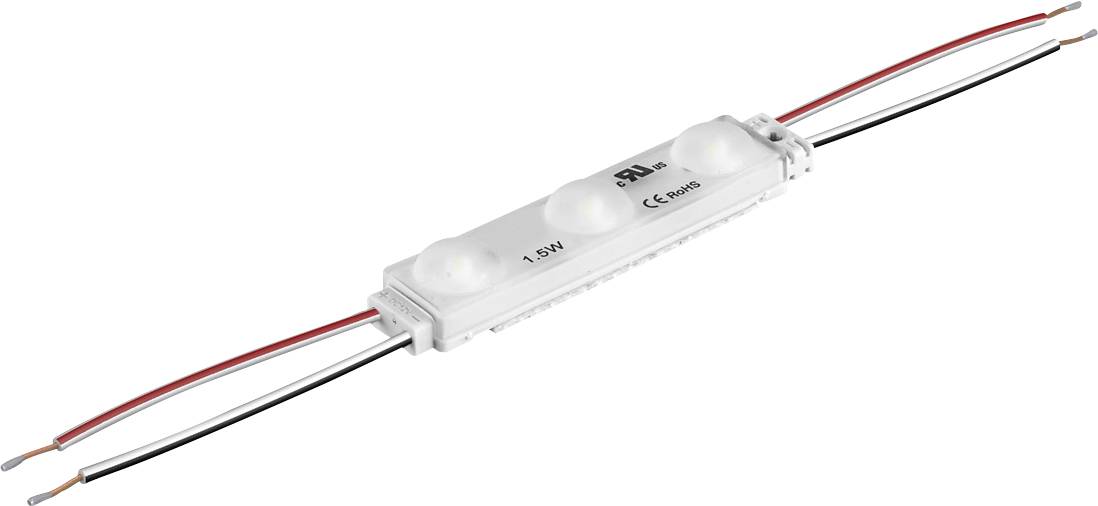

EVN LCB30110 LCB30110 LED strip set open cable ends 12 V 77.80 mm Daylight white 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip set
Connectors (LED strips)
open cable ends
LED strip features
Self-adhesive
Can be shortened
Colour
Daylight white
Use
Inside
Datasheet (PDF)
Technical specifications
- Product type
LED strip set
- Connectors (LED strips)
open cable ends
- LED strip features
Self-adhesive
Can be shortened
- Colour
Daylight white
- Use
Inside
- Light intensity I(V)
14 cd
- Operating voltage
12 V
- Connection
Open end cable
- Dim

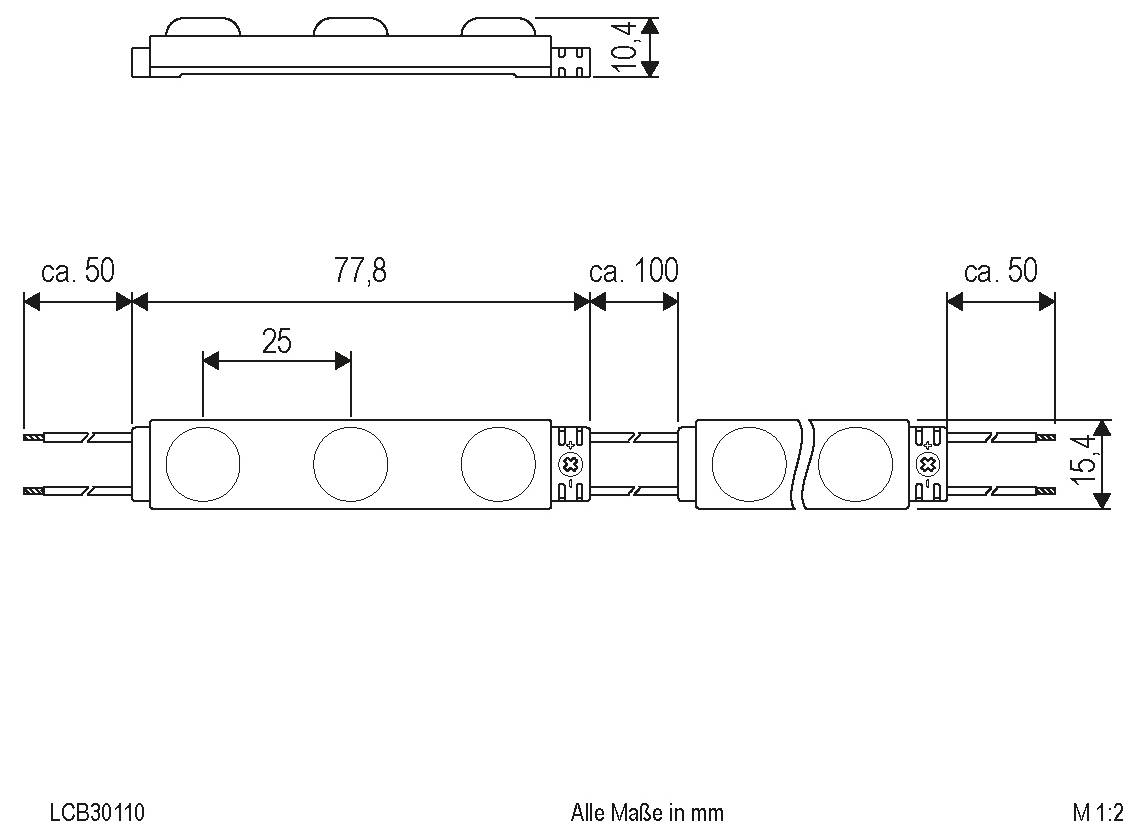

(L x W) 77.80 mm x 15.4 mm
- Width
15.4 mm
- Length
77.80 mm
IP67
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483877 EVN LCB30110 LCB30110 LED strip set open cable ends 12 V 77.80 mm Daylight white 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483877 EVN LCB30110 LCB30110 LED strip set open cable ends 12 V 77.80 mm Daylight white 1 pc(s)
Description
LED module in 10er set as a chain with a total length of 1.78m. The LED modules can be used as well as the LED strips, whereby the separation can take place after each module. In addition to mounting using 3M adhesive tape, the individual modules can also be screwed on. Due to the design, the modules are perfectly suitable as backlight lighting, e.g. for advertising signs. As the modules are UV-, chlorine- and salt spray resistant, there are of course many other application possibilities. The optical lens installed in these modules achieves a much larger beam angle. The cable length between 2 modules is 100mm and can be shortened to this length at any point. Technical data: TA: -25 to 60°C. The technical specifications refer to 1 module each. A maximum of 5 chains (50 modules) may be connected to each other.
