EVN LFE100940BM LFE100940BM LED floodlight 10 W Colours (LEDs): Neutral white
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

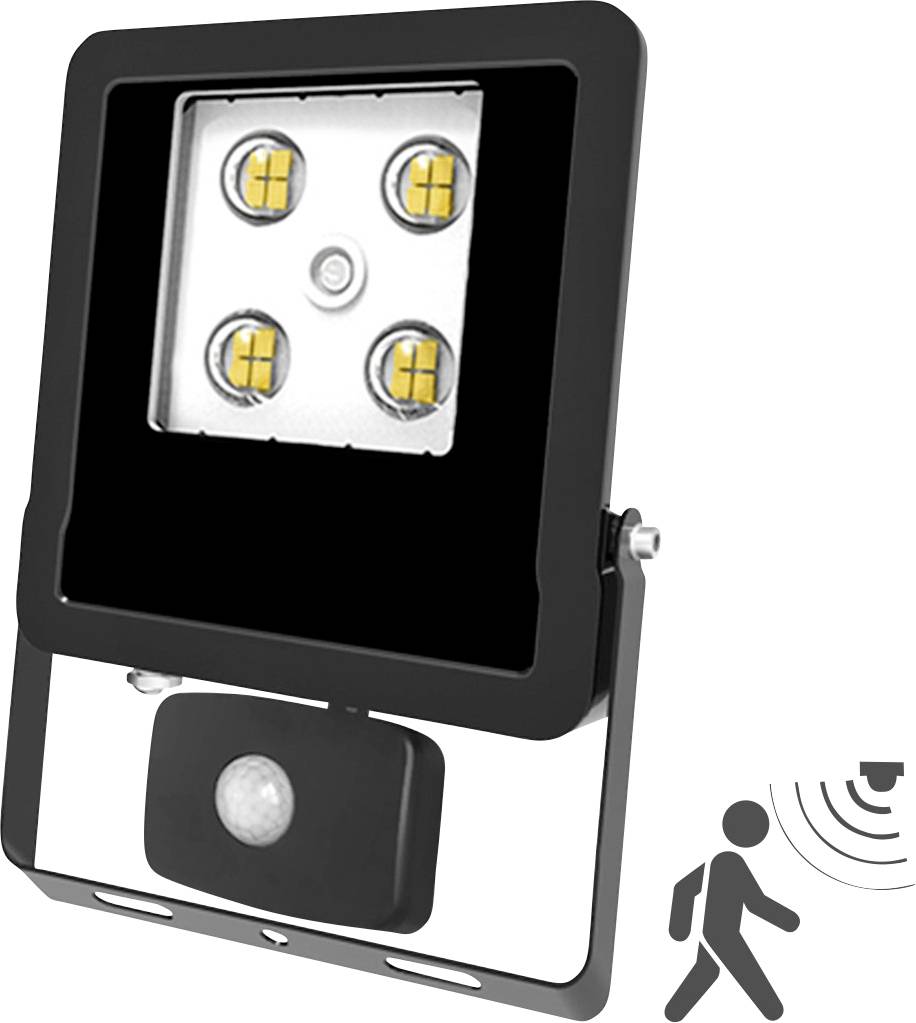

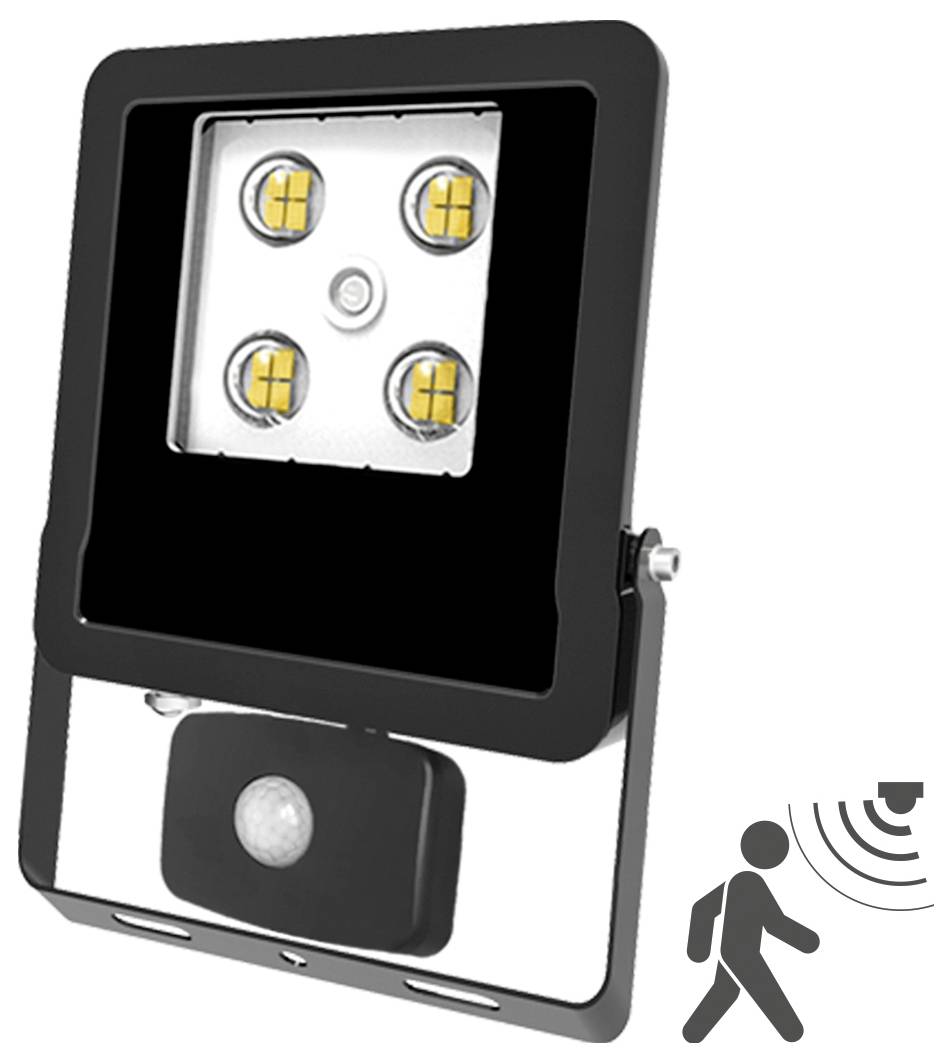

LED Wallpointer with motion detector, IP44
- Power= 10 W
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED floodlight
- Operating voltage
220 V
240 V
- Bulb type
LED (monochrome)
- Rating per bulb
10 W
10 W
4000 K
- Colour
Neutral white
- Light features
Incl. motion detector
- Swivel range (max.)
270°
- Radiation angle
80°
- Protection class
I
IK08
IP44
- Factory colour
Black
- Material
Aluminium
- Dim

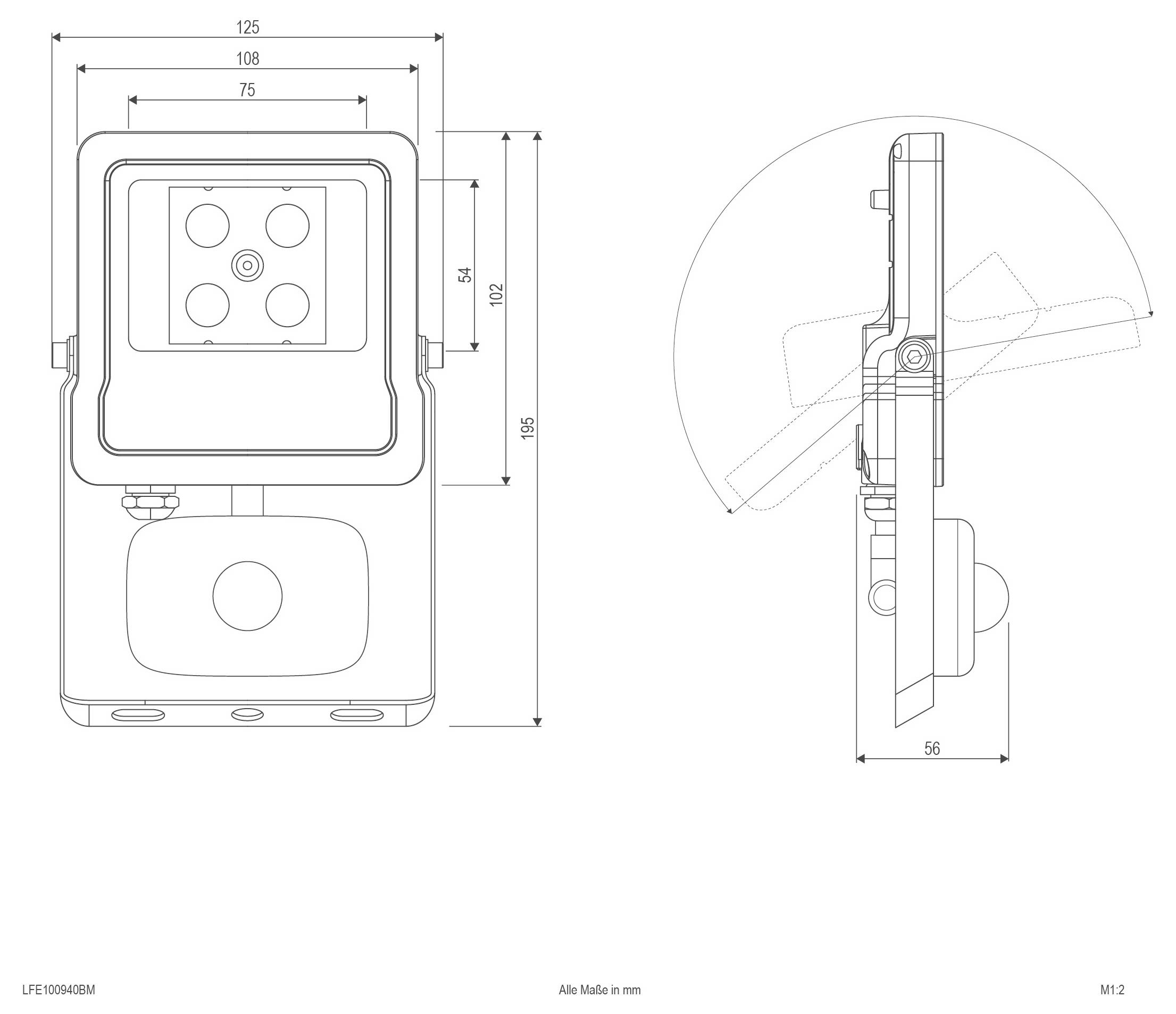

(L x W x H) 125 x 56 x 195 mm
- Feed length
1 m
n.rel.
- Type
Planar
- Light bulb included
Yes
- Width
56 mm
- Height
195 mm
- Length
125 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483899 EVN LFE100940BM LFE100940BM LED floodlight 10 W Colours (LEDs): Neutral white
User & Safety Instructions
User & Safety Instructions 2483899 EVN LFE100940BM LFE100940BM LED floodlight 10 W Colours (LEDs): Neutral white
Description
The flat LED floodlight with integrated twilight and motion sensor has a beam angle of 120° and is perfectly suitable for illuminating larger elements and large areas. The base surface of the mounting bracket is designed in such a way that the floodlight is at a 45° angle to the mounting surface when it is not swiveled. All external screws are made of stainless steel. The motion sensor can be set separately for lux, duration and sensitivity. Technical data: ta: -20°C - 45°C, power factor: 0.90, swivel range: 270°, connection cable: 1m with free wire ends. The specified dimensions are over everything including bracket.
