EVN LSTR10RGBWAS LSTR10RGBWAS Connector 5 A 24 (max.) 24 V (L x W x H) 24.3 x 15 x 7.8 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Operating voltage
24 V
Length
24.3 mm
Energy efficiency rating
n.rel.
Connection
Jack connector
Datasheet (PDF)
Technical specifications
- Product type
Connector
- Connection
Jack connector
- Operating voltage
24 V
- Operating current
5 A
- Width
15 mm
- Height
7.8 mm
- Length
24.3 mm
- Dim
(L x W x H) 24.3 x 15 x 7.8 mm
- Output voltage (max.)
24 V
- Max. output current
5 A
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3022661 EVN LSTR10RGBWAS LSTR10RGBWAS Connector 5 A 24 (max.) 24 V (L x W x H) 24.3 x 15 x 7.8 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3022661 EVN LSTR10RGBWAS LSTR10RGBWAS Connector 5 A 24 (max.) 24 V (L x W x H) 24.3 x 15 x 7.8 mm 1 pc(s)
Description

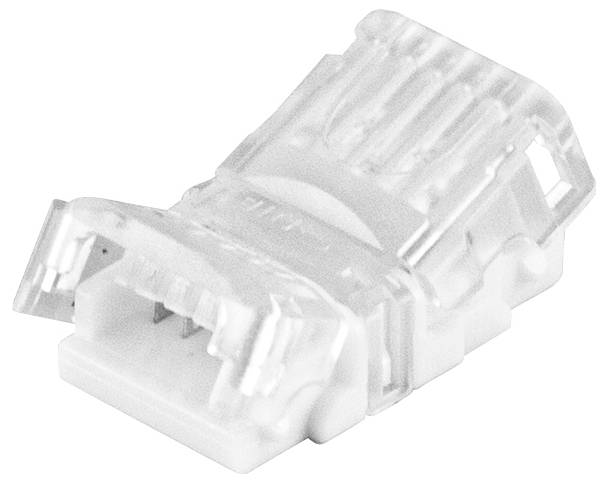

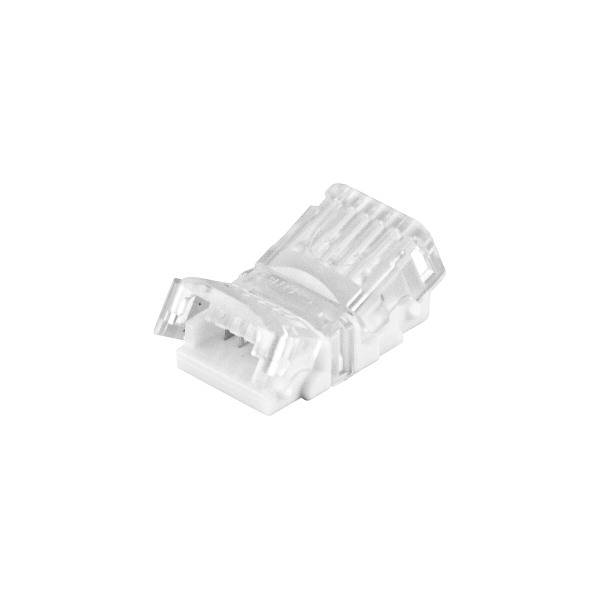

The power feed can be attached to the LED strip without soldering using the connection connector. Thanks to the flat and narrow design, the connector can also be used in aluminum profiles. Both the connecting cable and the LED strip are inserted into the connector and the connector is then closed. The connector is designed so that it can be opened again and used multiple times. The connector is suitable for RGBW LED strips with a board width of 10 mm, a PCB thickness of 0.25 - 0.35 mm and a maximum chip mounting rating of 120 LED per meter. The maximum load capacity is 24V and 5A. Suitable for flexible cables with a cross-section up to 0.5 mm². Dimensions: LxWxH: 24.3 x 15 x 7.8mm
