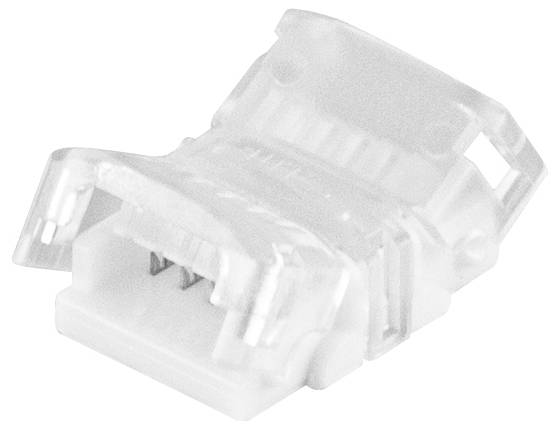

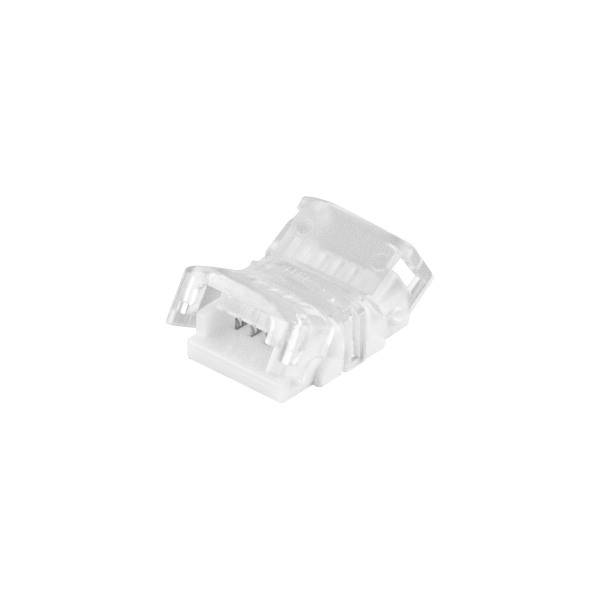

EVN LSTR10RGBWDVB LSTR10RGBWDVB Connector 24 V Aluminium (L x W x H) 19.6 x 15 x 7.8 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Operating voltage
24 V
Material
Aluminium
Length
19.6 mm
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Connector
- Connection
Connector
- Operating voltage
24 V
- Operating current
5 A
- Material
Aluminium
- Width
15 mm
- Height
7.8 mm
- Length
19.6 mm
- Dim
(L x W x H) 19.6 x 15 x 7.8 mm
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3022664 EVN LSTR10RGBWDVB LSTR10RGBWDVB Connector 24 V Aluminium (L x W x H) 19.6 x 15 x 7.8 mm Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3022664 EVN LSTR10RGBWDVB LSTR10RGBWDVB Connector 24 V Aluminium (L x W x H) 19.6 x 15 x 7.8 mm Piece 1 pc(s)
Description
This allows LED strips to be connected without the need for soldering. Thanks to the flat and narrow design, the connector can also be used in aluminum profiles. The LED strips are inserted into the connector and the connector is then closed. The connector is designed so that it can be opened again and used multiple times. The connector is suitable for RGBW LED strips with a board width of 10 mm, a PCB thickness of 0.25 - 0.35 mm and a maximum chip mounting rating of 120 LED per meter. The maximum load capacity is 24V and 5A. Dimensions: LxWxH: 19.6 x 15 x 7.8mm
