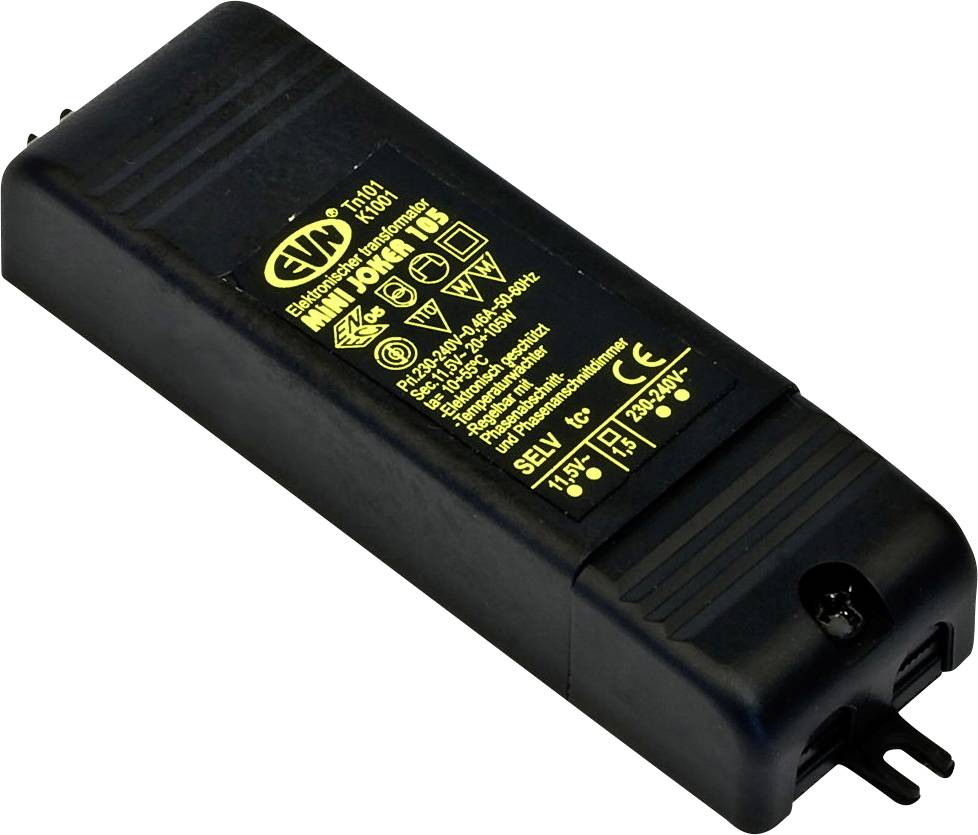

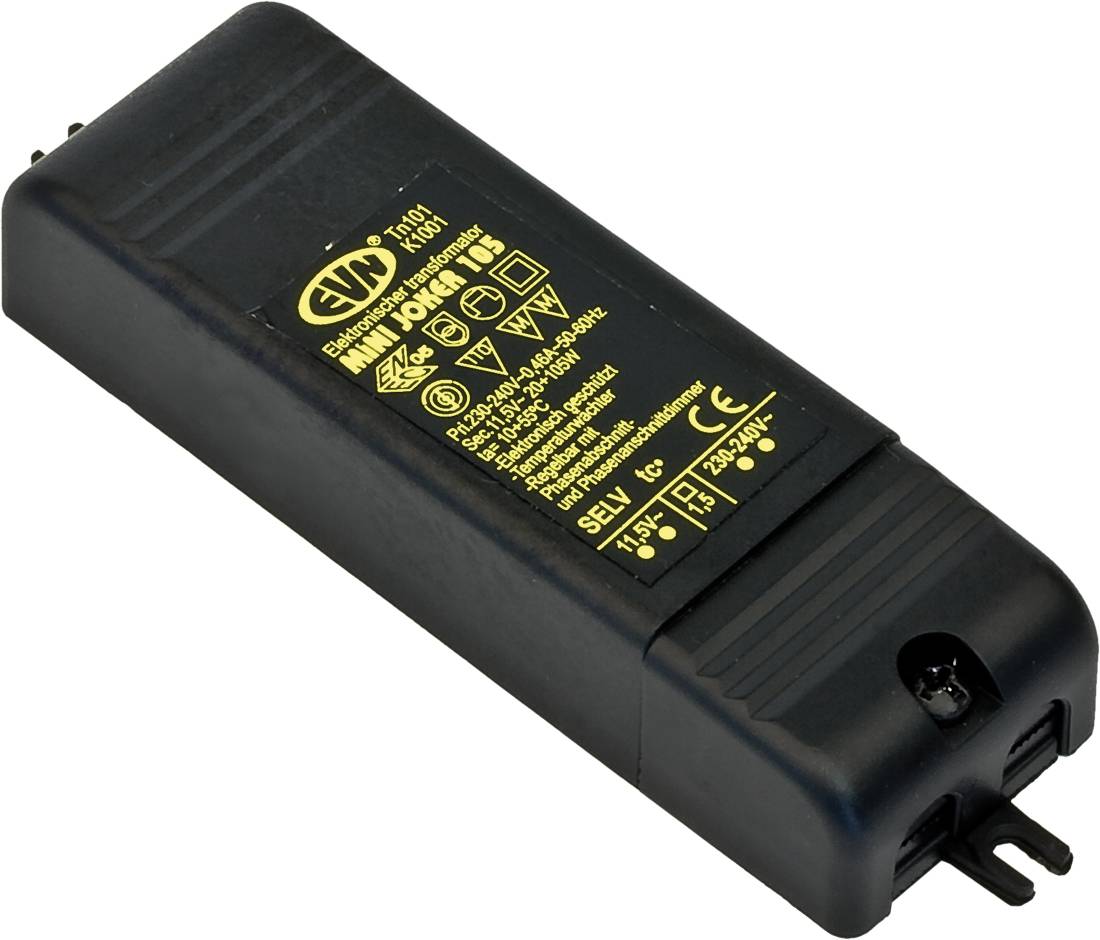

EVN MINI JOKER 105 Halogen transformer 12 V 20 - 105 W Phase-fired control
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
4% = € 0.82
€ 17.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Electronic halogen transformer, 12V/AC
- Output power range: 20 - 105 W
- Phase-fired control
Technical specifications
- Product type
Halogen transformer
- Output rating (min.)
20 W
IP20
- Output rating (max.)
105 W
- Dim

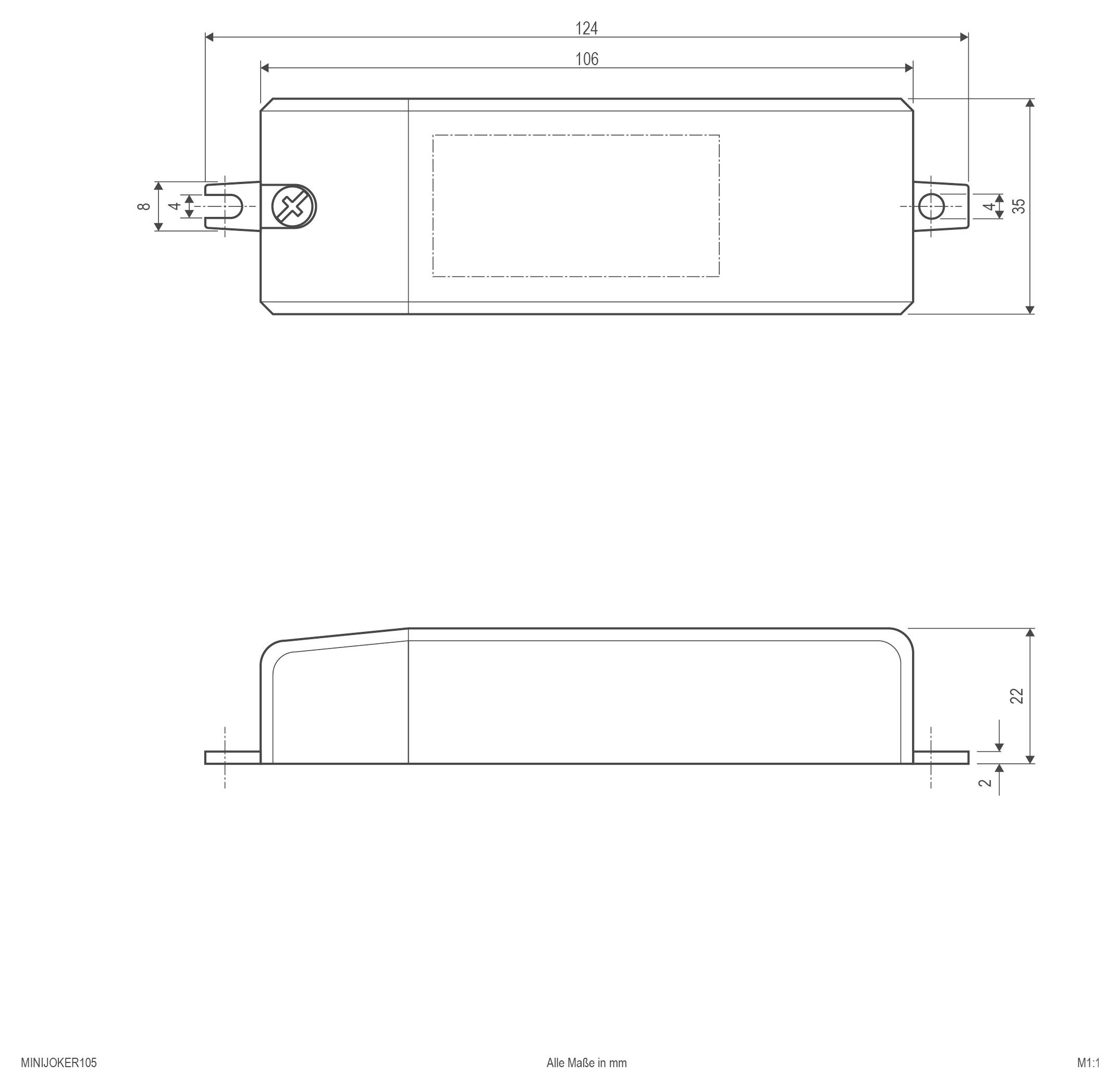

(L x W x H) 124 x 35 x 22 mm
- Output power range
20 - 105 W
- Output voltage
12 V
Yes
- Features
Phase-fired control
- Width
35 mm
- Height
22 mm
- Length
124 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483978 EVN MINI JOKER 105 Halogen transformer 12 V 20 - 105 W Phase-fired control
User & Safety Instructions
User & Safety Instructions 2483978 EVN MINI JOKER 105 Halogen transformer 12 V 20 - 105 W Phase-fired control
Description
The electronic halogen transformer can be used for a wide range of applications, including furniture mounting, as THE MM marking is provided. Due to the flat design, it is possible to use it even with substructures starting from 28mm. Technical data: ta: -20°C - 55°C, tc: 95°C, tolerance output voltage: +6%/-10%
