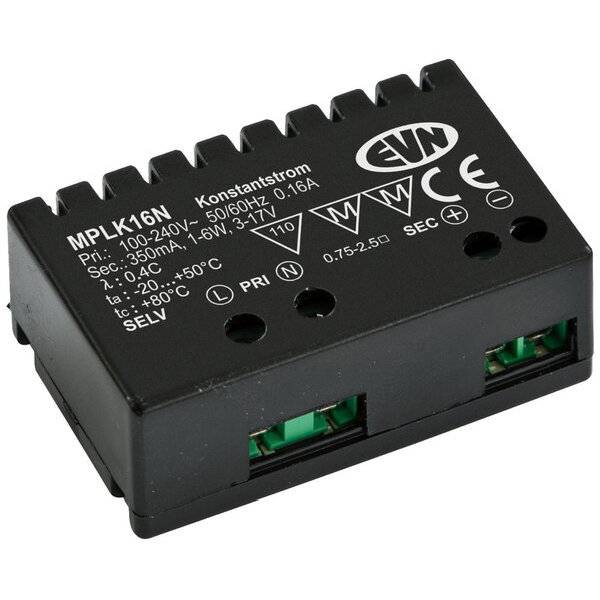

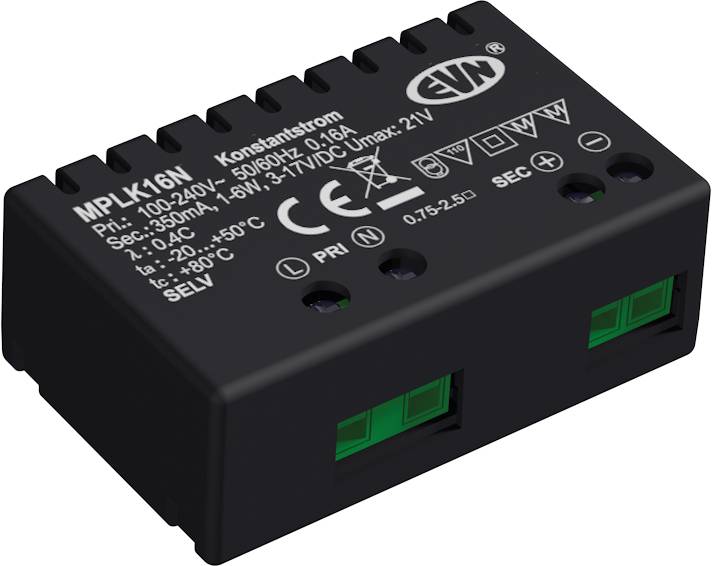

EVN MPLK16N LED control gear Constant current 6 W 350 mA not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN LED operating device 350mA 1-6W IP20
- Constant current
- 350 mA
Technical specifications
- Product type
LED control gear
- Type
Constant current
- Dim

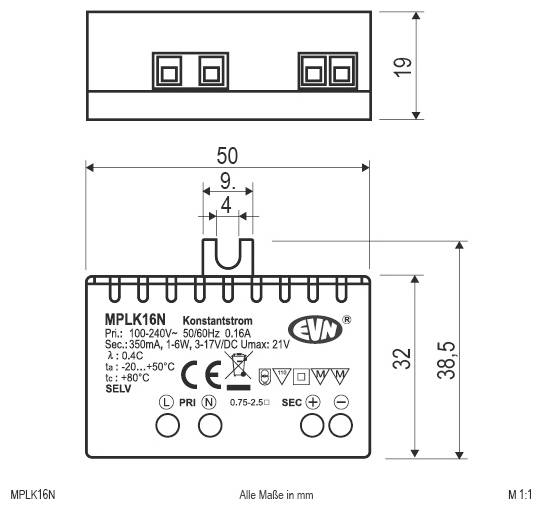

(L x W x H) 50 x 38.5 x 19 mm
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Protection class
II
- LED driver features
not dimmable
- Connection
Screw terminal
- Max. power
6 W
- Weight
0.04 kg
- Power (min.)
1 W
- Power range
1 up to 6 W
- Width
38.5 mm
- Height
19 mm
- Length
50 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3022591 EVN MPLK16N LED control gear Constant current 6 W 350 mA not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3022591 EVN MPLK16N LED control gear Constant current 6 W 350 mA not dimmable 1 pc(s)
Description
Due to its small size, the LED power supply unit can be easily built into switch boxes, but can also be used in furniture construction, as the MM mark is marked. The connection on the primary side and on the secondary side is made by screw terminals, which are suitable for cables of 0,75mm² - 2.5mm². Technical data: Supply voltage 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor 0.40.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
