EVN P21702S P21702S LED recessed wall light LED (monochrome) Built-in LED 2.2 W Silver
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Anti-glare LED recessed wall light, IP20
- Power= 2.2 W Total luminous flux= 150 lm Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED recessed wall light
- Operating voltage
100 V AC
240 V AC
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
2.2 W
2.2 W
150 lm
- Total luminous flux
150 lm
3000 K
- Colour
Warm white
- Protection screen
Textured
- Light features
Incl. cover
- Recess depth
38 mm
IP20
- Factory colour
Silver
- Material
Aluminium
n.rel.
- Dim
(L x W x H) 90 x 90 x 41 mm
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Width
90 mm
- Height
41 mm
- Length
90 mm
- Rated luminous flux
150 lm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483984 EVN P21702S P21702S LED recessed wall light LED (monochrome) Built-in LED 2.2 W Silver
User & Safety Instructions
User & Safety Instructions 2483984 EVN P21702S P21702S LED recessed wall light LED (monochrome) Built-in LED 2.2 W Silver
Description

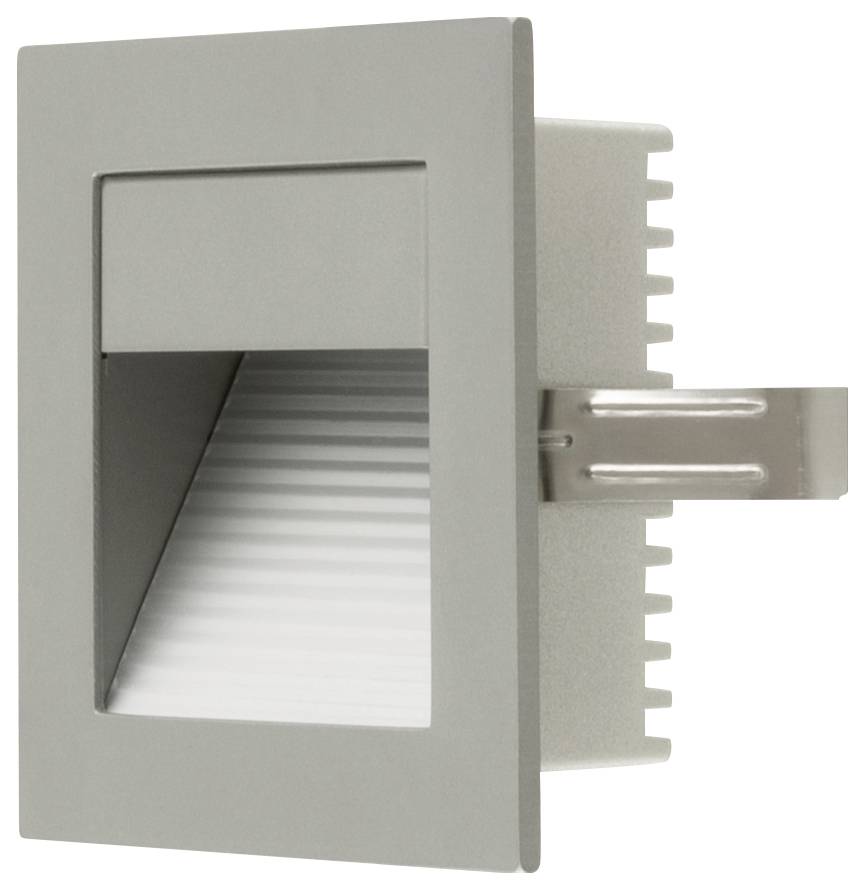

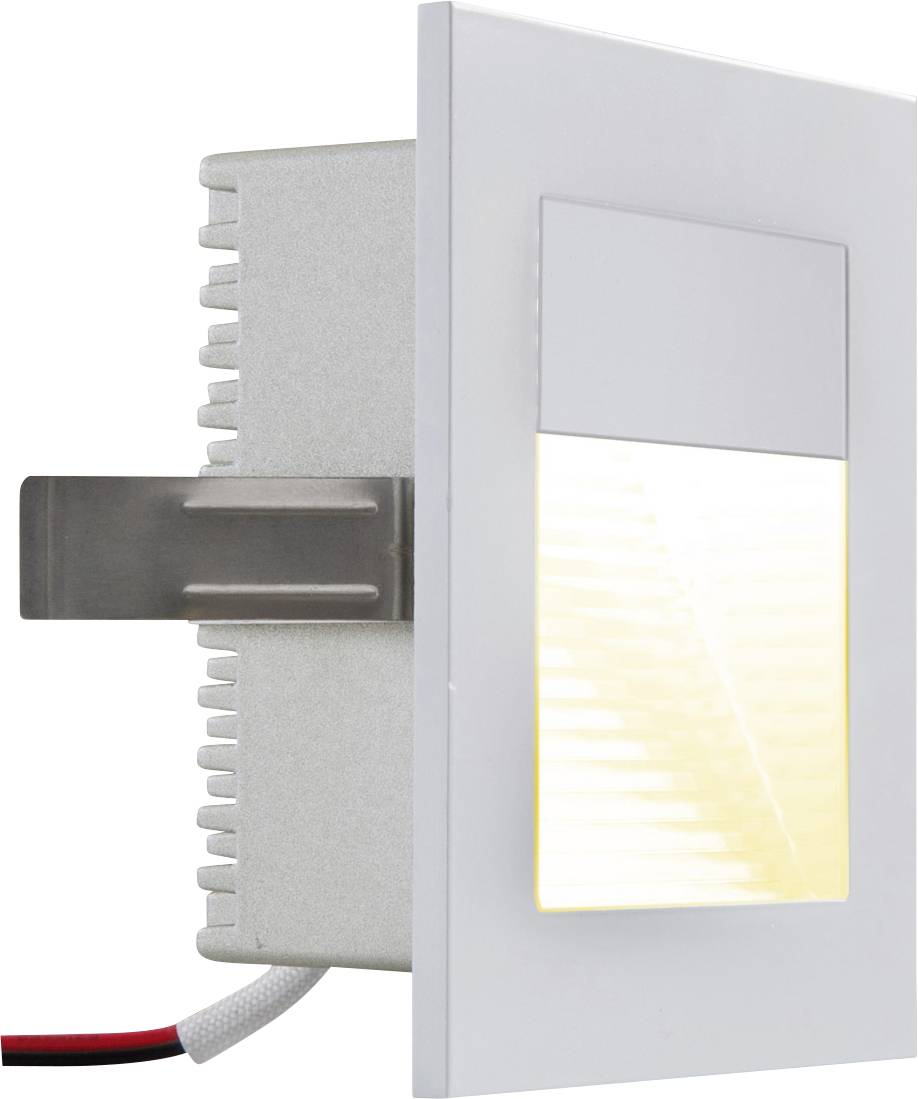

LED recessed wall light for a wide range of indoor applications. To avoid a blinding effect, the lamp is provided with a structured reflector as well as a structured cover. In addition to the tension springs, the lamp can also be fixed with two screws, whereby the screw heads are covered by the cover. The metal cleaning pot (EPKP21) can be used as an option. Since the lamp is operated via 700mA, the lights must be switched in series. Since the power supply unit is already included in the delivery, there are no additional costs for this either.
