EVN P67104002 P67104002 Recessed floor light Built-in LED LED (monochrome) 1 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

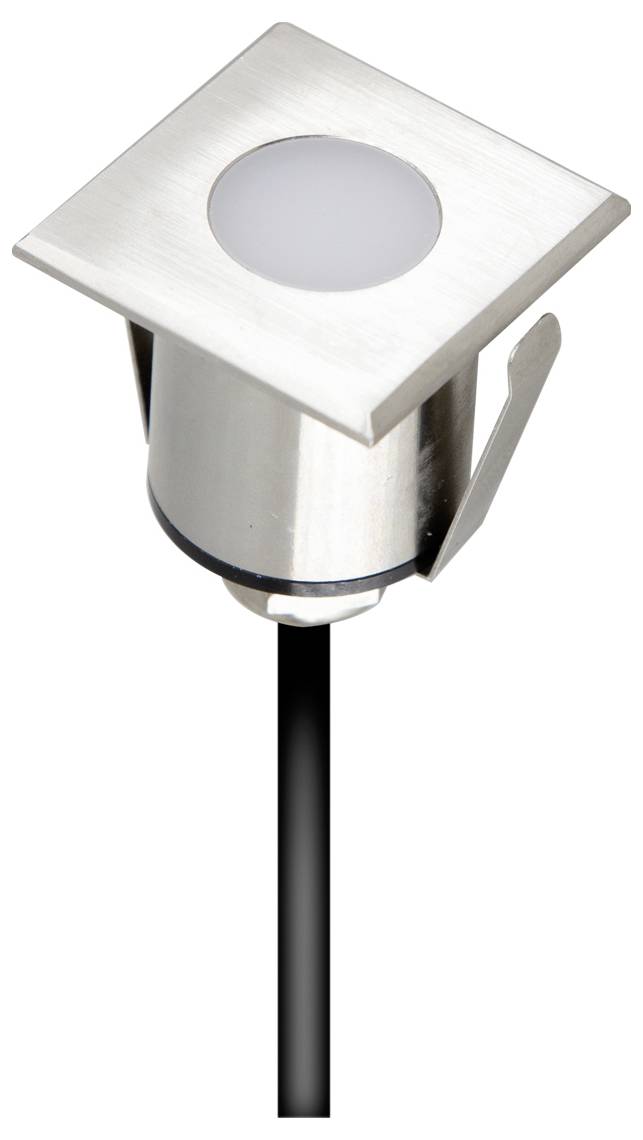

Power-LED sunken ground light, IP67
- Power= 1 W
- Total luminous flux= 100 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
12 V DC
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
1 W
1 W
3000 K
- Colour
Warm white
100 lm
- Total luminous flux
100 lm
- Recess diameter
30 mm
- Recess depth
45 mm
- Light features
Hardwearing
- Protection class
III
IP67
- Factory colour
Stainless steel
- Material
Steel (stainless)
- Feed length
50 cm

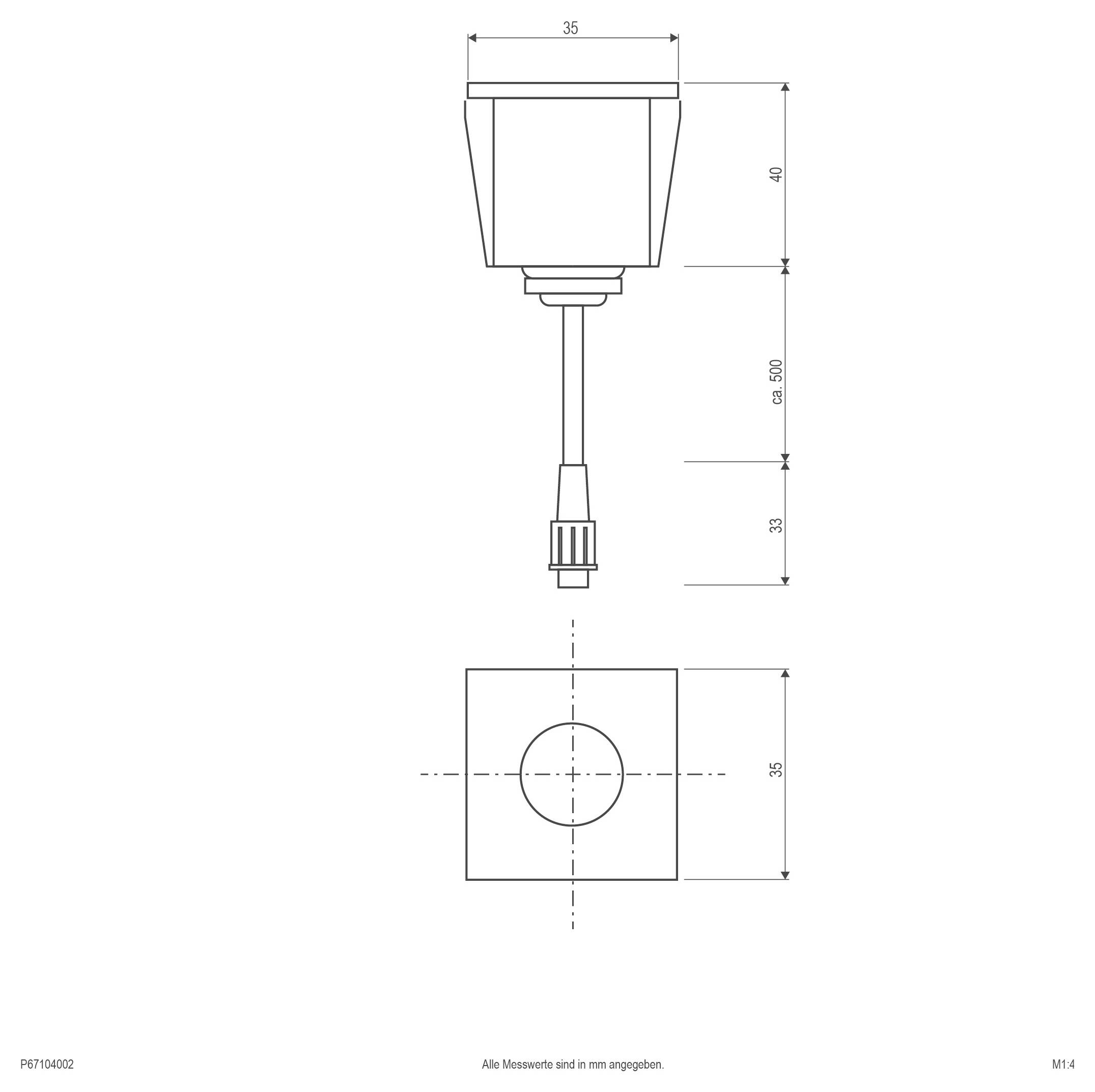

- Dim
(L x W x H) 35 x 35 x 40 mm
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Width
35 mm
- Height
40 mm
- Length
35 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483997 EVN P67104002 P67104002 Recessed floor light Built-in LED LED (monochrome) 1 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2483997 EVN P67104002 P67104002 Recessed floor light Built-in LED LED (monochrome) 1 W Stainless steel
Description
LED sunken ground light for a variety of indoor and outdoor applications. Extremely low power consumption and still enough Leuchtkraft to set optical accents, such as Sidewalls of stairs, in the terrace floor and much more. The lamp is made entirely of stainless steel and has a 50cm long connection cable with plug for connection to the IP65 plug system. The lamp can be driven over at max. 1000kg and 20km/h. The type of dimming depends on the power supply used.
