EVN PC67101502A PC67101502A Recessed floor light Bulb cannot be changed LED (monochrome) 15 W Anthracite
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

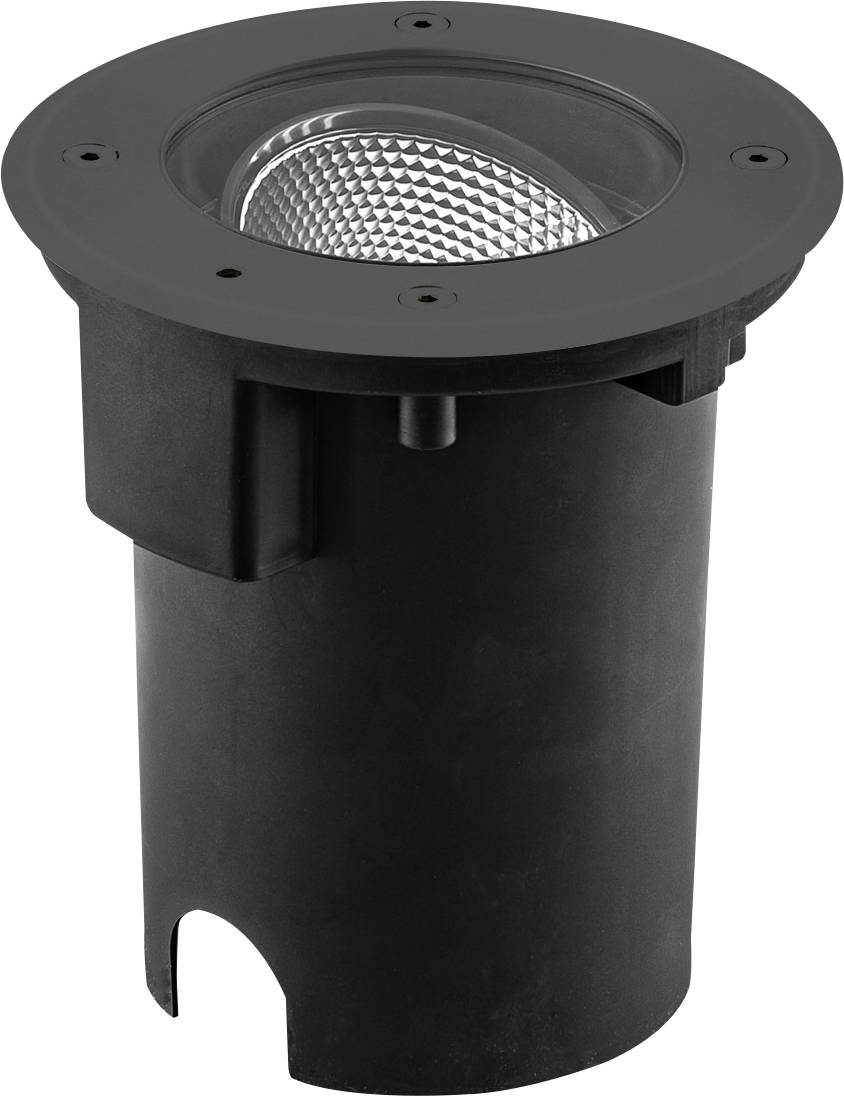

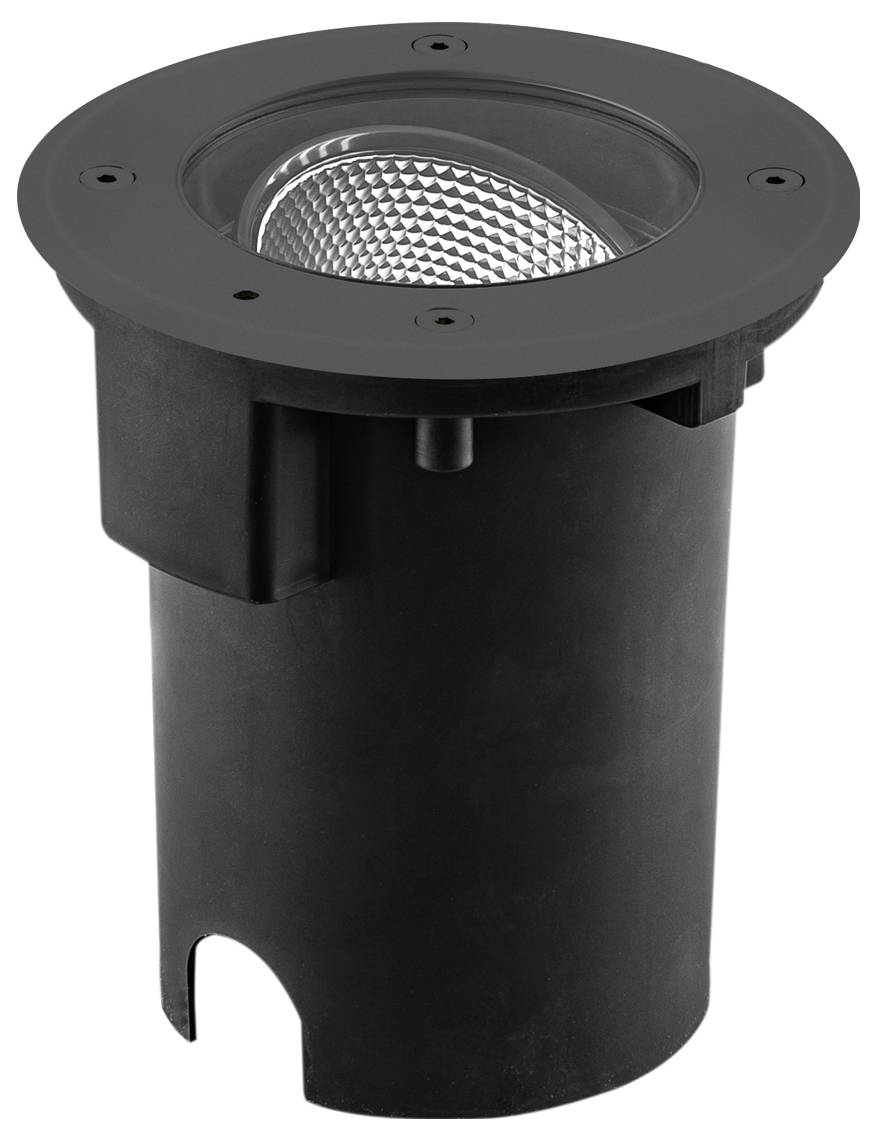

LED sunken ground light, IP67 with adjustment screw
- Power= 15 W
- Total luminous flux= 1012 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
100 V AC
240 V AC
- Outside Ø
180 mm
- Bulb type
LED (monochrome)
Bulb cannot be changed
- Rating per bulb
15 W
15 W
3000 K
- Colour
Warm white
1012 lm
- Total luminous flux
1012 lm
- Recess diameter
165 mm
- Recess depth
197 mm
- Protection screen
Textured
- Light features
Swivelling
- Swivel range (max.)
20°
- Protection class
I
IP67
- Factory colour
Anthracite
- Material
Aluminium
n.rel.
- Radiation angle
20°
40°
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
152 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484138 EVN PC67101502A PC67101502A Recessed floor light Bulb cannot be changed LED (monochrome) 15 W Anthracite
User & Safety Instructions
User & Safety Instructions 2484138 EVN PC67101502A PC67101502A Recessed floor light Bulb cannot be changed LED (monochrome) 15 W Anthracite
Description
The lamp body of the sunken ground light is made of solid aluminum, the upper cover ring is made of V2A stainless steel and can be used for a variety of outdoor applications. The installation is done by means of the plastic mounting sleeve included in the delivery. The light can be swiveled at any time by means of an adjustment screw when it is installed; the swivel angle is 20°. In addition, there is no additional cost for a ballast, as it is connected directly to the 230V feed line. To prevent condensation, there is a self-venting bleed valve on the bottom of the lamp. The lamp has a beam angle of 38°.
