EVN RCHSRGBW4 Wireless transmitter 1.5 V Max. range (open field) 20 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Wireless transmitter
n.rel.
- Data transfer (Smart Home)
Wireless
- Channels
4
20 m
- Operating voltage
1.5 V
- Width
30 cm
- Height
60 cm
- Length
130 cm
- Dim
(L x W x H) 130 x 30 x 60 cm
- Hub
Not required
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3035357 EVN RCHSRGBW4 Wireless transmitter 1.5 V Max. range (open field) 20 m
User & Safety Instructions
User & Safety Instructions 3035357 EVN RCHSRGBW4 Wireless transmitter 1.5 V Max. range (open field) 20 m
Description

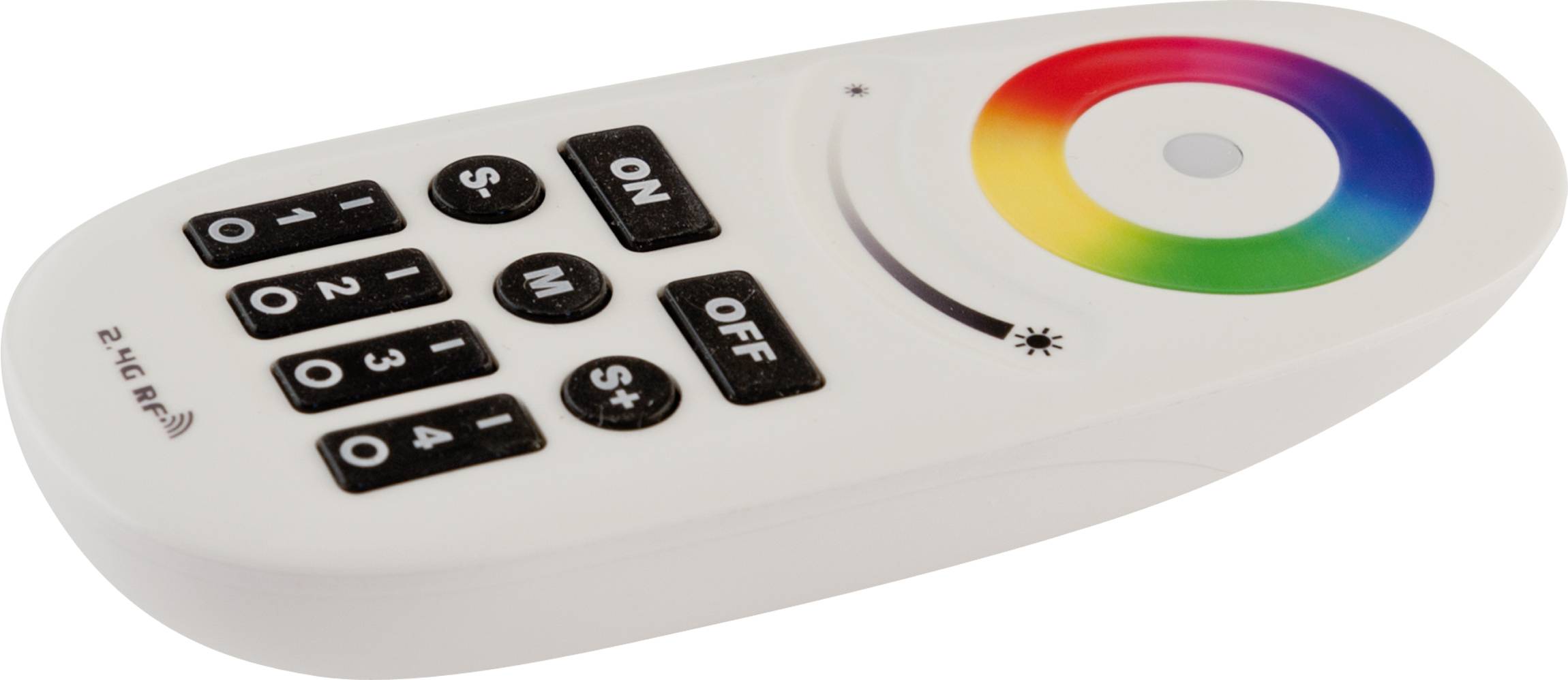

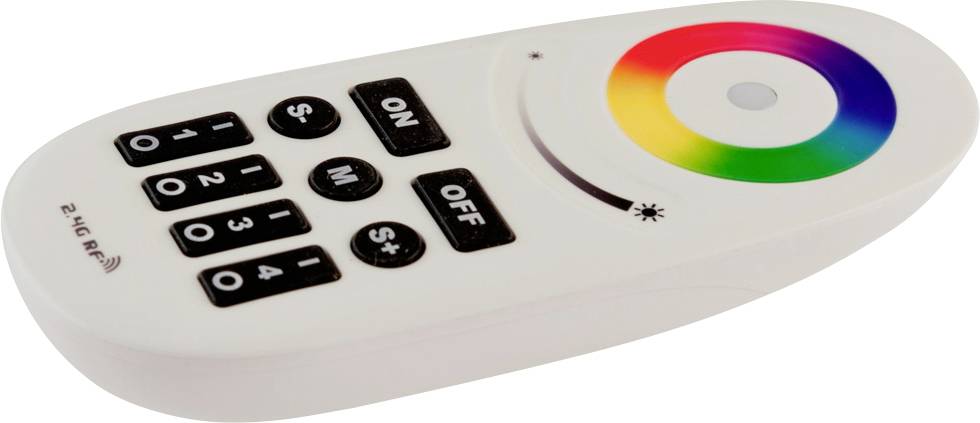

Radio hand transmitter for RGBW lamp RC23570699-02. Up to four different zones can be controlled with the hand-held transmitter, whereby several light bulbs can be programmed in for each zone. Furthermore, a light bulb can be taught-in to several hand-held transmitters, so that it becomes a component of different zones. However, one and the same bulb can only be taught in to one zone of the hand-held transmitter. Runs on 2 x AAA 1.5V batteries (not supplied).
