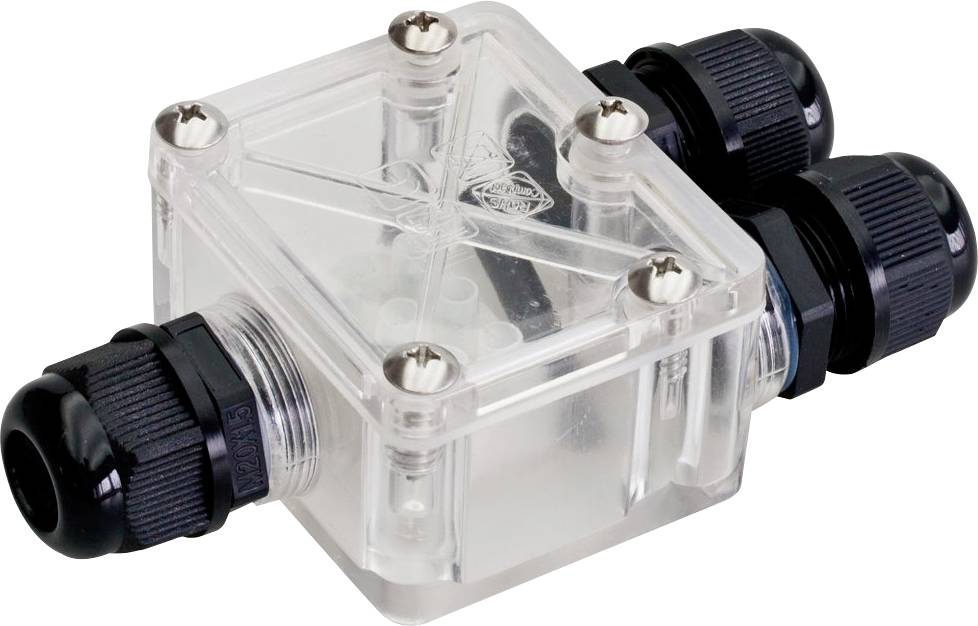

A transparent plastic connector with black screw connections at both ends, possibly for cable connections.

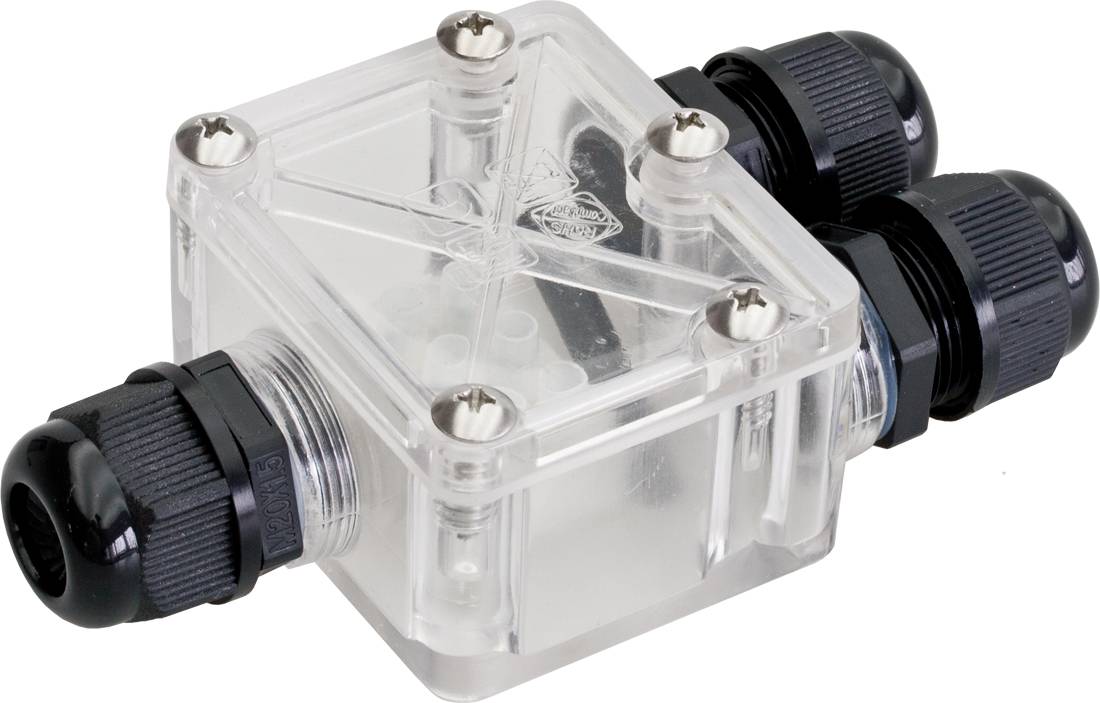

Clear plastic inline electrical junction box with three black cable connectors<br>

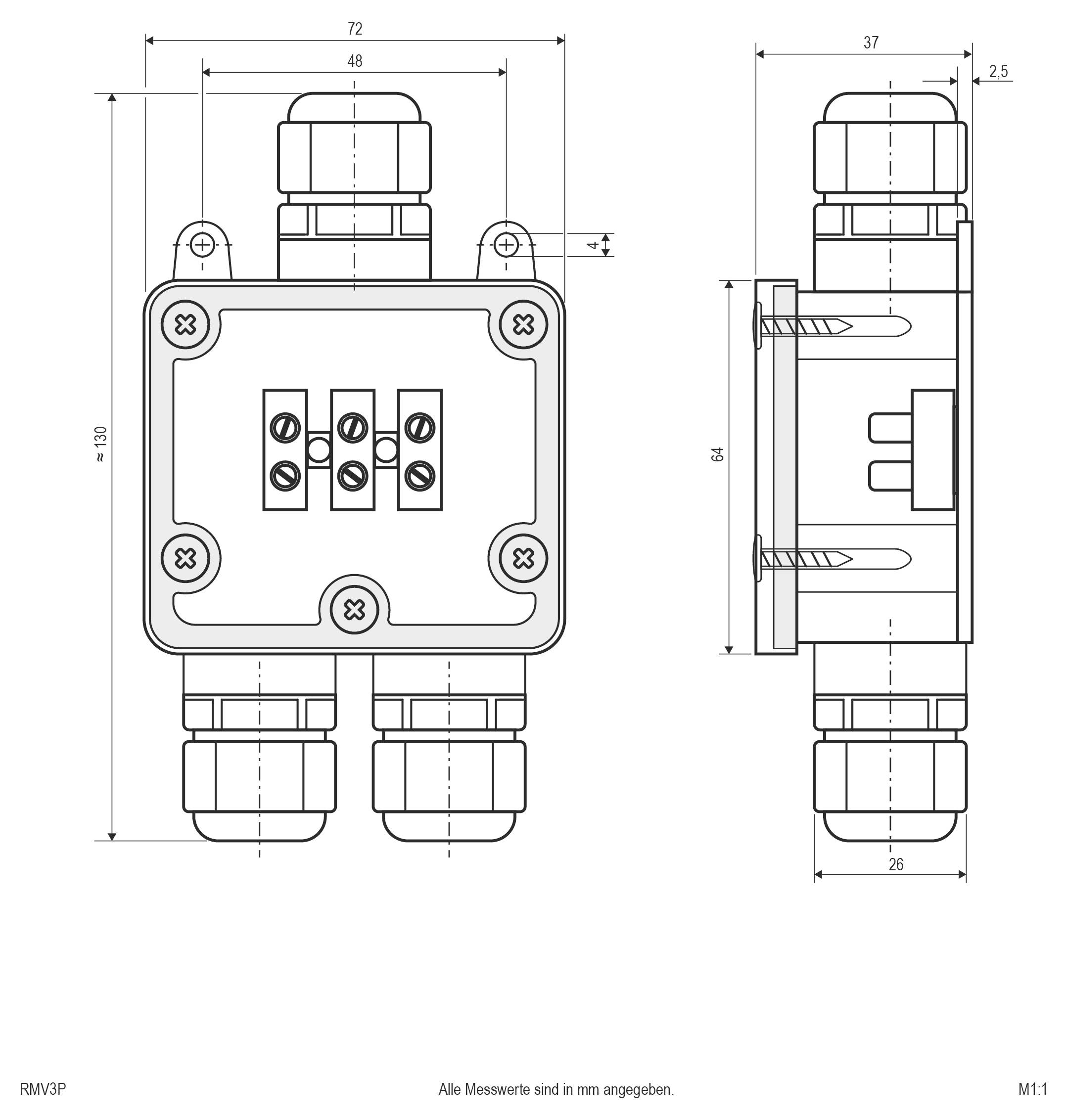

Technical dimension drawing of an electrical connector from front and side views, showing mounting holes, terminals, and measurements in mm.<br>

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type: Double branch
Number of conductors: 3
Conductor cross-section Branch cable: 0.75..2.5 mm²
Core cable cross-section: 0.75..2.5 mm²
Cable diameter of branching cable 8..12 mm
Cable diameter main cable: 8..12 mm
Mining license: No.
Connecting accessories included: Screw connector
Suitable for: Other
Halogen-free: No.

Compatible with (details): others

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3151879 EVN RMV3P RMV3P 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3151879 EVN RMV3P RMV3P 1 pc(s)

Description

The junction box can be used for various cable connections in outdoor areas. The cables to be connected are held securely in place at all times through the screw connection in connection with the sealing inserts. In the inside of the box there is a screw terminal for wiring the cables. The box can be optionally sealed with cast resin. Technical data: Max. 250V, protection class: IP67, LxWxH: 130x 72x36m.

This text is machine translated.
