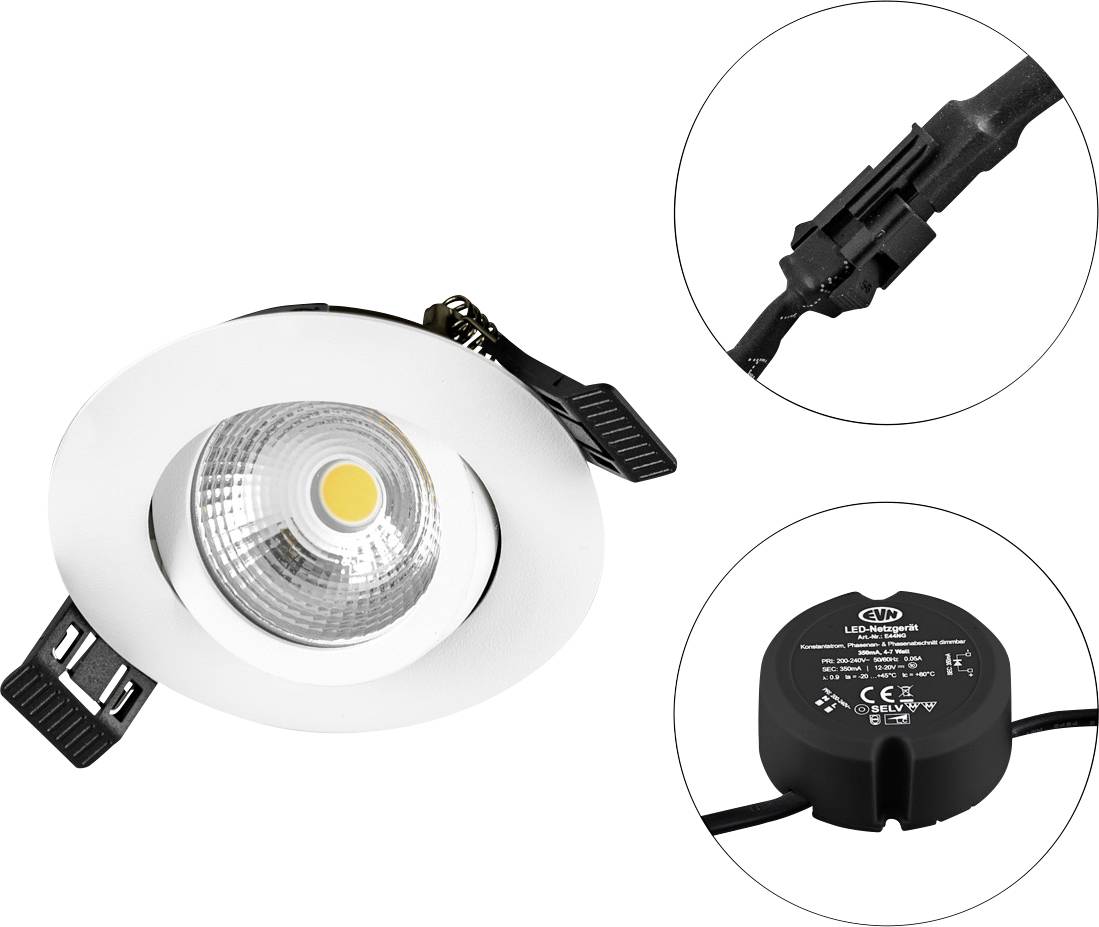

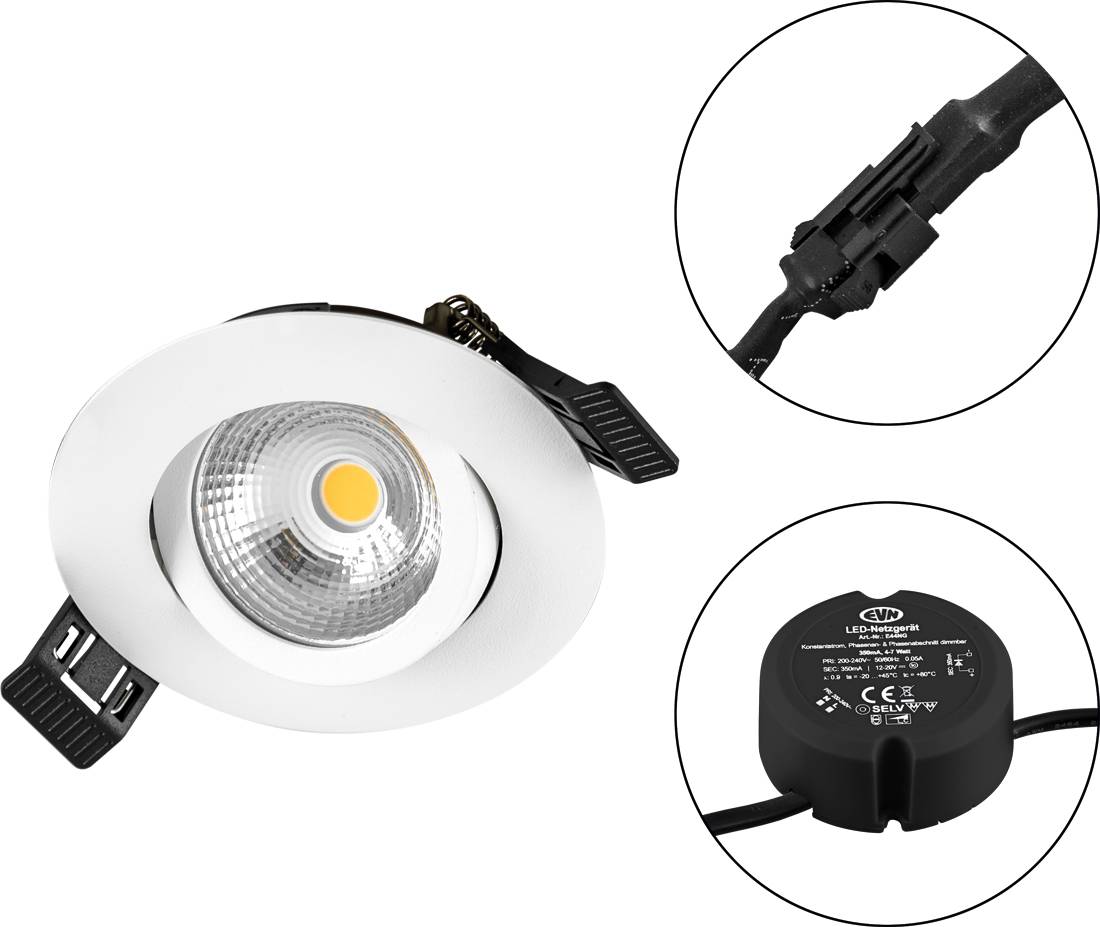

EVN S060102 S060102 LED recessed light LED (monochrome) Built-in LED 6 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 6 W Total luminous flux= 683 lm Colour temperature= 3000 K White
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
683 lm
- Total luminous flux
683 lm
3000 K
- Colour
White
- Protection screen
Clear
- Light features
Dimmable
- Swivel range (max.)
25°

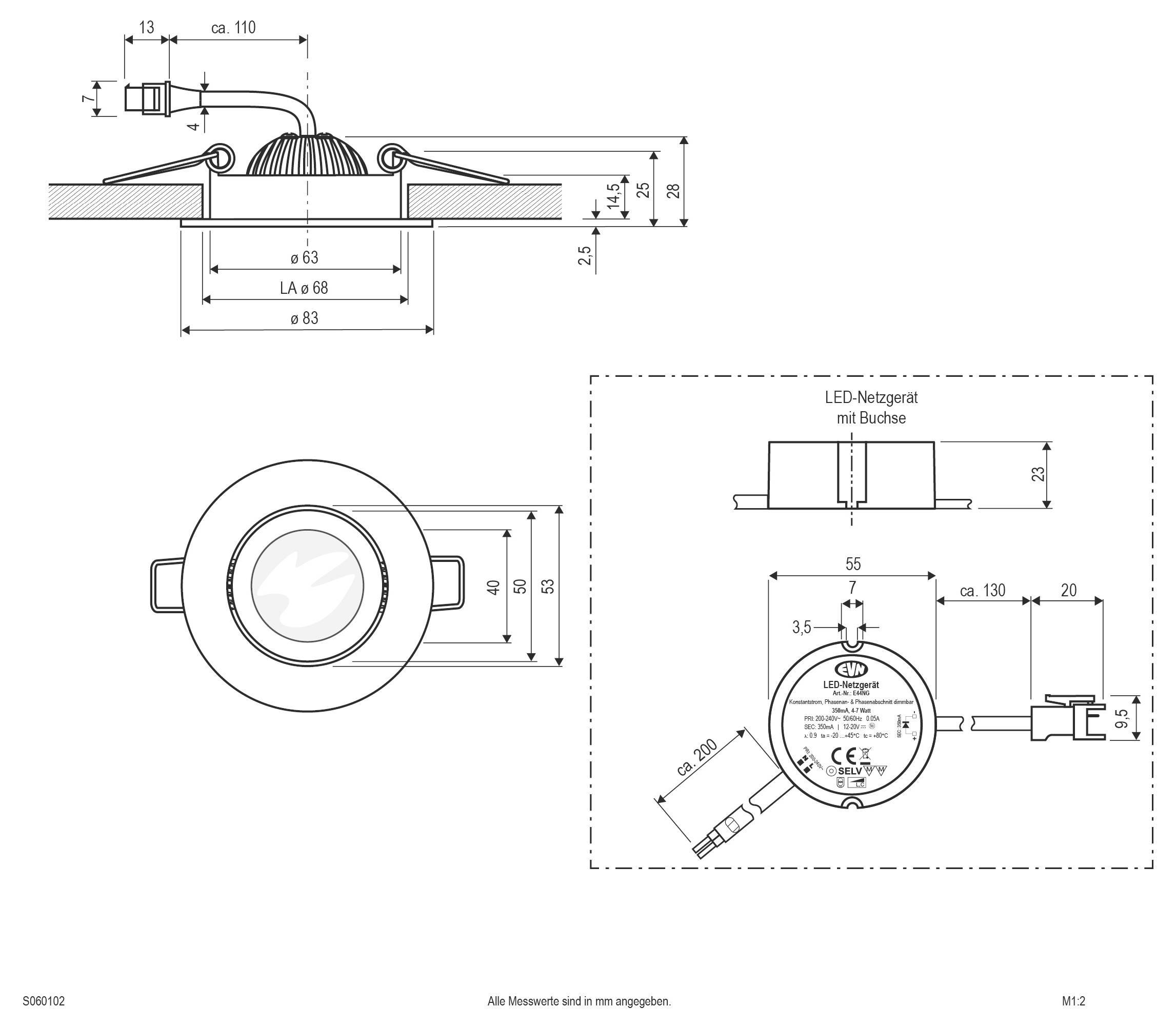

- Recess diameter
68 mm
- Recess depth
26 mm
- Outside Ø
83 mm
IP54
- Protection class
II
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(Ø x H) 83 mm x 28.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
28.00 mm
- Depth
28 mm
- (Ø)
83 mm
- Colour rendering index
80-89
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3151990 EVN S060102 S060102 LED recessed light LED (monochrome) Built-in LED 6 W White
User & Safety Instructions
User & Safety Instructions 3151990 EVN S060102 S060102 LED recessed light LED (monochrome) Built-in LED 6 W White
