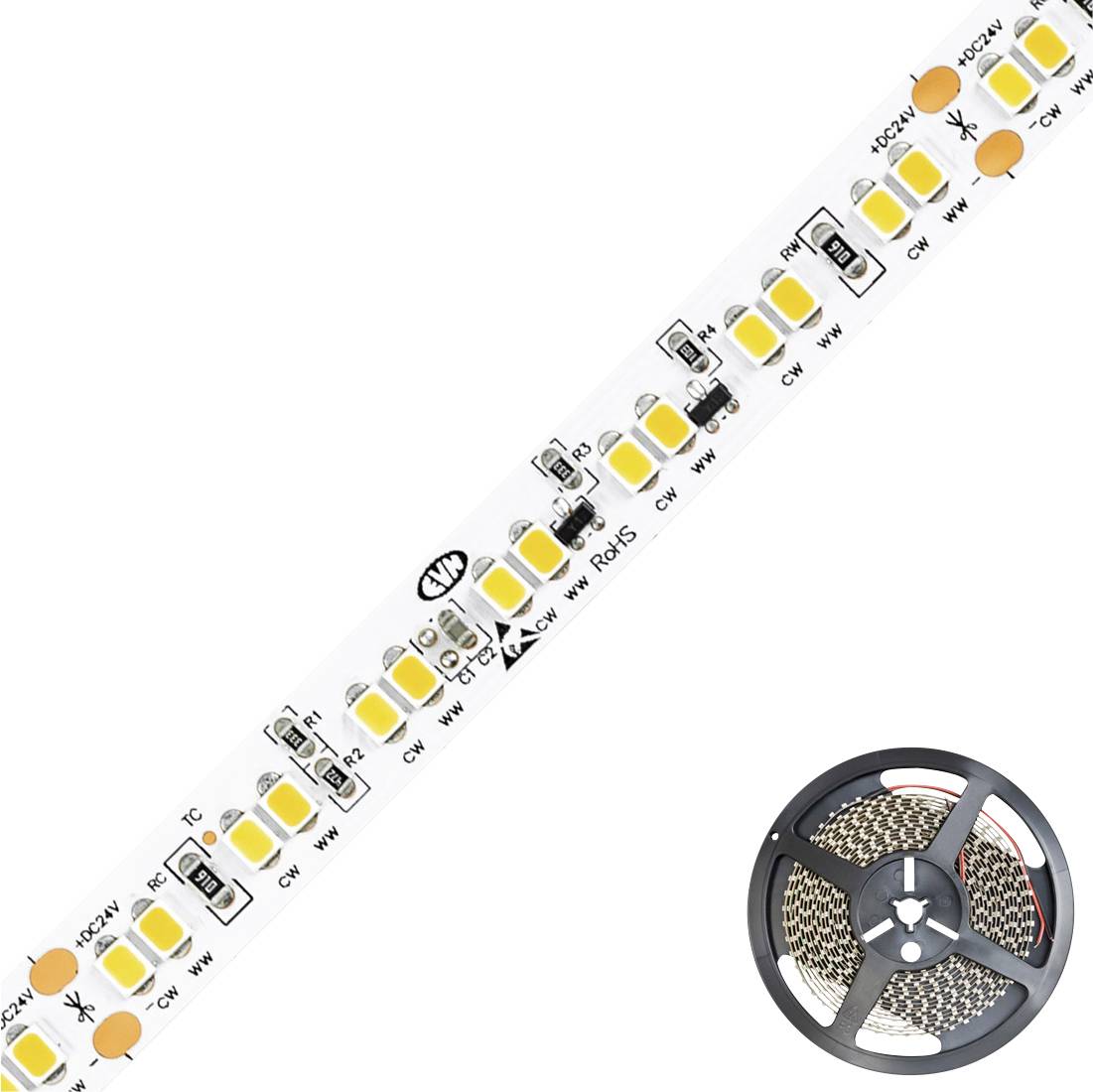

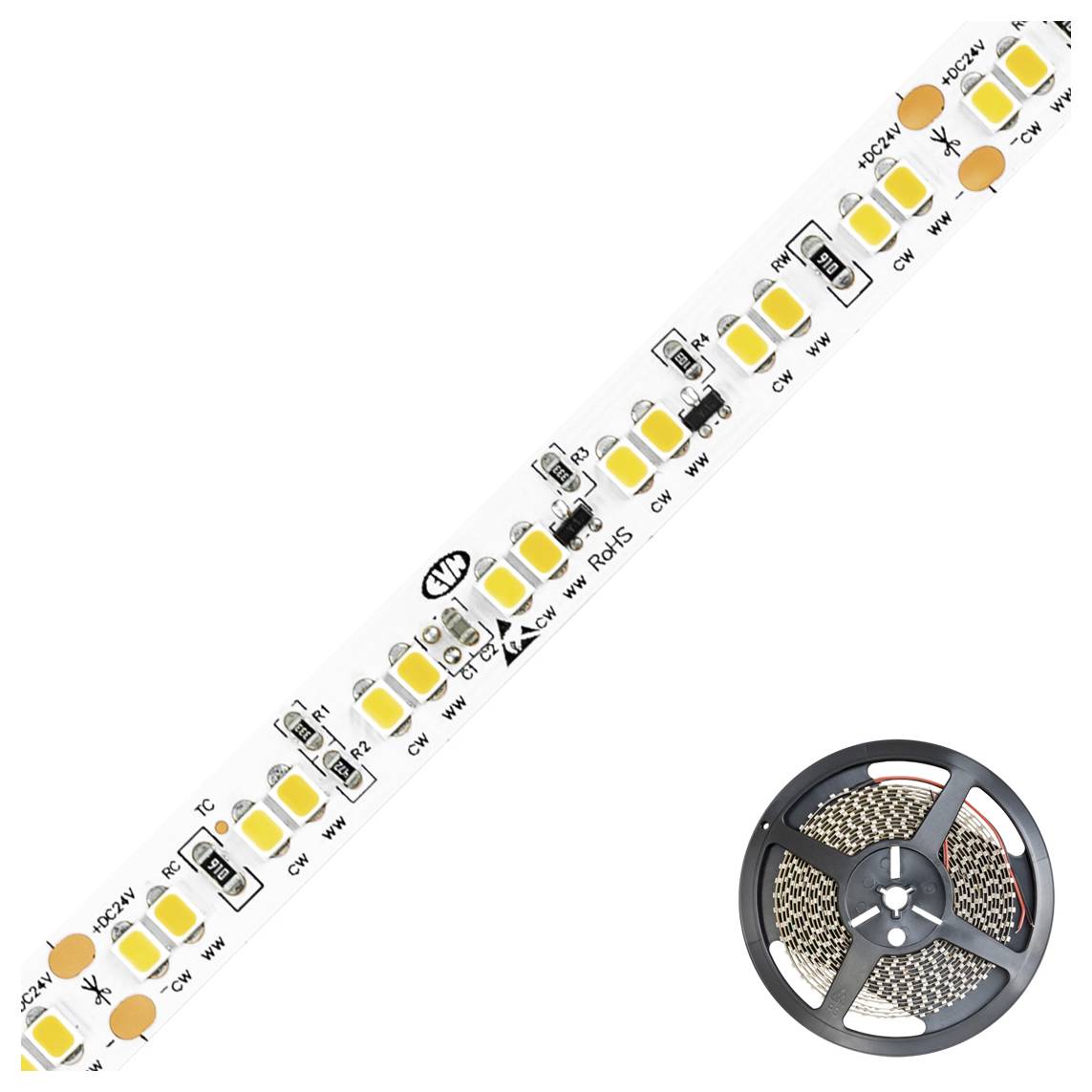

EVN SB202416828D2W LED strip EEC: F (A - G) open cable ends 24 V 5 m Warm white to daylight white 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Can be shortened
Selectable modes
Colour
Warm white to daylight white
Use
Inside
Datasheet (PDF)
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Can be shortened
Selectable modes
- Colour
Warm white to daylight white
- Min. colour temperature
1800 K
- Use
Inside
- Colour temperature (max.)
3000 K
- Colour rendering index
89 Ra
- Luminous flux (Φ) per unit
1160 lm
- Operating voltage
24 V
- Connection
Soldering
- Dim

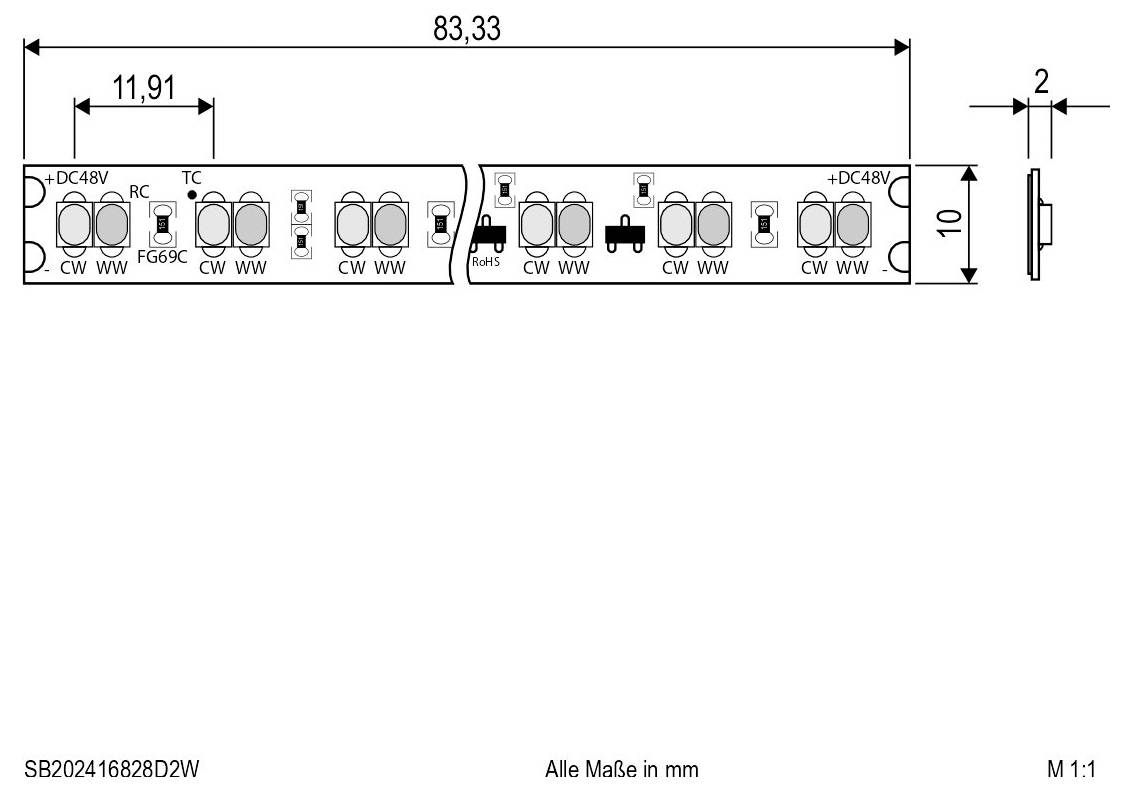

(L x W x H) 5 m x 10 mm x 2 mm
- Width
10 mm
- Height
2 mm
- Length
5 m
IP20
F (A - G)
Yes
- Protection class
III
w/o
Documents & Downloads
Datasheet
Datasheet 2484193 EVN SB202416828D2W LED strip EEC: F (A - G) open cable ends 24 V 5 m Warm white to daylight white 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484193 EVN SB202416828D2W LED strip EEC: F (A - G) open cable ends 24 V 5 m Warm white to daylight white 1 pc(s)
Description
Short-cut and flexible LED strip with dim2warm LED chips for various applications, such as direct or indirect lighting for living room, bedroom, hallway and much more. Since this is a dim2warm LED strip, the light color changes automatically when dimming in the range of 1800K-3000K. The strip was designed in such a way that it can be dimmed via PWM. Important: To avoid overheating of the strip, it must only be installed on thermally conductive surfaces, preferably in aluminum profiles. The light yield is 1160lm at 3000K, or 120lm at 1800K per meter.
