EVN SB6724602840 SB6724602840 LED strip EEC: F (A - G) open cable ends 24 V 5 m Neutral white 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Can be shortened
Colour
Neutral white
Power
9.6 W
Datasheet (PDF)
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Can be shortened
- Colour
Neutral white
- Colour temperature type
4000 K
9.6 W
- Colour rendering index
89 Ra
- Radiation angle
120°
- Luminous flux (Φ) per unit
910 lm
- Operating voltage
24 V
- Connection
Soldering
- Dim

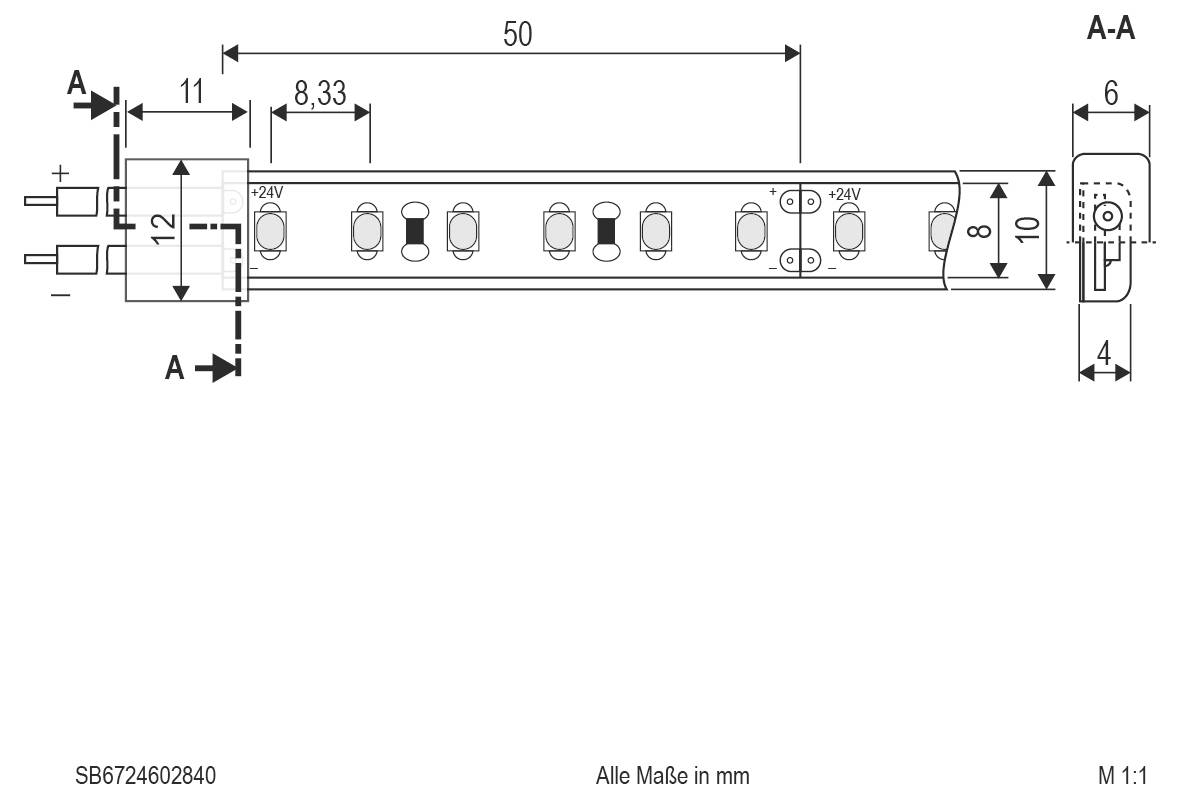

(L x W x H) 5 m x 12 mm x 6 mm
- Power consumption
9.6 W
- LED number per unit
120
- Width
12 mm
- Height
6 mm
- Length
5 m
- Unit length
5000 mm
IP67
F (A - G)
Yes
- Colour rendering index
80-89
- Protection class
III
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2484234 EVN SB6724602840 SB6724602840 LED strip EEC: F (A - G) open cable ends 24 V 5 m Neutral white 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484234 EVN SB6724602840 SB6724602840 LED strip EEC: F (A - G) open cable ends 24 V 5 m Neutral white 1 pc(s)

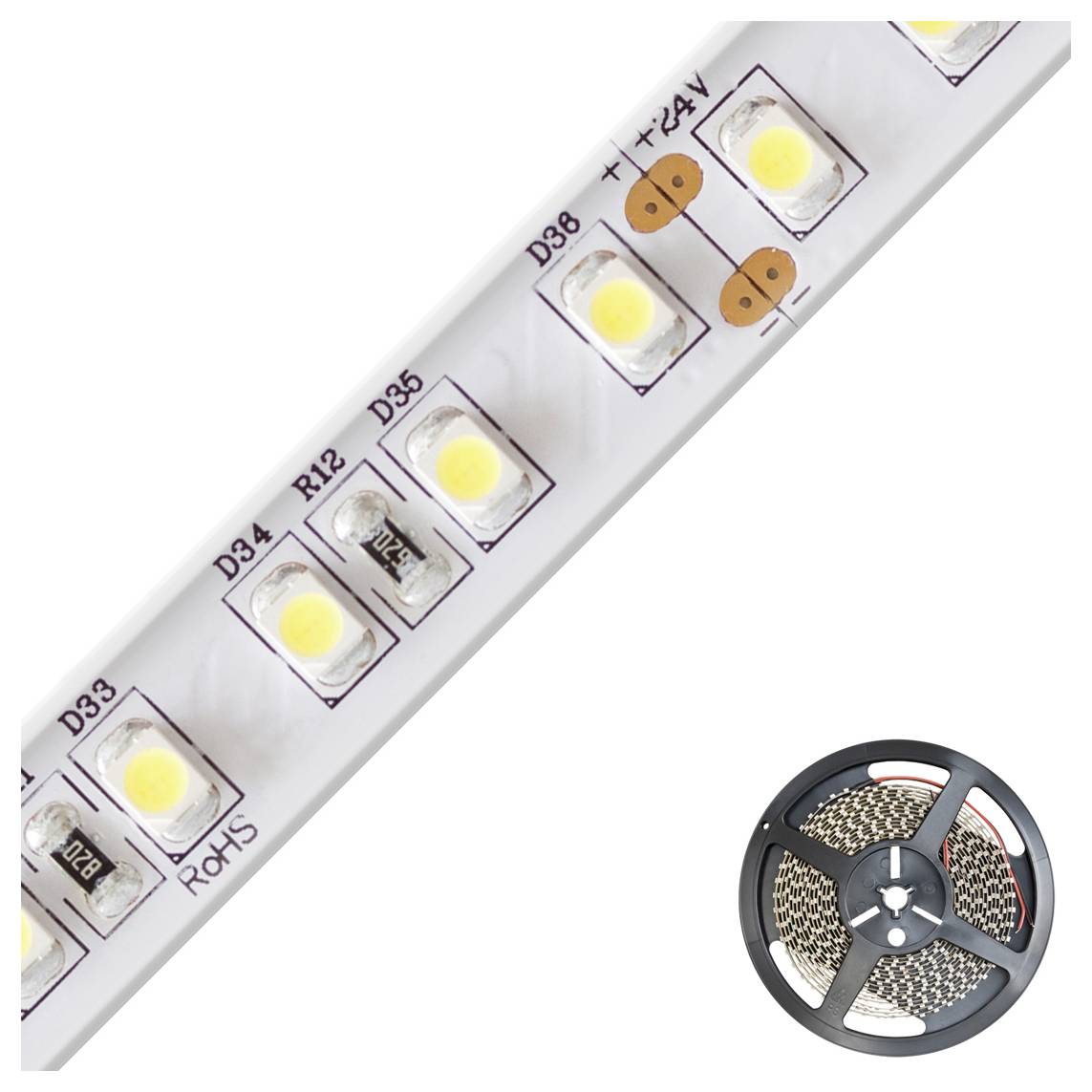

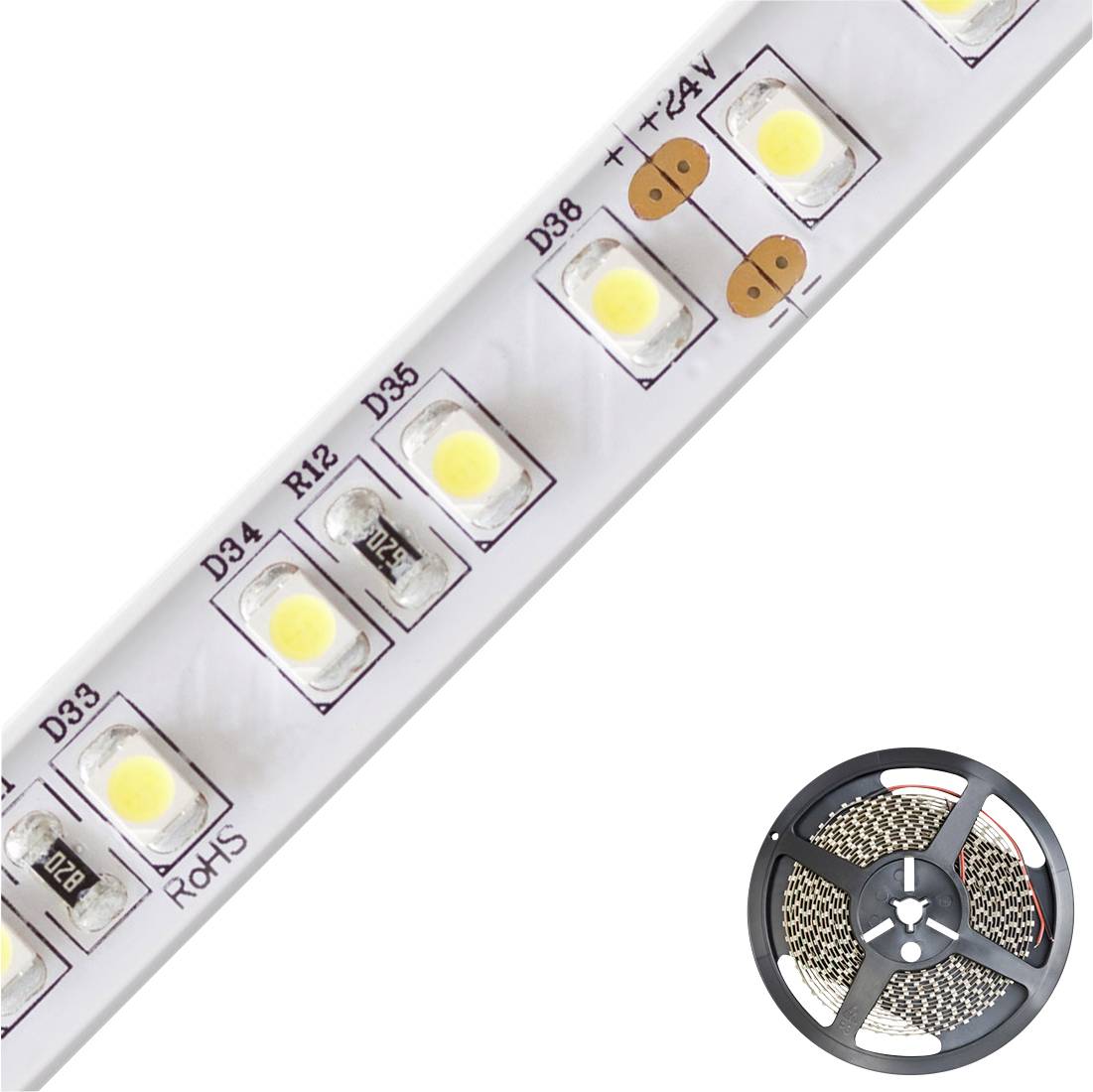

Description
Short-cut and flexible LED strip with high-performance LED chips. The superbright LED chips installed on this strip achieve a significantly higher light yield at the same power consumption, or comparable light yield at lower power consumption, compared to conventional LED chips. This makes it possible to implement a wide range of applications, such as direct or indirect lighting for living rooms, bedrooms, corridors, etc. even more energy-saving. Even projects with high demands regarding the light yield can be realized with these strips. Important: To avoid overheating of the strip, it must only be installed on thermally conductive surfaces, preferably in aluminum profiles. The light yield is 910lm per meter.
