EVN STR672460509902 LED strip EEC: G (A - G) open cable ends 24 V 5 m RGBW 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Can be shortened
Colour
RGBW
Use
Inside
Datasheet (PDF)
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Can be shortened
- Colour
RGBW
- Colour temperature type
3000 K
- Use
Inside
- Luminous flux (Φ) per unit
552 lm
- Operating voltage
24 V
- Connection
Soldering
- Dim

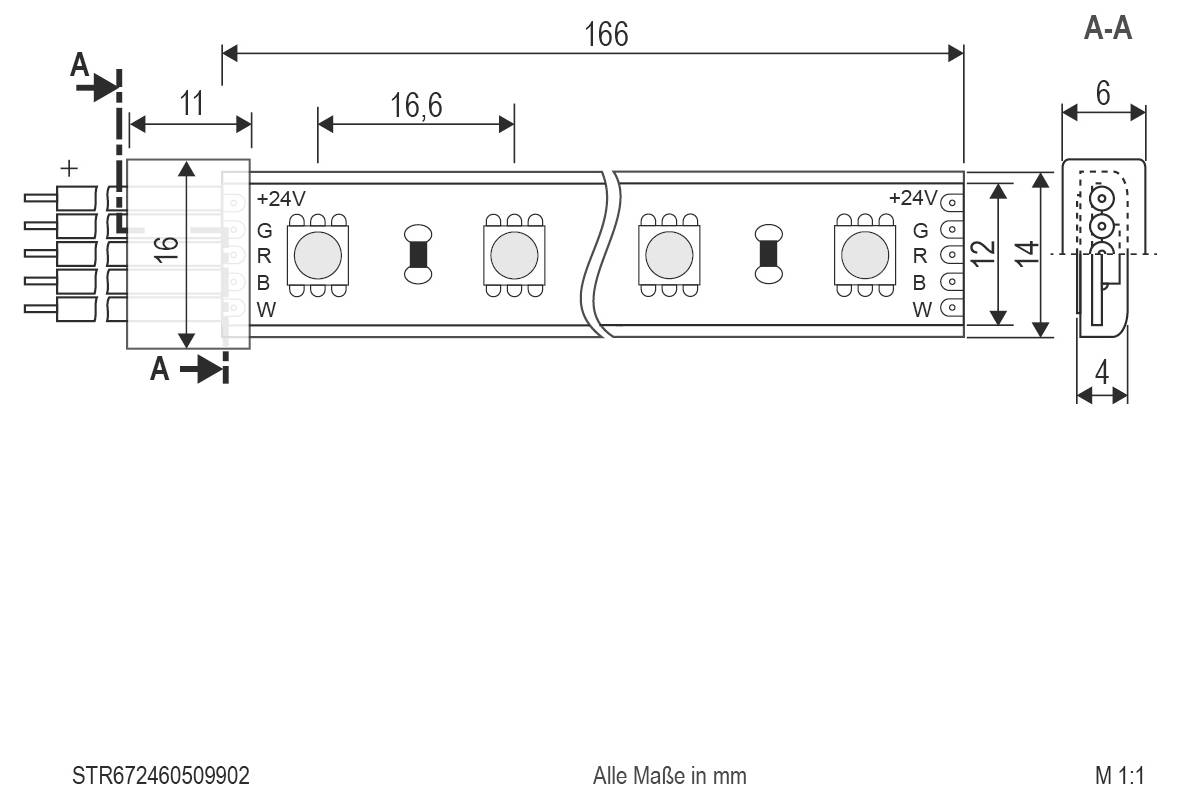

(L x W x H) 5 m x 16 mm x 6 mm
- Width
16 mm
- Height
6 mm
- Length
5 m
IP67
G (A - G)
- Protection class
III
Documents & Downloads
Datasheet
Datasheet 2484305 EVN STR672460509902 LED strip EEC: G (A - G) open cable ends 24 V 5 m RGBW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484305 EVN STR672460509902 LED strip EEC: G (A - G) open cable ends 24 V 5 m RGBW 1 pc(s)
Description
Short-cut and flexible RGBW LED strip for a wide range of applications. No matter whether ambience lighting, main lighting, or a combination of both, e.g. in living room, bedroom corridor, or much more. Important: To avoid overheating of the strip, it must only be installed on thermally conductive surfaces, preferably in aluminum profiles. The controls required for the Strip are available separately. The white color temperature is 3000K. The maximum light yield is 120lm in RGB mode and 432lm in white mode.
