EVN WIFIHS8 Wireless transmitter Max. range (open field) 40 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Wireless transmitter
- Transfer Standard (Smart Home)
FSK 868 MHz
n.rel.
- Data transfer (Smart Home)
Wireless
- Channels
8
40 m
- Width
50 cm
- Height
40 cm
- Length
150 cm
- Dim
(L x W x H) 150 x 50 x 40 cm
- Hub
Not required
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3035363 EVN WIFIHS8 Wireless transmitter Max. range (open field) 40 m
User & Safety Instructions
User & Safety Instructions 3035363 EVN WIFIHS8 Wireless transmitter Max. range (open field) 40 m
Description

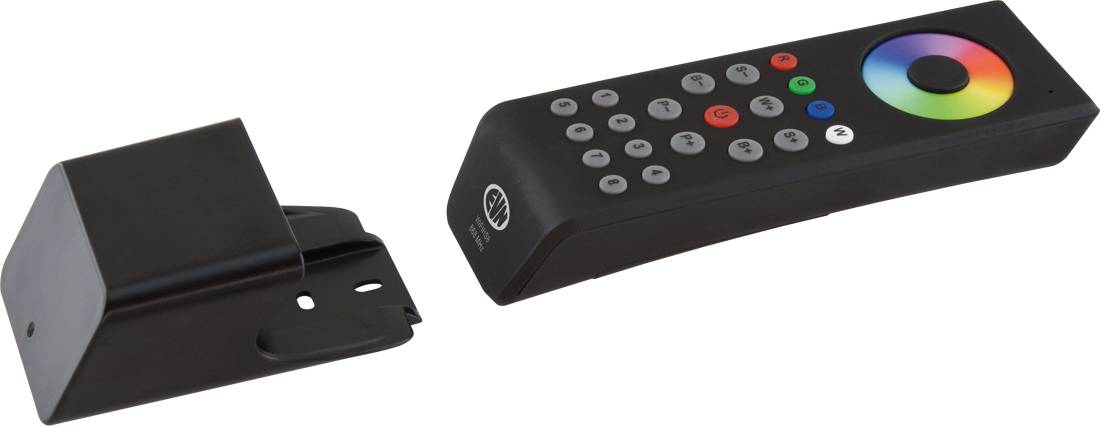

The 8-channel RGBW handheld transmitter can be used to control up to eight receivers separately. You can use several receivers on one hand-held transmitter or In the same channel as several hand-held transmitters stored on one receiver. Supplied with wall bracket. Functions: Colour change via touch color wheel, direct color selection (red, green, blue and white), switch on and off, as well as program change. Runs on 3 x AAA (1.5V) batteries (not supplied). Suitable for the following receivers: EFD12244X5A, RGB+W-WIFI4x5A and RGBWIFI674X5A.
