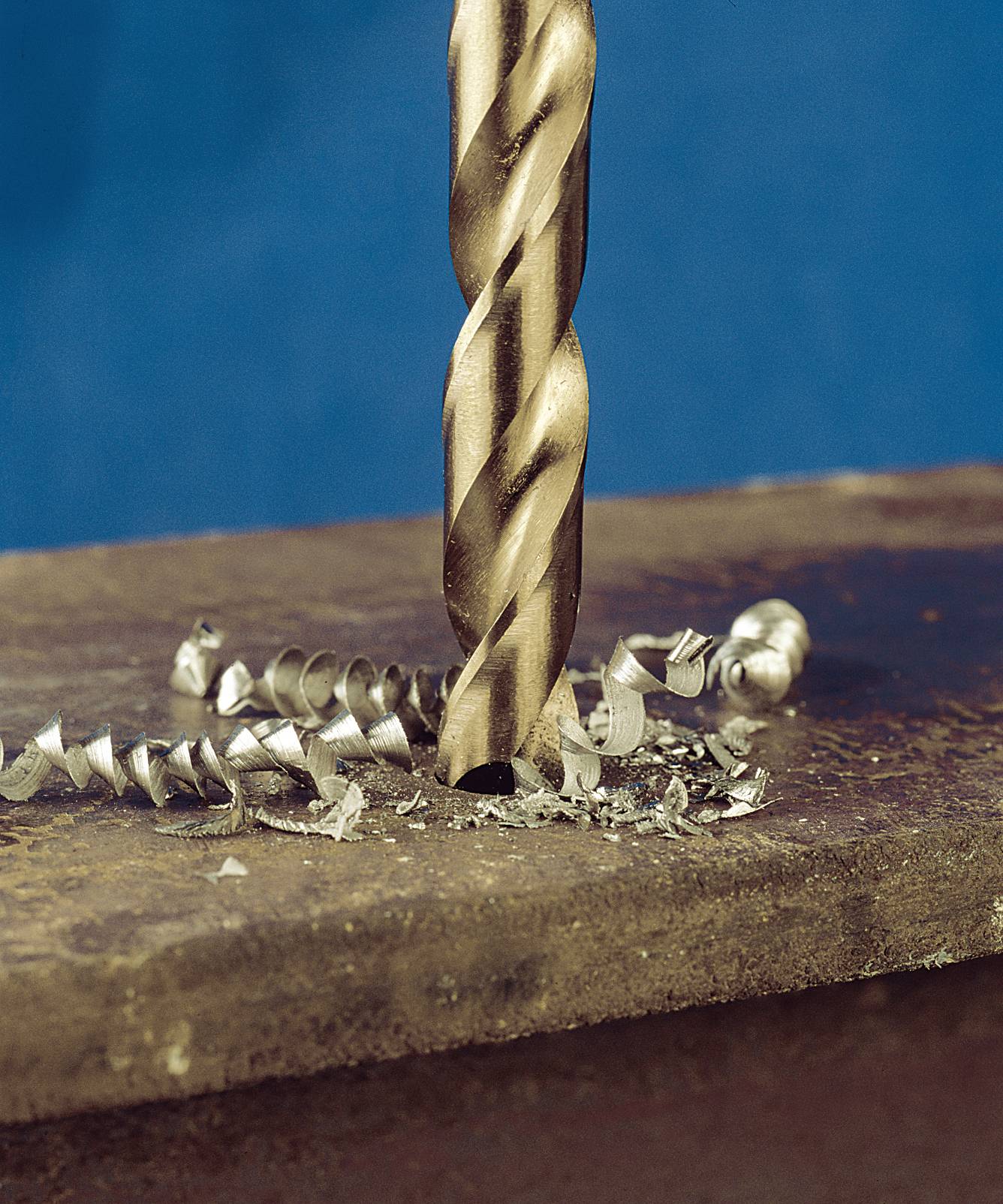

Exact 32332 HSS Metal twist drill bit 3 mm Total length 61 mm cut, cobalt DIN 338 Cylinder shank 10 pc(s)
EAN:
Part number:
Item no:
Product type
Metal twist drill bit
Drill hole Ø
3 mm
Content
10 pc(s)
Material
HSS
Material suitability
Metal
Plastic
Non-ferrous metal
Stainless steel
Number (Package size 10 pc(s))
Total (€ 13.87 / piece)
€ 138.65
plus VAT.
Technical specifications
- Product type
Metal twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
3 mm
- Drill hole Ø tolerance limit
h 8
- Tip angle
130°
- Content
10 pc(s)
- Material
HSS
- Material properties
cut
cobalt
- Material suitability
Metal
Plastic
Non-ferrous metal
Stainless steel
- Tensile strength (max.)
900 N/mm²
- Tool holder
Cylinder shank
- Shank Ø
3 mm
- Working length
33 mm
- Total length
61 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1215561 Exact 32332 HSS Metal twist drill bit 3 mm Total length 61 mm cut, cobalt DIN 338 Cylinder shank 10 pc(s)
Description
Areas of application for legi eret and unalloyed steels (up to 900 N/mm2 strength), hot and cold work steels, remuneration and use steel as well as for rostund acid-resistant steels. The cobalt-Share provides for a higher heat hard resistance. Cone shaped section • spiral angle: 20 - 30°Ø-tolerance h 8 • right-handed cutting · Ausspitzung: from Ø 3.0 mm. Etched to DIN1412 C. Tip angle: 130°. Surface: golden brown properties. As HSS-G plus cobalt alloy.
