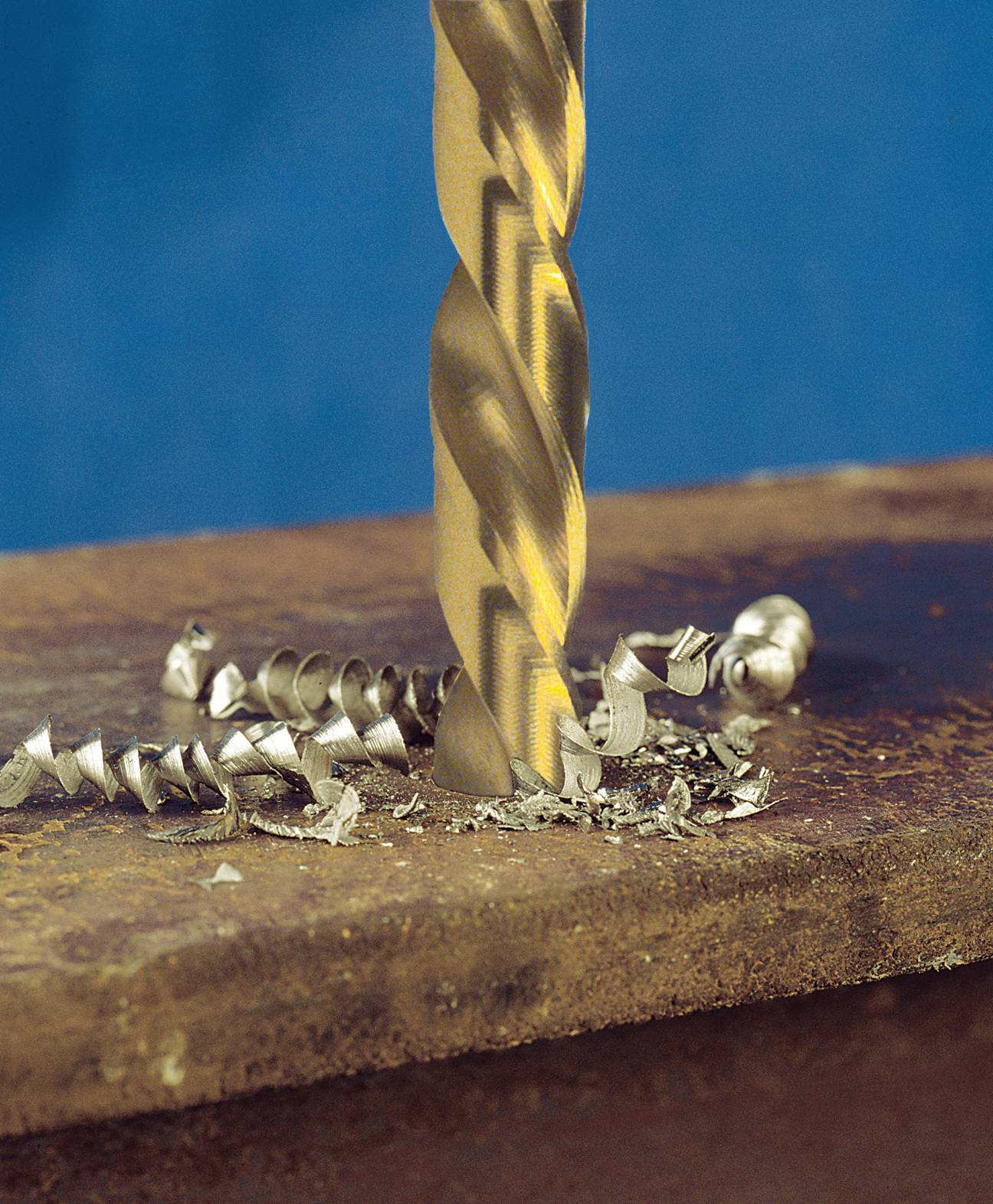

Exact 32566 HSS Metal twist drill bit 5.8 mm Total length 93 mm cut, TiN DIN 338 Cylinder shank 10 pc(s)
EAN:
Part number:
Item no:
Product type
Metal twist drill bit
Drill hole Ø
5.8 mm
Content
10 pc(s)
Material
HSS
Material suitability
Metal
Plastic
Non-ferrous metal
Perspex
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Technical specifications
- Product type
Metal twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
5.8 mm
- Content
10 pc(s)
- Material
HSS
- Material properties
cut
TiN
- Material suitability
Metal
Plastic
Non-ferrous metal
Perspex
- Tensile strength (max.)
900 N/mm²
- Tool holder
Cylinder shank
- Shank Ø
5.8 mm
- Working length
57 mm
- Total length
93 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1215710 Exact 32566 HSS Metal twist drill bit 5.8 mm Total length 93 mm cut, TiN DIN 338 Cylinder shank 10 pc(s)
Description
Usage areas: For steel, cast steel alloyed and unalloyed (up to 900 N/mm² strength), grey cast iron, malleable cast iron, spheroid iron and pressure casting, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass and bronze Spiral angle: 20 - 30°Ø-tolerance h 8 • right-handed cutting • Ausspitzung: from Ø 3.0 mm · etched to DIN 1412 C · tip angle: 118° · Surface: titanium nitride coated properties · As HSS-G plus titanium nitride coating · The TIN coating increases the surface hardness of approx. 2300 HV and the heat hardened resistance up to 600°C.
Hints
This text is machine translated.
