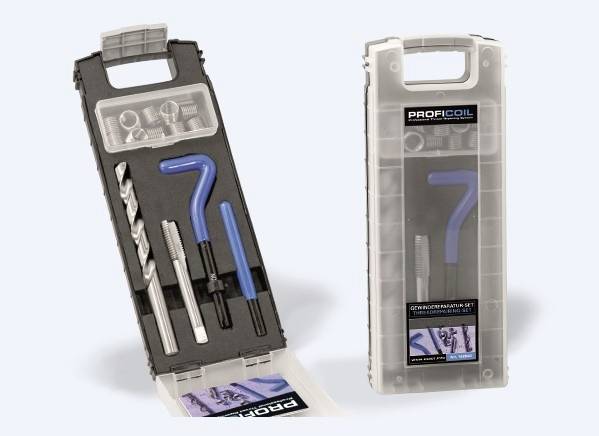

Exact 40341 Thread repair kit 130-piece
EAN:
Part number:
Item no:
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
Technical specifications
- Product type
Thread repair kit
- Material
HSS
- Content
1 Set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1225256 Exact 40341 Thread repair kit 130-piece
Description
Application
1. Damaged thread with the drill bit drill
2. With the tap the recording thread in the drilled hole
cut up
3. The Matching threaded inserts in threaded direction with the drivers
screw
4. The drivers and remove the attachment pins
with the and remove the tang
after the end of the operations is through the narrow tolerances as well as
the formation of the thread inserts a thread has emerged, which is often better
and stronger than the original thread.
1. Damaged thread with the drill bit drill
2. With the tap the recording thread in the drilled hole
cut up
3. The Matching threaded inserts in threaded direction with the drivers
screw
4. The drivers and remove the attachment pins
with the and remove the tang
after the end of the operations is through the narrow tolerances as well as
the formation of the thread inserts a thread has emerged, which is often better
and stronger than the original thread.
Scope of delivery
- Threaded inserts each 5 x M3x1, M 3x1.5, M 3x2.5, M4 x1, M 4x2.5, M5 x1, M1, M6, M6 x 5 x 2.5 x1.5, M6x2.5, M8 x 1, M8x1,5, M8, M10 x 1, M10x1.5 x2.5, M10x2,5, M12 x 1, M12x1.5, M12x2.5
- Tap each 1 x M3, M4, M5, M6, M8, M10, M12
- Installation Tools each 1 x M3, M4, M5, M6, M8 x1.25, M10x1,5, M12 x 1.75
- Tang each 1 x M3, M4, M5, M6, M8 x1.25, M10x1,5, M12 x 1.75
- Spiral Drill 1 each for m 3x0.5, M4x0,7, M5, M6, M8 x 1.25 x 1.0 x0.8, M10x1,5, M12 x 1.75.
Hints
This text is machine translated.
