Buy Explore Scientific 0510360 3" 0,7x Reducer/Korrektor Field flattener

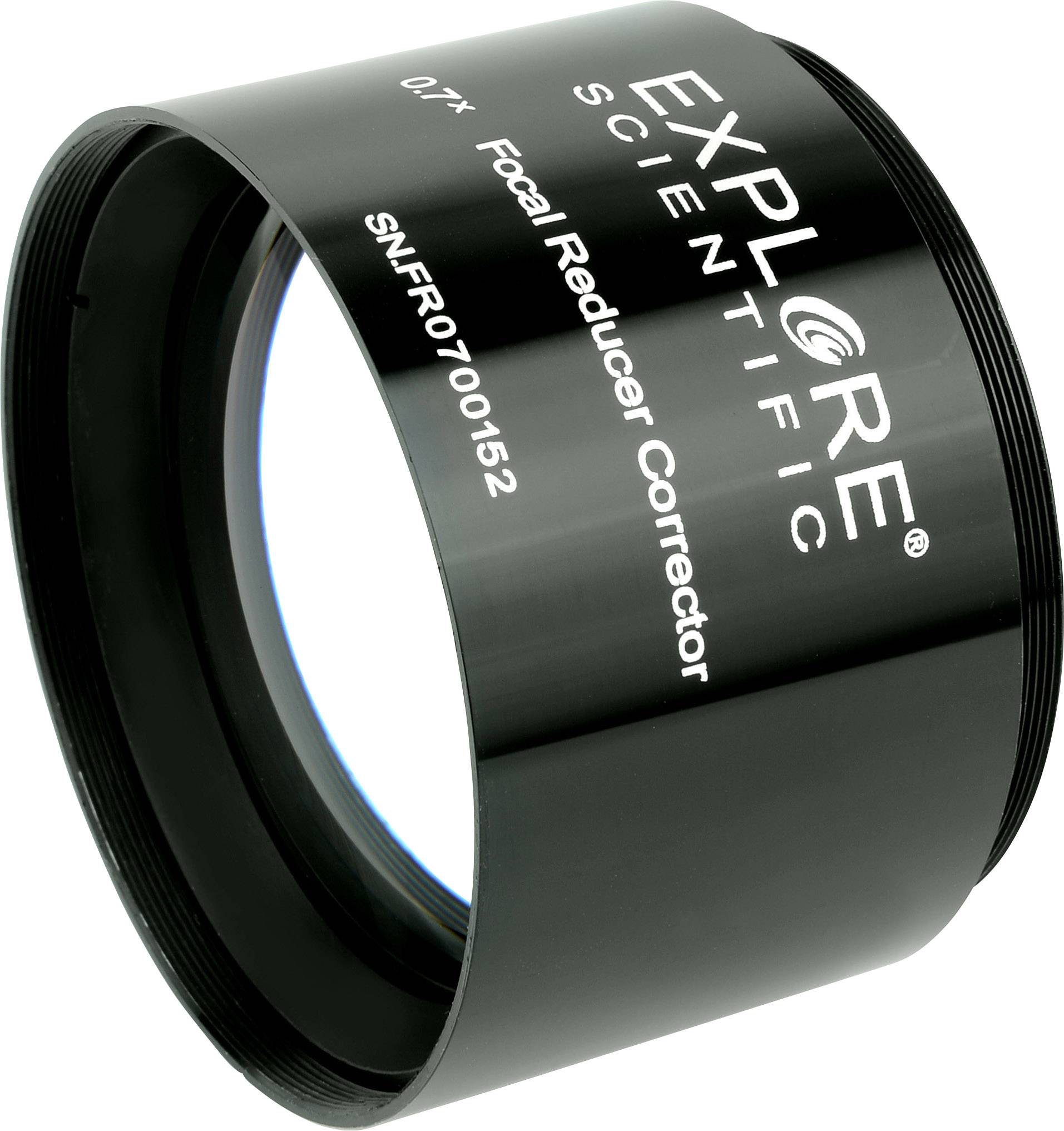

Black Explore Scientific Focal Reducer Corrector. Optical Telescope Accessory with Inscription. Model Number SNFR0700152.

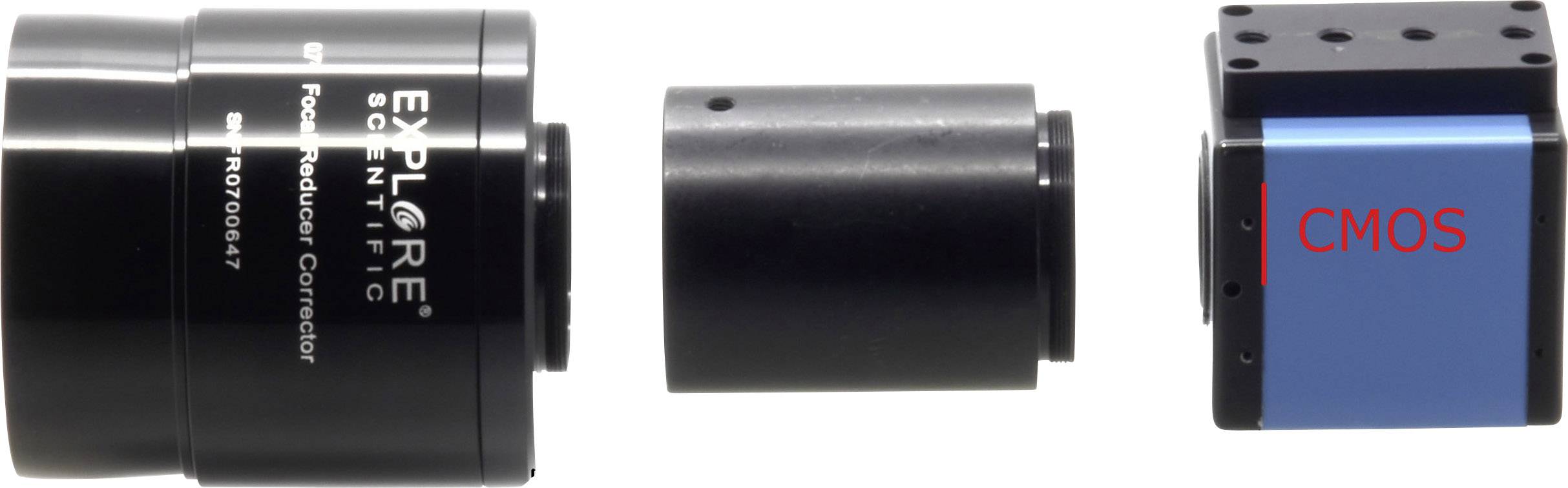

'Image shows dismantled camera lenses and CMOS sensor.'

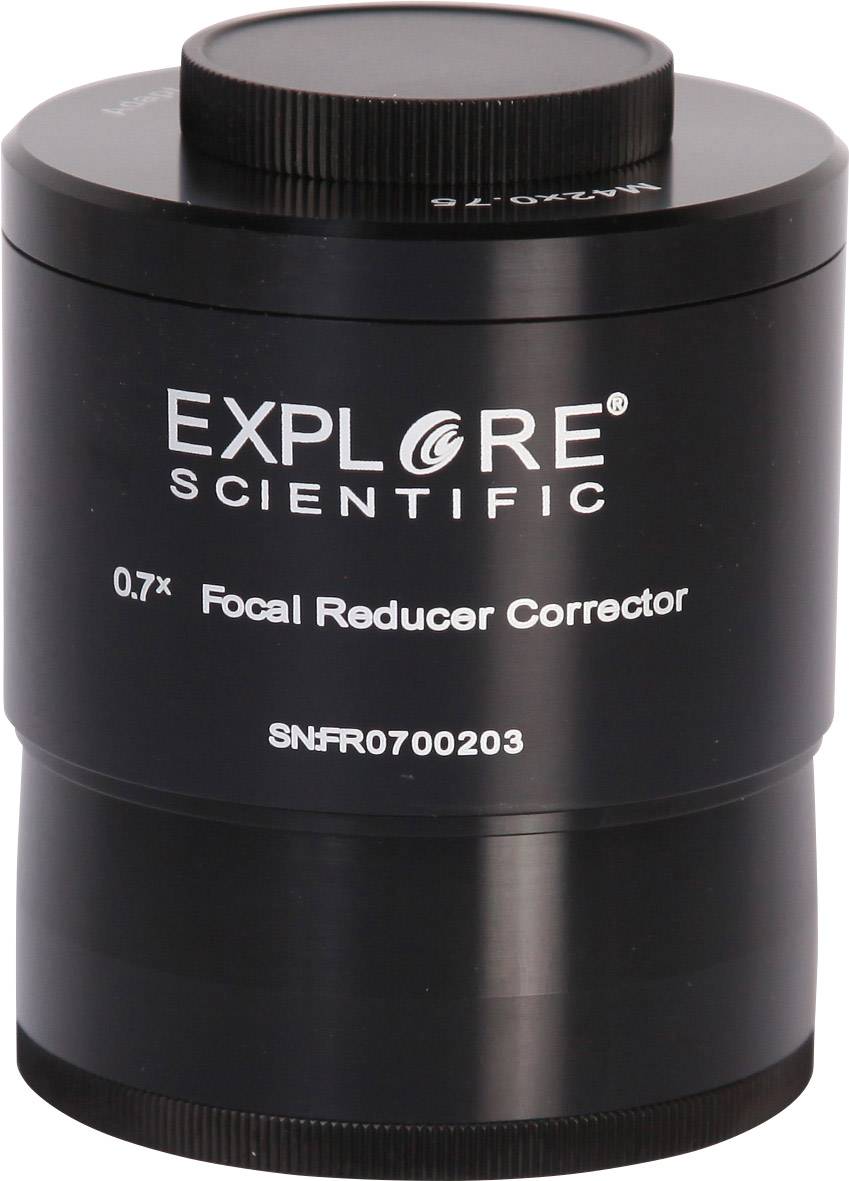

A black, cylindrical focal reducer from Explore Scientific, marked with '0.7x Focal Reducer Corrector'.

Broken down into three parts: a black lens, a magnification element, and a blue CMOS camera for astrophotography.

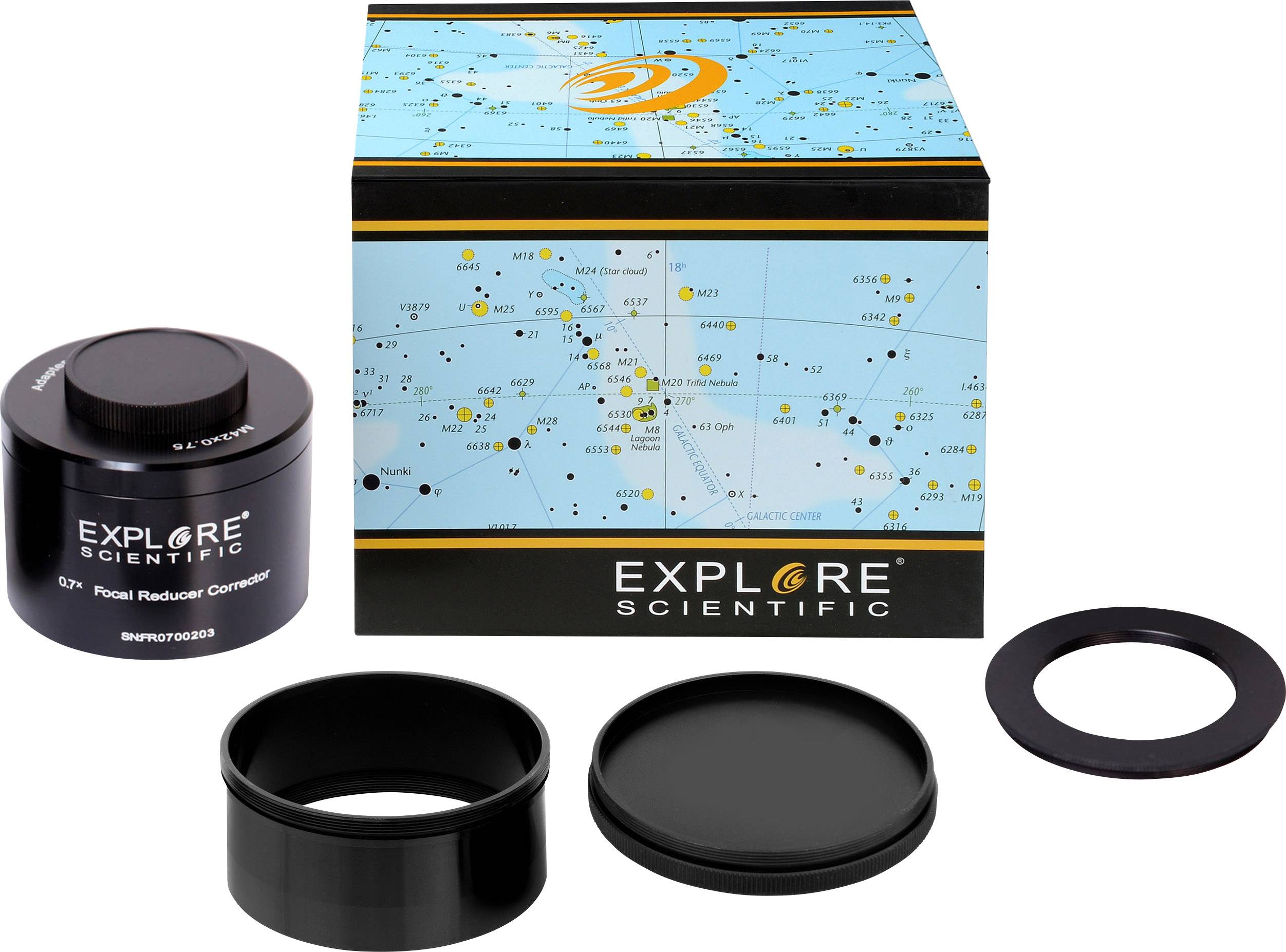

The image shows an Explore Scientific set with a focal reducer and accessories laid out on a star constellation map.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

3" 0.7x reducer/corrector

Reducer and Field FlattnerReduces the focal length by 0,7xFlattens the field for astrophotographyDeveloped for ED127 und ED152 APO telescopesFree aperture of 65mm for large sensorsWorks very well with most coma free systems: apochromats, RCs, Meade ACF

Technical specifications

Product type: Field flattener

Dim: (Ø x L) 78.5 mm x 100 mm

Compatible with: Telescopes

Length: 100 mm

(Ø): 78.5 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2160660 Explore Scientific 0510360 3" 0,7x Reducer/Korrektor Field flattener

Description

Reduces the focal length by the factor 0,7x (for f/8) and 0,8x (for f/10) respectively. The reducer/corrector not only reduces the focal length but also flattens the field. Although originally developed for the Explore Scientific ED-APOs 127mm and 152mm, the reducer can be used with many systems. For example with the ED-APOs 102mm and 165mm. Here, a slight restriction of the correction at the edge of the image field can be expected when using full-frame sensors. Comes with 3" barrel, adaptor for direct focuser thread M54x0.75 and T2 camera adaptor. Free aperture 65mm, so that it can be used even with cameras that have a large sensor - if the telescope allows for this.Note: For telescopes which are equipped with 2.5" HEX Focuser the optional adapter Part.No. 0510366 is needed.
