Exsys EX-11049 PCI card USB A (USB 3.2 1st gen) PCIe
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-11049 interface card / adapter Built-in USB 3.2 1st Gen 1 (3.1 Gen 1)
- built-in
- Host Interface: PCIe
- Output interface USB 3.2 1st Gen 1 (3.1 Gen 1)
- Purpose: PC
- Black, silver
Technical specifications
- Data transfer rate 480 Mbit/s.
- Data transfer rate 5 Gbps
- Product type
PCI card
- Slot
PCIe
- No. of USB 3.2 1st Gen (USB 3.0) ports
4 x
- No. of external USB 3.2 1st Gen (USB 3.0) ports
2 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Factory colour
Black
Silver
- Type A
PCI Express
- Height
55 mm
- Width
65 mm
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- 4-pin Molex
1
- Weight
108 g
- UKCA
yes
- PCI Express slots quantity
16
- Operating temperature (T-T)
0 - 55 °C
- Operating temperature (T-T)
32 - 131 °F
- Quantity per pack
4 Stück(e)
- Quantity per box
4 Stück(e)
- Low power mode
yes
- Internal
yes
- Manual
yes
- Easy to install
yes
- Hot-swap
yes
- Drivers included
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Plug and Play
yes
- Mounting brackets included
yes
Documents & Downloads
Datasheet
Datasheet 3796945 Exsys EX-11049 PCI card USB A (USB 3.2 1st gen) PCIe
User & Safety Instructions
User & Safety Instructions 3796945 Exsys EX-11049 PCI card USB A (USB 3.2 1st gen) PCIe
Description

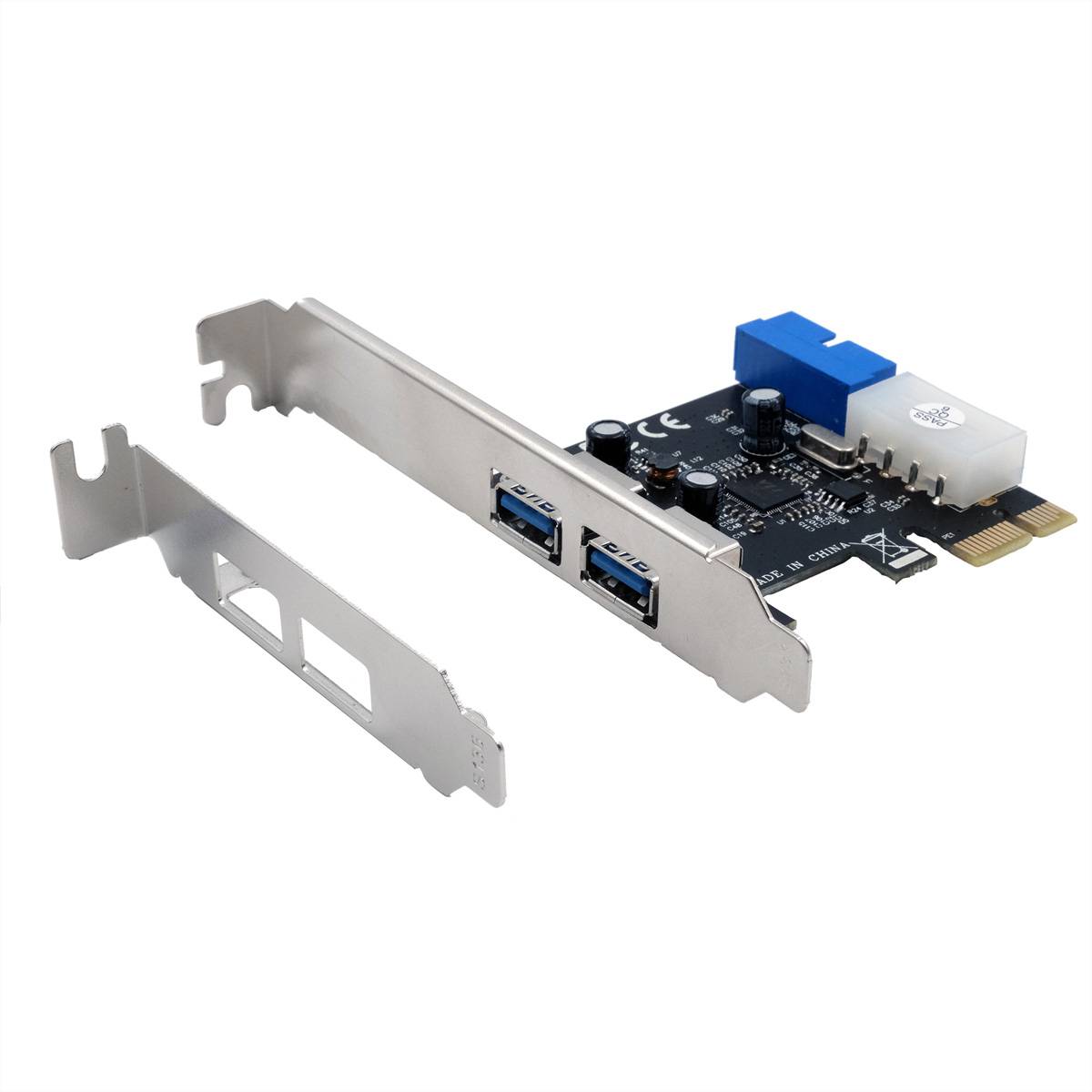

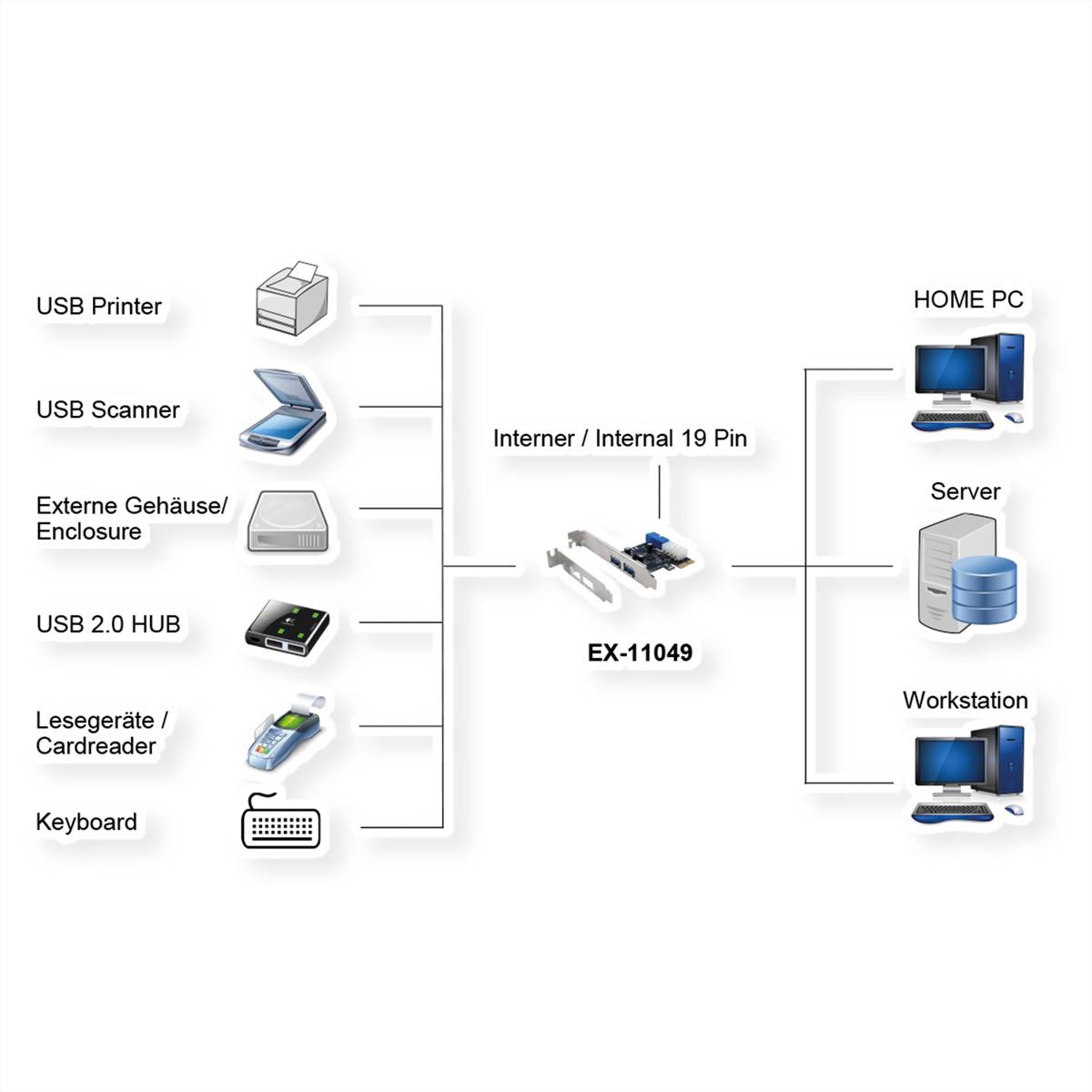

The EX-11049 USB 3.2 Gen 1 PCIe card provides two external and two internal 19 pin super-speed USB 3.2 1st Gen 1 ports. It was developed to connect several USB 1.1, 2.0 or 3.2 Gen 1 terminals to your workstation, desktop or server. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mbps), USB 2.0 high-speed (480Mbps) and USB 3.2 Gen 1 super-speed (5Gbps). It is the perfect technology for external memory casing, digital cameras, webcam, scanner and more. The card requires the power connection from the PC power supply unit for perfect function and to make 900mA available on the USB ports. With the EX-11049 a Low Profile bracket is supplied for slim housings with up to a maximum height of 8 cm can be used.
This text is machine translated.
This text is machine translated.
Features
- USB 3.2 Gen 1 PCIe card with two external and internal connectors
- Compatible with Microsoft Windows standard open HCD driver
- Supports up to 123 devices
- Fully compliant with PCI Express Gen2 specifications
- USB 1.1 and 2.0 backwards compatible
- Hot swapping
- Plug-and-Play
- Chip set: VIA VL805
Scope of delivery

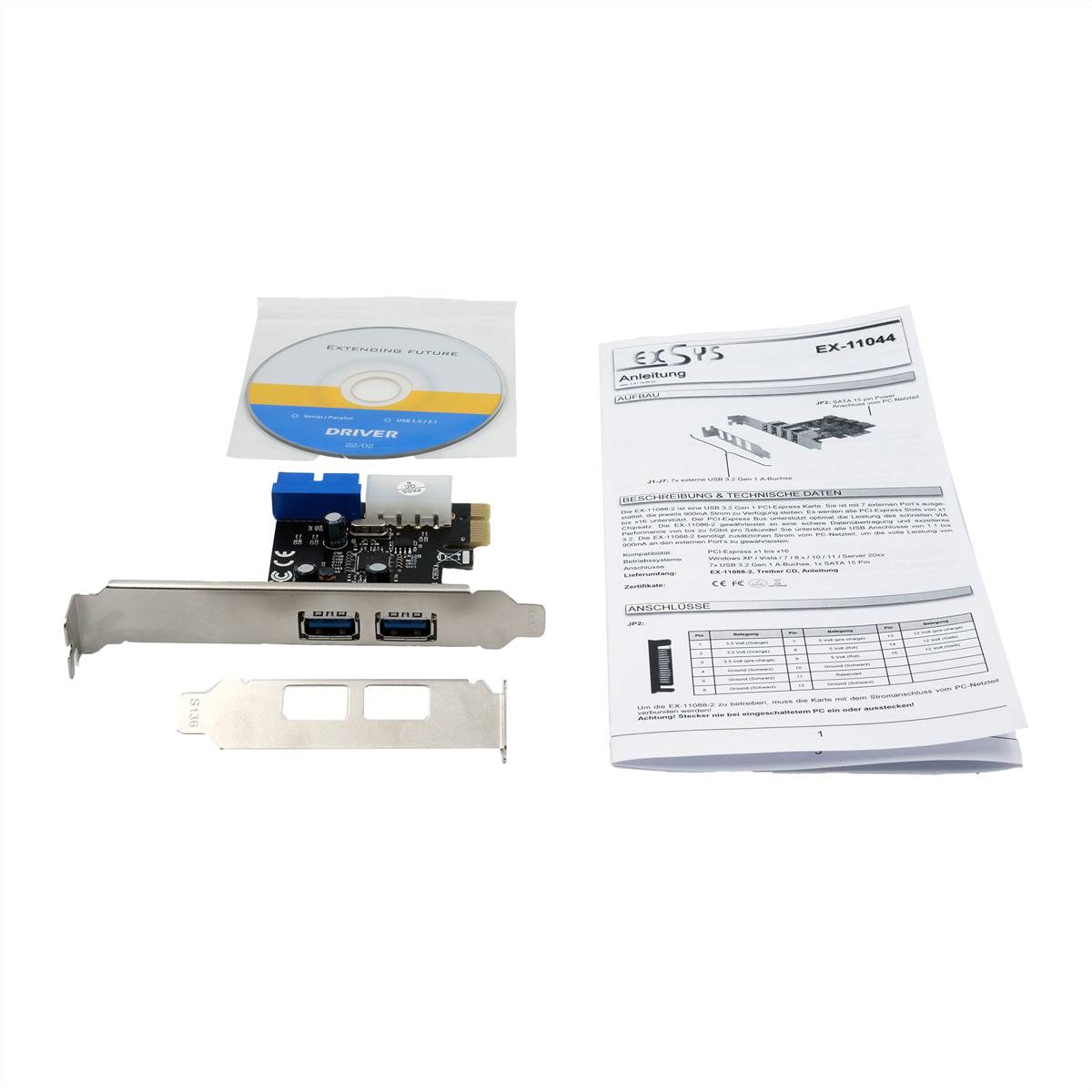

- EX-11049, Low Profile clip, CD, manual
