EXSYS 4-port USB 3.2 1st Gen 1 PCIe card with Self Power, 3A (Renesas)

Highlights & Details

built-in
Host Interface: PCIe
Output interface USB 3.2 1st Gen 1 (3.1 Gen 1)
5 Gbit/s

Technical specifications

Product type: PCI Express card

Type A: PCI Express

Depth: 56 mm

Width: 85.5 mm

No. of USB type A 3.1 / 3.2 1st Gen: 4 x

Weight: 120 g

UKCA: yes

Data transfer rate (max): 5 Gbit/s

Operating temperature (T-T): 0 - 55 °C

Storage relative humidity (H-H): 5 - 95 %

Quantity per pack: 1 Stück(e)

Internal: yes

Manual: yes

Hot-swap: yes

Operating relative humidity (H-H): 5 - 95 %

Storage temperature (T-T): -20 - 85 °C

Plug and Play: yes

Built-in processor: yes

Mounting brackets included: yes

Documents & Downloads

Datasheet

Datasheet 3796947 Exsys EX-11194 PCI Express card

User & Safety Instructions

User & Safety Instructions 3796947 Exsys EX-11194 PCI Express card

Description

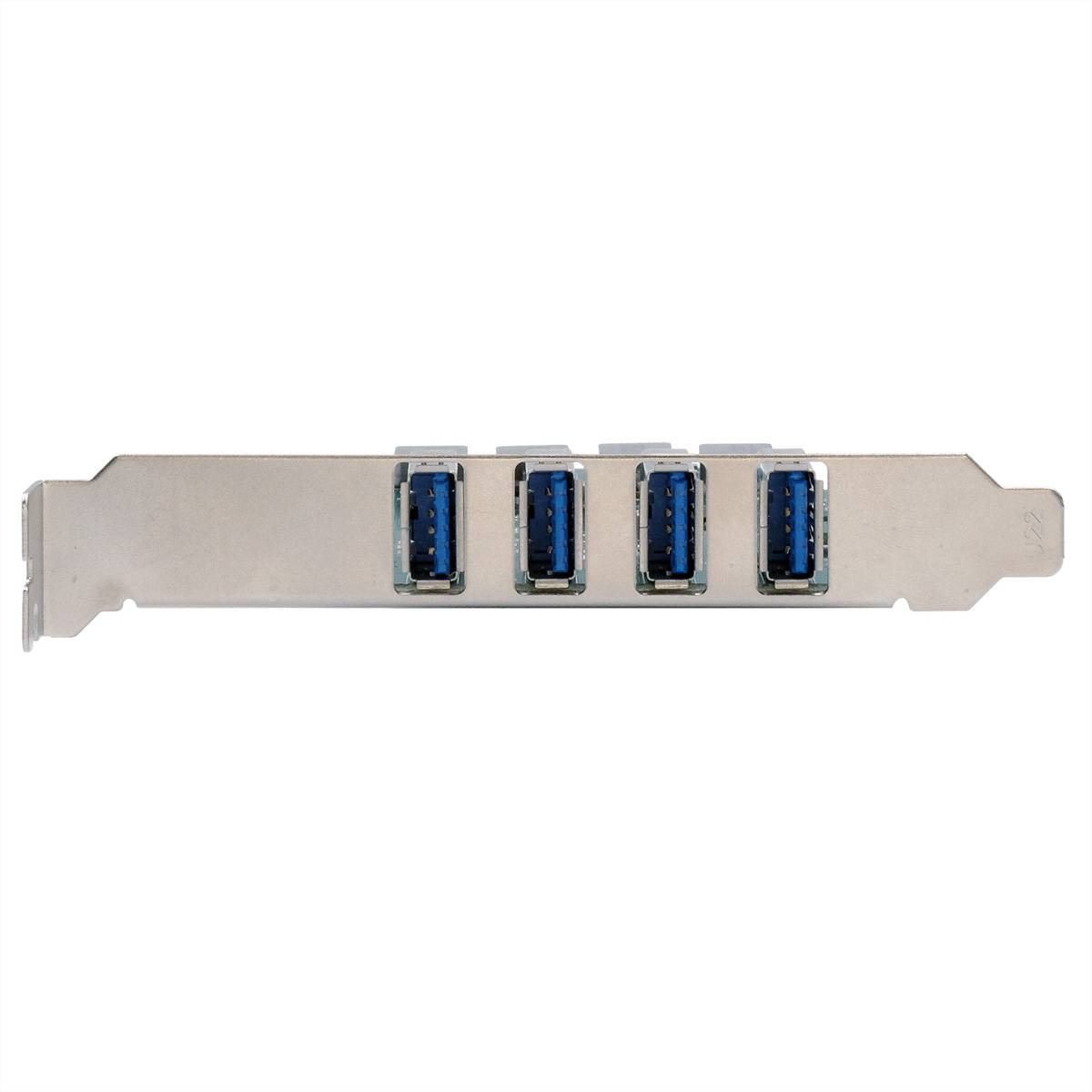

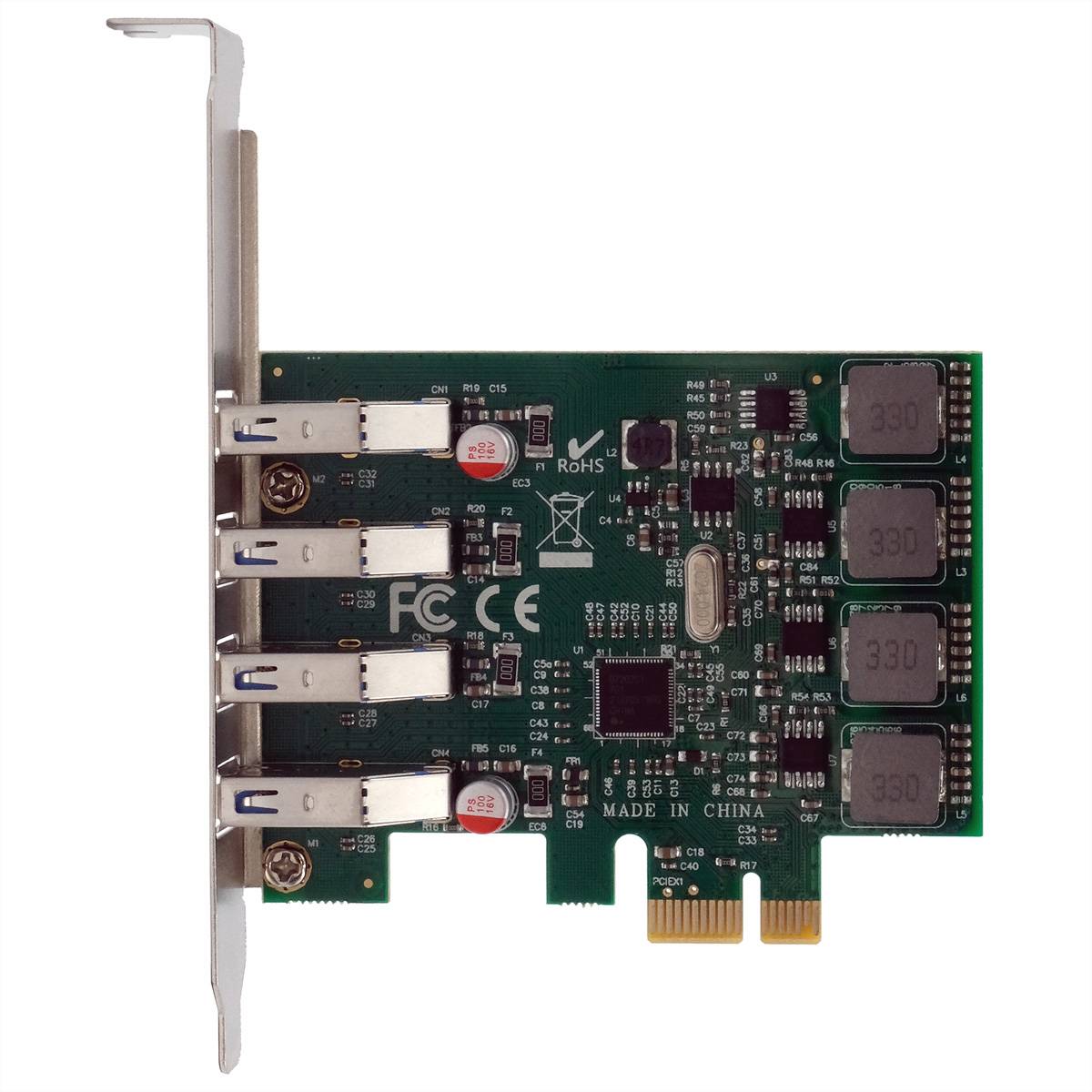

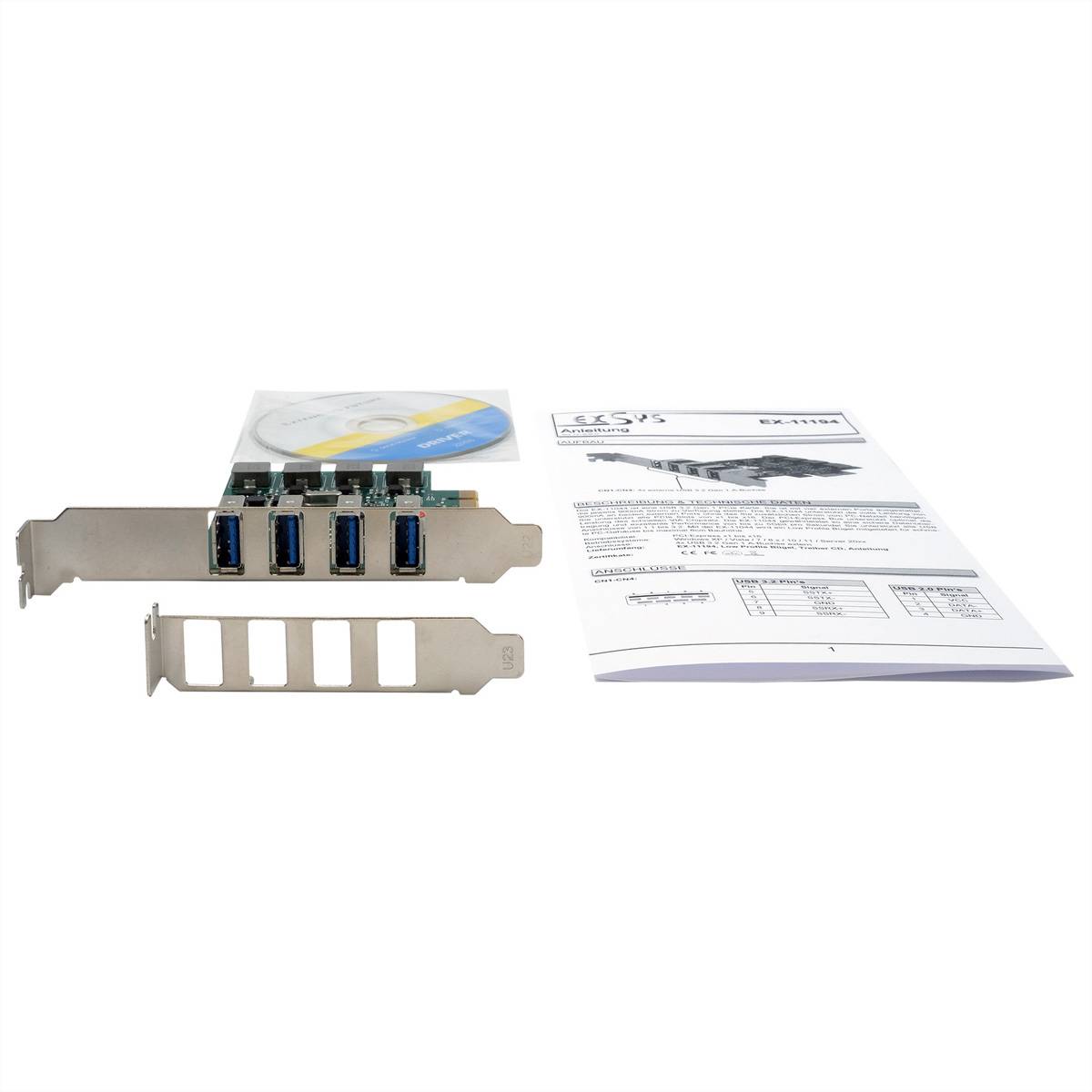

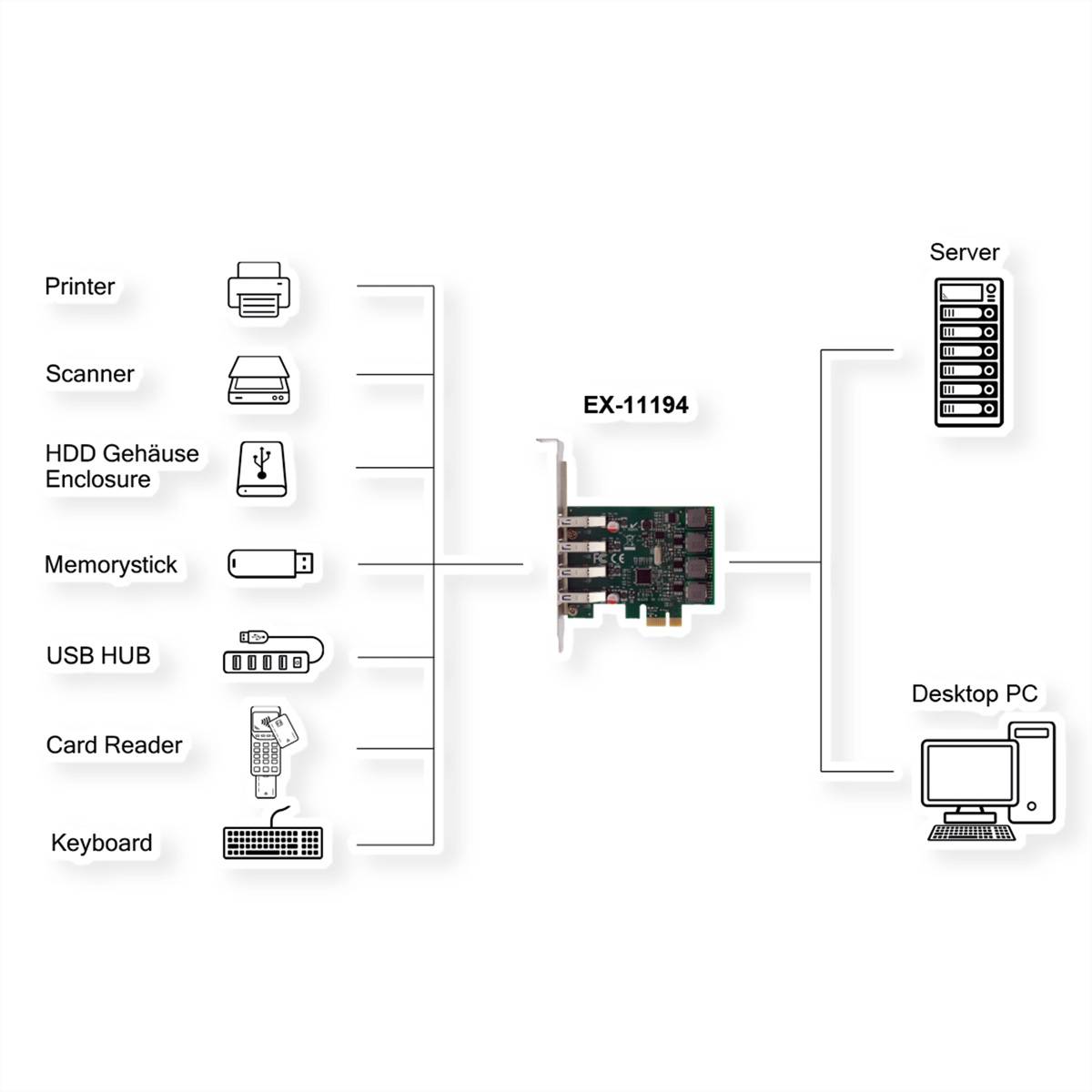

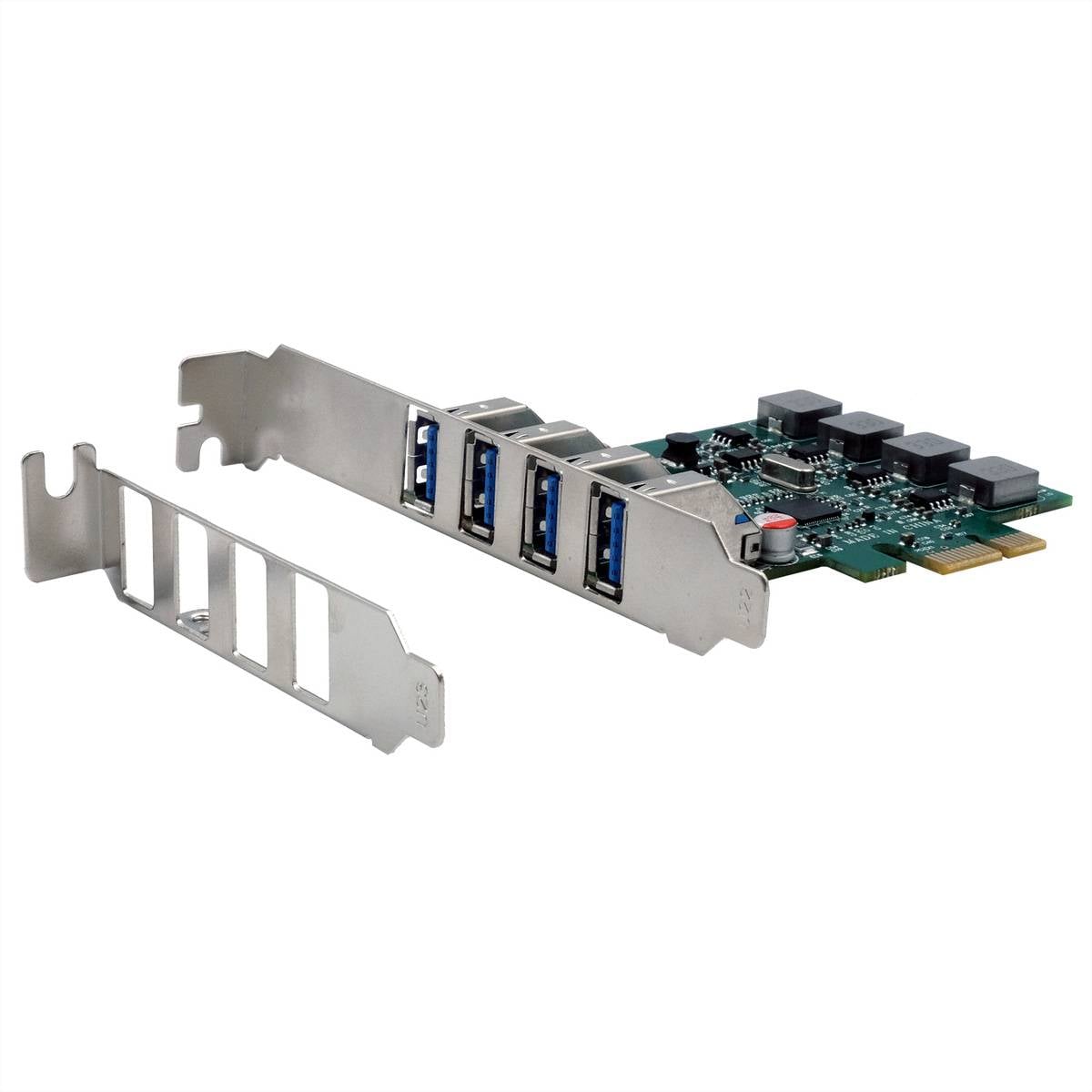

The EX-11194 USB 3.2 Gen 1 PCIe card provides four external super-speed USB 3.2 1st Gen 1 ports. It was developed to connect several USB 1.1, 2.0 or 3.2 Gen 1 terminals to your workstation, desktop or server. It supports USB 1.1 low-speed (1.5 Mbps), full-speed (12Mbps), USB 2.0 high-speed (480Mbps) and USB 3.2 Gen 1 super-speed (5Gbps). The card has Self Power and supports 3.0A of current at each output. With the EX-11194 a Low Profile bracket is supplied for installation in slim PC housings with a maximum height of 8 cm.
