Highlights & Details

EXSYS EX-3519 interface card / adapter built-in PCIe, SATA

built-in
Host Interface: SATA
Output interface PCIe, SATA
Purpose: PC
6 Gbit/s
Green, silver

Technical specifications

Product type: PCI Express card

Factory colour: Green
Silver

Type A: SATA

Depth: 34.6 mm

Width: 67 mm

Output voltage: 3.3 V

Weight: 200 g

UKCA: yes

PCI Express slots quantity: 16

Data transfer rate (max): 6 Gbit/s

Operating temperature (T-T): 0 - 55 °C

Power management: yes

Quantity per pack: 6 Stück(e)

Quantity per box: 6 Stück(e)

Low power mode: yes

Internal: yes

Hot-Plug support: yes

eSATA ports quantity: 2

Manual: yes

Hot-swap: yes

Drivers included: yes

Operating relative humidity (H-H): 5 - 95 %

Native Command Queuing (NCQ): yes

Storage temperature (T-T): -40 - 75 °C

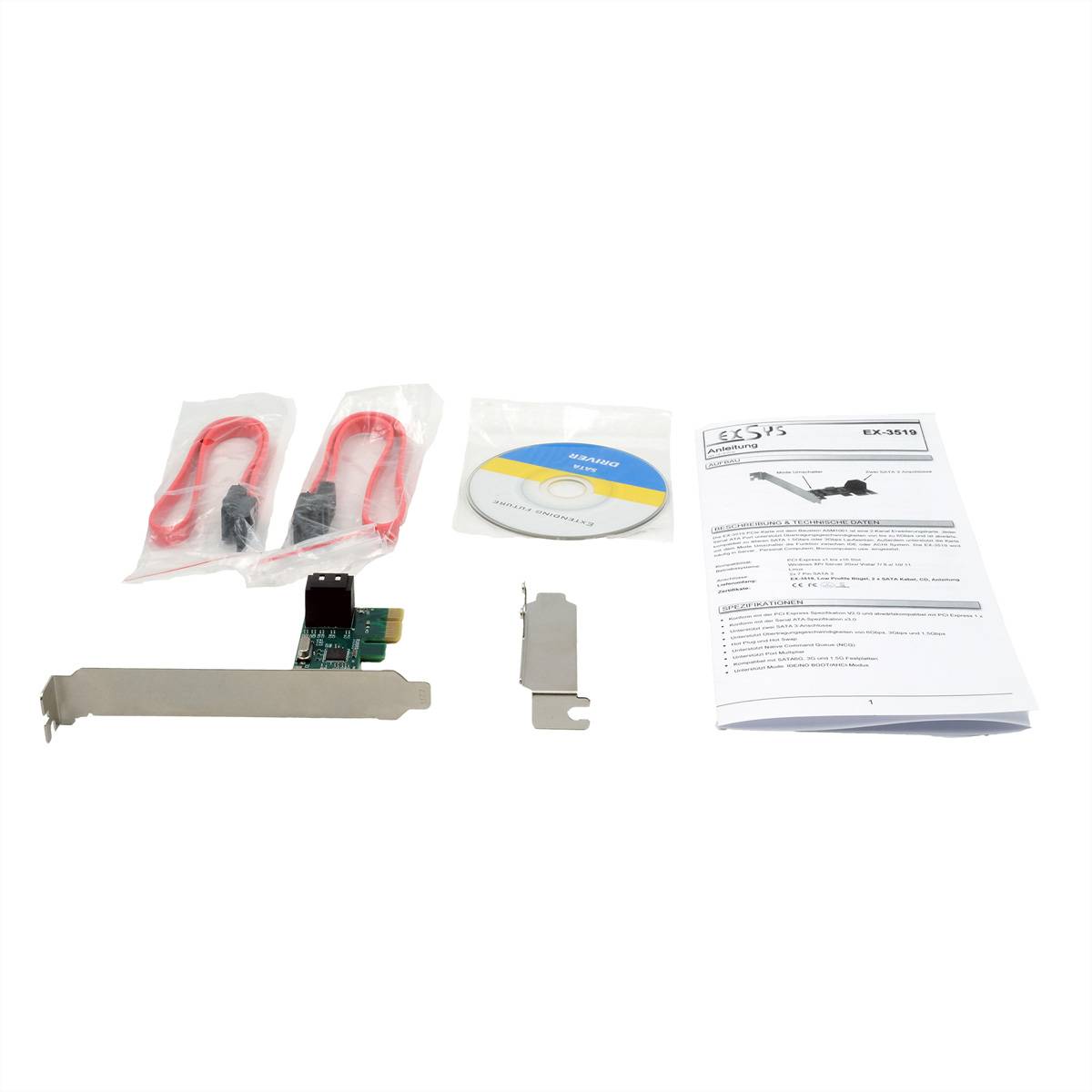

Mounting brackets included: yes

Documents & Downloads

Datasheet

Datasheet 3796965 Exsys EX-3519 PCI Express card

User & Safety Instructions

User & Safety Instructions 3796965 Exsys EX-3519 PCI Express card

Description

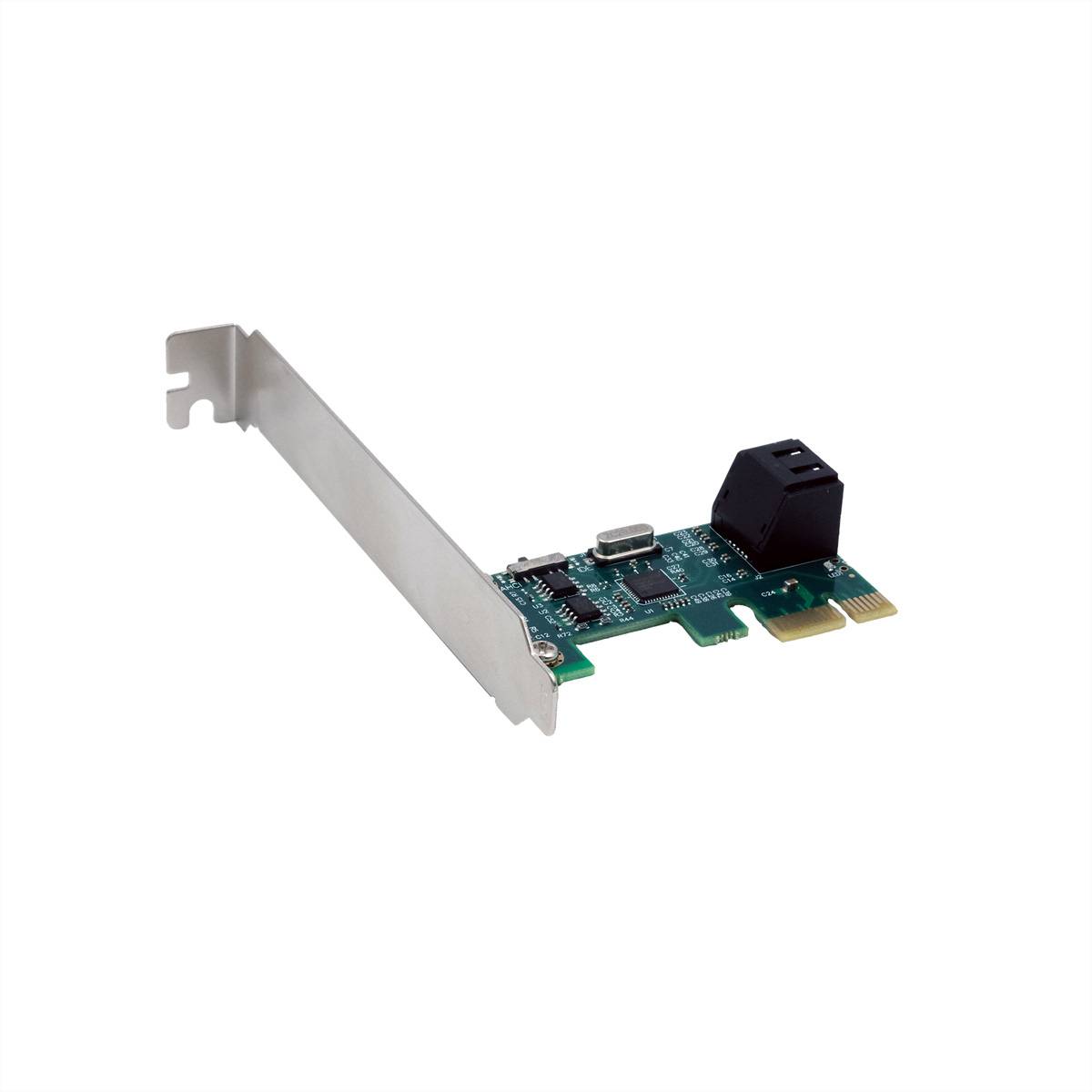

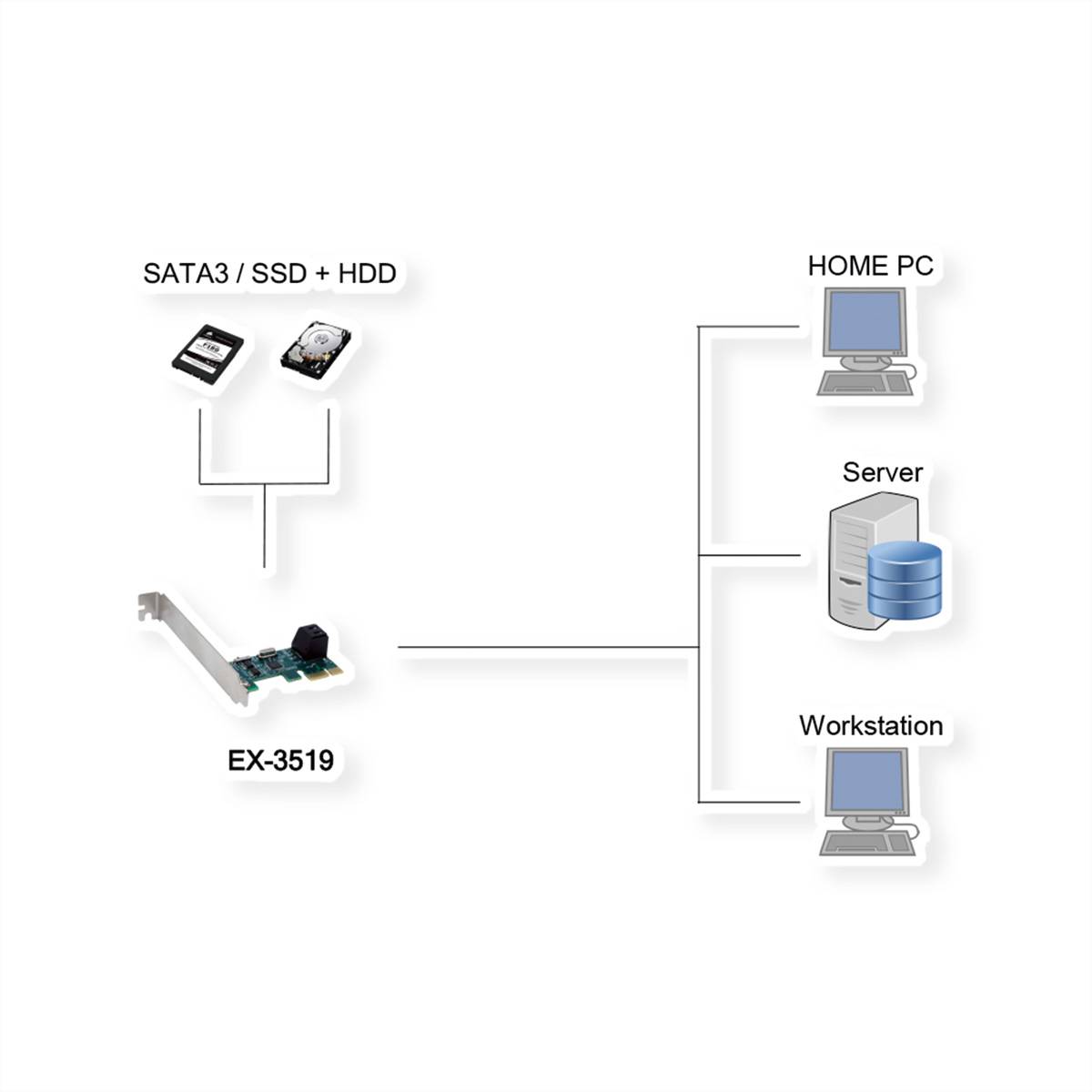

The EX-3519 PCIe card with the module ASM1061 is a 2-channel expansion card. Each Serial ATA port supports transfer speeds of up to 6 Gbps and is backwards compatible with older SATA 1.5Gbps or 3 Gbps drives. In addition, the card with the mode selector switch supports the function between IDE or ACHI system. The EX-3519 is frequently used in servers, personal computers, office computers, etc. A Low Profile bracket for slim housings up to 8cm installation height is supplied with the controller

This text is machine translated.

Features

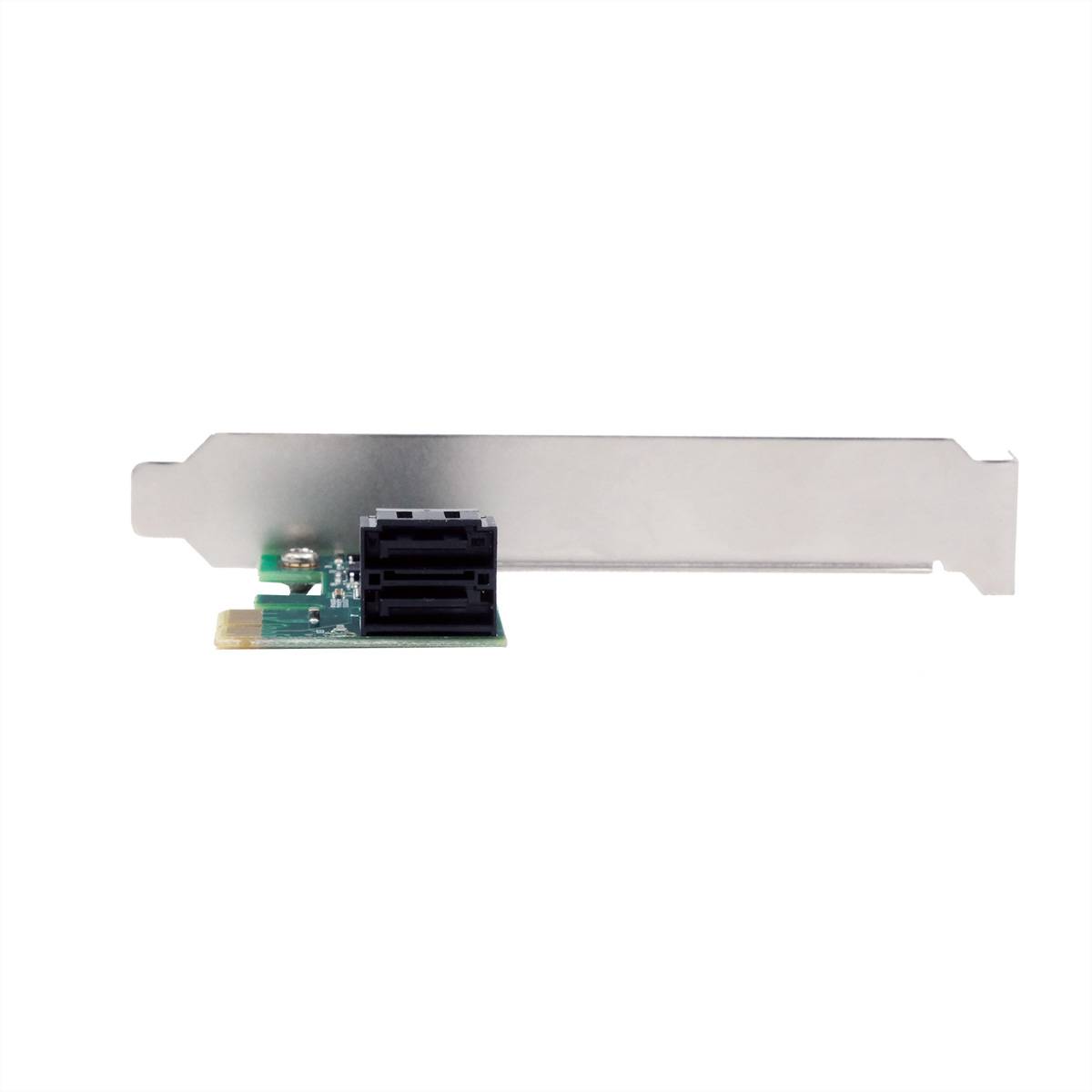

SATA 3 PCIe controller for 2 hard discs
Compliant with PCI Express V2.0 specification and backwards compatible with PCI Express 1.x
Compliant with Serial ATA specification v3.0
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier
Supports mode: IDE/NO BOOT/AHCI-mode
Bootable from EX-3519 possible

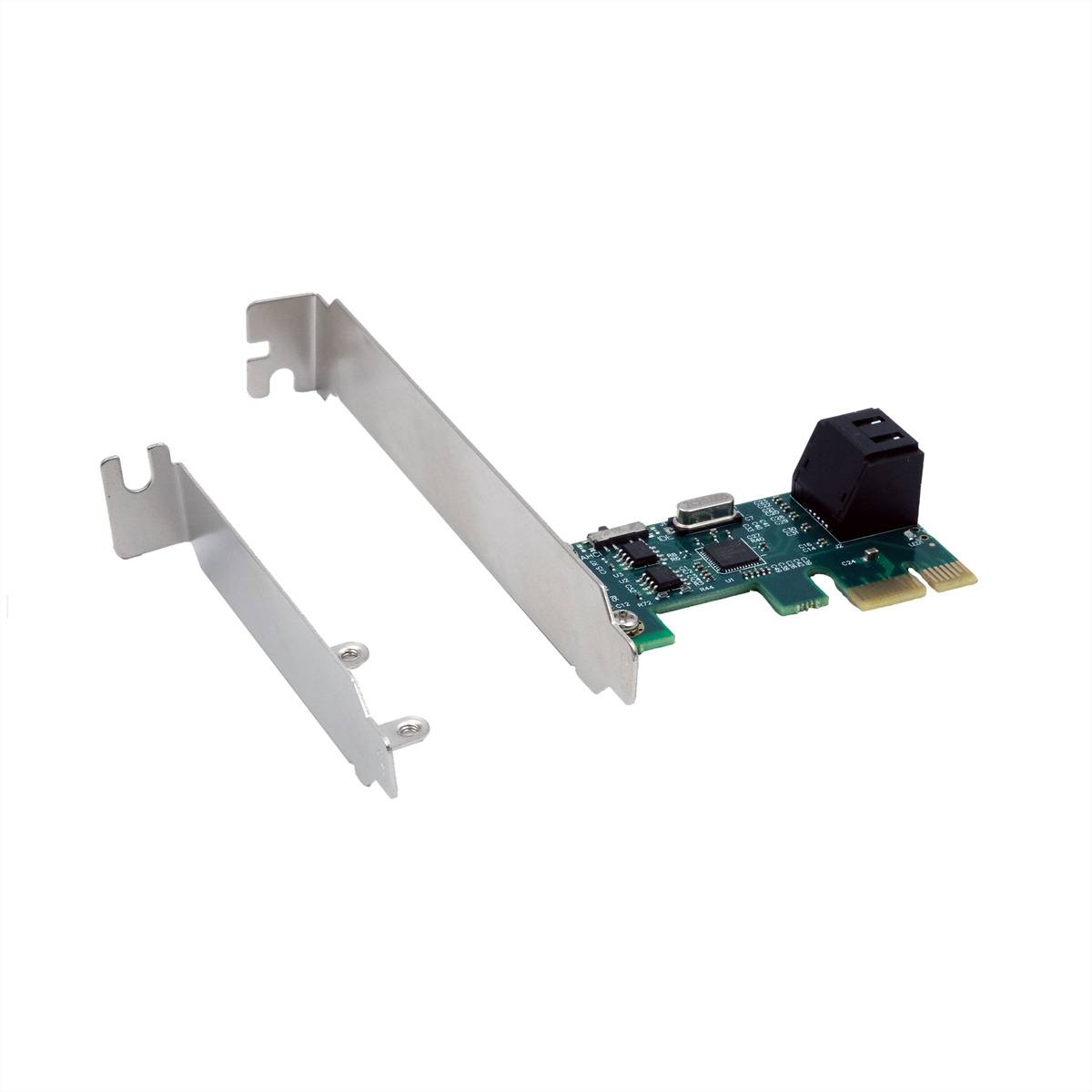

Including Low Profile bracket
Chip-set Asmedia ASM1061
