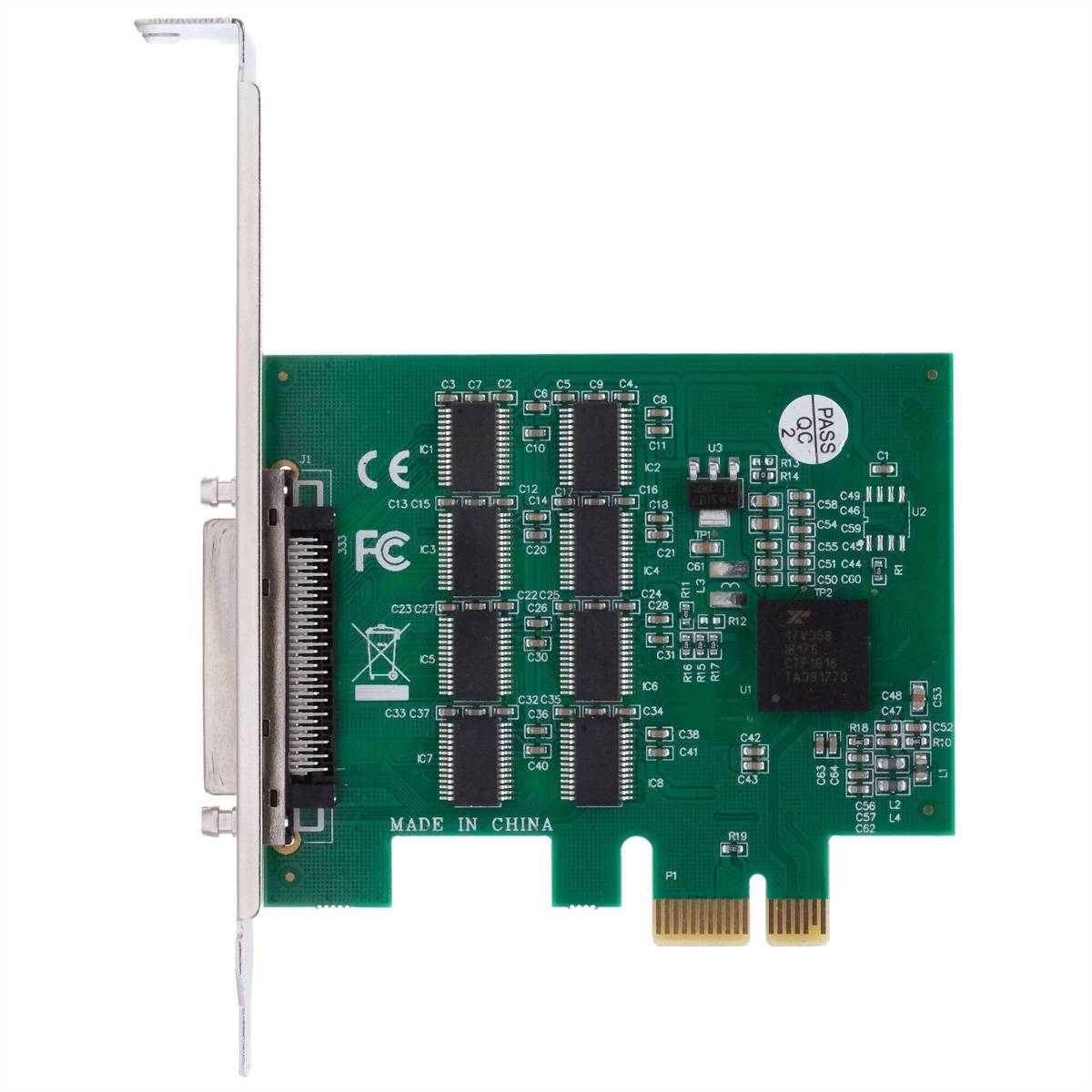

Exsys EX-46028 PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Provides eight serial RS-232 High Performance UART 16C550 outputs
- Eight-serial RS-232 high-performance UART 16C550 outputs
- Data bits 5, 6, 7 and 8
- 300Baud up to 921.6KBaud
Technical specifications
- Product group: Interface cards
- Product type: PCI Express adapter card
- Bus system PCI Express
- Interfaces: 8x 9-pin serial RS-232 plug
- RS-232 interface: Yes
- Power supply 3.3V over PCIe Slot
- Data transfer rate: 300Baud to 921.6Kbaud
- EXAR/MaxLinear 17V358 chipset
- Operating systems: Win2000/XP/Vista/7/8.x/10/11 (32&64), Server 200x & 2012 R2, Linux
- Connections: 8 x 9 pin D-SUB serial plug
- Height: Low profile
- Installation guide / manual: Yes
- Min. Operating temperature -40 °C
- Max. operating temperature: 85 °C
- Height: 68 mm
- Width 80 mm
- Weight: 460 g
- Packaging height 60 mm
- Package width 170 mm
- Packaging depth 240 mm
- Package weight: 0,451 kg
- Gross weight: 0.451
- Product type
PCI card
- Connection type
Series
- Weight
470 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796951 Exsys EX-46028 PCI card
User & Safety Instructions
User & Safety Instructions 3796951 Exsys EX-46028 PCI card
Description

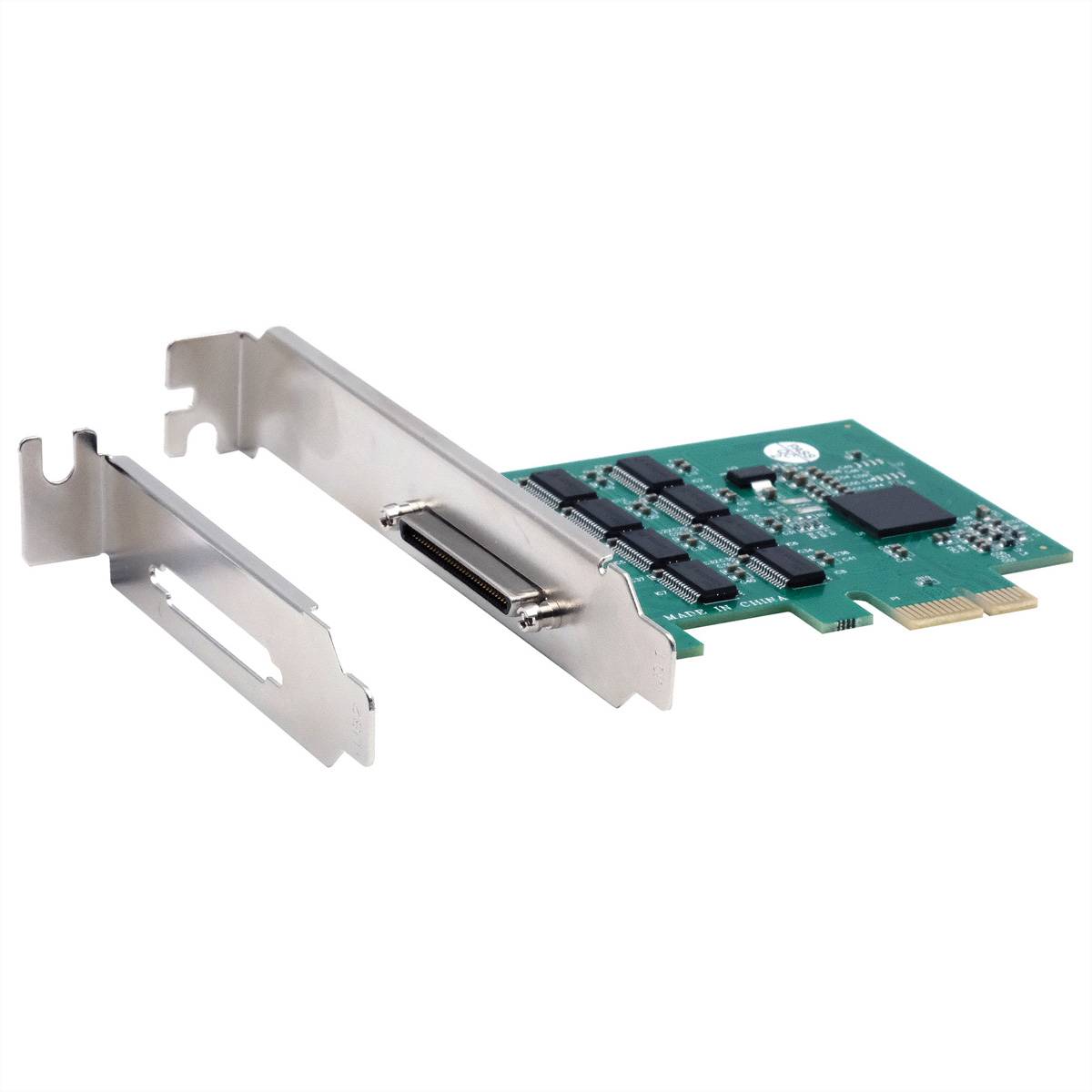

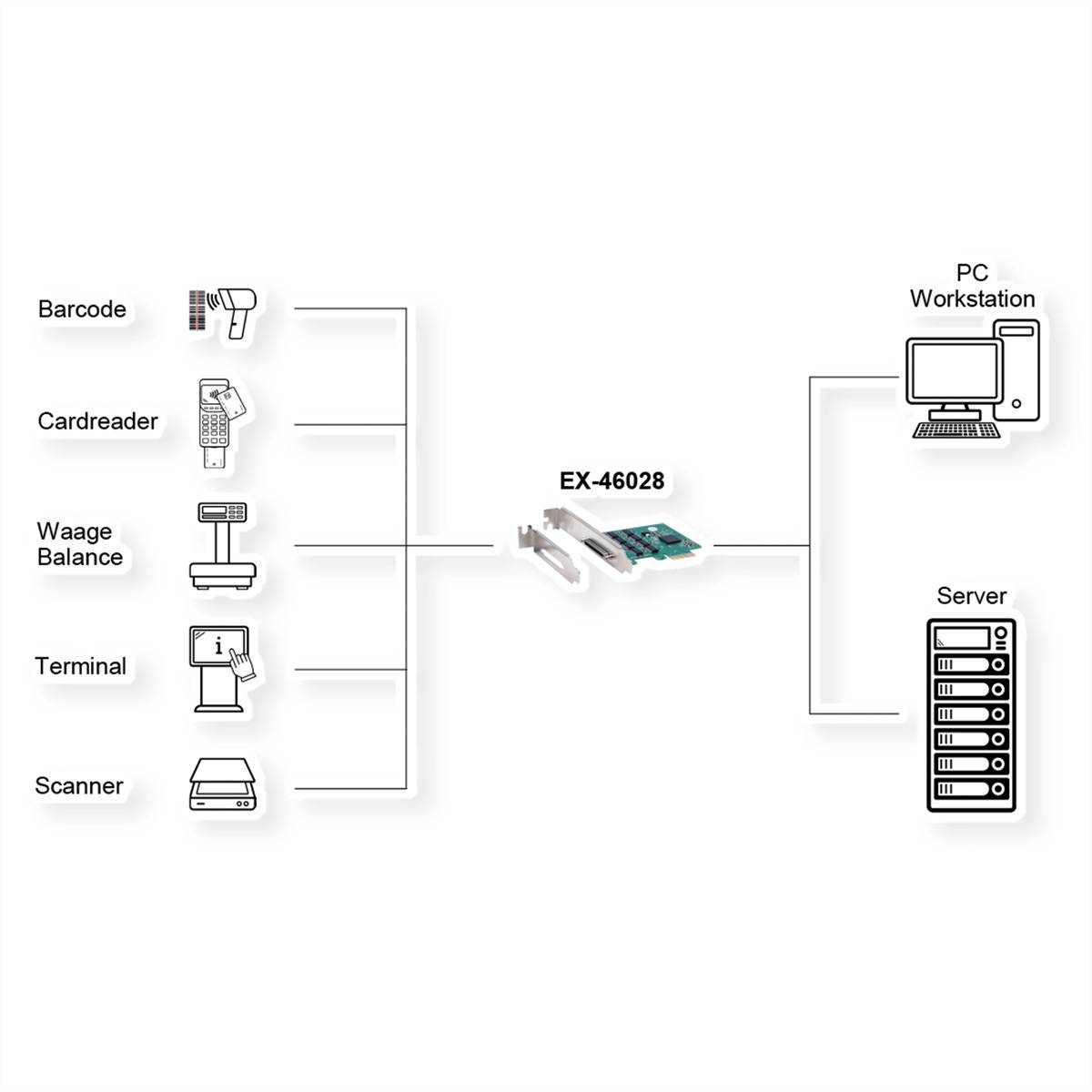

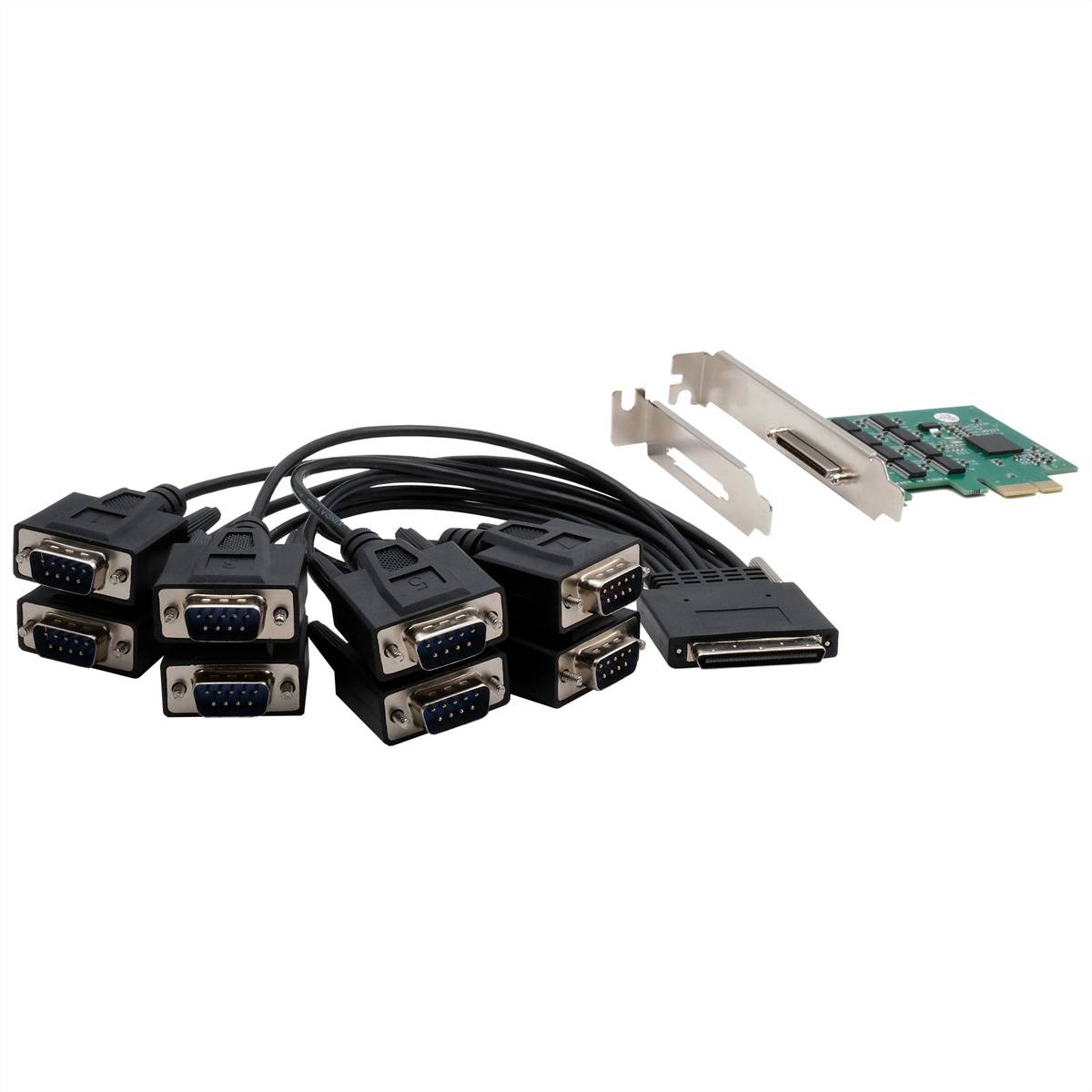

Provides eight serial RS-232 High Performance UART 16C550 outputs. The EX-46028 PCIe I/O card provides eight serial RS-232 high-performance UART 16C550 outputs. . It was developed to expand eight additional serial ports for PC, small workstations or servers via the PCIe bus. . The eight 9-pin connectors are connected via an Octopus cable. . Thus, only one slot plate is needed. With the EX-46028 a Low Profile Bracket for slim computer housing is delivered up to 8 cm high height.
This text is machine translated.

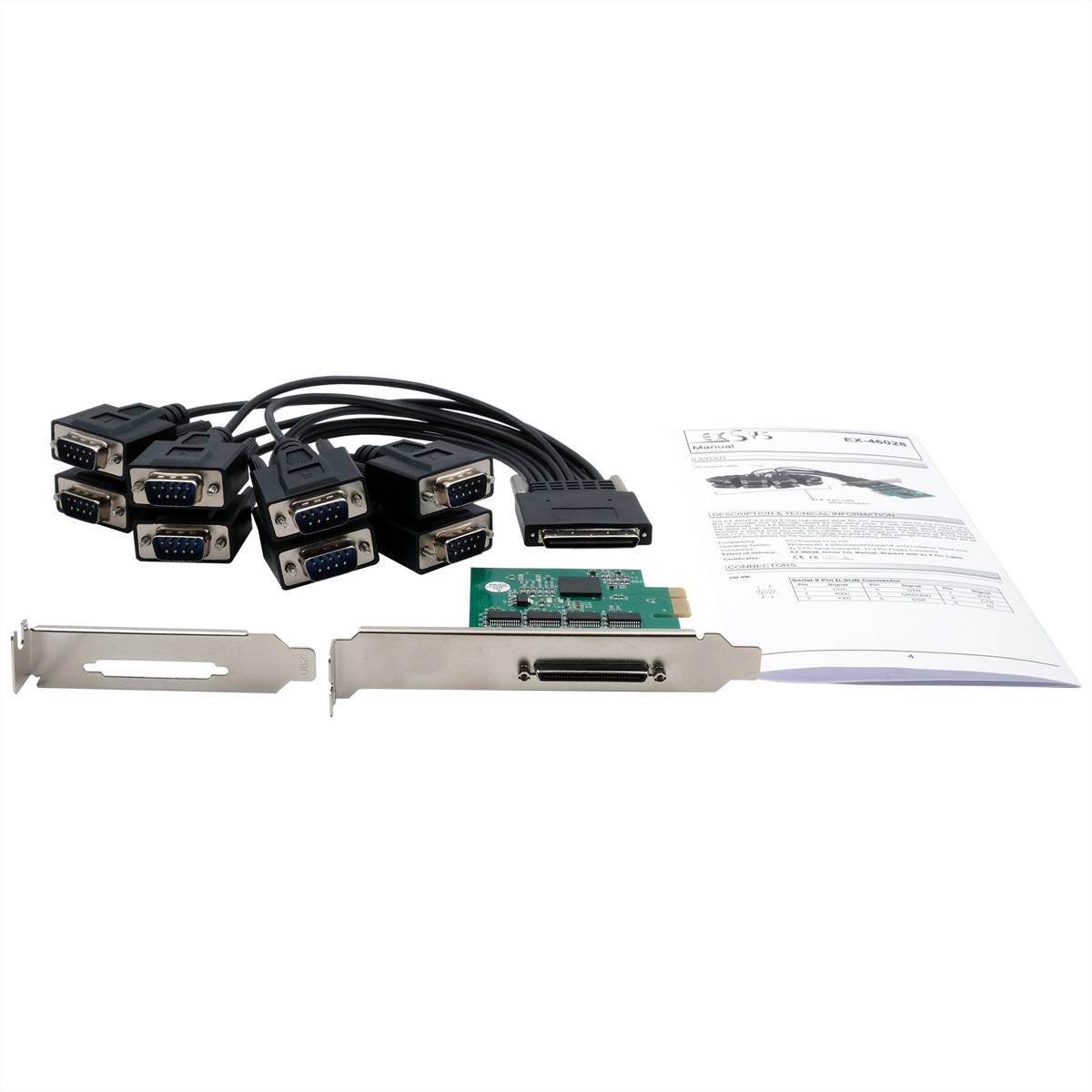

Scope of delivery
- EX-46028, Octopus-cable, Low Profile clip, manual
