Highlights & Details

EXSYS EX-60102 Network Card Built-in Ethernet 1000 Mbit / s.

Cable connected
PCI Express Ethernet
Gigabit Ethernet 1000 Mbit/s 10/100/1000BaseT(X)
Built-in component for: PC Chipset: Realtek RTL8111F

Technical specifications

Host Interface: PCI Express
Interface: Ethernet
Maximum data transfer rate of 1000 Mbit/s.

Product type: PCI card

10/100/1000 Mbps ports: 2 x

Version: Adapter

Factory colour: Green
Grey

Depth: 76 mm

Width: 67 mm

Cable use: Networks

Interfaces: RJ45

LAN transfer rate: 2500 MBit/s

Connection type: Series

Transfer rate: 1000 MBit/s

No. of LAN ports: 2 x

No. of Gigabit LANs: 2 x

Transfer type: Corded

Range of use: PC

Weight: 120 g

Wi-Fi: No

UKCA: yes

Ethernet LAN: yes

Jumbo frames: 9000

Internal: yes

Wake-on-LAN ready: yes

Jumbo frames support: yes

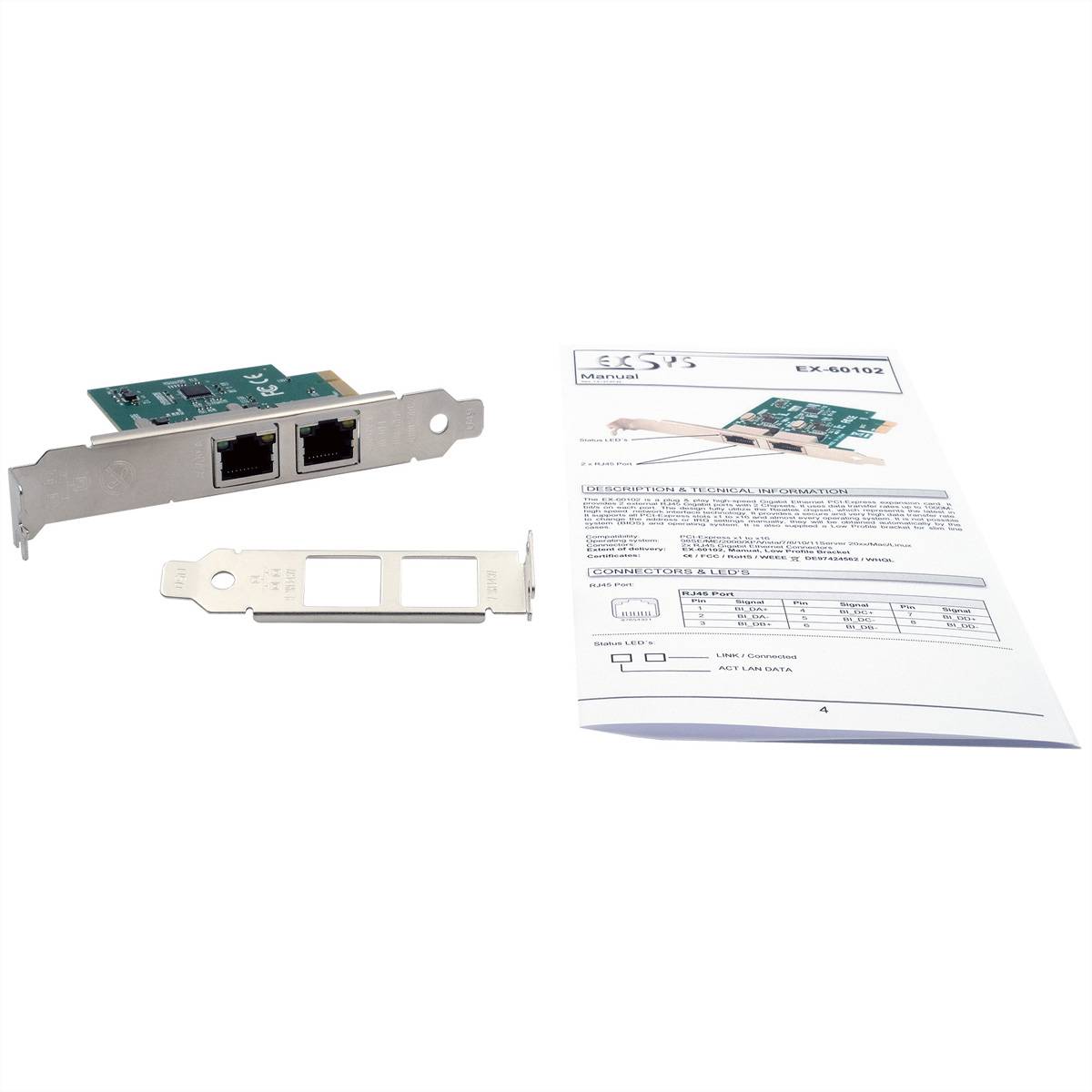

Manual: yes

Full duplex: yes

Operating relative humidity (H-H): 5 - 90 %

Mounting brackets included: yes

Documents & Downloads

Datasheet

Datasheet 3796954 Exsys EX-60102 PCI card

User & Safety Instructions

User & Safety Instructions 3796954 Exsys EX-60102 PCI card

Description

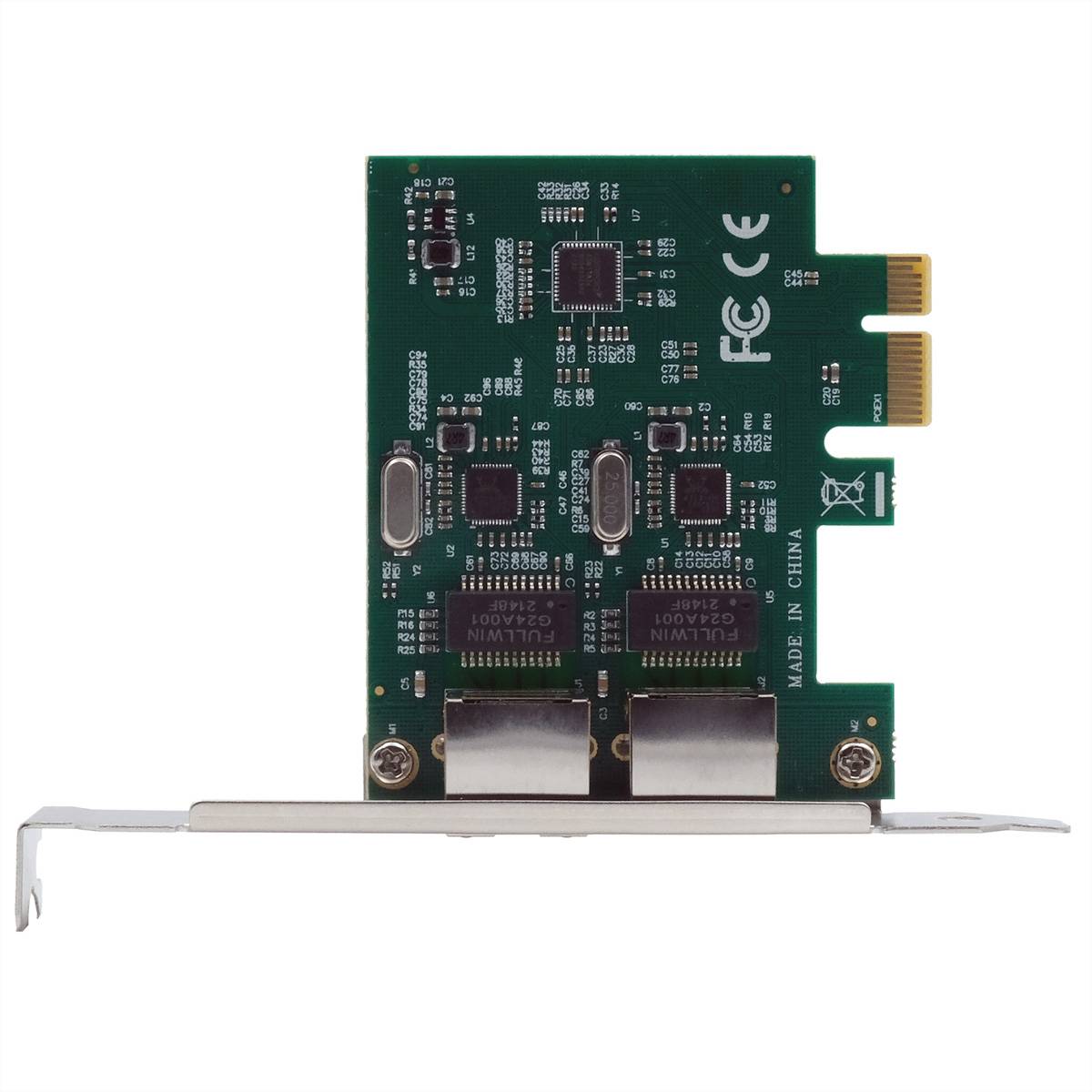

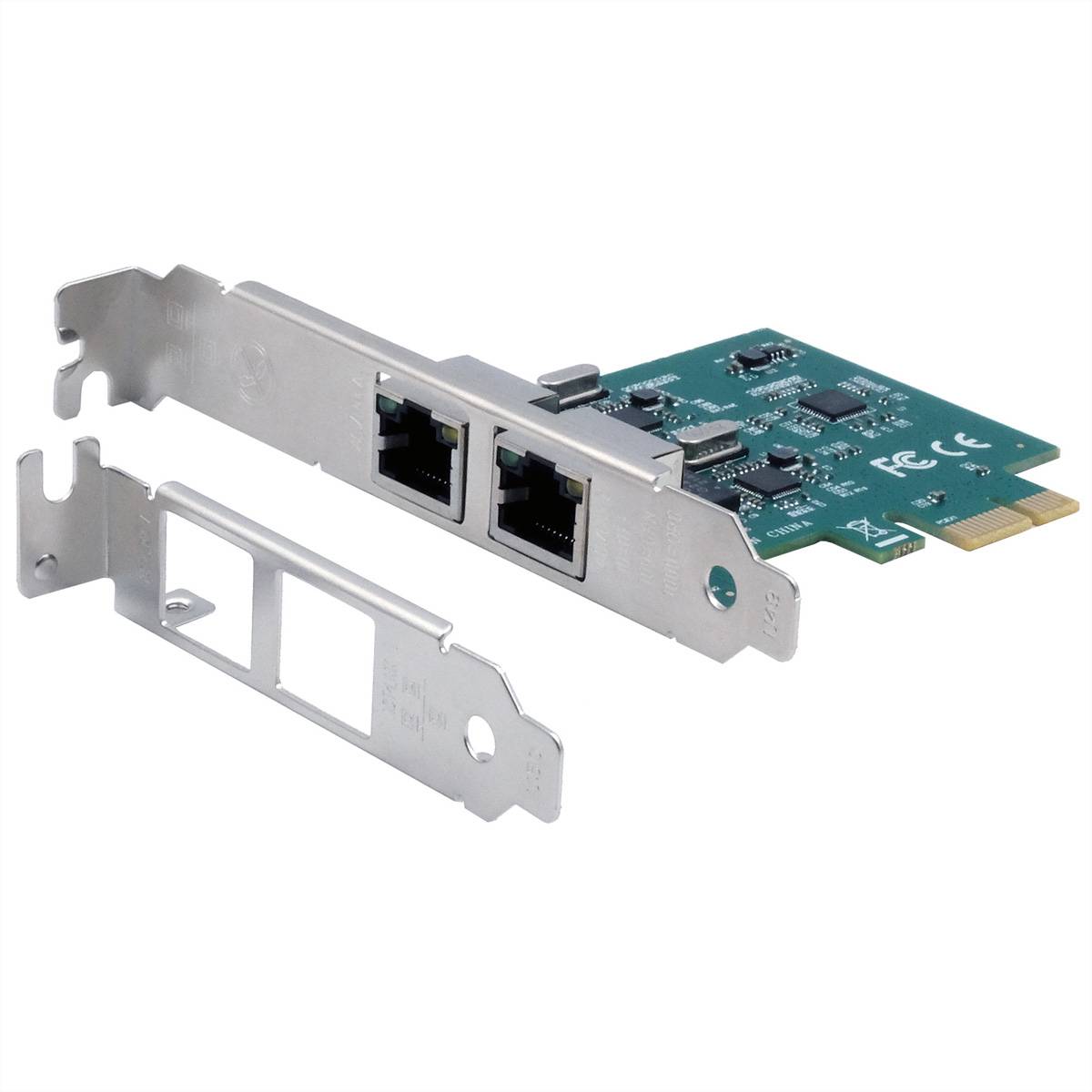

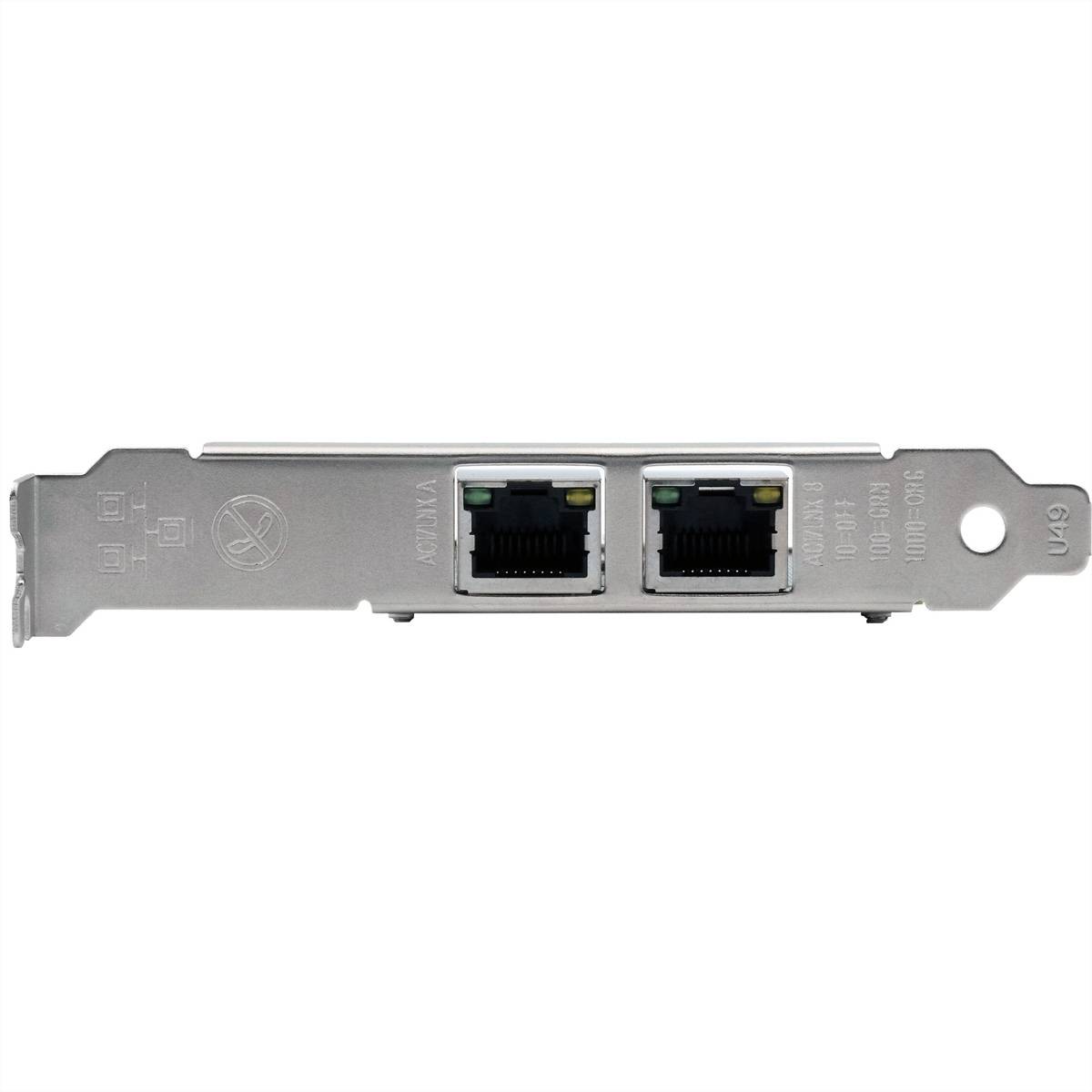

The EX-60102 is a Gigabit Ethernet card with two RJ45 ports for the PCI Express bus. It supports half and full duplex as well as NWay auto-negotiation, in order to automatically access the speed in the network (10/100/1000 Mbit/s.) wishes. Further, the EX-60102 Crossover cable automatically detects and offers a wide range of support from various operating systems. The card comes with a low-profile bracket for installation in a slim PC case.

This text is machine translated.

Features

Supports 10/100/1000 Base-T Ethernet standard
Supports Auto-MDI/MDI-X Auto (for crossover cable)
Supports Jumbo frame up to 9Kbytes, pair swap/polarity/skew correction
Wake-on-LAN and Remote Wake-up
Supports full duplex flow control (IEEE 802.3x)
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.11P Layer 2 priority encoding
LED display of data transfer
Chip set: Realtek RTL8111F
