Exsys EX-60114 PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
4 Port 2.5 Gigabit PCIe network card...
- Supports 10/100/1000/2500 Base-T Ethernet Standard
- Supports 1-Lane 2.5/5Gbps PCI Express Bus
- Wake-on-LAN and RealWoW technology
- LED display of data transfer
Technical specifications
- Product group: Network adapter
- Product type: PCI Express Gigabit Ethernet card
- Bus system PCI Express
- 2.5 Gigabit Ethernet network standard
- LAN (Mbps) 10/100/1000/2500
- Number of ports: 4
- Connections: 4x RJ-45
- Page 1 Port Type: PCIe x1
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: RJ-45
- Page 2 Type of connection: Female (female)
- Full duplex: Yes
- Height: Low profile

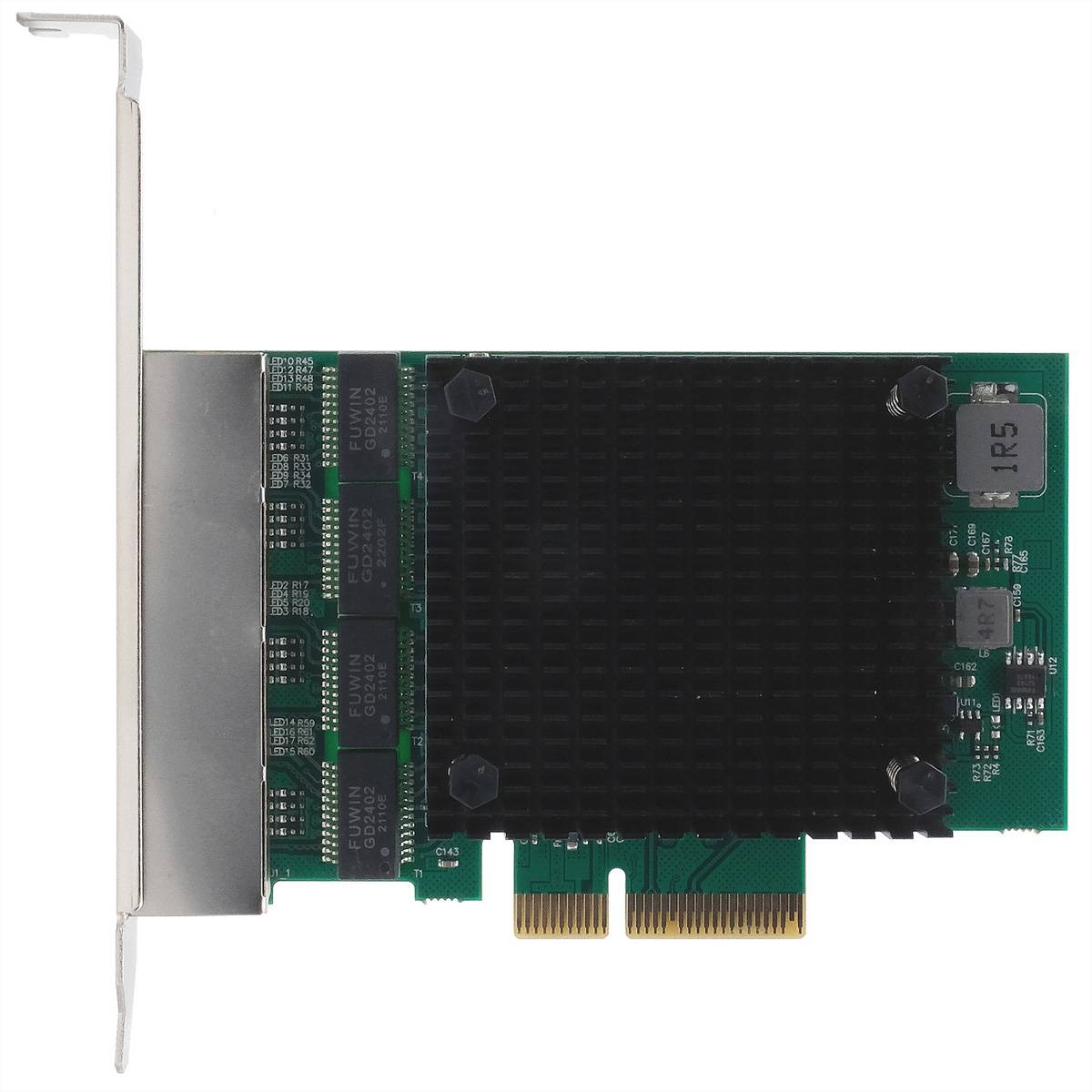

- Chip set: Realtek RTL8125B
- Height: 69 mm
- Width 108 mm
- Weight: 200 g
- Packaging height 50 mm
- Package width 130 mm
- Packaging depth 180 mm
- Package weight: 0,156 kg
- Gross weight: 0.156
- Product type
PCI card
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796956 Exsys EX-60114 PCI card
User & Safety Instructions
User & Safety Instructions 3796956 Exsys EX-60114 PCI card
Description

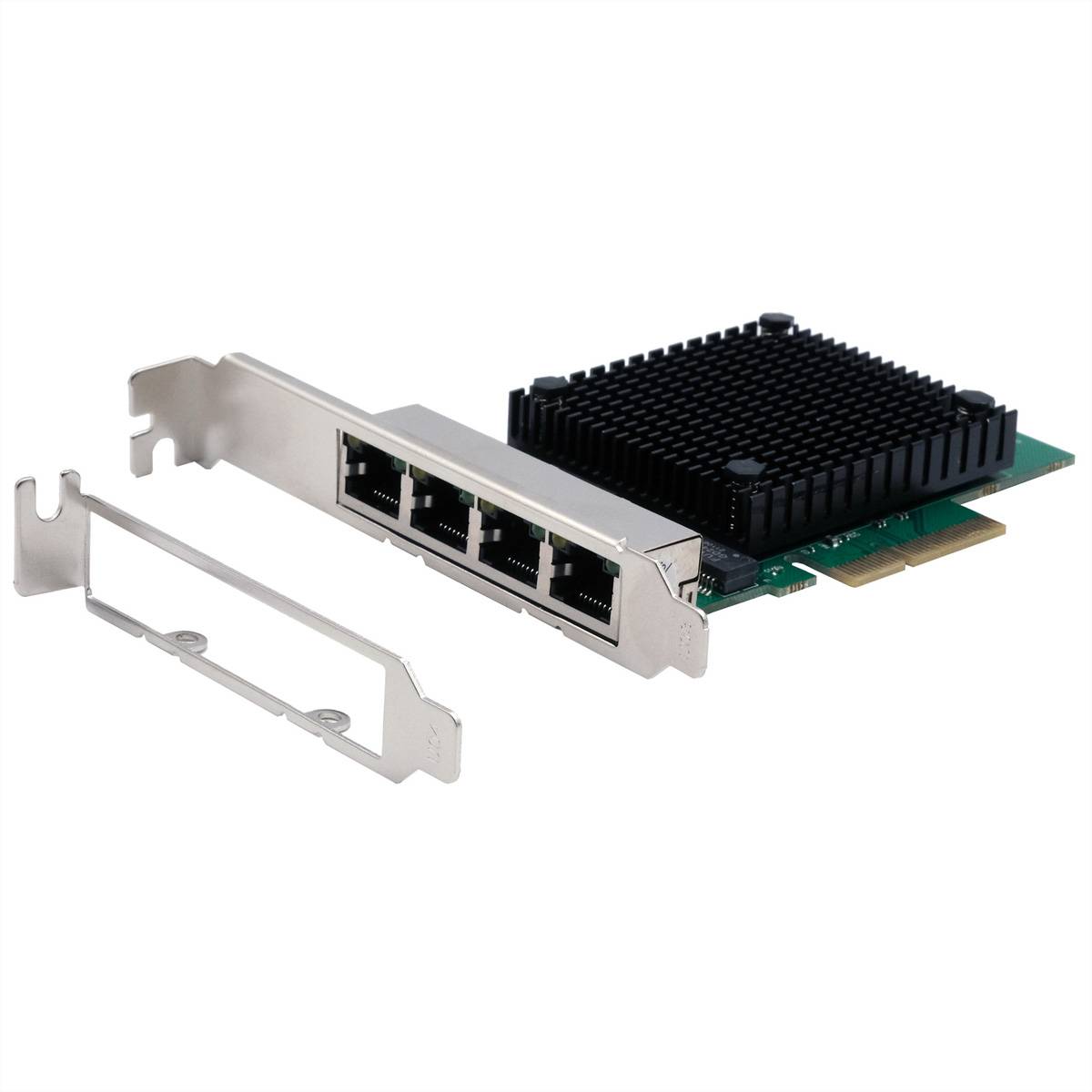

4 Port 2.5 Gigabit PCIe network card The EX-60114 is a 2.5 Gigabit Ethernet card with four RJ45 ports for the PCIe bus. It supports half and full duplex as well as NWay auto-negotiation, in order to automatically get to the speed in the network (10/100/1000/2500 Mbit/s.) wishes. . Furthermore, the card is equipped with Auto-MDI/MDI-X and it offers a far-reaching support of various operating systems. . The card comes with a low-profile bracket for installation in a slim PC case.
This text is machine translated.
Scope of delivery

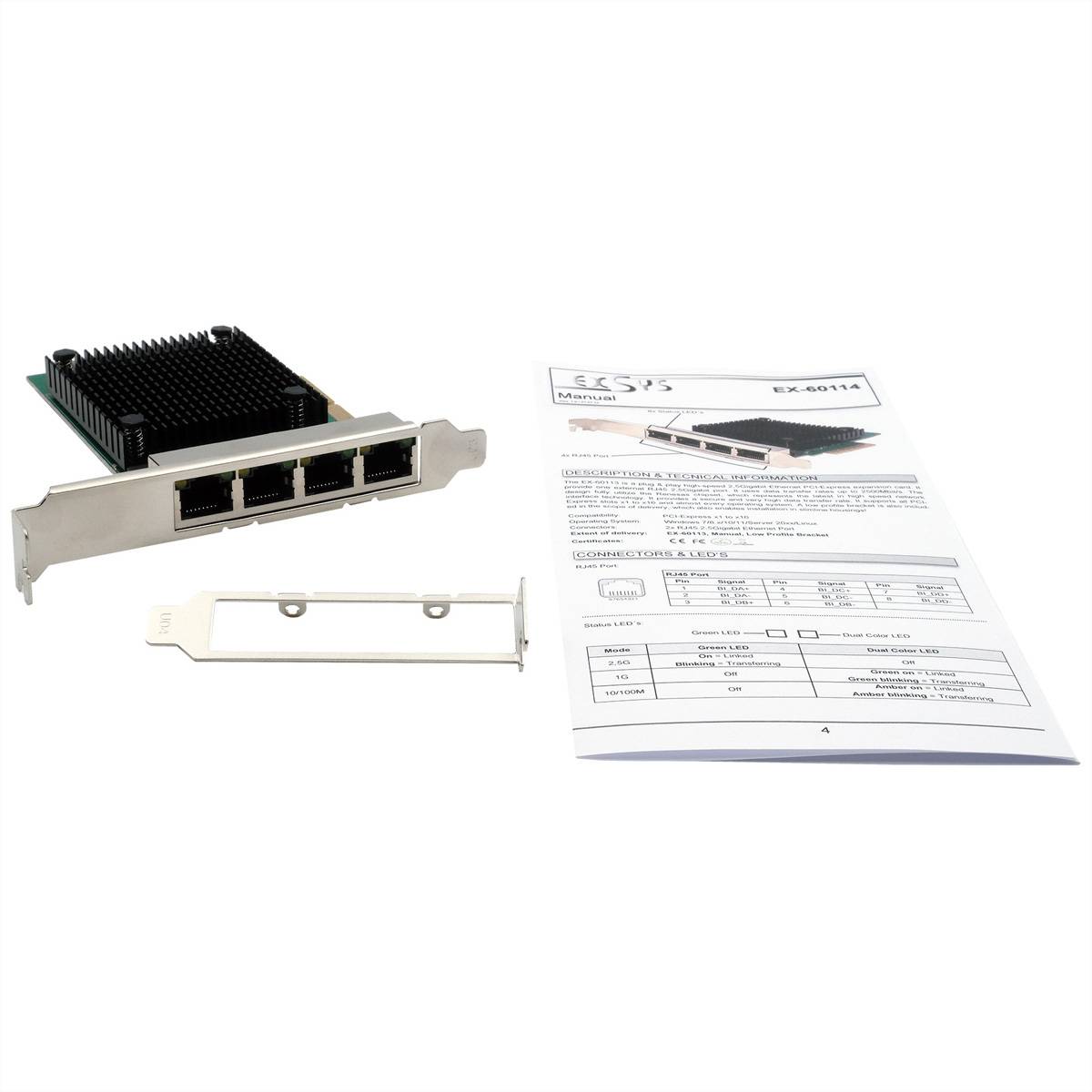

- EX-60114, Low Profile clip, instructions
