Buy EXSYS EX-60300 PoE + Gigabit injector 30W

EXSYS EX-60300 PoE + Gigabit injector 30W-0

EXSYS EX-60300 PoE + Gigabit injector 30W-1

EXSYS EX-60300 PoE + Gigabit injector 30W-2

EXSYS EX-60300 PoE + Gigabit injector 30W-3

EXSYS EX-60300 PoE + Gigabit injector 30W-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EXSYS PoE + Gigabit injector 30W

10,100,1000 Mbit/s
Power over Ethernet (PoE) IEEE 802.3af, IEEE 802.3at
Metal
Grey

Technical specifications

Power plug type: Type F

Product type: PoE injector

10/100/1000 Mbps ports: 2 x

Weight: 675 g

Width: 77.5 mm

Height: 27 mm

Depth: 76.5 mm

Type: Switch

: IP30

Factory colour: Grey

Cable length: 0 mm

Version: Connection cable

Material (details): Metal

Connection type: Series

Input voltage: 12 - 52 V

UKCA: yes

Operating temperature (T-T): -20 - 55 °C

Total Power over Ethernet (PoE) budget: 30 W

Storage relative humidity (H-H): 5 - 95 %

Wall mountable: yes

Operating temperature (T-T): -4 - 131 °F

Power over Ethernet (PoE) power per port: 30 W

DC-in jack: yes

Power over Ethernet (PoE): yes

Manual: yes

Power cord included: yes

Number of products included: 1 Stück(e)

Operating relative humidity (H-H): 5 - 95 %

Storage temperature (T-T): -40 - 80 °C

Plug and Play: yes

RJ-45 input ports: 1

RJ-45 output ports: 1

Documents & Downloads

Datasheet

Datasheet 3796957 EXSYS EX-60300 PoE + Gigabit injector 30W

User & Safety Instructions

User & Safety Instructions 3796957 EXSYS EX-60300 PoE + Gigabit injector 30W

Description

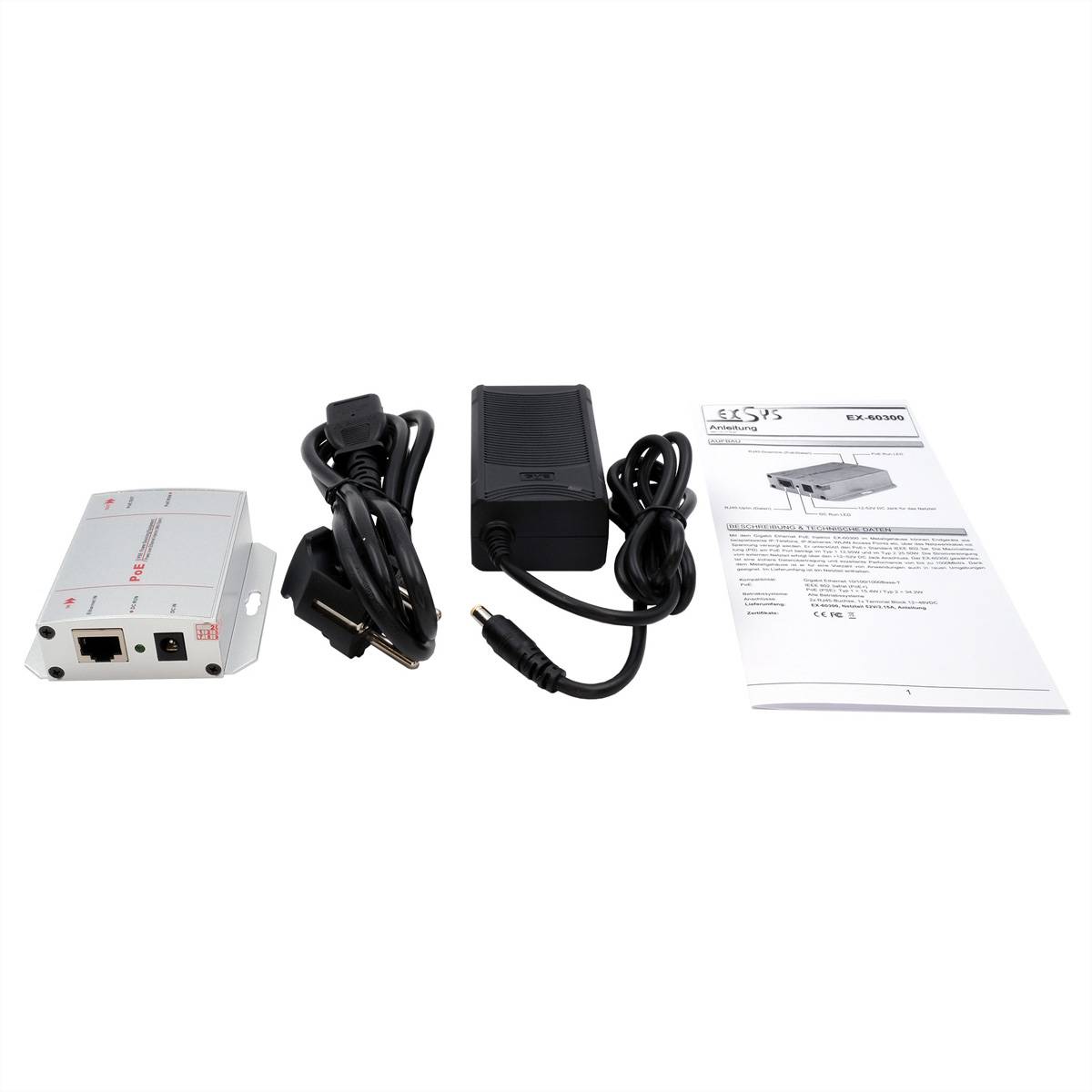

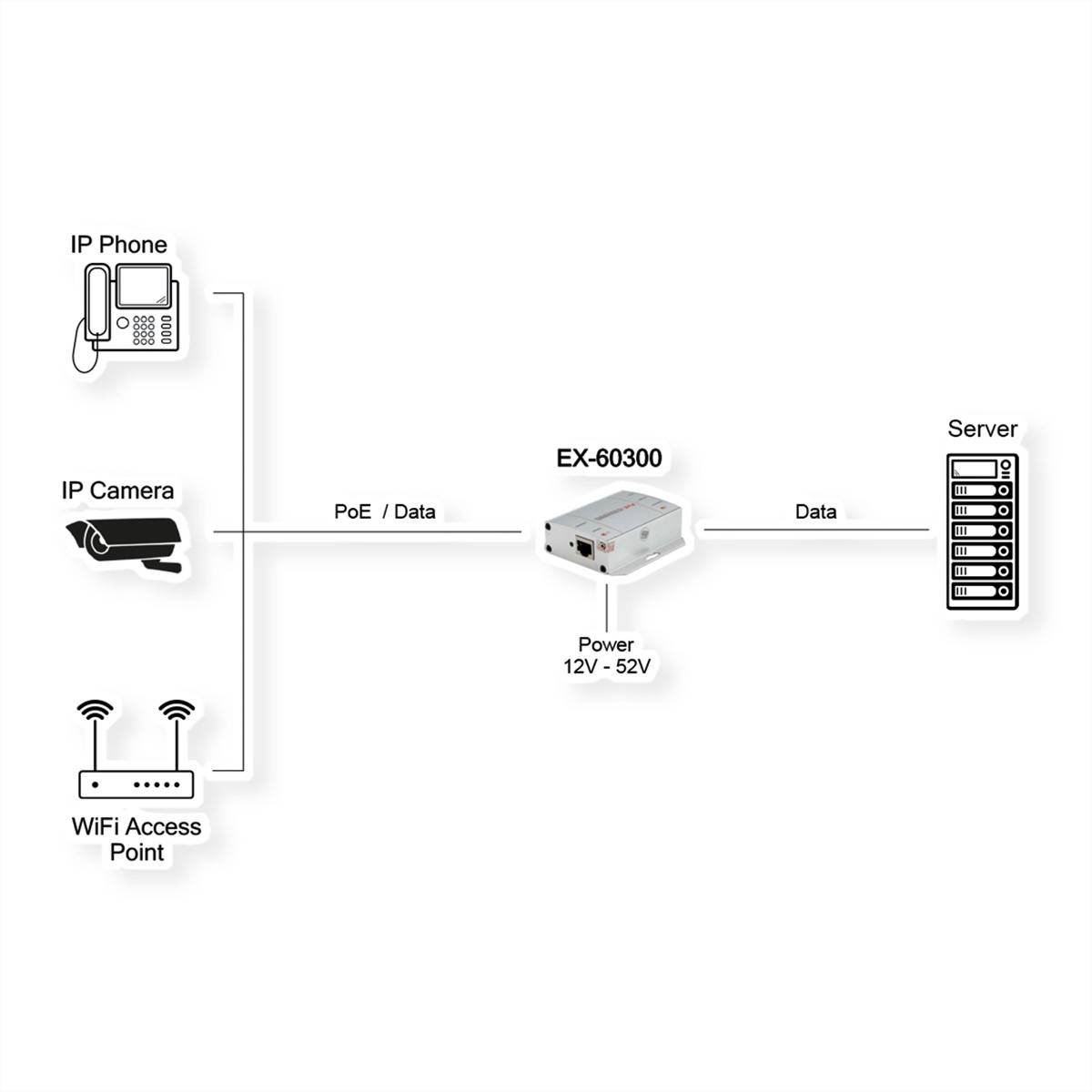

The Gigabit Ethernet PoE injector EX-60300 in a metal housing can be used to supply power to the end devices such as IP telephones, IP cameras, WLAN access points etc. via the network cable. It supports the PoE+ standard IEEE 802.3at. The maximum power (PD) on the PoE port is in the type 1 12.95W and in the type 2 25.50W. The external power supply is supplied via the +12~52V DC socket. The EX-60300 ensures a safe data transfer and excellent performance of up to 1000 Mbit/s. The robust metal housing is suitable for wall mounting. A 36W power supply is included in the delivery.

This text is machine translated.
