EXSYS PoE++ Gigabit injector 90 W, -40°C to +80°C.

Highlights & Details

10,1000,100 Mbit/s
Power over Ethernet (PoE) IEEE 802.3at, IEEE 802.3af, IEEE 802.3at
Metal
Black

Technical specifications

Product type: PoE injector

10/100/1000 Mbps ports: 2 x

Weight: 370 g

Width: 95 mm

Height: 28 mm

Depth: 67.5 mm

Type: Switch

: IP40

Factory colour: Black

Cable length: 0 m

Version: Cable

Material (details): Metal

Input voltage: 12 - 48 V

UKCA: yes

Operating temperature (T-T): -40 - 80 °C

Total Power over Ethernet (PoE) budget: 90 W

Storage relative humidity (H-H): 5 - 95 %

Wall mounting kit: yes

Wall mountable: yes

Operating temperature (T-T): -40 - 176 °F

Power over Ethernet (PoE) power per port: 90 W

Power over Ethernet (PoE): yes

Manual: yes

Operating relative humidity (H-H): 5 - 95 %

Storage temperature (T-T): -40 - 85 °C

Plug and Play: yes

RJ-45 input ports: 1

RJ-45 output ports: 1

Documents & Downloads

Datasheet

Datasheet 3796959 EXSYS EX-60315 PoE + gigabit injector 95W

User & Safety Instructions

User & Safety Instructions 3796959 EXSYS EX-60315 PoE + gigabit injector 95W

Description

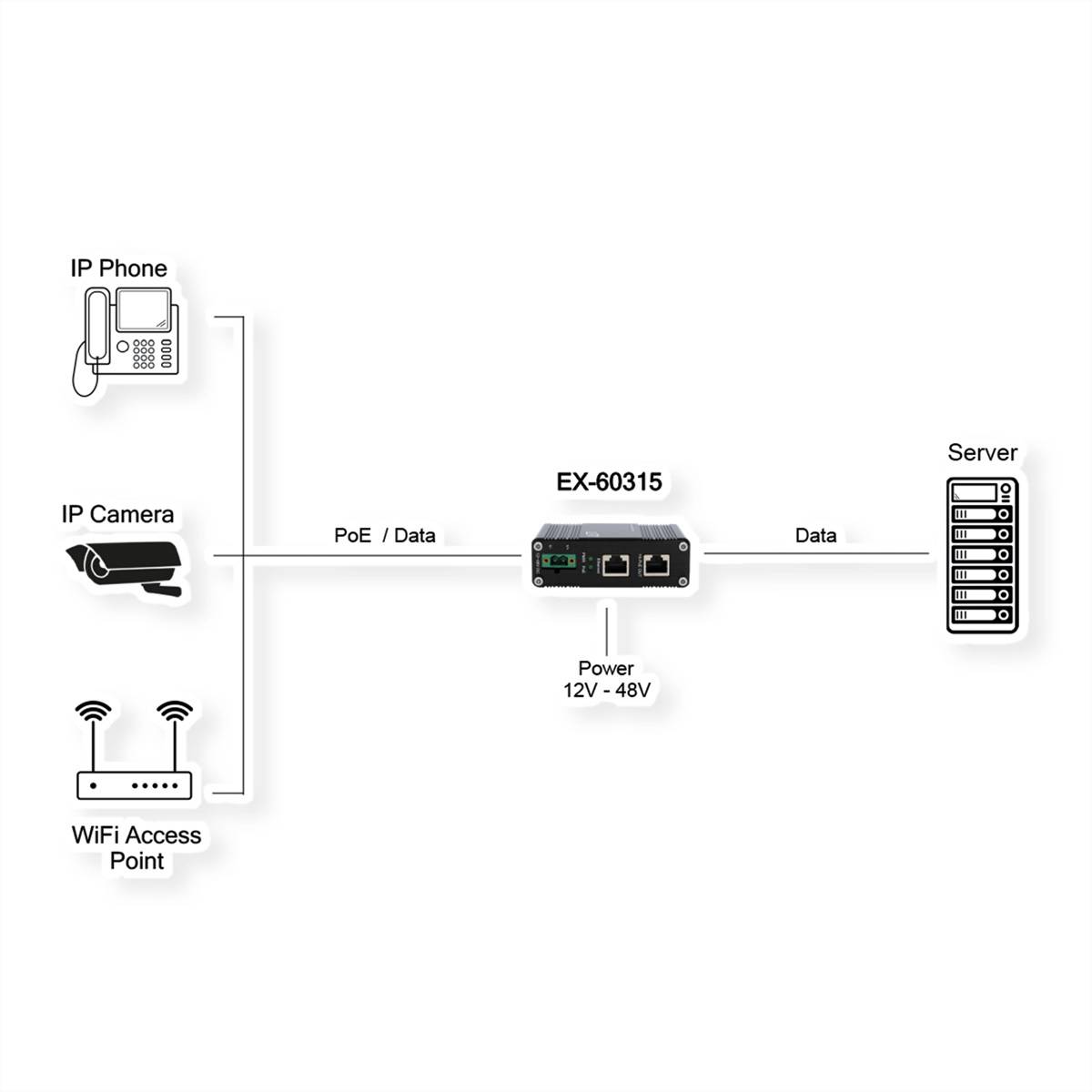

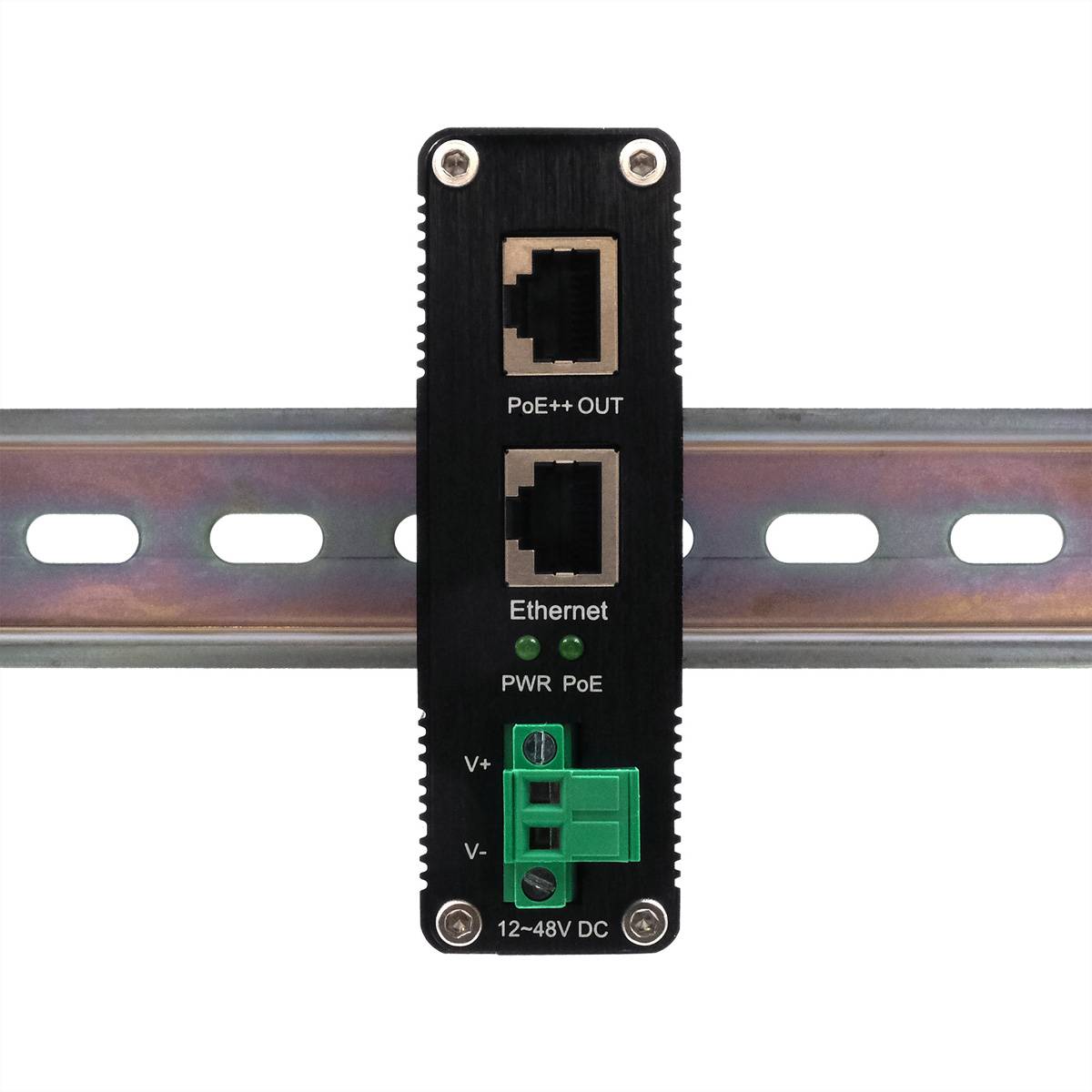

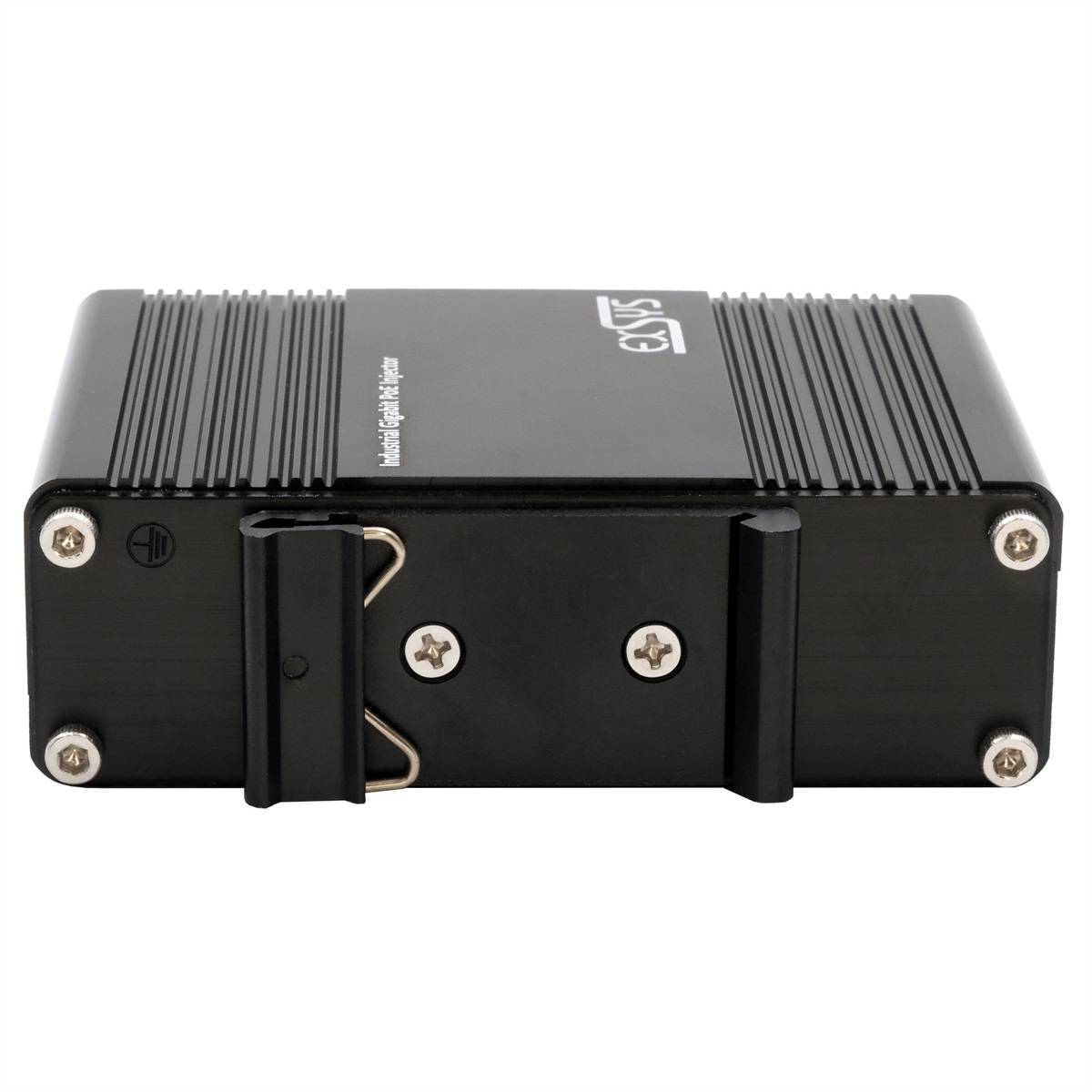

With the Gigabit Ethernet PoE Injector EX-60315 in a robust metal case, terminals such as IP telephones, IP cameras, WLAN access points etc. can be supplied with power via the network cable. It supports the PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3at (PoE+) and enables maximum power output at the PoE port of up to 90 W. The power supply via an optional external power supply is via the +12~48V terminal Block. The EX-60315 guarantees a safe data transfer and an excellent performance of up to 1000 Mbit/s. With its robust metal casing and extended operating temperature range from -40°C to 80°C, it is suitable for a wide range of applications even in harsh environments. The scope of delivery includes a pre-mounted DIN rack kit and a wall mounting bracket.
