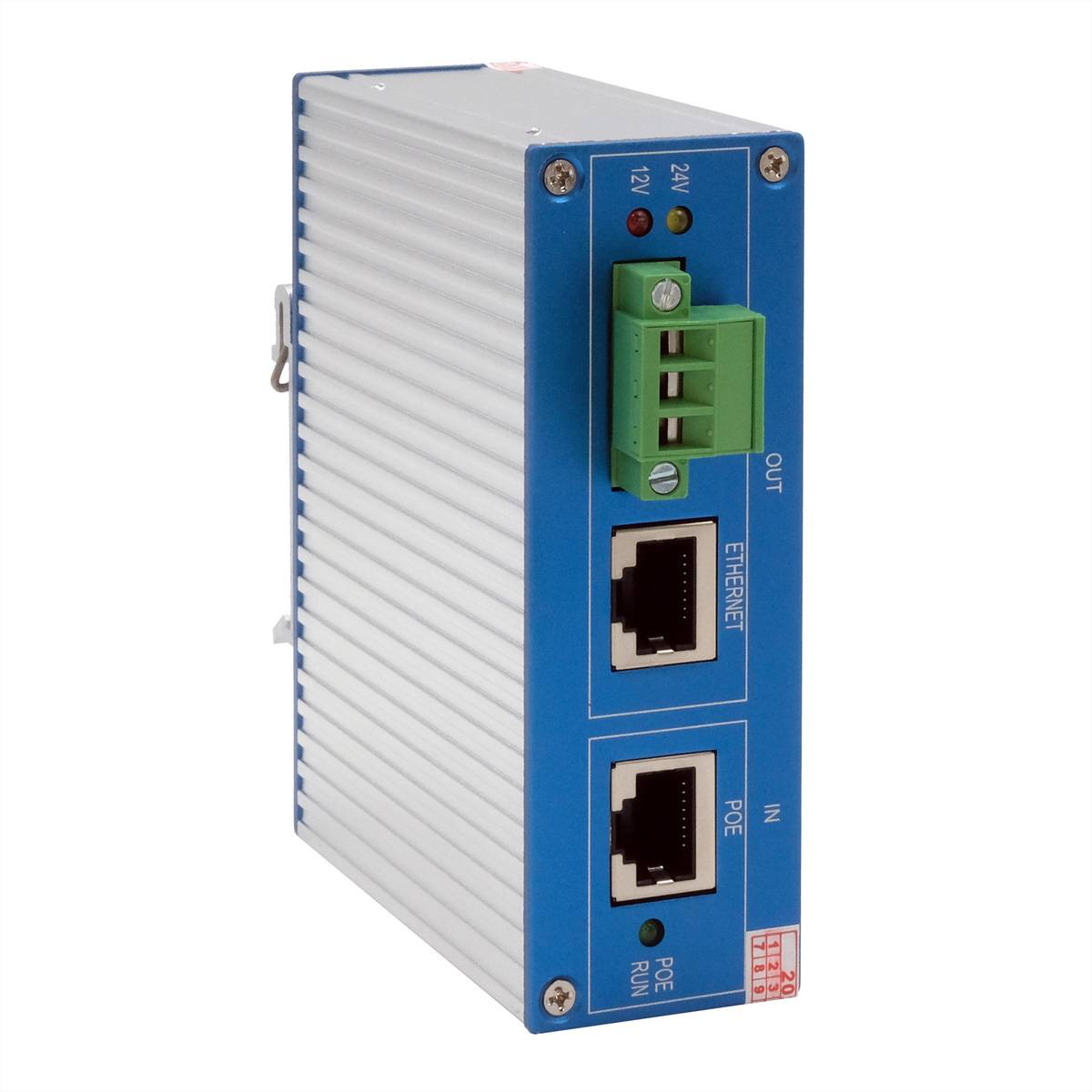

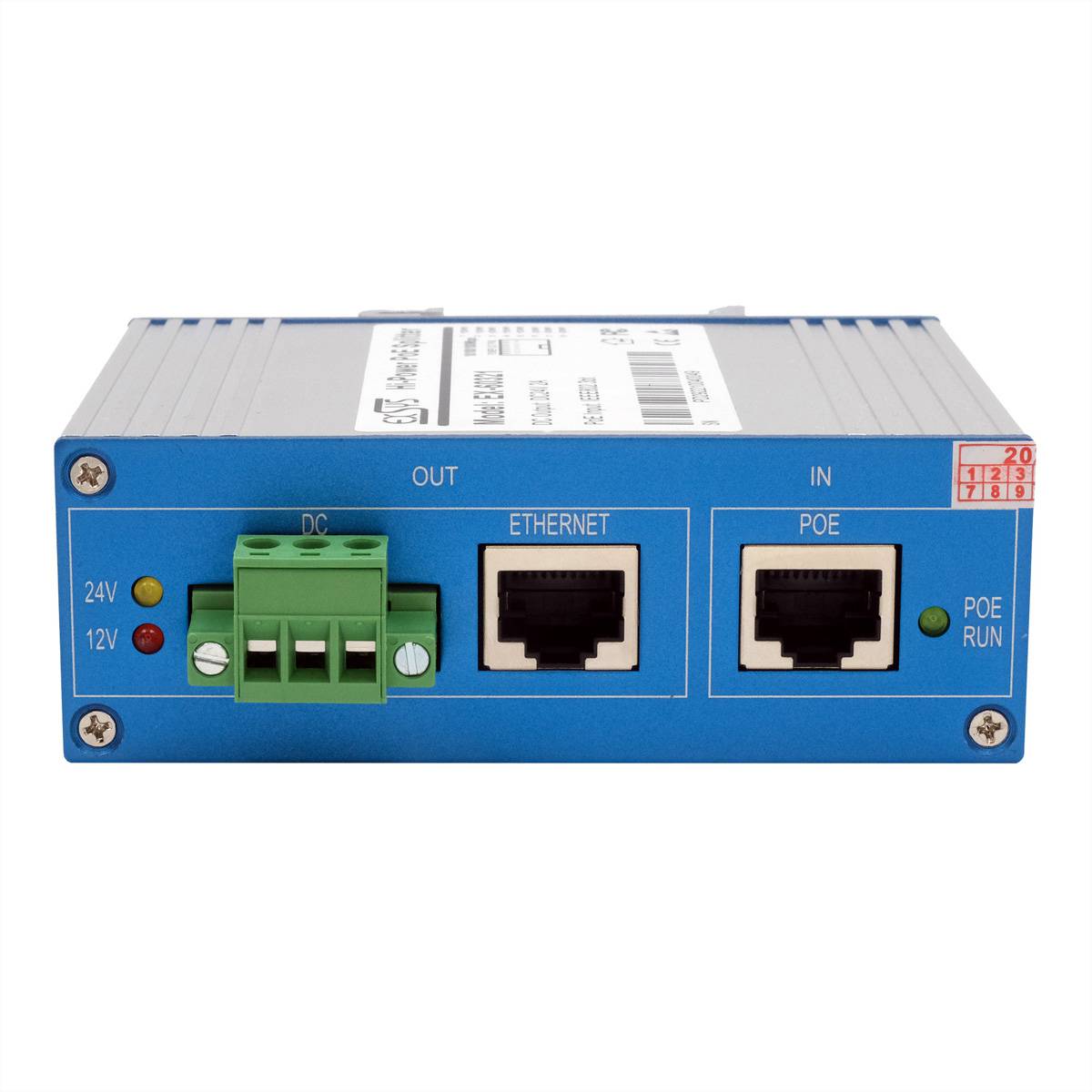

EXSYS EX-60321 10/100/1000M PoE+ splitter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Industrial PoE+ gigabit splitter 24Vdc/30W...
- Plug and Play, no configuration or installation
- Separates data and power supply of a PoE-signal
- 10/100Base-TX Ethernet
- Fully IEEE 802.3af/at/bt Power over Ethernet
- Robust, compact metal housing, IP40
Technical specifications
- Product group: Industrial Networking
- Product type: PoE splitter
- Network standard: Fast Ethernet
- LAN (Mbps) 10/100/1000
- Total number of ports: 1
- Power over Ethernet (PoE) PoE (IEEE 802.3af)
- Number of PoE ports 1
- Max. PoE Power Output (total) 30 W.
- Protection type (IP code): IP40
- Min. Operating temperature -20 °C
- Max. operating temperature: 55 °C
- Height: 100 mm
- Width 34.5 mm
- Depth: 79.5 mm
- Weight 310 g.
- Packaging height 60 mm
- Package width 160 mm
- Packaging depth 180 mm
- Package weight: 0,297 kg
- Gross weight: 0.297
- Product type
PoE splitter
- Weight
700 g
- Type
EX-60321
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796961 EXSYS EX-60321 10/100/1000M PoE+ splitter
User & Safety Instructions
User & Safety Instructions 3796961 EXSYS EX-60321 10/100/1000M PoE+ splitter
Description

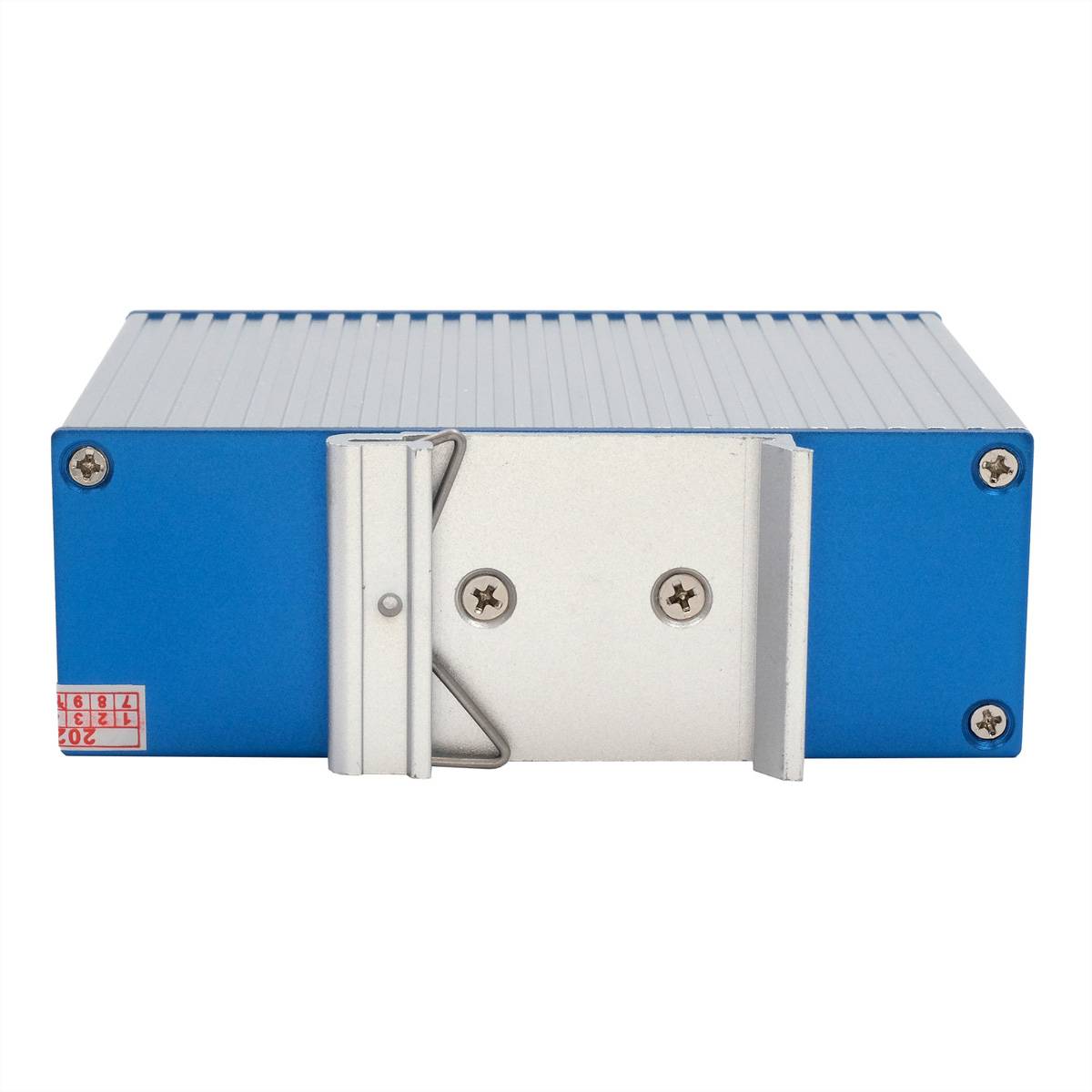

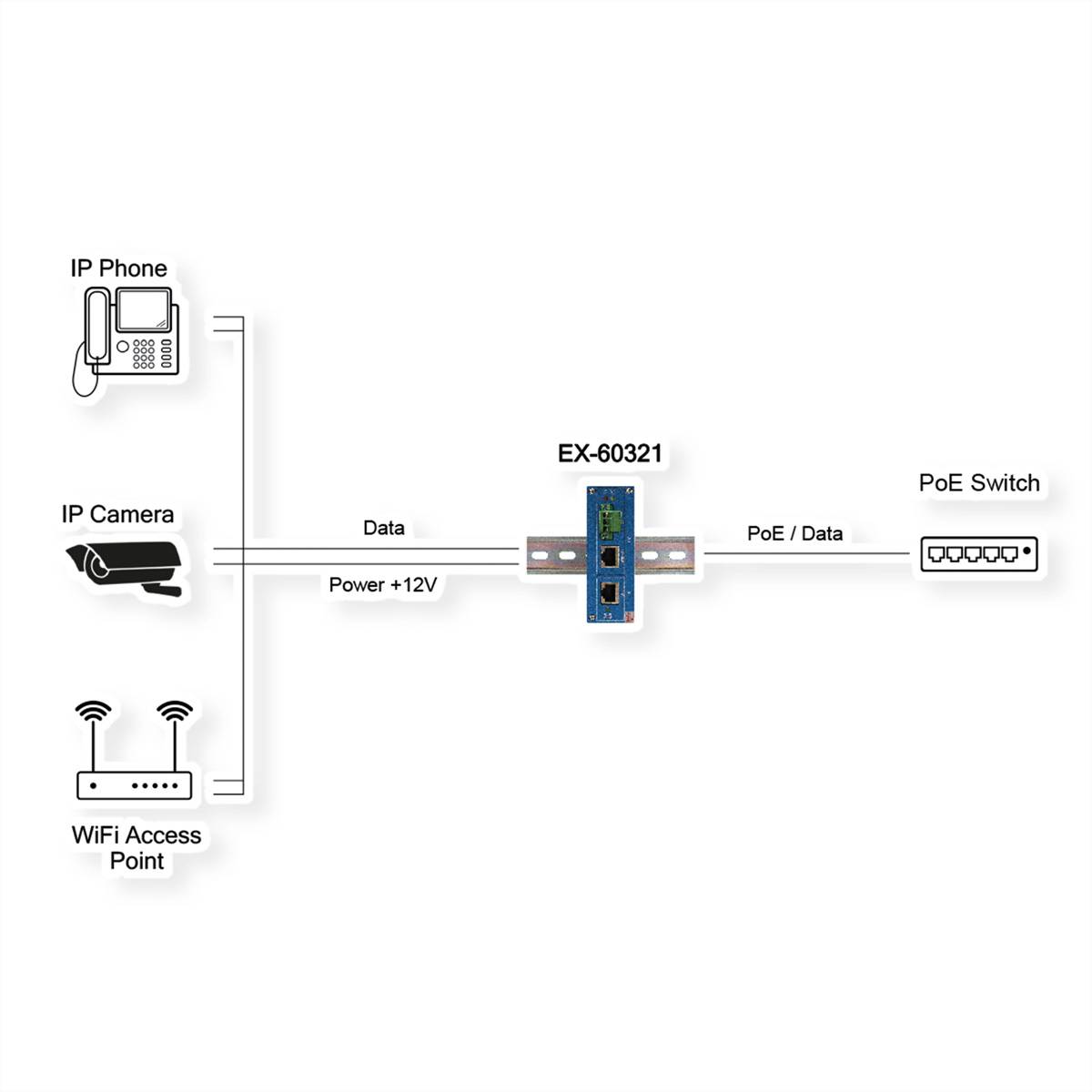

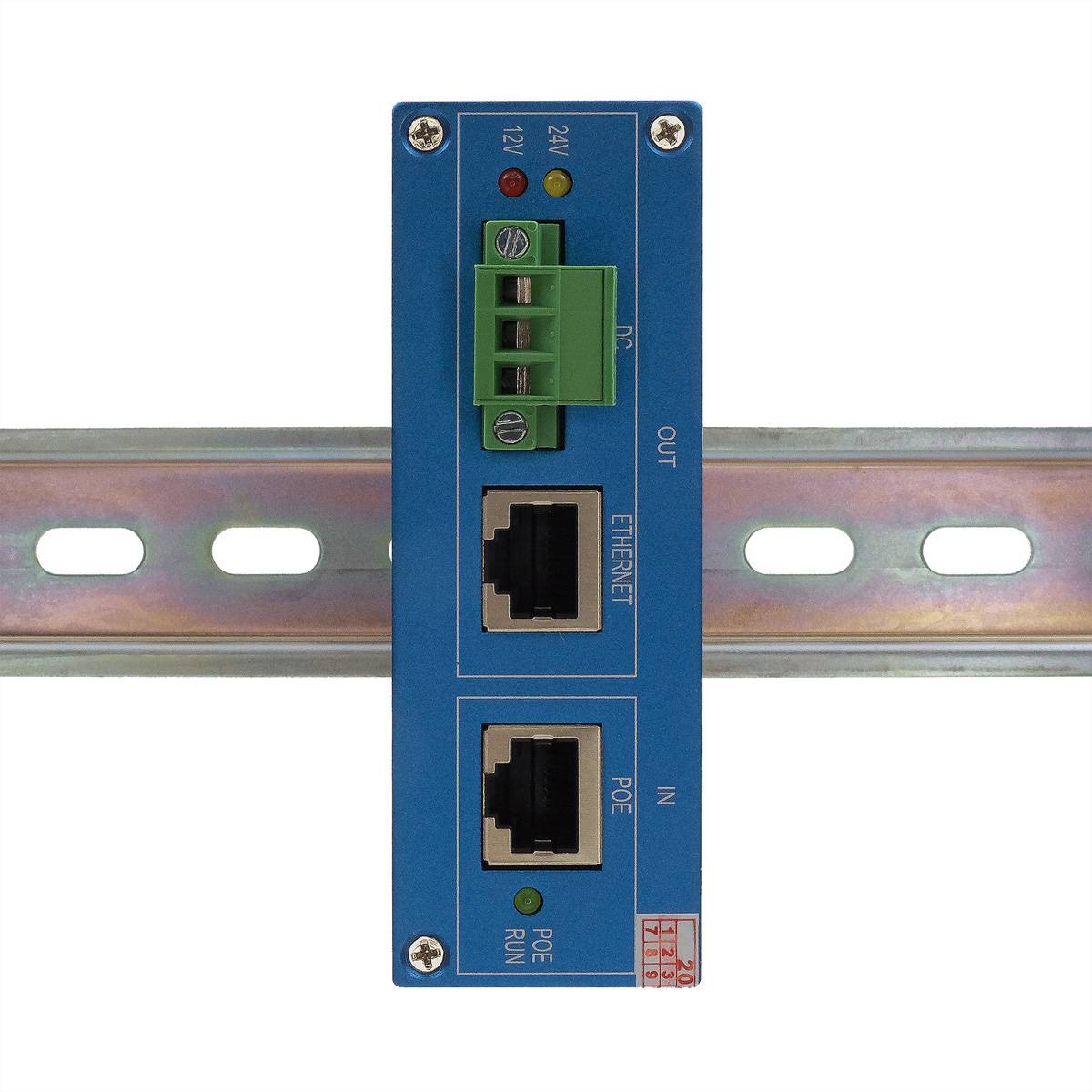

Industrial PoE+ Gigabit Splitter 24VDC/30W The Gigabit Ethernet PoE+ Splitter EX-60321 divides the signal of a PoE-supply (PSE) into data and power supply and outputs both signals separately. . Thus, non PoE-enabled Ethernet terminals (IP cameras, WLAN access points...) To a PoE switch or other PSE and use its power. . It complies with the PoE+ standard IEEE 802.3at and provides a voltage of 24Vdc with a max. power of 30W at the terminal Block for the supply of the terminal. Thanks to its robust metal casing, it is suitable for a variety of applications even in rough environments. . The delivery also includes a DIN-rail kit (pre-mounted).
This text is machine translated.
Scope of delivery
- EX-60321, manual
