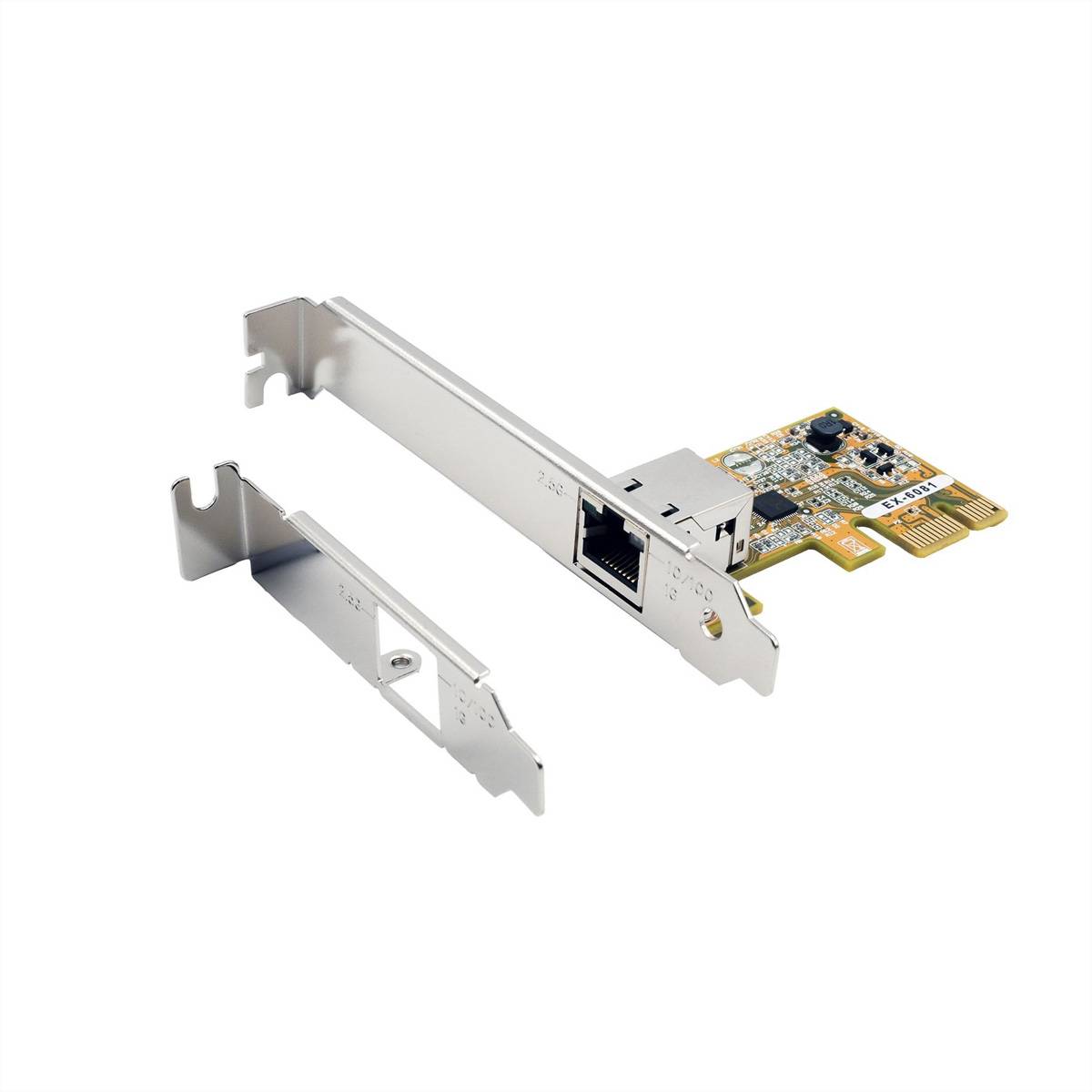

Exsys EX-6081 PCI card
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
The EX-6081 is a 2.5 Gigabit Ethernet card, developed for the PCIe bus. The EX-6081 supports a data transfer rate of up to 2.5Gb...
- Supports 10/100/1000/2500 Base-T Ethernet Standard
- Supports 2.5G Lite (1G data transfer rate) Mode
- Fully compatible with PCI Express Version 2.1
- Supports Virtual Machine Queue
- Wake-on-LAN and RealWoW technology (remote wake-up)
Technical specifications
- Product group: Network adapter
- Product type: PCI Express Gigabit Ethernet card
- Bus system PCI Express
- 2.5 Gigabit Ethernet network standard
- LAN (Mbps) 10/100/1000/2500
- Number of ports: 1
- 1 x RJ-45
- Page 1 Port Type: PCIe x1
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connector: RJ-45
- Page 2 Type of connection: Female (female)
- Auto negotiation: Yes
- Wake on LAN: Yes
- Network topology: Ethernet
- Operating Systems: Windows 7/8.x/10/Server2012 or later, Linux
- Chip set: Realtek RTL8125B
- Weight: 200 g
- Packaging height 50 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,147 kg
- Gross weight: 0.147
- Product type
PCI card
- Cable length
0 m
- Version
Cable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796917 Exsys EX-6081 PCI card
User & Safety Instructions
User & Safety Instructions 3796917 Exsys EX-6081 PCI card
Description
The EX-6081 is a 2.5 Gigabit Ethernet card, developed for the PCIe bus. The EX-6081 supports a data transfer rate of up to 2.5Gbit per second and thus offers a high speed increase with the standard PCI network cards. Larger amounts of data can thus be transferred faster and more efficiently in the network. The EX-6081 supports half and full duplex as well as NWay auto-negotiation, in order to have the speed in the network (10/100/1000/2500 Mbit/s.) automatically. The card is also equipped with Auto-MDI/MDI-X. Moreover, it offers a very far-reaching support of various operating systems. The card comes with a low-profile bracket for installation in a slim PC case.
This text is machine translated.
Scope of delivery

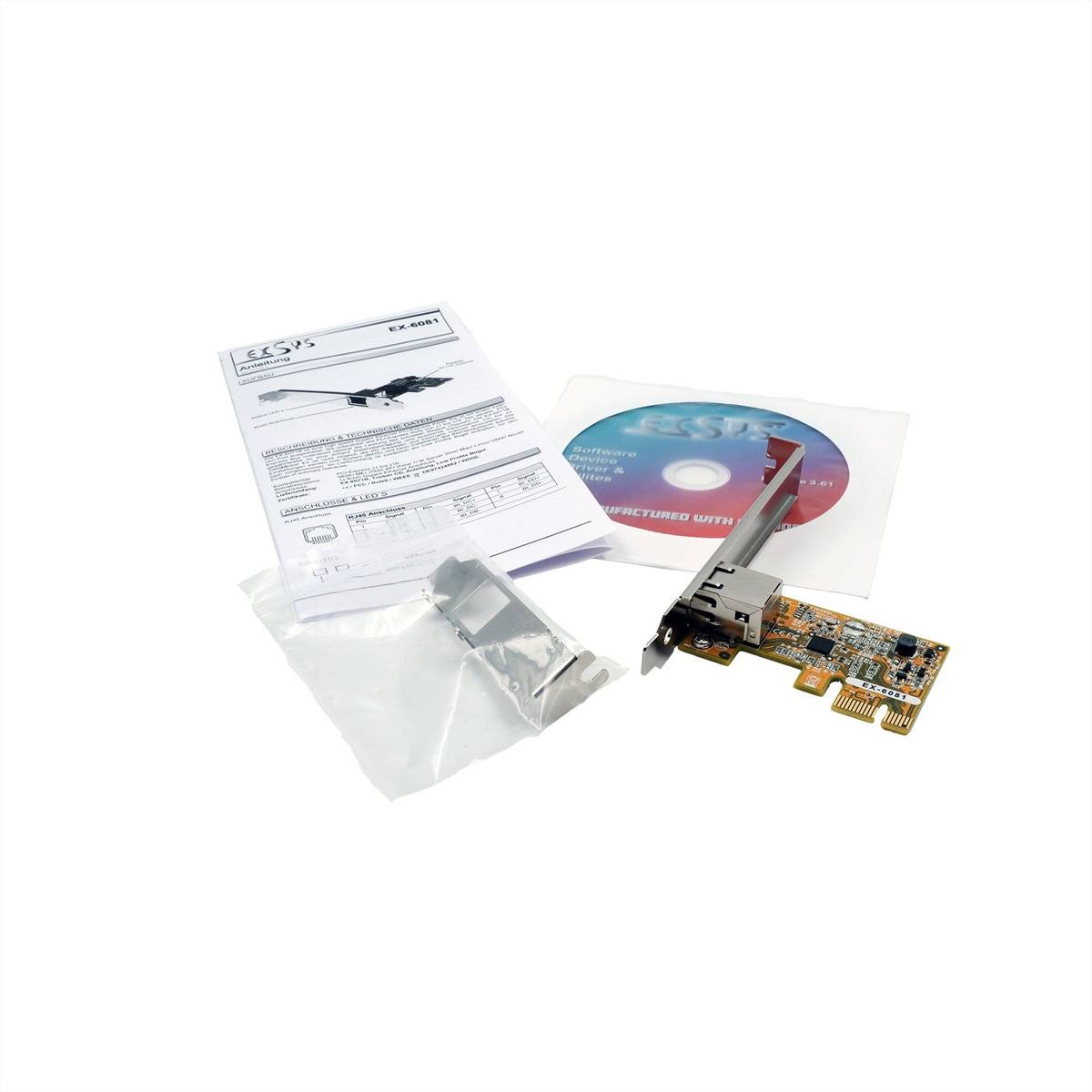

- EX-6081, Low Profile bracket, driver CD, manual
