Exsys EX-61001 EXSYS EX-61001 Ethernet zu 1 x Seriell R Serial console access server
EAN:
Part number:
Item no:
Technical specifications
- Product type
Serial console access server
- 10/100/1000 Mbps ports
1 x
- Weight
270 g
- Width
100.2 mm
- Height
48.3 mm
- Depth
80.3 mm
- Type
EXSYS EX-61001 Ethernet zu 1 x Seriell R
IP30
- Factory colour
Black
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Material (details)
Metal
- Connection type
Series
- Max. output current
1 A
- Output voltage
12 V
- Input voltage
12 - 48 V
- UKCA
yes

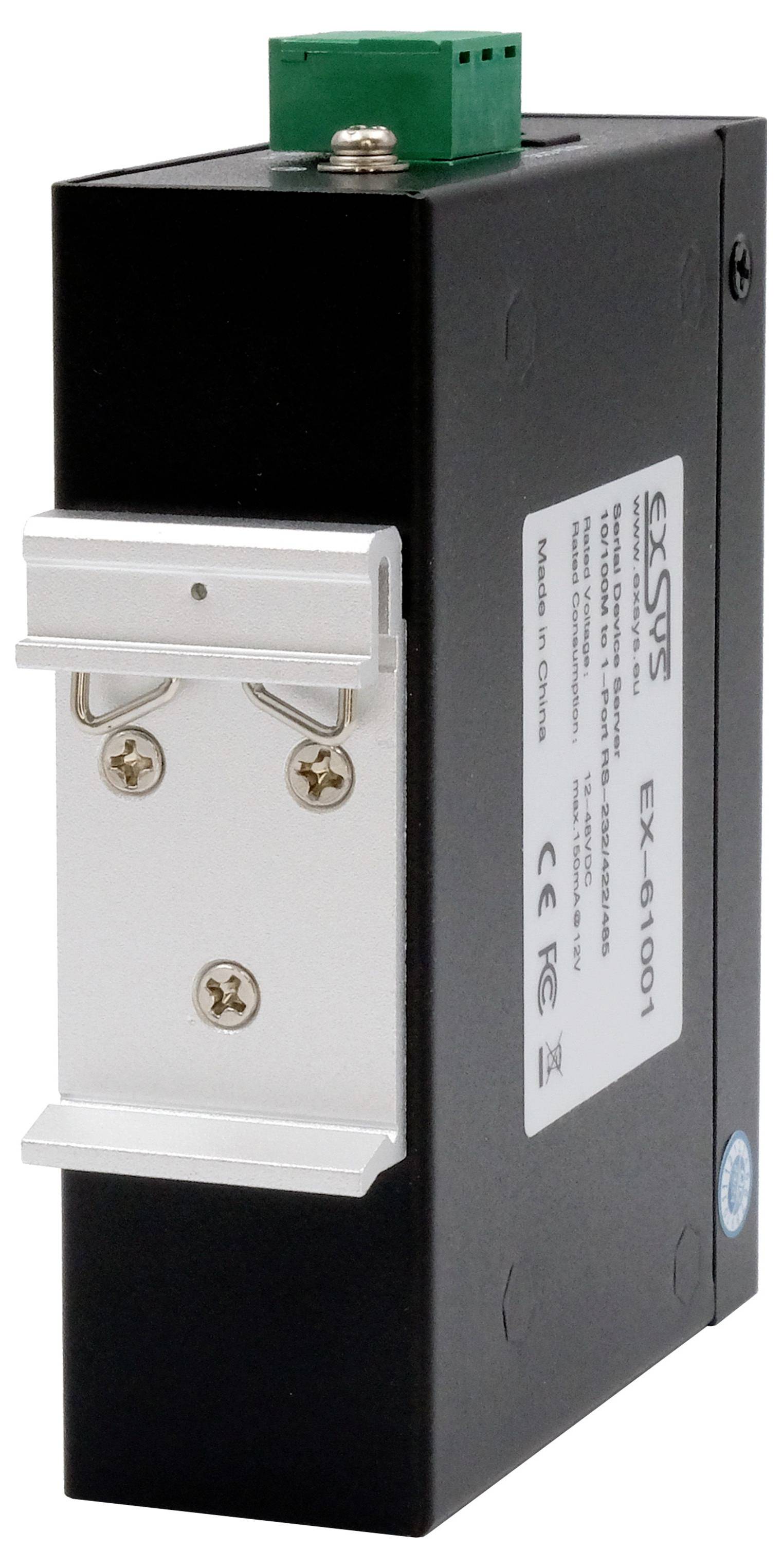

- DIN rail mounting
yes
- Operating temperature (T-T)
-40 - 85 °C
- Serial ports quantity
1
- Ethernet LAN
yes
- Electrostatic Discharge (ESD) protection (air)
8 kV
- Electrostatic Discharge (ESD) protection (contact)
4 kV
- Power consumption
160 mA
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 85 °C
- Baud rate
921.6 Kbit/s
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3796970 Exsys EX-61001 EXSYS EX-61001 Ethernet zu 1 x Seriell R Serial console access server
Description

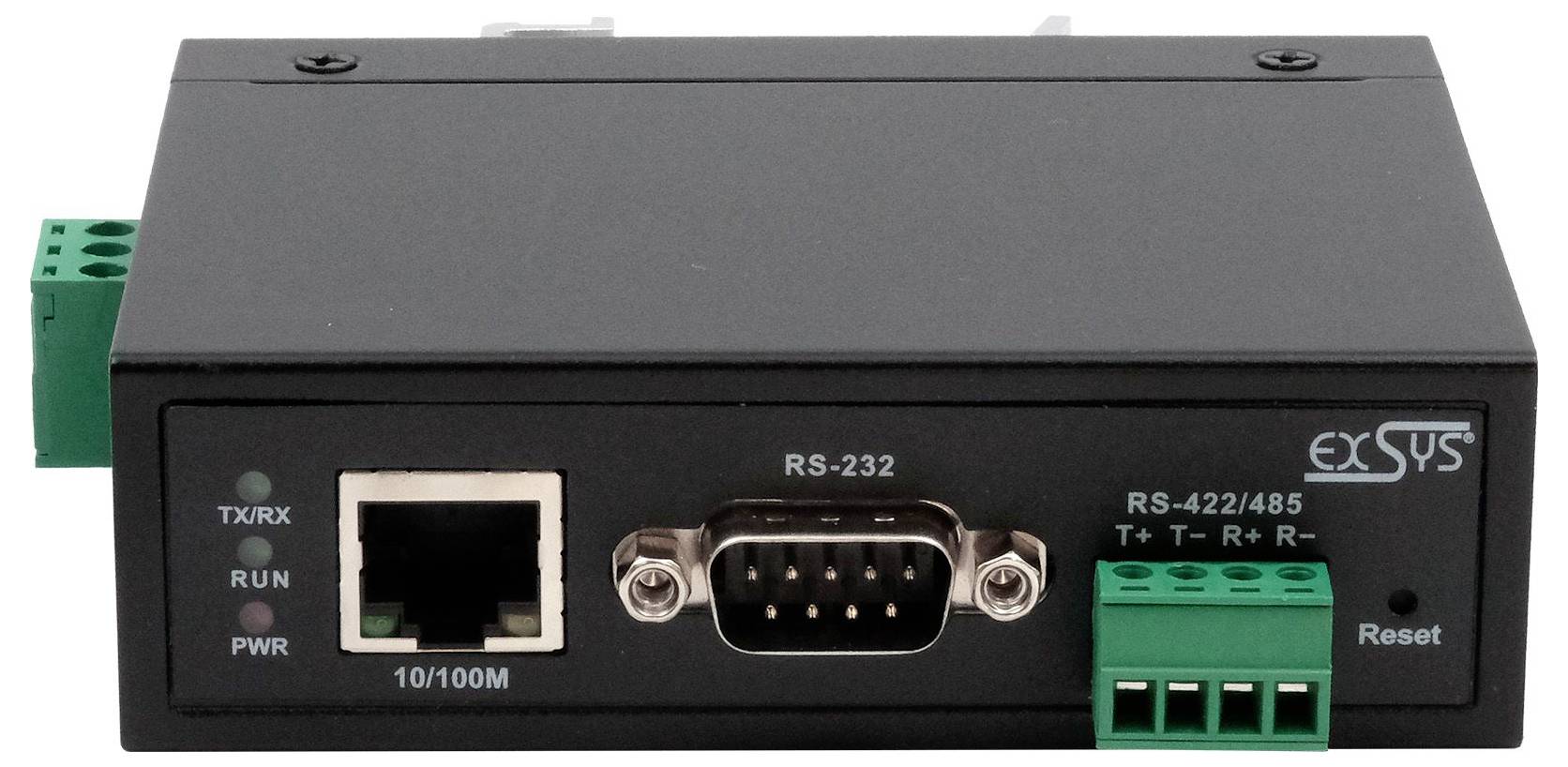

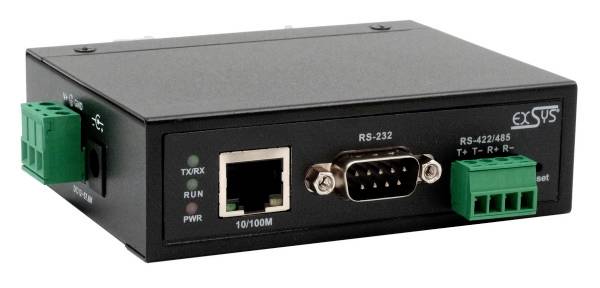

1x serial RS-232/422/485 to Ethernet metal housing
The EX-61001 is a serial multiprotocol RS-232/422/485 device server for the integration of serial RS-232/422/485 devices, such as barcode scanner, weighing systems and payment terminals in an IP-based Ethernet network.
The serial devices are connected to the network and are available for sharing on the subnet and the Internet. Extensive network protocols such as TCP server, TCP client, UDP, VCOM, remote-pair Master slave, are integrated Modbus Server, Modbus Client and SNMP supported.
In addition, remote-pair Master-slave-mode serial devices can communicate with each other via peer-to-peer mode without the need for an intermediate PC or conversion software.
With the Virtual COM (VCOM) software available for download, a perfectly migrated virtual serial interface can be created on Windows computers for each serial device.
Interface RS-232 V, 24/422/485
Data bits: 5, 6, 7, 8 / Stop bits: 1, 2
Parity: None, Even, Odd
Signals:
RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD AND GND
RS-422: TXD+, TCD-, RXD+ RXD-, GND
RS-485: 2-wire - Data+, Data-, GND
Operating modes:
TCP server, TCP client, UPD, VCOM
Remote-pair Master slave
ModBus Server, ModBus Client
Point to point connection, does not require any software

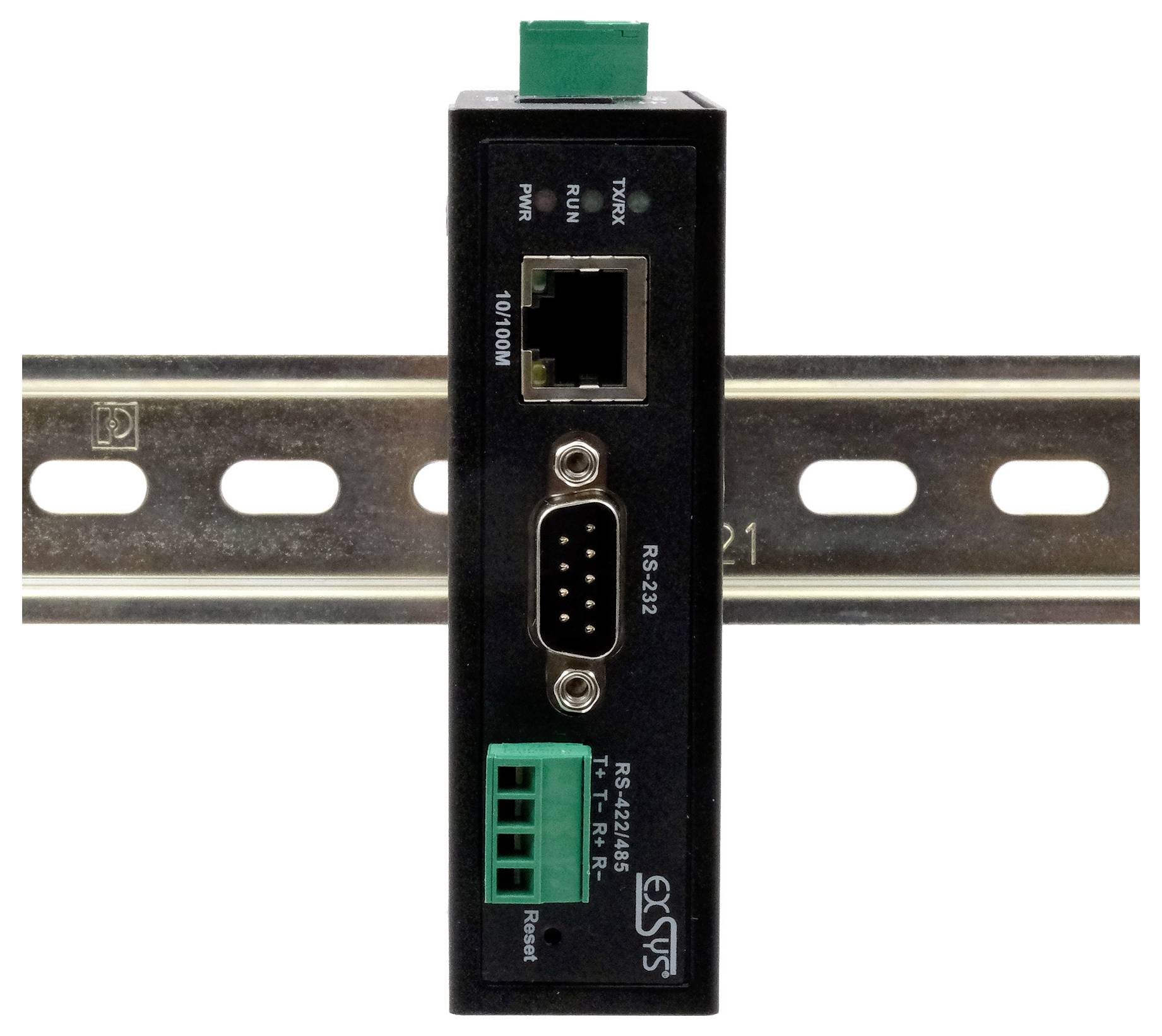

Robust metal casing with DIN-rail kit
