EXSYS EX-6111-2 1 Ethernet with 1 x serial RS-232 including adapter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Serial Multiprotocol RS-232 Device Server...
- Interface RS-232 V.24
- Direct access via socket port

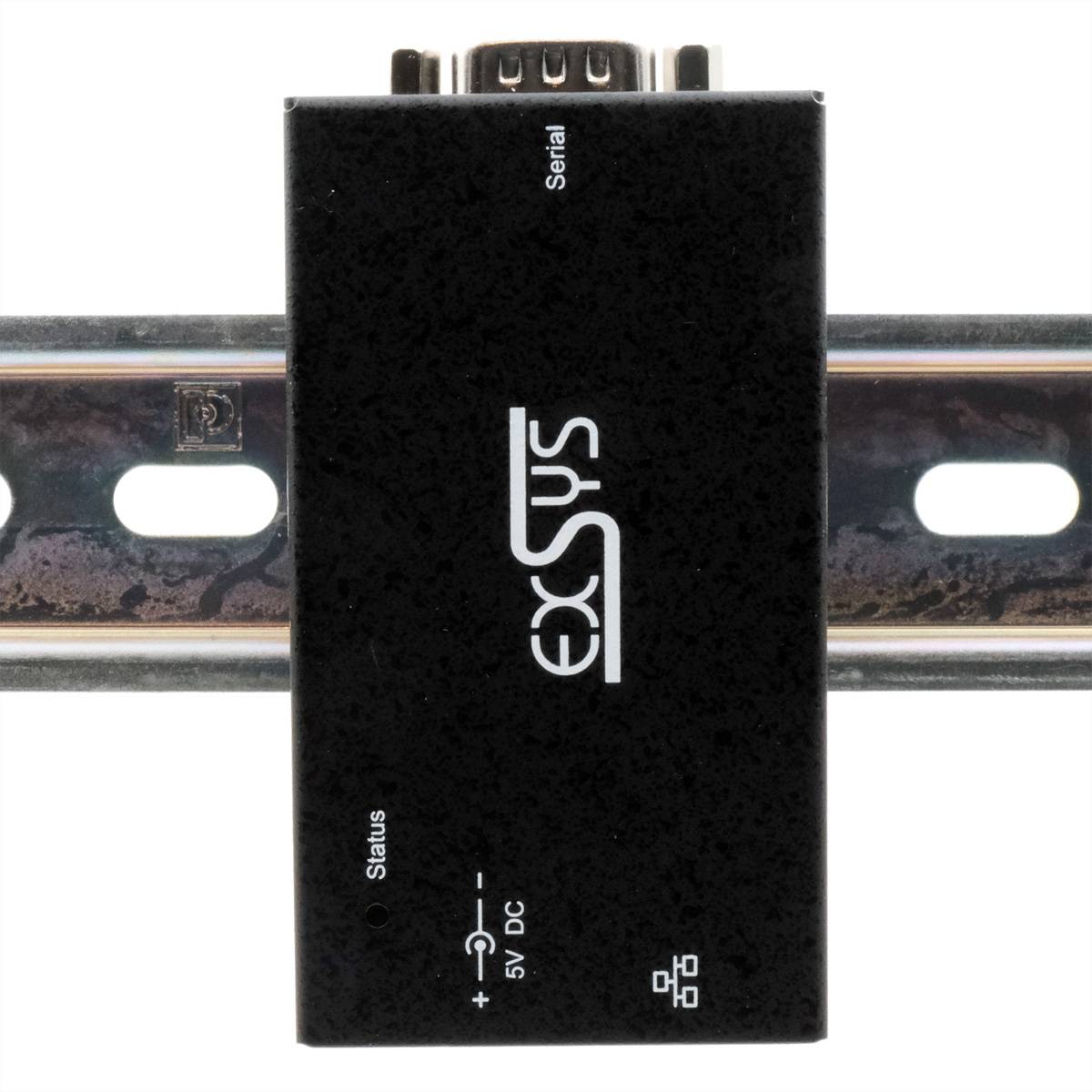

- Robust metal casing with DIN-rail kit

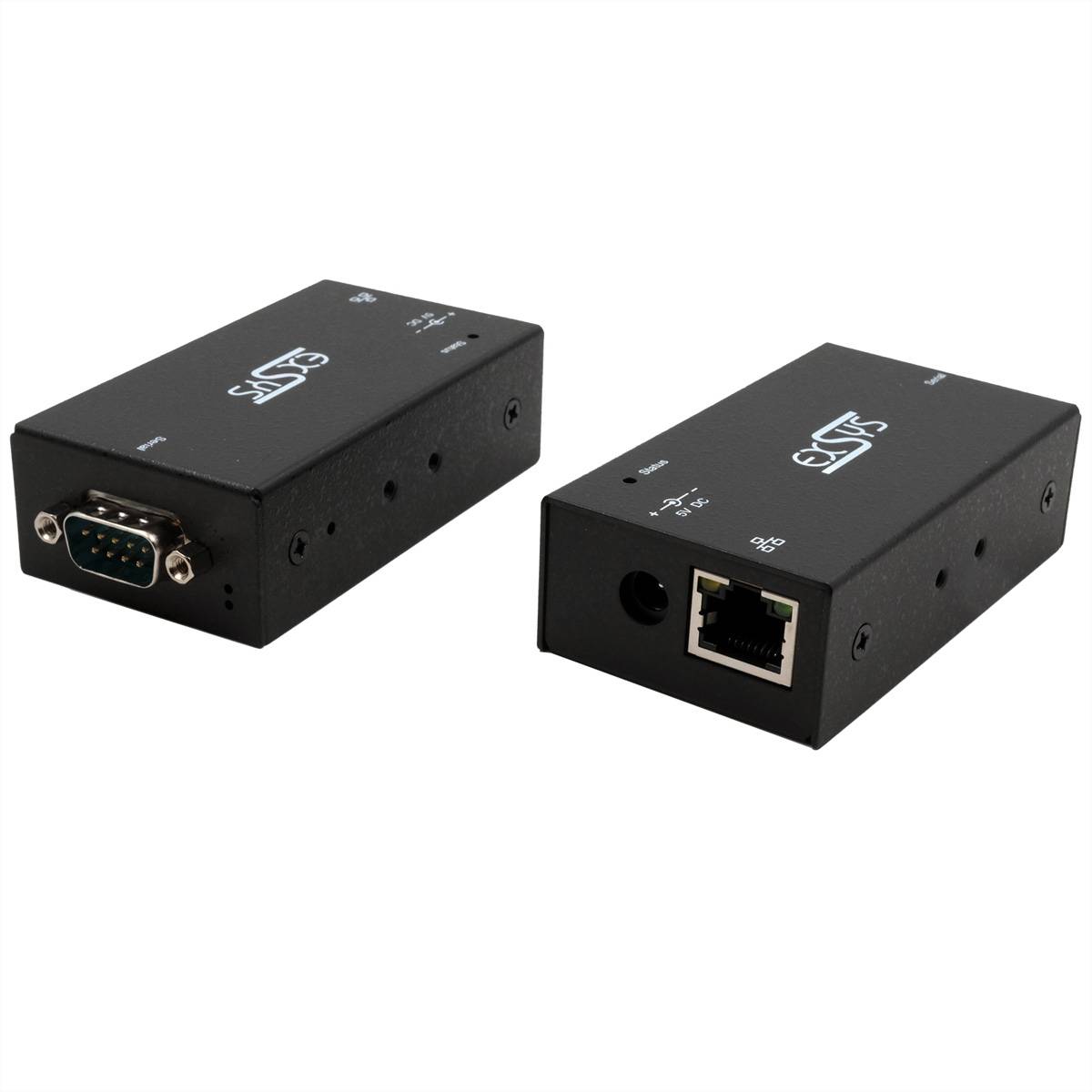

- Point-to-point connection, requires no software
- Virtual COM software for download
Technical specifications
- Product group: Adapters, terminators, converters
- Product Type: RS-232 to Ethernet Data Gateway
- Colour, black

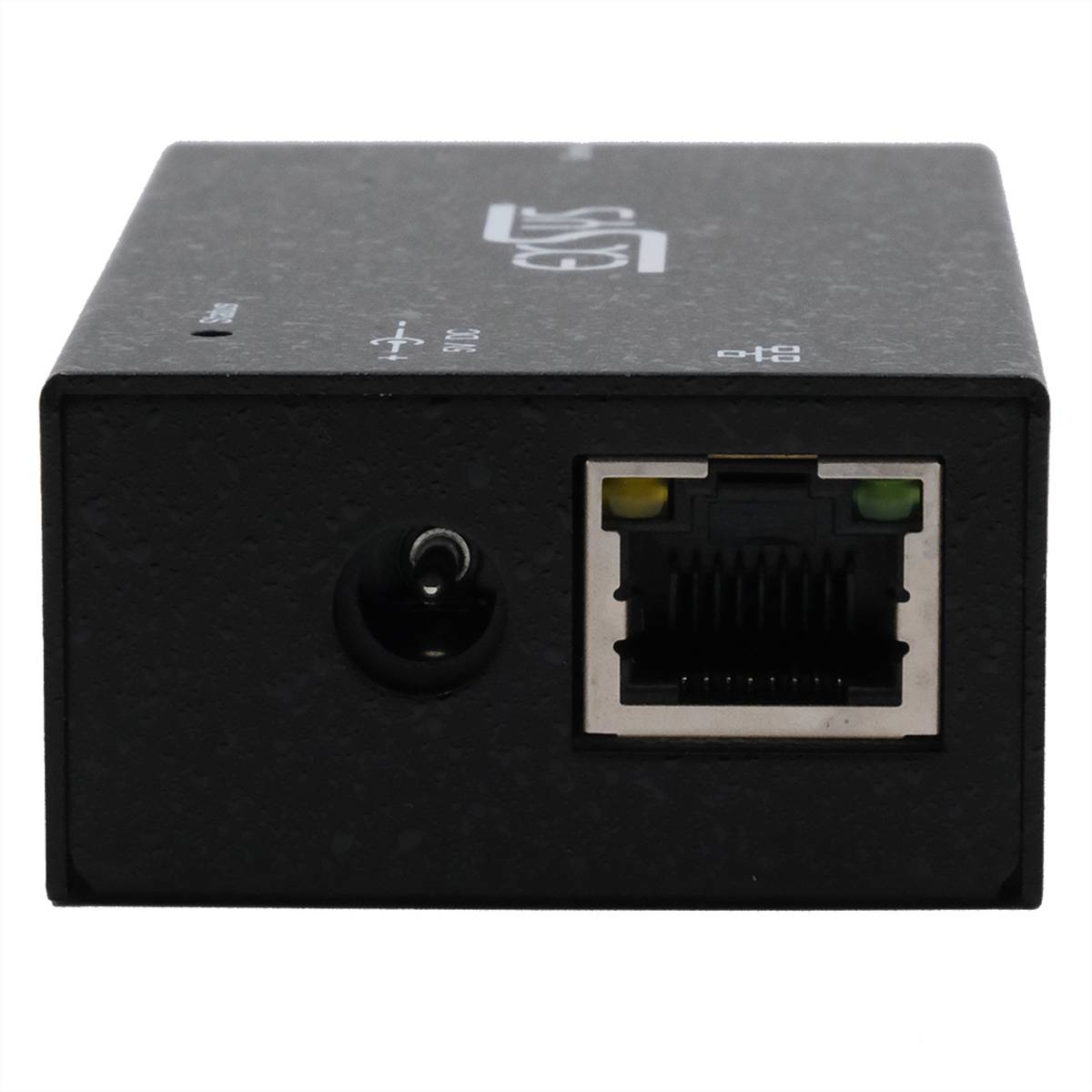

- Connections on side 1 (PC): RJ45 socket
- Connections side 2 (peripherals): RS-232 9 pin plug
- Page 1 Type of connection: D-Sub 9-pin (DE-9)
- Page 1 Type of connection: Male (plug)
- Page 2 Port Type: RJ-45 (8P8C)
- Page 2 Type of connection: Female (female)
- Range of application: External
- Material: Metallic
- Min. Operating temperature 0 °C
- Max. operating temperature: 75 °C
- Height: 25 mm
- Width 82 mm
- Depth: 46.2 mm
- Weight: 182 g
- Packaging height 70 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,542 kg
- Gross weight: 0.542
- Product type
Serial console access server
- Weight
0.54
- Type
EXSYS GmbH Ethernet zu 1 x RS-232, inkl. 5V/4A Netzteil (EX-6111-2)
- Factory colour
Black
- Cable length
0 m
- Version
Cable
- Keyboard layout
German, QWERTZ
- Cable use
RS232
- Type
Serial Multiprotocol RS-232 device server
- Used at
External
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796999 EXSYS EX-6111-2 1 Ethernet with 1 x serial RS-232 including adapter
User & Safety Instructions
User & Safety Instructions 3796999 EXSYS EX-6111-2 1 Ethernet with 1 x serial RS-232 including adapter
Description

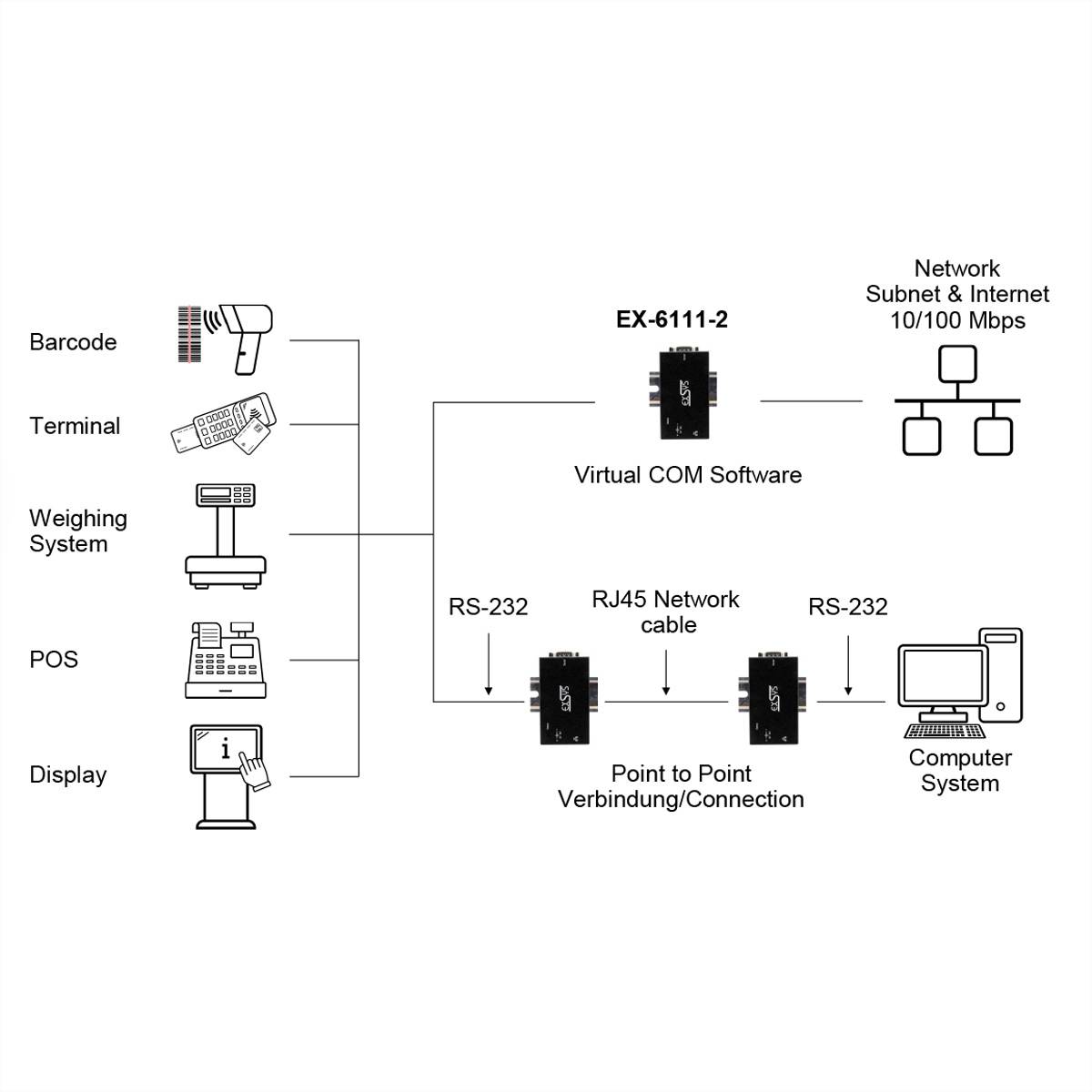

Serial Multiprotocol RS-232 Device Server The EX-6111-2 is a serial multiprotocol RS-232 device server that is designed to connect to a serial RS-232 device, including POS systems, bar code readers, sensors, meters, Weighing systems, CNC controls and PLCs, developed on an IP-based Ethernet network. The serial device is connected via Ethernet and is available for sharing on the subnet and the Internet. Remote configuration is performed using comprehensive network protocols such as TCP server, TCP client, UDP, VCOM or serial Telnet/RFC2217. In order to ensure backward compatibility with legacy serial devices that run the existing COM port application software, the EX-6111-2 offers a virtual COM port (VCOM) that perfectly migrates your serial application, without modifying the software. . In addition, serial devices can communicate with each other in peer-to-peer mode without the need to connect a PC or require conversion software.
This text is machine translated.
Scope of delivery

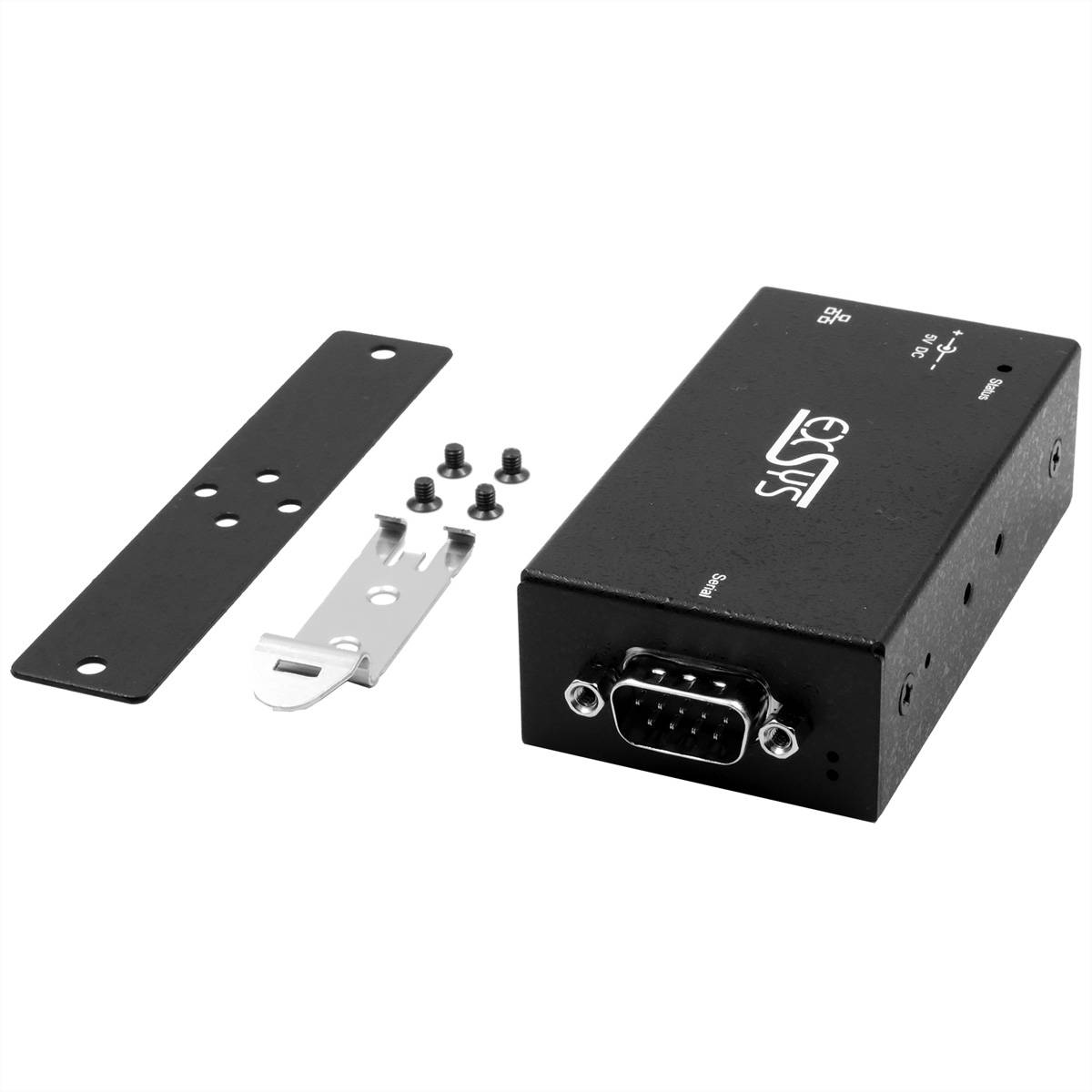

- EX-6111-2, power supply 5V/4A, DIN-Rail Kit, wall mounting kit, manual
